jeston nano 下调用csi摄像头来运行orbslam2
发布时间
阅读量：
阅读量
1.首先对摄像头进行标定
正确安装好摄像头之后，可以在终端下输入，摄像头就会开启
nvgstcapture-1.0
想关掉摄像头的话，直接在终端输入q再按回车；
想获图片的话，在终端输入j再按回车，图片将保存当前目录下；
利用张正友标定法对相机进行标定：
首先打印一张用于标定的棋盘格，然后按照上述方式，从不同角度不同具体拍摄棋盘格照片（大约20张左右），然后用Matlab工具箱进行标定。
参考：<>
2.重写一个接口，用来调用ORBSLAM2
对于数据集上的示例，ORB-SLAM2 会首先读取数据集中的图像，再放到 SLAM 中处理。那么对于我们自己的摄像头，同样可以这样处理。所以最方便的方案是直接将我 们的程序作为一个新的可执行程序，加入到 ORB-SLAM2 工程中。
cd Examples/Monocular/
vim myslam.cc
vim myslam.yaml在myslam.cc 中写入以下内容
// 该文件将打开你电脑的摄像头，并将图像传递给ORB-SLAM2进行定位
// 需要opencv
#include <opencv2/opencv.hpp>
// ORB-SLAM的系统接口
#include "System.h"
#include <string>
#include <chrono> // for time stamp
#include <iostream>
using namespace std;
int main(int argc, char **argv) {
//传入参数文件和词典文件
string parameterFile = argv[1];
string vocFile = argv[2];
// 声明 ORB-SLAM2 系统
ORB_SLAM2::System SLAM(vocFile, parameterFile, ORB_SLAM2::System::MONOCULAR, true);
// 获取相机图像代码
cv::VideoCapture cap(0); // change to 1 if you want to use USB camera.
// 分辨率设为640x480
cap.set(CV_CAP_PROP_FRAME_WIDTH, 640);
cap.set(CV_CAP_PROP_FRAME_HEIGHT, 480);
// 记录系统时间
auto start = chrono::system_clock::now();
while (1) {
cv::Mat frame;
cap >> frame; // 读取相机数据
auto now = chrono::system_clock::now();
auto timestamp = chrono::duration_cast<chrono::milliseconds>(now - start);
SLAM.TrackMonocular(frame, double(timestamp.count())/1000.0);
}
return 0;
}在myslam.yaml 中写入自己标定的相机内参
%YAML:1.0
#--------------------------------------------------------------------------------------------
# Camera Parameters. Adjust them!
#--------------------------------------------------------------------------------------------
# Camera calibration and distortion parameters (OpenCV)
# 主要是在这里写入自己的标定参数，这个文件可以通过copy 数据集的yaml文件进行修改即可
Camera.fx:
Camera.fy:
Camera.cx:
Camera.cy:
Camera.k1:
Camera.k2:
Camera.p1:
Camera.p2:
Camera.k3:
# Camera frames per second
Camera.fps: 30.0
# Color order of the images (0: BGR, 1: RGB. It is ignored if images are grayscale)
Camera.RGB: 0
#--------------------------------------------------------------------------------------------
# ORB Parameters
#--------------------------------------------------------------------------------------------
# ORB Extractor: Number of features per image
ORBextractor.nFeatures: 1000
# ORB Extractor: Scale factor between levels in the scale pyramid
ORBextractor.scaleFactor: 1.2
# ORB Extractor: Number of levels in the scale pyramid
ORBextractor.nLevels: 8
# ORB Extractor: Fast threshold
# Image is divided in a grid. At each cell FAST are extracted imposing a minimum response.
# Firstly we impose iniThFAST. If no corners are detected we impose a lower value minThFAST
# You can lower these values if your images have low contrast
ORBextractor.iniThFAST: 10
ORBextractor.minThFAST: 5
#--------------------------------------------------------------------------------------------
# Viewer Parameters
#--------------------------------------------------------------------------------------------
Viewer.KeyFrameSize: 0.05
Viewer.KeyFrameLineWidth: 1
Viewer.GraphLineWidth: 0.9
Viewer.PointSize: 2
Viewer.CameraSize: 0.08
Viewer.CameraLineWidth: 3
Viewer.ViewpointX: 0
Viewer.ViewpointY: -0.7
Viewer.ViewpointZ: -1.8
Viewer.ViewpointF: 500并修改ORM_SLAM2文件夹下的CMakeLists.txt, 在最后一行加上
add_executable(myslam
Examples/Monocular/myslam.cc)
target_link_libraries(myslam ${PROJECT_NAME})到这一步其实已经写好了接口，但是在jeston nano上是不能直接使用cv::VideoCapture cap(0)的，这个时候编译也会通过，但是实际调用时会出现摄像头显示为纯灰色，不能正确工作。板载csi摄像头的开启，需要使用到GSTREAMER，如果opencv编译的时候没有开启该选项，那么是不能打开摄像头的。
3.编译opencv+GStreamer
安装依赖项
sudo apt-get install -y build-essential cmake git libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev
sudo apt-get install -y libgstreamer1.0-dev libgstreamer-plugins-base1.0-dev
sudo apt-get install -y python2.7-dev python3.6-dev python-dev python-numpy python3-numpy
sudo apt-get install -y libtbb2 libtbb-dev libjpeg-dev libpng-dev libtiff-dev libjasper-dev libdc1394-22-dev
sudo apt-get install -y libv4l-dev v4l-utils qv4l2 v4l2ucp
sudo apt-get install -y curl下载opencv源码，注意这里同时需要opencv_contrib-3.4.0文件夹，将其与opencv-3.4.0并列放在一起(注意版本号的对应)
对源码进行编译：
cd opencv-3.4.0/
sudo mkdir build
cd build/
cmake -D WITH_CUDA=ON -D CUDA_ARCH_BIN="5.3" -D CUDA_ARCH_PTX="" -D OPENCV_EXTRA_MODULES_PATH=../../opencv_contrib-3.4.0/modules -D WITH_GSTREAMER=ON -D WITH_LIBV4L=ON -D BUILD_opencv_python2=ON -D BUILD_opencv_python3=ON -D BUILD_TESTS=OFF -D BUILD_PERF_TESTS=OFF -D BUILD_EXAMPLES=OFF -D CMAKE_BUILD_TYPE=RELEASE -D CMAKE_INSTALL_PREFIX=/usr/local ..
make -j3
sudo make install编译时出现了libGL.so的链接问题：
1.搜索libGL.so文件路径： 比如，本机中路径为：/usr/lib/libGL.so
2.建立symlink: sudo ln -s /usr/lib/libGL.so.1 /usr/lib/aarch64-linux-gnu/libGL.so
（之所以链接到libGL.so.1而不是libGL.so可能是为了便于区分）
3.如果出现错误： ln: failed to create symbolic link ‘/usr/lib/aarch64-linux-gnu/libGL.so‘ : File exists
则删除已有链接： sudo rm /usr/lib/aarch64-linux-gnu/libGL.so
4.重新执行步骤2建立symlink
参考：http://www.mamicode.com/info-detail-2779089.html
板载摄像头的测试：
github有一个写好的测试脚本
git clone https://github.com/JetsonHacksNano/CSI-Camera.git
cd CSI-Camera
python3 simple_camera.py参考：https://www.squirrelzoo.com/archives/1805
同时测试一下c++的支持
g++ -std=c++11 -Wall -I/usr/lib/opencv simple_camera.cpp -L/usr/lib -lopencv_core -lopencv_highgui -lopencv_videoio -o simple_camera
./simple_camera可以看到在c++代码中成功开启了csi摄像头，让我们去查看一下simple_camera.cpp代码
// simple_camera.cpp
// MIT License
// Copyright (c) 2019 JetsonHacks
// See LICENSE for OpenCV license and additional information
// Using a CSI camera (such as the Raspberry Pi Version 2) connected to a
// NVIDIA Jetson Nano Developer Kit using OpenCV
// Drivers for the camera and OpenCV are included in the base image
#include <iostream>
#include <opencv2/opencv.hpp>
#include <opencv2/videoio.hpp>
#include <opencv2/highgui.hpp>
std::string gstreamer_pipeline (int capture_width, int capture_height, int display_width, int display_height, int framerate, int flip_method) {
return "nvarguscamerasrc ! video/x-raw(memory:NVMM), width=(int)" + std::to_string(capture_width) + ", height=(int)" +
std::to_string(capture_height) + ", format=(string)NV12, framerate=(fraction)" + std::to_string(framerate) +
"/1 ! nvvidconv flip-method=" + std::to_string(flip_method) + " ! video/x-raw, width=(int)" + std::to_string(display_width) + ", height=(int)" +
std::to_string(display_height) + ", format=(string)BGRx ! videoconvert ! video/x-raw, format=(string)BGR ! appsink";
}
int main()
{
int capture_width = 1280 ;
int capture_height = 720 ;
int display_width = 1280 ;
int display_height = 720 ;
int framerate = 60 ;
int flip_method = 0 ;
std::string pipeline = gstreamer_pipeline(capture_width,
capture_height,
display_width,
display_height,
framerate,
flip_method);
std::cout << "Using pipeline: \n\t" << pipeline << "\n";
cv::VideoCapture cap(pipeline, cv::CAP_GSTREAMER);
if(!cap.isOpened()) {
std::cout<<"Failed to open camera."<<std::endl;
return (-1);
}
cv::namedWindow("CSI Camera", cv::WINDOW_AUTOSIZE);
cv::Mat img;
std::cout << "Hit ESC to exit" << "\n" ;
while(true)
{
if (!cap.read(img)) {
std::cout<<"Capture read error"<<std::endl;
break;
}
cv::imshow("CSI Camera",img);
int keycode = cv::waitKey(30) & 0xff ;
if (keycode == 27) break ;
}
cap.release();
cv::destroyAllWindows() ;
return 0;
}可以看到主要是写了一个pipeline，然后使用了cv::VideoCapture cap(pipeline, cv::CAP_GSTREAMER);
这就给我们提供了一个思路，用同样的方式对之前的myslam.cc进行修改；
4.编译好之后重写接口
#include <opencv2/opencv.hpp>
#include "System.h"
#include <string>
#include <chrono>
#include <iostream>
#include <opencv2/videoio.hpp>
#include <opencv2/highgui.hpp>
using namespace std;
using namespace cv;
std::string gstreamer_pipeline (int capture_width, int capture_height, int display_width, int display_height, int framerate, int flip_method) {
return "nvarguscamerasrc ! video/x-raw(memory:NVMM), width=(int)" + std::to_string(capture_width) + ", height=(int)" +
std::to_string(capture_height) + ", format=(string)NV12, framerate=(fraction)" + std::to_string(framerate) +
"/1 ! nvvidconv flip-method=" + std::to_string(flip_method) + " ! video/x-raw, width=(int)" + std::to_string(display_width) + ", height = (int)" +
std::to_string(display_height) + ", format=(string)BGRx ! videoconvert ! video/x-raw, format=(string)BGR ! appsink";
}
int main(int argc,char** argv)
{
string parameterFile = argv[1];
string vocFile = argv[2];
ORB_SLAM2::System SLAM(vocFile,parameterFile,ORB_SLAM2::System::MONOCULAR,true);
int capture_width = 640 ;
int capture_height = 480 ;
int display_width = 640 ;
int display_height = 480 ;
int framerate = 30 ;
int flip_method = 0 ;
std::string pipeline = gstreamer_pipeline(capture_width,
capture_height,
display_width,
display_height,
framerate,
flip_method);
std::cout << "Using pipeline: \n\t" << pipeline << "\n";
VideoCapture cap(pipeline,cv::CAP_GSTREAMER);
if(!cap.isOpened())
{
std::cout << "failed to open cam" << endl;
return -1;
}
auto start = chrono::system_clock::now();
while(1)
{
Mat frame;
cap.read(frame);
if(frame.empty()){
cerr << "error ,blank frame." << endl;
break;
}
auto now = chrono::system_clock::now();
auto timestamp = chrono::duration_cast<chrono::milliseconds>(now - start);
SLAM.TrackMonocular(frame,double(timestamp.count())/1000.0);
}
cap.release();
SLAM.Shutdown();
return 0;
}然后再进行重新编译即可。

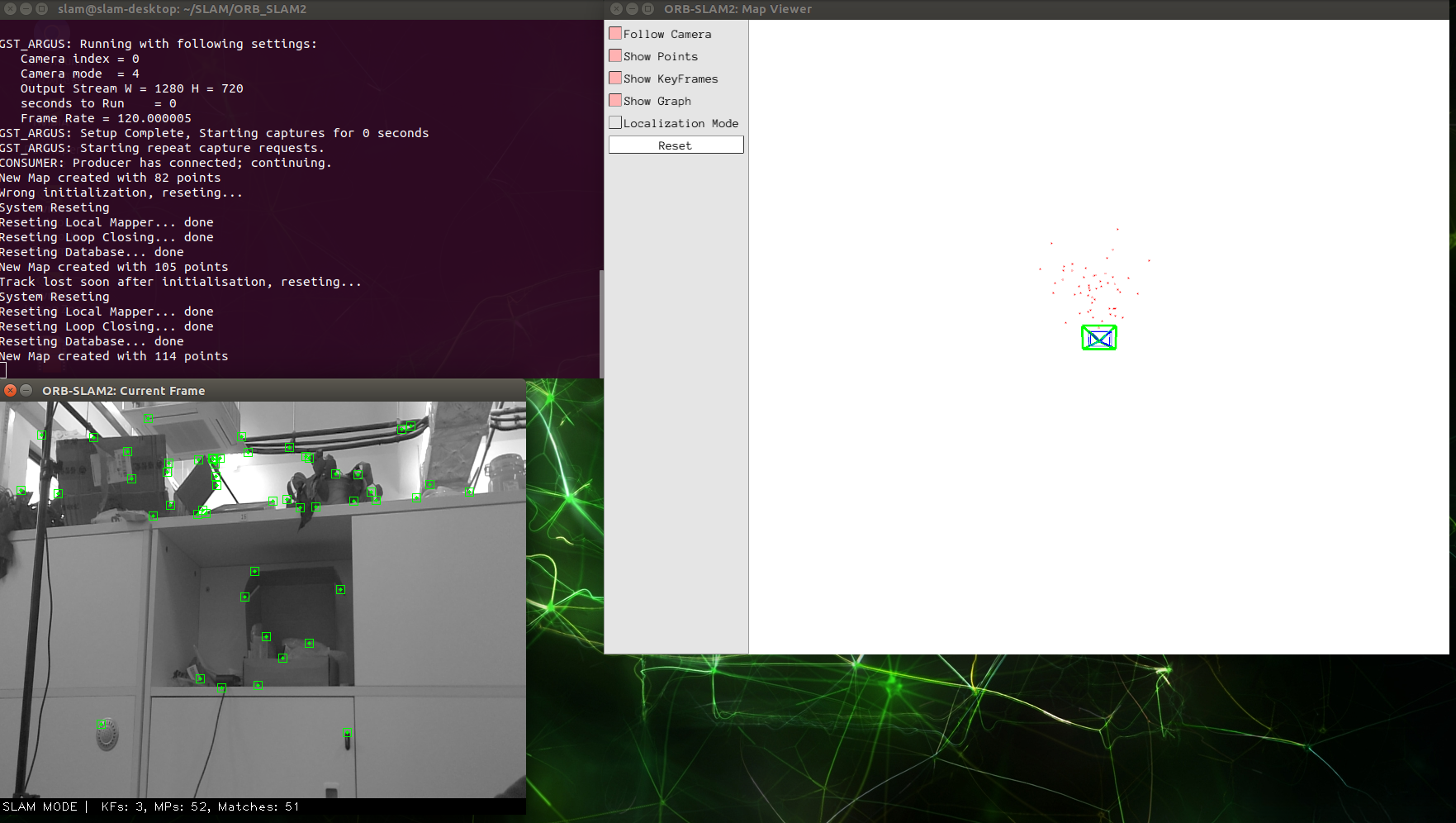

6.运行测试
./Examples/Monocular/myslam Examples/Monocular/myslam.yaml Vocabulary/ORBvoc.txt
