TextCNN文本分类（keras实现）

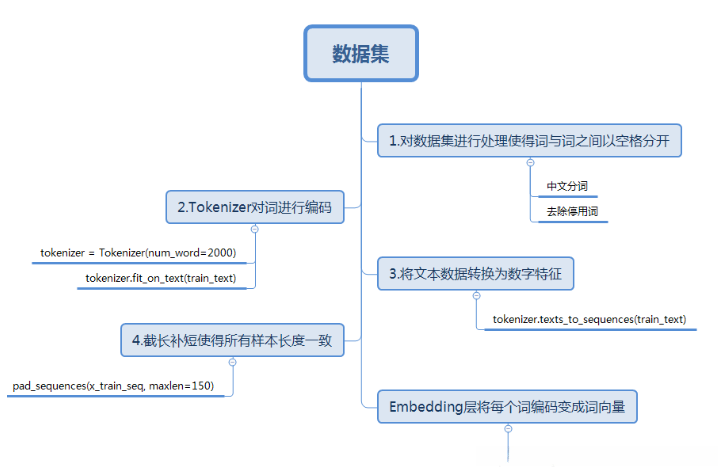

 from sklearn.model_selection import train_test_split


 import pandas as pd

 import jieba

 from keras.preprocessing.text import Tokenizer

 from keras.preprocessing.sequence import pad_sequences



 if __name__=='__main__':

     dataset = pd.read_csv('sentiment_analysis/data_train.csv', sep='\t',names=['ID', 'type', 'review', 'label']).astype(str)

     cw = lambda x: list(jieba.cut(x))

     dataset['words'] = dataset['review'].apply(cw)

     tokenizer=Tokenizer()  #创建一个Tokenizer对象

     #fit_on_texts函数可以将输入的文本中的每个词编号，编号是根据词频的，词频越大，编号越小

     tokenizer.fit_on_texts(dataset['words'])

     vocab=tokenizer.word_index #得到每个词的编号

     x_train, x_test, y_train, y_test = train_test_split(dataset['words'], dataset['label'], test_size=0.1)

     # 将每个样本中的每个词转换为数字列表，使用每个词的编号进行编号

     x_train_word_ids=tokenizer.texts_to_sequences(x_train)

     x_test_word_ids = tokenizer.texts_to_sequences(x_test)

     #序列模式

     # 每条样本长度不唯一，将每条样本的长度设置一个固定值

     x_train_padded_seqs=pad_sequences(x_train_word_ids,maxlen=50) #将超过固定值的部分截掉，不足的在最前面用0填充

     x_test_padded_seqs=pad_sequences(x_test_word_ids, maxlen=50)




    代码解读

 #构建CNN分类模型(LeNet-5)


 #模型结构：嵌入-卷积池化*2-dropout-BN-全连接-dropout-全连接

 def CNN_model(x_train_padded_seqs, y_train, x_test_padded_seqs, y_test):

     model = Sequential()

     model.add(Embedding(len(vocab) + 1, 300, input_length=50)) #使用Embeeding层将每个词编码转换为词向量

     model.add(Conv1D(256, 5, padding='same'))

     model.add(MaxPooling1D(3, 3, padding='same'))

     model.add(Conv1D(128, 5, padding='same'))

     model.add(MaxPooling1D(3, 3, padding='same'))

     model.add(Conv1D(64, 3, padding='same'))

     model.add(Flatten())

     model.add(Dropout(0.1))

     model.add(BatchNormalization())  # (批)规范化层

     model.add(Dense(256, activation='relu'))

     model.add(Dropout(0.1))

     model.add(Dense(3, activation='softmax'))

     model.compile(loss='categorical_crossentropy',optimizer='adam',metrics=['accuracy'])

     one_hot_labels = keras.utils.to_categorical(y_train, num_classes=3)  # 将标签转换为one-hot编码

     model.fit(x_train_padded_seqs, one_hot_labels,epochs=5, batch_size=800)

     y_predict = model.predict_classes(x_test_padded_seqs)  # 预测的是类别，结果就是类别号

     y_predict = list(map(str, y_predict))

     print('准确率', metrics.accuracy_score(y_test, y_predict))

     print('平均f1-score:', metrics.f1_score(y_test, y_predict, average='weighted'))




    代码解读

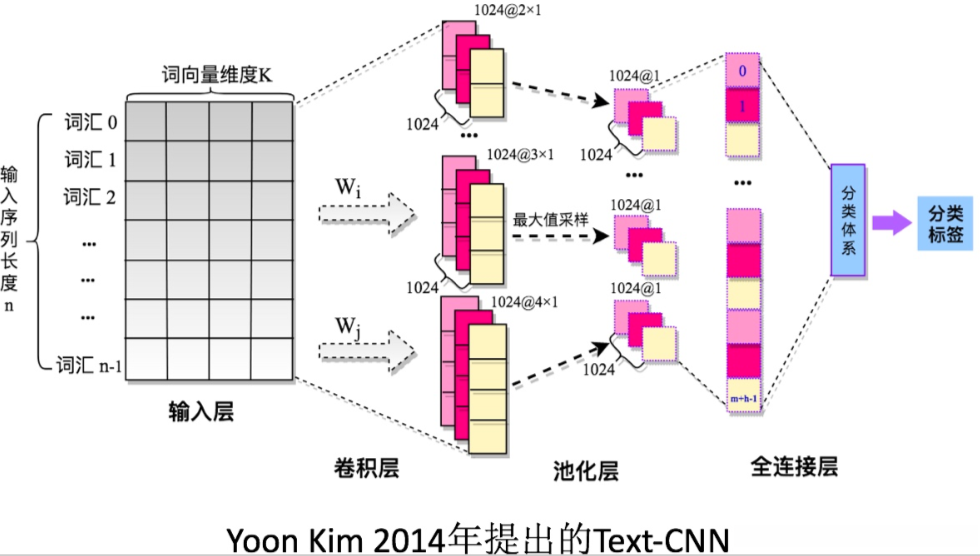

 #构建TextCNN模型


 #模型结构：词嵌入-卷积池化*3-拼接-全连接-dropout-全连接

 def TextCNN_model_1(x_train_padded_seqs,y_train,x_test_padded_seqs,y_test):

     main_input = Input(shape=(50,), dtype='float64')

     # 词嵌入（使用预训练的词向量）

     embedder = Embedding(len(vocab) + 1, 300, input_length=50, trainable=False)

     embed = embedder(main_input)

     # 词窗大小分别为3,4,5

     cnn1 = Conv1D(256, 3, padding='same', strides=1, activation='relu')(embed)

     cnn1 = MaxPooling1D(pool_size=48)(cnn1)

     cnn2 = Conv1D(256, 4, padding='same', strides=1, activation='relu')(embed)

     cnn2 = MaxPooling1D(pool_size=47)(cnn2)

     cnn3 = Conv1D(256, 5, padding='same', strides=1, activation='relu')(embed)

     cnn3 = MaxPooling1D(pool_size=46)(cnn3)

     # 合并三个模型的输出向量

     cnn = concatenate([cnn1, cnn2, cnn3], axis=-1)

     flat = Flatten()(cnn)

     drop = Dropout(0.2)(flat)

     main_output = Dense(3, activation='softmax')(drop)

     model = Model(inputs=main_input, outputs=main_output)

     model.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])



     one_hot_labels = keras.utils.to_categorical(y_train, num_classes=3)  # 将标签转换为one-hot编码

     model.fit(x_train_padded_seqs, one_hot_labels, batch_size=800, epochs=10)

     #y_test_onehot = keras.utils.to_categorical(y_test, num_classes=3)  # 将标签转换为one-hot编码

     result = model.predict(x_test_padded_seqs)  # 预测样本属于每个类别的概率

     result_labels = np.argmax(result, axis=1)  # 获得最大概率对应的标签

     y_predict = list(map(str, result_labels))

     print('准确率', metrics.accuracy_score(y_test, y_predict))

     print('平均f1-score:', metrics.f1_score(y_test, y_predict, average='weighted'))




    代码解读

 w2v_model=Word2Vec.load('sentiment_analysis/w2v_model.pkl')


 # 预训练的词向量中没有出现的词用0向量表示

 embedding_matrix = np.zeros((len(vocab) + 1, 300))

 for word, i in vocab.items():

     try:

     embedding_vector = w2v_model[str(word)]

     embedding_matrix[i] = embedding_vector

     except KeyError:

     continue



 #构建TextCNN模型

 def TextCNN_model_2(x_train_padded_seqs,y_train,x_test_padded_seqs,y_test,embedding_matrix):

     # 模型结构：词嵌入-卷积池化*3-拼接-全连接-dropout-全连接

     main_input = Input(shape=(50,), dtype='float64')

     # 词嵌入（使用预训练的词向量）

     embedder = Embedding(len(vocab) + 1, 300, input_length=50, weights=[embedding_matrix], trainable=False)

     #embedder = Embedding(len(vocab) + 1, 300, input_length=50, trainable=False)

     embed = embedder(main_input)

     # 词窗大小分别为3,4,5

     cnn1 = Conv1D(256, 3, padding='same', strides=1, activation='relu')(embed)

     cnn1 = MaxPooling1D(pool_size=38)(cnn1)

     cnn2 = Conv1D(256, 4, padding='same', strides=1, activation='relu')(embed)

     cnn2 = MaxPooling1D(pool_size=37)(cnn2)

     cnn3 = Conv1D(256, 5, padding='same', strides=1, activation='relu')(embed)

     cnn3 = MaxPooling1D(pool_size=36)(cnn3)

     # 合并三个模型的输出向量

     cnn = concatenate([cnn1, cnn2, cnn3], axis=-1)

     flat = Flatten()(cnn)

     drop = Dropout(0.2)(flat)

     main_output = Dense(3, activation='softmax')(drop)

     model = Model(inputs=main_input, outputs=main_output)

     model.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])



     one_hot_labels = keras.utils.to_categorical(y_train, num_classes=3)  # 将标签转换为one-hot编码

     model.fit(x_train_padded_seqs, one_hot_labels, batch_size=800, epochs=20)

     #y_test_onehot = keras.utils.to_categorical(y_test, num_classes=3)  # 将标签转换为one-hot编码

     result = model.predict(x_test_padded_seqs)  # 预测样本属于每个类别的概率

     result_labels = np.argmax(result, axis=1)  # 获得最大概率对应的标签

     y_predict = list(map(str, result_labels))

     print('准确率', metrics.accuracy_score(y_test, y_predict))

     print('平均f1-score:', metrics.f1_score(y_test, y_predict, average='weighted'))




    代码解读

 import os


 os.environ["PATH"] += os.pathsep + 'C:/Program Files (x86)/Graphviz2.38/bin/'




    代码解读

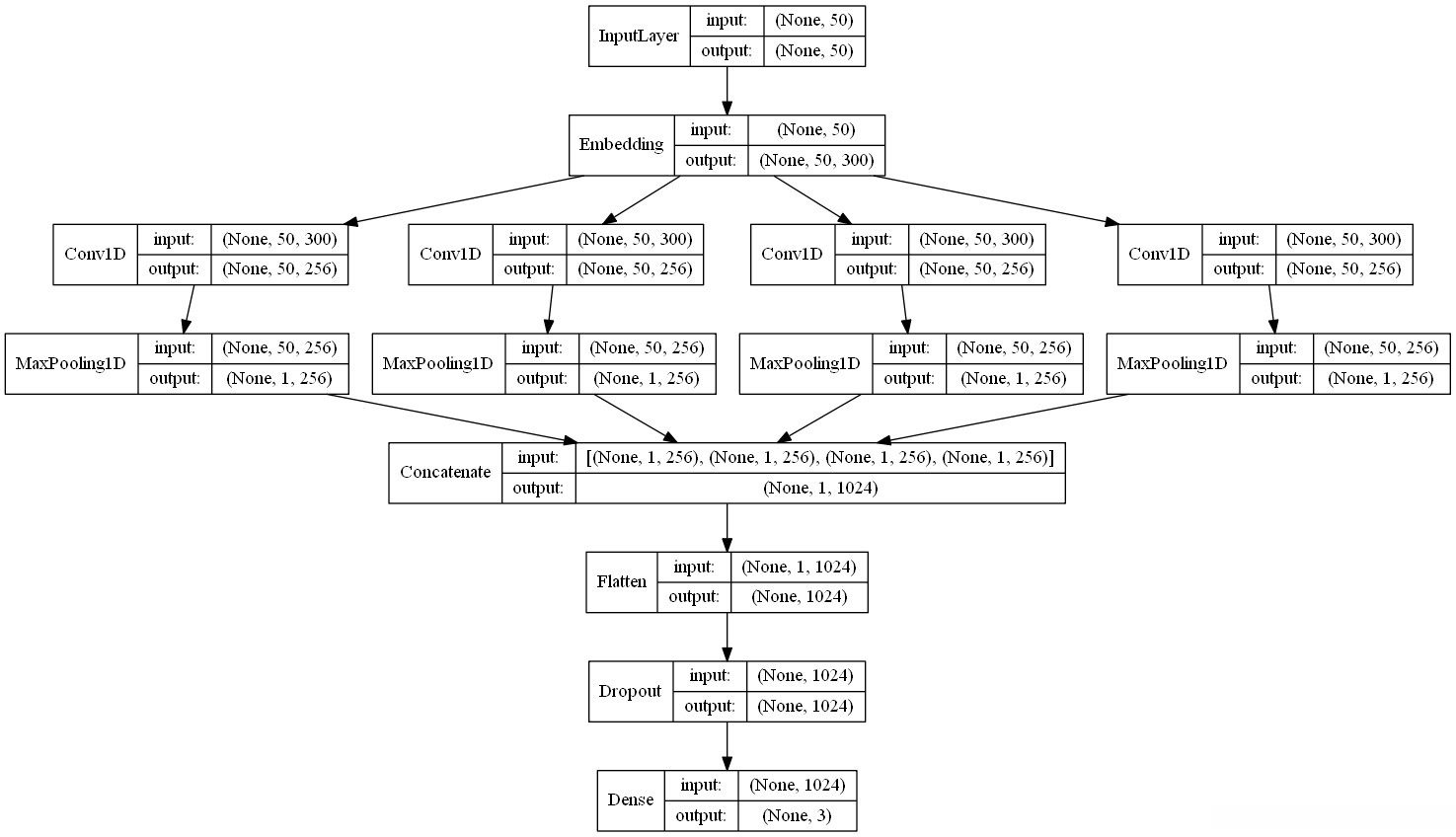

 from keras.utils import plot_model


     #生成一个模型图，第一个参数为模型，第二个参数为要生成图片的路径及文件名，还可以指定两个参数：

     #show_shapes:指定是否显示输出数据的形状，默认为False

     #show_layer_names:指定是否显示层名称，默认为True

     plot_model(model,to_file='sentiment_analysis/model.png',show_shapes=True,show_layer_names=False)




    代码解读

 from keras.models import load_model




 #模型的保存

 model.save('model.h5')



 #模型的加载

 model=load_model('model.h5')




    代码解读
