python图像分类代码_医学图像 | 使用深度学习实现乳腺癌分类（附python演练）

 dataset train


   benign



    //

   malignant



    //  validation

    benign



     //

    malignant



     //...

 import json


 import math

 import os

 import cv2

 from PIL import Image

 import numpy as np

 from keras import layers

 from keras.applications import DenseNet201

 from keras.callbacks import Callback, ModelCheckpoint, ReduceLROnPlateau, TensorBoard

 from keras.preprocessing.image import ImageDataGenerator

 from keras.utils.np_utils import to_categorical

 from keras.models import Sequential

 from keras.optimizers import Adam

 import matplotlib.pyplot as plt

 import pandas as pd

 from sklearn.model_selection import train_test_split

 from sklearn.metrics import cohen_kappa_score, accuracy_score

 import scipy

 from tqdm import tqdm

 import tensorflow as tf

 from keras import backend as K

 import gc

 from functools import partial

 from sklearn import metrics

 from collections import Counter

 import json

 import itertools

 def Dataset_loader(DIR, RESIZE, sigmaX=10):


     IMG = []

     read = lambda imname: np.asarray(Image.open(imname).convert("RGB"))

     for IMAGE_NAME in tqdm(os.listdir(DIR)):

     PATH = os.path.join(DIR,IMAGE_NAME)

     _, ftype = os.path.splitext(PATH)

     if ftype == ".png":

         img = read(PATH)



         img = cv2.resize(img, (RESIZE,RESIZE))



         IMG.append(np.array(img))

     return IMG



 benign_train = np.array(Dataset_loader('data/train/benign',224))

 malign_train = np.array(Dataset_loader('data/train/malignant',224))

 benign_test = np.array(Dataset_loader('data/validation/benign',224))

 malign_test = np.array(Dataset_loader('data/validation/malignant',224))

 benign_train_label = np.zeros(len(benign_train))


 malign_train_label = np.ones(len(malign_train))

 benign_test_label = np.zeros(len(benign_test))

 malign_test_label = np.ones(len(malign_test))



 X_train = np.concatenate((benign_train, malign_train), axis = 0)

 Y_train = np.concatenate((benign_train_label, malign_train_label), axis = 0)

 X_test = np.concatenate((benign_test, malign_test), axis = 0)

 Y_test = np.concatenate((benign_test_label, malign_test_label), axis = 0)



 s = np.arange(X_train.shape[0])

 np.random.shuffle(s)

 X_train = X_train[s]

 Y_train = Y_train[s]



 s = np.arange(X_test.shape[0])

 np.random.shuffle(s)

 X_test = X_test[s]

 Y_test = Y_test[s]



 Y_train = to_categorical(Y_train, num_classes= 2)

 Y_test = to_categorical(Y_test, num_classes= 2)

 x_train, x_val, y_train, y_val = train_test_split(


     X_train, Y_train,

     test_size=0.2,

     random_state=11

 )



 w=60

 h=40

 fig=plt.figure(figsize=(15, 15))

 columns = 4

 rows = 3



 for i in range(1, columns*rows +1):

     ax = fig.add_subplot(rows, columns, i)

     if np.argmax(Y_train[i]) == 0:

     ax.title.set_text('Benign')

     else:

     ax.title.set_text('Malignant')

     plt.imshow(x_train[i], interpolation='nearest')

 plt.show()

 BATCH_SIZE = 16




 train_generator = ImageDataGenerator(

     zoom_range=2,  # 设置范围为随机缩放

     rotation_range = 90,

     horizontal_flip=True,  # 随机翻转图片

     vertical_flip=True,  # 随机翻转图片

     )

 def build_model(backbone, lr=1e-4):


     model = Sequential()

     model.add(backbone)

     model.add(layers.GlobalAveragePooling2D())

     model.add(layers.Dropout(0.5))

     model.add(layers.BatchNormalization())

     model.add(layers.Dense(2, activation='softmax'))



     model.compile(

     loss='binary_crossentropy',

     optimizer=Adam(lr=lr),

     metrics=['accuracy']

     )

     return model



 resnet = DenseNet201(

     weights='imagenet',

     include_top=False,

     input_shape=(224,224,3)

 )



 model = build_model(resnet ,lr = 1e-4)

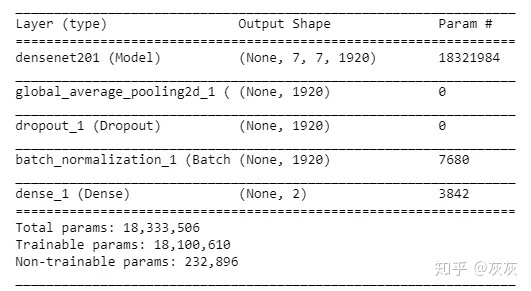

 model.summary()

 learn_control = ReduceLROnPlateau(monitor='val_acc', patience=5,


                               verbose=1,factor=0.2, min_lr=1e-7)



 filepath="weights.best.hdf5"

 checkpoint = ModelCheckpoint(filepath, monitor='val_acc', verbose=1, save_best_only=True, mode='max')



 history = model.fit_generator(

     train_generator.flow(x_train, y_train, batch_size=BATCH_SIZE),

     steps_per_epoch=x_train.shape[0] / BATCH_SIZE,

     epochs=20,

     validation_data=(x_val, y_val),

     callbacks=[learn_control, checkpoint]

 )

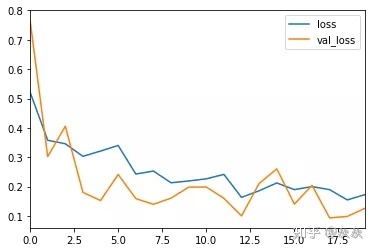

 history_df = pd.DataFrame(history.history)


 history_df[['loss', 'val_loss']].plot()



 history_df = pd.DataFrame(history.history)

 history_df[['acc', 'val_acc']].plot()

 from sklearn.metrics import classification_report


 classification_report( np.argmax(Y_test, axis=1), np.argmax(Y_pred_tta, axis=1))



 from sklearn.metrics import confusion_matrix



 def plot_confusion_matrix(cm, classes,

                       normalize=False,

                       title='Confusion matrix',

                       cmap=plt.cm.Blues):

     if normalize:

     cm = cm.astype('float') / cm.sum(axis=1)[:, np.newaxis]

     print("Normalized confusion matrix")

     else:

     print('Confusion matrix, without normalization')



     print(cm)



     plt.imshow(cm, interpolation='nearest', cmap=cmap)

     plt.title(title)

     plt.colorbar()

     tick_marks = np.arange(len(classes))

     plt.xticks(tick_marks, classes, rotation=55)

     plt.yticks(tick_marks, classes)

     fmt = '.2f' if normalize else 'd'

     thresh = cm.max() / 2.

     for i, j in itertools.product(range(cm.shape[0]), range(cm.shape[1])):

     plt.text(j, i, format(cm[i, j], fmt),

              horizontalalignment="center",

              color="white" if cm[i, j] > thresh else "black")



     plt.ylabel('True label')

     plt.xlabel('Predicted label')

     plt.tight_layout()

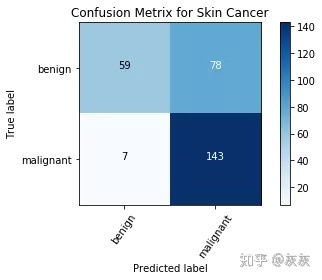

 cm = confusion_matrix(np.argmax(Y_test, axis=1), np.argmax(Y_pred, axis=1))



 cm_plot_label =['benign', 'malignant']

 plot_confusion_matrix(cm, cm_plot_label, title ='Confusion Metrix for Skin Cancer')

 from sklearn.metrics import roc_auc_score, auc


 from sklearn.metrics import roc_curve

 roc_log = roc_auc_score(np.argmax(Y_test, axis=1), np.argmax(Y_pred_tta, axis=1))

 false_positive_rate, true_positive_rate, threshold = roc_curve(np.argmax(Y_test, axis=1), np.argmax(Y_pred_tta, axis=1))

 area_under_curve = auc(false_positive_rate, true_positive_rate)



 plt.plot([0, 1], [0, 1], 'r--')

 plt.plot(false_positive_rate, true_positive_rate, label='AUC = {:.3f}'.format(area_under_curve))

 plt.xlabel('False positive rate')

 plt.ylabel('True positive rate')

 plt.title('ROC curve')

 plt.legend(loc='best')

 plt.show()

 #plt.savefig(ROC_PLOT_FILE, bbox_inches='tight')

 plt.close()
