深度学习论文: CenterMask : Real-Time Anchor-Free Instance Segmentation及其PyTorch实现
该系统采用基于中心mask的技术，在实时 anchor-free的方式下实现目标实例分割（Real-Time Anchor-Free Instance Segmentation）。其PDF版本链接为： https://arxiv.org/pdf/1911.06667.pdf 。其GitHub仓库中的PyTorch实现代码可访问以下链接： https://github.com/shanglianlm0525/PyTorch-Networks
相关文章链接：
VoVNet 深度学习领域的研究: Efficient Backbone Network for Object Detection及其PyTorch实现
VoVNetV2 深度学习领域的研究: CenterMask : 技术突破性 实现Real-Time Anchor-Free Instance Segmentation及其PyTorch实现
1 概述

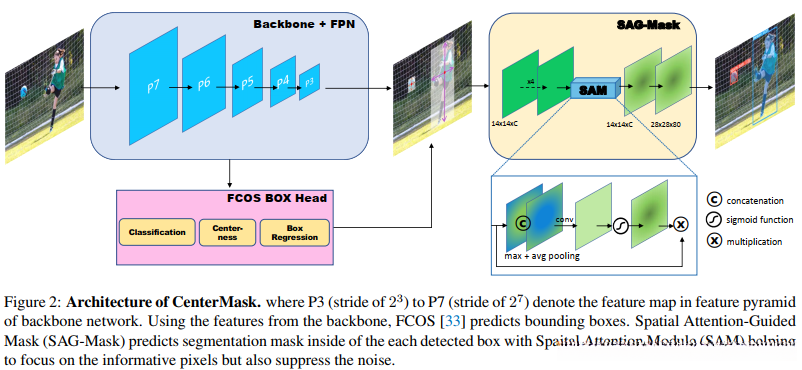

基于FOCS检测的结果，在其基础上引入一个新的SAG-Mask（基于空间注意力引导的掩膜）分支，并模仿Mask RCNN的方法以类似的方式实现分割效果。
2 CenterMask
2-1 Adaptive RoI Assignment Function (自适应的RoI分配机制)
Mask RCNN网络基于检测出的RoI尺寸将之分布在各个FPN层级中，并随后利用RoIAlign进行特征对准。其实现机制可具体表现为如下的映射关系：
但是上述公式并不完全适合不同尺寸输入的图片, 为了改善这一问题, 可以尝试将RoI映射关系采用以下的形式进行重新定义

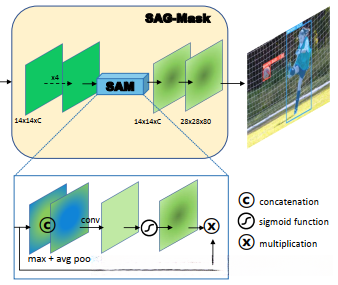

2-2 Spatial Attention-Guided Mask (空间注意力引导的Mask分割)
空间注意力特征（spatial attention map）帮助进行目标聚焦与抑制噪声。
PyTorch代码：
class SAG_Mask(nn.Module):
def __init__(self, in_channels, out_channels):
super(SAG_Mask, self).__init__()
mid_channels = in_channels
self.fisrt_convs = nn.Sequential(
Conv3x3BNReLU(in_channels=in_channels, out_channels=mid_channels, stride=1),
Conv3x3BNReLU(in_channels=mid_channels, out_channels=mid_channels, stride=1),
Conv3x3BNReLU(in_channels=mid_channels, out_channels=mid_channels, stride=1),
Conv3x3BNReLU(in_channels=mid_channels, out_channels=mid_channels, stride=1)
)
self.avg_pool = nn.AvgPool2d(kernel_size=3, stride=1, padding=1)
self.max_pool = nn.MaxPool2d(kernel_size=3, stride=1, padding=1)
self.conv3x3 = Conv3x3BNReLU(in_channels=mid_channels*2, out_channels=mid_channels, stride=1)
self.sigmoid = nn.Sigmoid()
self.deconv = nn.ConvTranspose2d(mid_channels,mid_channels,kernel_size=2, stride=2)
self.conv1x1 = Conv1x1BN(mid_channels,out_channels)
def forward(self, x):
residual = x = self.fisrt_convs(x)
aggregate = torch.cat([self.avg_pool(x), self.max_pool(x)], dim=1)
sag = self.sigmoid(self.conv3x3(aggregate))
sag_x = residual + sag * x
out = self.conv1x1(self.deconv(sag_x))
return out
if __name__=='__main__':
sag_mask = SAG_Mask(16,80)
print(sag_mask)
input = torch.randn(1, 16, 14, 14)
out = sag_mask(input)
print(out.shape)
代码解读2-3 VoVNetV2

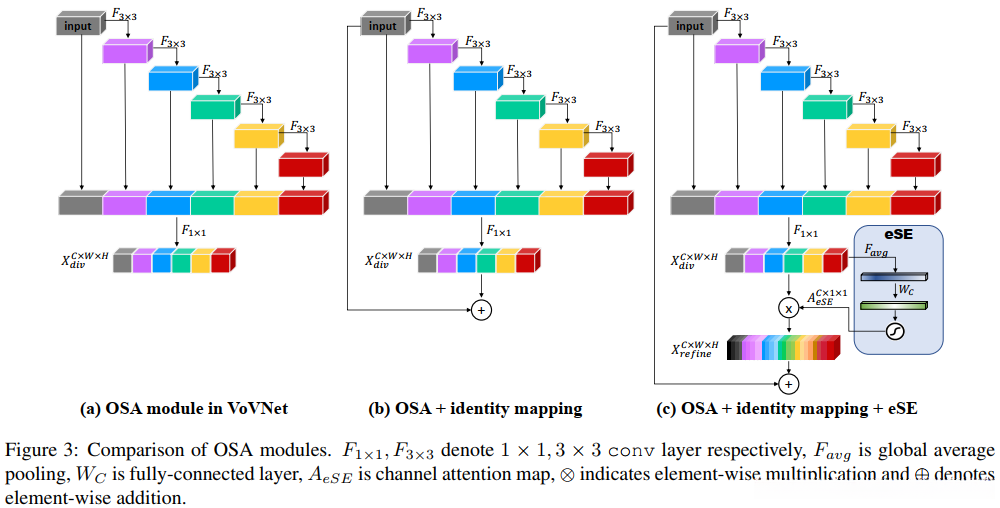

对VoVNet进行了有效的优化工作：第一点是借助残差连接机制缓解了较大规模VoVNet出现的饱和现象；第二点则采用新型Squeeze-Excitation（eSE）结构来弥补传统SE模块的信息丢失问题。基于相同的ResNet101-FPN主干网络架构，在实验中所提出方法实现了高达38.3% mask AP的平均精度。与现有所有模型相比不仅性能更优而且运行效率更高
通过引入输入到输出之间的残差连接机制，在深层网络叠加过程中有效地解决了性能饱和与梯度消失的问题；
在输出层引入了一个通道级注意力机制eSE，并替换了两个全连接层以减少模型参数数量。
PyTorch代码：
class eSE_Module(nn.Module):
def __init__(self, channel,ratio = 16):
super(eSE_Module, self).__init__()
self.squeeze = nn.AdaptiveAvgPool2d(1)
self.excitation = nn.Sequential(
nn.Conv2d(channel, channel, kernel_size=1, padding=0),
nn.ReLU(inplace=True),
nn.Sigmoid()
)
def forward(self, x):
b, c, _, _ = x.size()
y = self.squeeze(x)
z = self.excitation(y)
return x * z.expand_as(x)
class OSAv2_module(nn.Module):
def __init__(self, in_channels,mid_channels, out_channels, block_nums=5):
super(OSAv2_module, self).__init__()
self._layers = nn.ModuleList()
self._layers.append(Conv3x3BNReLU(in_channels=in_channels, out_channels=mid_channels, stride=1))
for idx in range(block_nums-1):
self._layers.append(Conv3x3BNReLU(in_channels=mid_channels, out_channels=mid_channels, stride=1))
self.conv1x1 = Conv1x1BNReLU(in_channels+mid_channels*block_nums,out_channels)
self.ese = eSE_Module(out_channels)
self.pass_conv1x1 = Conv1x1BNReLU(in_channels, out_channels)
def forward(self, x):
residual = x
outputs = []
outputs.append(x)
for _layer in self._layers:
x = _layer(x)
outputs.append(x)
out = self.ese(self.conv1x1(torch.cat(outputs, dim=1)))
return out + self.pass_conv1x1(residual)

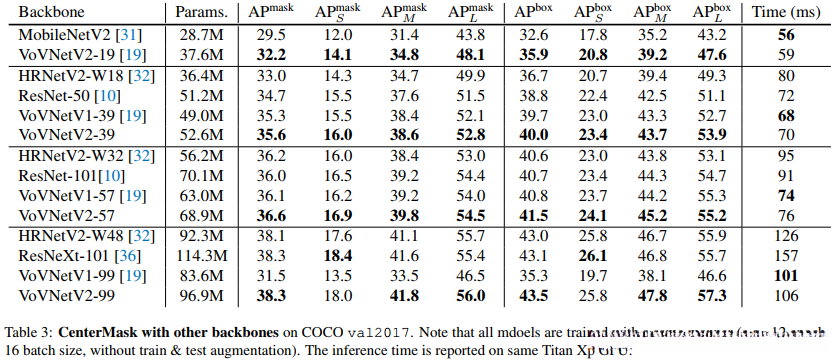

代码解读4 实验结果
