Realsense D435i单目跑ORB_SLAM2(无ROS版)
发布时间
阅读量：
阅读量
主要参考MonoEuroC这个文件进行修改，并将其中的数据源由Realsense替换即可。关于如何获取Realsense数据，在之前的博客中也有详细说明。
第一步先进行配置调整，在指定位置创建D435i.yaml文件，并遵循该目录中其他yaml文件的书写规范。将相机自身的内参数值填写进去以完成配置设置。
%YAML:1.0
#--------------------------------------------------------------------------------------------
# Camera Parameters. Adjust them!
#--------------------------------------------------------------------------------------------
# Camera calibration and distortion parameters (OpenCV)
Camera.fx: 610.973
Camera.fy: 610.508
Camera.cx: 326.195
Camera.cy: 242.118
Camera.k1: 0.13200119
Camera.k2: -0.27231803
Camera.p1: 0.00148674
Camera.p2: -0.00158623
# Camera frames per second
Camera.fps: 20.0
# Color order of the images (0: BGR, 1: RGB. It is ignored if images are grayscale)
Camera.RGB: 1
#--------------------------------------------------------------------------------------------
# ORB Parameters
#--------------------------------------------------------------------------------------------
# ORB Extractor: Number of features per image
ORBextractor.nFeatures: 1000
# ORB Extractor: Scale factor between levels in the scale pyramid
ORBextractor.scaleFactor: 1.2
# ORB Extractor: Number of levels in the scale pyramid
ORBextractor.nLevels: 8
# ORB Extractor: Fast threshold
# Image is divided in a grid. At each cell FAST are extracted imposing a minimum response.
# Firstly we impose iniThFAST. If no corners are detected we impose a lower value minThFAST
# You can lower these values if your images have low contrast
ORBextractor.iniThFAST: 20
ORBextractor.minThFAST: 7
#--------------------------------------------------------------------------------------------
# Viewer Parameters
#---------------------------------------------------------------------------------------------
Viewer.KeyFrameSize: 0.05
Viewer.KeyFrameLineWidth: 1
Viewer.GraphLineWidth: 0.9
Viewer.PointSize:2
Viewer.CameraSize: 0.08
Viewer.CameraLineWidth: 3
Viewer.ViewpointX: 0
Viewer.ViewpointY: -0.7
Viewer.ViewpointZ: -1.8
Viewer.ViewpointF: 500
代码解释然后再新建一个mono_d435i.cc文件。
#include<iostream>
#include<chrono>
#include <librealsense2/rs.hpp>
#include<opencv2/core/core.hpp>
#include<System.h>
using namespace std;
using namespace cv;
#define width 640
#define height 480
#define fps 30
bool SLAM_state = false;
void enable_stream_init(rs2::config cfg)
{
//Add desired streams to configuration
cfg.enable_stream(RS2_STREAM_COLOR, width, height, RS2_FORMAT_BGR8, fps);//向配置添加所需的流
cfg.enable_stream(RS2_STREAM_DEPTH, width, height, RS2_FORMAT_Z16,fps);
cfg.enable_stream(RS2_STREAM_INFRARED, 1, width, height, RS2_FORMAT_Y8, fps);
cfg.enable_stream(RS2_STREAM_INFRARED, 2, width, height, RS2_FORMAT_Y8, fps);
cfg.enable_stream(RS2_STREAM_ACCEL, RS2_FORMAT_MOTION_XYZ32F);
cfg.enable_stream(RS2_STREAM_GYRO, RS2_FORMAT_MOTION_XYZ32F);
}
//按下s结束
void Stop_thread()
{
while(1)
{
char c = getchar();
if (c == 's')
{
SLAM_state = false;
}
std::chrono::milliseconds dura(5);
std::this_thread::sleep_for(dura);
}
}
//字典 内参
int main(int argc, char **argv)
{
if(argc != 3)
{
cerr << endl << "Usage: ./mono_tran path_to_vocabulary path_to_settings " << endl;
return 1;
}
//vector<double> vTimestamps;
// Create SLAM system. It initializes all system threads and gets ready to process frames.
ORB_SLAM2::System SLAM(argv[1],argv[2],ORB_SLAM2::System::MONOCULAR,true);
SLAM_state = true;
//配置realsense
rs2::context ctx;
auto list = ctx.query_devices(); // Get a snapshot of currently connected devices
if (list.size() == 0)
throw std::runtime_error("No device detected. Is it plugged in?");
rs2::device dev = list.front();
rs2::frameset frames;
//Contruct a pipeline which abstracts the device
rs2::pipeline pipe;//创建一个通信管道//https://baike.so.com/doc/1559953-1649001.html pipeline的解释
//Create a configuration for configuring the pipeline with a non default profile
rs2::config cfg;//创建一个以非默认配置的配置用来配置管道
enable_stream_init(cfg);
// start stream
pipe.start(cfg);//指示管道使用所请求的配置启动流
for( int i = 0; i < 30 ; i ++)
{
frames = pipe.wait_for_frames();
}
cout << endl << "-------" << endl;
cout << "Start processing sequence ..." << endl;
thread stop_thread(Stop_thread);
while(SLAM_state)
{
frames = pipe.wait_for_frames();//等待所有配置的流生成框架
// Align to color
rs2::align align_to_color(RS2_STREAM_COLOR);
frames = align_to_color.process(frames);
// Get imu data
//Get_imu_data(frames);
//Get each frame
rs2::frame color_frame = frames.get_color_frame();
//rs2::depth_frame depth_frame = frames.get_depth_frame();
//rs2::video_frame ir_frame_left = frames.get_infrared_frame(1);
// rs2::video_frame ir_frame_right = frames.get_infrared_frame(2);
// Creating OpenCV Matrix from a color image
Mat color(Size(width, height), CV_8UC3, (void*)color_frame.get_data(), Mat::AUTO_STEP);
double tframe = color_frame.get_timestamp();
//Mat pic_right(Size(width,height), CV_8UC1, (void*)ir_frame_right.get_data());
//Mat pic_left(Size(width,height), CV_8UC1, (void*)ir_frame_left.get_data());
//Mat pic_depth(Size(width,height), CV_16U, (void*)depth_frame.get_data(), Mat::AUTO_STEP);
//namedWindow("Display Image", WINDOW_AUTOSIZE );
//imshow("Display Image", color);
#ifdef COMPILEDWITHC11
std::chrono::steady_clock::time_point t1 = std::chrono::steady_clock::now();
#else
std::chrono::monotonic_clock::time_point t1 = std::chrono::monotonic_clock::now();
#endif
SLAM.TrackMonocular(color,tframe);
if(color.empty())
{
cerr << endl << "Failed to load image at: "
<< tframe << endl;
return 1;
}
#ifdef COMPILEDWITHC11
std::chrono::steady_clock::time_point t2 = std::chrono::steady_clock::now();
#else
std::chrono::monotonic_clock::time_point t2 = std::chrono::monotonic_clock::now();
#endif
double ttrack= std::chrono::duration_cast<std::chrono::duration<double> >(t2 - t1).count();
//TODO:检测跟踪时间
}
// Stop all threads
SLAM.Shutdown();
cout << "-------" << endl << endl;
SLAM.SaveKeyFrameTrajectoryTUM("KeyFrameTrajectory.txt");
return 0;
}
代码解释最后配置CMakeLists.txt。
找到这句话：
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Monocular)
代码解释在下面增加：
add_executable(mono_D435i
Examples/Monocular/mono_D435i.cc)
target_link_libraries(mono_D435i ${PROJECT_NAME})
代码解释在上面增加：
find_package(realsense2 REQUIRED) # 新增
代码解释在include_directories里增加：
${realsense2_INCLUDE_DIRS}
代码解释在target_link_libraries增加：
${realsense2_LIBRARY}
代码解释运行./bulid.sh
运行：
./Examples/Monocular/mono_D435i Vocabulary/ORBvoc.txt Examples/Monocular/Remote.yaml

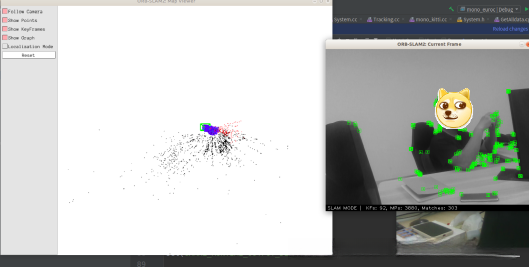

代码解释实验效果：
