PyTorch项目实战---Unet实现道路裂纹缺陷检测

 # -*- coding: utf-8 -*-


 from os.path import isdir

 from scipy import io

 import os, sys

 import numpy as np

 import matplotlib.pyplot as plt

 from PIL import Image



 if __name__ == '__main__':

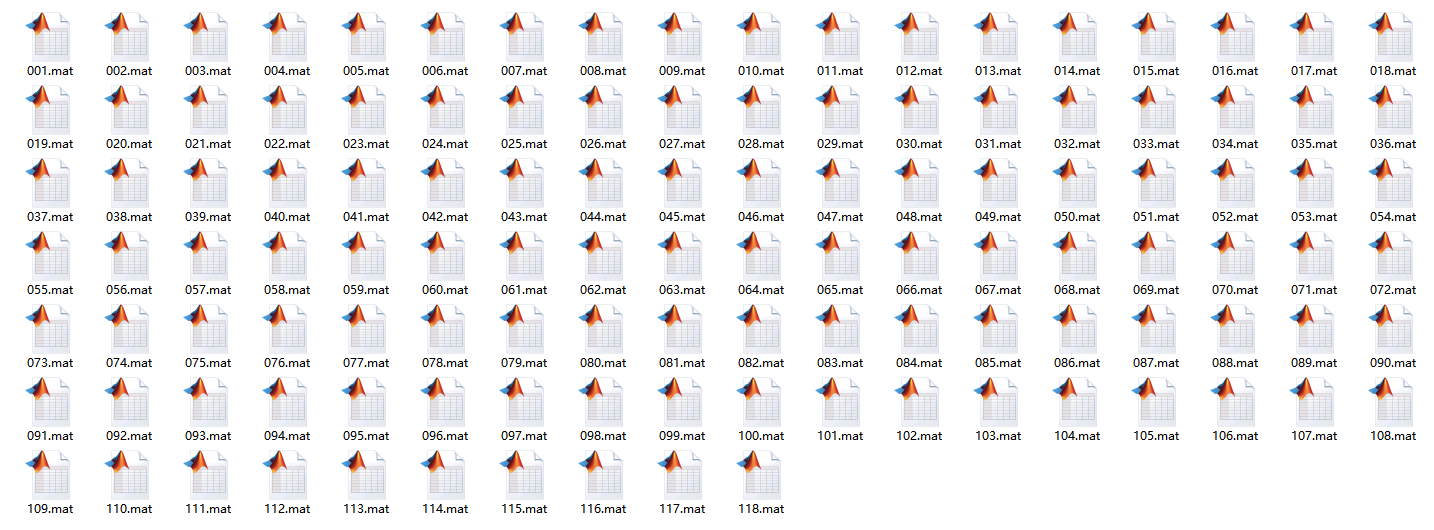

     file_path = './CrackForest-dataset-master/groundTruth/'

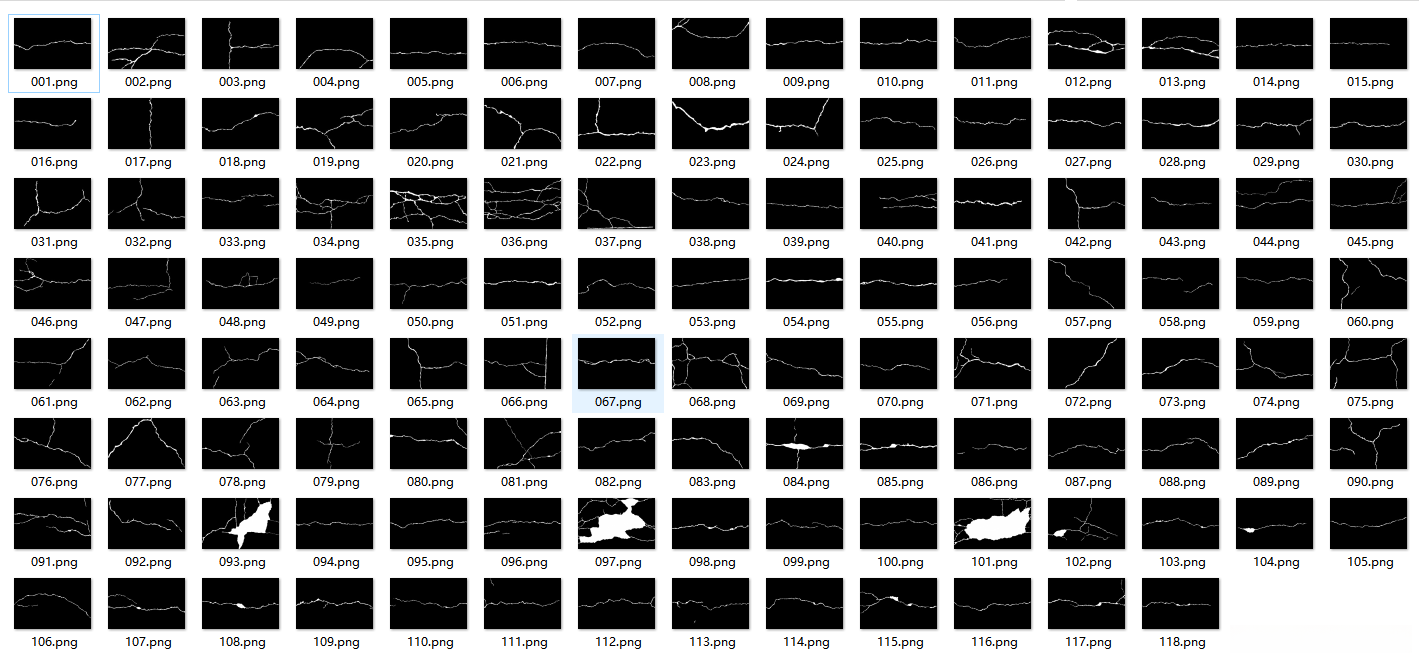

     png_img_dir = './CrackForest-dataset-master/groundTruthPngImg/'

     if not isdir(png_img_dir):

     os.makedirs(png_img_dir)

     image_path_lists = os.listdir(file_path)

     images_path = []

     for index in range(len(image_path_lists)):

     image_file = os.path.join(file_path, image_path_lists[index])

     #print(image_file)#./CrackForest-dataset-master/groundTruth/001.mat

     images_path.append(image_file)

     image_mat = io.loadmat(image_file)

     segmentation_image = image_mat['groundTruth']['Segmentation'][0]

     segmentation_image_array = np.array(segmentation_image[0])

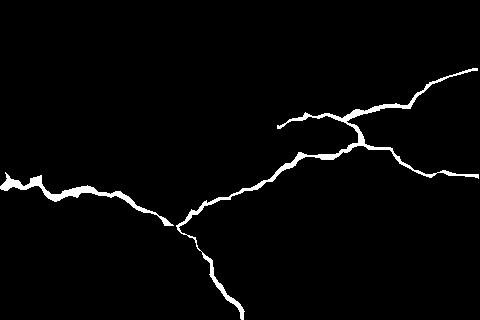

     image = Image.fromarray((segmentation_image_array -1) * 255)

     png_image_path = os.path.join(png_img_dir, "%s.png" % image_path_lists[index][0:3])

     #print(png_image_path)#./CrackForest-dataset-master/groundTruthPngImg/001.png

     image.save(png_image_path)

     plt.figure()

     plt.imshow(image)

     #plt.pause(2)

     plt.pause(0.001)

     #plt.show()




    代码解读

 # -*- coding: utf-8 -*-


 import os, sys

 import numpy as np

 import cv2 as cv

 import torch

 from torch.utils.data import Dataset,DataLoader

 import matplotlib.pylab as plt



 class SegmentationDataset(object):

     def __init__(self, image_dir, mask_dir):

     self.images = []

     self.masks = []

     files = os.listdir(image_dir)

     sfiles = os.listdir(mask_dir)

     for i in range(len(sfiles)):

         img_file = os.path.join(image_dir, files[i])

         mask_file = os.path.join(mask_dir, sfiles[i])

         # print(img_file, mask_file)

         self.images.append(img_file)

         self.masks.append(mask_file)



     def __len__(self):

     return len(self.images)



     def num_of_samples(self):

     return len(self.images)



     def __getitem__(self, idx):

     if torch.is_tensor(idx):

         idx = idx.tolist()

         image_path = self.images[idx]

         mask_path = self.masks[idx]

     else:

         image_path = self.images[idx]

         mask_path = self.masks[idx]

     img = cv.imread(image_path, cv.IMREAD_GRAYSCALE)  # BGR order

     mask = cv.imread(mask_path, cv.IMREAD_GRAYSCALE)

     #print(img.shape)

     # 输入图像

     img = np.float32(img) / 255.0

     img = np.expand_dims(img, 0)



     # 目标标签0 ~ 1， 对于

     mask[mask <= 128] = 0

     mask[mask > 128] = 1

     mask = np.expand_dims(mask, 0)

     sample = {'image': torch.from_numpy(img), 'mask': torch.from_numpy(mask),}

     return sample



 """显示图像"""

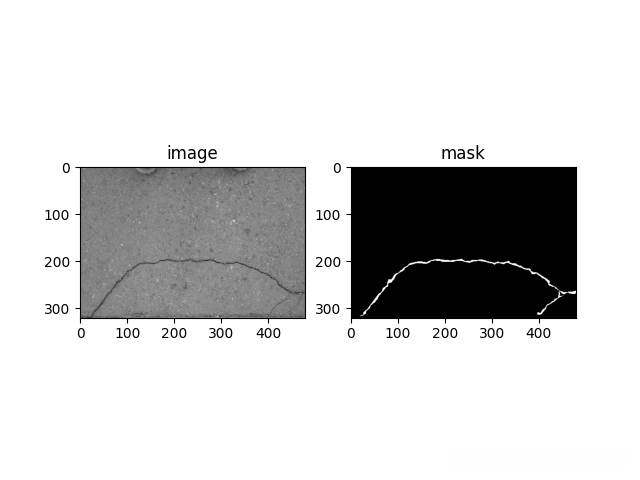

 def imshow_image(mydata_loader):

     plt.figure()

     for (cnt, i) in enumerate(mydata_loader):

     image = i['image']

     label = i['mask']



     for j in range(8):  #一个批次设为：8

         # ax = plt.subplot(2, 4, j + 1)

         # ax.axis('off')

         ax1=plt.subplot(121)

         ax2=plt.subplot(122)



         # permute函数：可以同时多次交换tensor的维度

         # print(image[j].permute(1, 2, 0).shape)

         ax1.imshow(image[j].permute(1, 2, 0), cmap='gray')

         ax1.set_title('image')



         ax2.imshow(label[j].permute(1, 2, 0), cmap='gray')

         ax2.set_title('mask')

         # plt.pause(0.005)

         plt.show()

     if cnt == 6:

         break

     plt.pause(0.005)



 if __name__ == '__main__':

     image_dir='./CrackForest-dataset-master/image/'

     mask_dir = './CrackForest-dataset-master/groundTruthPngImg/'

     dataloader=SegmentationDataset(image_dir=image_dir,mask_dir=mask_dir)

     mydata_loader = DataLoader(dataloader, batch_size=8, shuffle=False)

     imshow_image(mydata_loader)




    代码解读

 # -*- coding: utf-8 -*-


 import torch

 import torch.nn as nn

 from torchsummary import summary

 device = "cuda" if torch.cuda.is_available() else "cpu"



 #定义卷积块

 class DoubleConv(nn.Module):

     def __init__(self,in_channel,out_channel):

     super(DoubleConv,self).__init__()

     self.conv=nn.Sequential(nn.Conv2d(in_channel,out_channel,kernel_size=3,stride=1,padding=1,bias=False),

                             nn.BatchNorm2d(out_channel),

                             nn.ReLU(),

                             nn.Conv2d(out_channel,out_channel,3,1,1,bias=False),

                             nn.BatchNorm2d(out_channel),

                             nn.ReLU(),

                             )

     def forward(self,input):

     out=self.conv(input)

     return out



 #定义Unet网络

 class Unet(nn.Module):

     def __init__(self):

     super(Unet, self).__init__()

     """定义下采样网络"""

     self.encoder1 = DoubleConv(1,32)

     self.encoder1_down=nn.MaxPool2d(kernel_size=2, stride=2)

     self.encoder2 = DoubleConv(32,64)

     self.encoder2_down=nn.MaxPool2d(2,2)

     self.encoder3 = DoubleConv(64,128)

     self.encoder3_down=nn.MaxPool2d(2,2)

     self.encoder4 = DoubleConv(128,256)

     self.encoder4_down=nn.MaxPool2d(2,2)

     self.encoder5 = DoubleConv(256,512)



     """定义上采样网络"""

     self.decoder1 = nn.Sequential(nn.ConvTranspose2d(512,256, kernel_size=2, stride=2))

     self.decoder1_up = DoubleConv(512,256)



     self.decoder2 = nn.Sequential(nn.ConvTranspose2d(256,128, 2, stride=2))

     self.decoder2_up = DoubleConv(256,128)



     self.decoder3 = nn.Sequential(nn.ConvTranspose2d(128,64, 2, stride=2))

     self.decoder3_up = DoubleConv(128,64)



     self.decoder4 = nn.Sequential(nn.ConvTranspose2d(64,32, 2, stride=2))

     self.decoder4_up = DoubleConv(64,32)



     self.decoder_output = nn.Conv2d(32,2, kernel_size=5, stride=1, padding=2)



     def forward(self,x):

     e1 = self.encoder1(x)

     e1_down=self.encoder1_down(e1)

     e2 = self.encoder2(e1_down)

     e2_down=self.encoder2_down(e2)

     e3 = self.encoder3(e2_down)

     e3_down=self.encoder3_down(e3)

     e4 = self.encoder4(e3_down)

     e4_down=self.encoder4_down(e4)

     e5 = self.encoder5(e4_down)



     d1 = self.decoder1(e5)

     d1 = torch.cat((d1,e4), dim=1)

     d1 = self.decoder1_up(d1)



     d2 = self.decoder2(d1)

     d2 = torch.cat((d2,e3), dim=1)

     d2 = self.decoder2_up(d2)



     d3 = self.decoder3(d2)

     d3 = torch.cat((d3,e2), dim=1)

     d3 = self.decoder3_up(d3)



     d4 = self.decoder4(d3)

     d4 = torch.cat((d4,e1), dim=1)

     d4 = self.decoder4_up(d4)



     out = self.decoder_output(d4)

     # print(out.shape)



     return out



 if __name__ == '__main__':

     summary(Unet().to(device),input_size=(1,320,480),batch_size=-1)






    代码解读

 # -*- coding: utf-8 -*-


 import os, sys

 import cv2 as cv

 import numpy as np

 import torch

 import torch.nn as nn

 import torch.nn.functional as F

 from torch.optim import lr_scheduler, optimizer

 import torchvision

 from torch.utils.data import DataLoader, sampler

 """加载自己定义的.py文件"""

 #from image_process import *

 from read_dataset import *

 from Unet_model import *

 device="cuda" if torch.cuda.is_available() else "cpu"



 image_dir = './CrackForest-dataset-master/image/'

 mask_dir = './CrackForest-dataset-master/groundTruthPngImg/'

 dataloader = SegmentationDataset(image_dir, mask_dir)#数据读取



 train_loader = DataLoader(dataloader, batch_size=8, shuffle=False)

 #print("样本数量:", dataloader.num_of_samples(), len(dataloader), train_loader.dataset)

 if __name__ == '__main__':

     index = 0

     num_epochs = 50

     train_on_gpu = True

     unet = Unet().to(device)#Uet网络

     optimizer = torch.optim.SGD(unet.parameters(), lr=0.01, momentum=0.9)

     for epoch in range(num_epochs):

     train_loss = 0.0

     for i_batch, sample_batched in enumerate(train_loader):

         images_batch, target_labels = sample_batched['image'], sample_batched['mask']

         # print(target_labels.min())#tensor(0, dtype=torch.uint8)

         # print(target_labels.max())#tensor(1, dtype=torch.uint8)



         if train_on_gpu:

             images_batch, target_labels = images_batch.to(device), target_labels.to(device)

             #images_batch, target_labels = images_batch.cuda(), target_labels.cuda()

         optimizer.zero_grad()



         """forward pass: compute predicted outputs by passing inputs to the model"""

         #print("输入样本的形状:",images_batch.shape)#输入样本的形状: torch.Size([8, 1, 320, 480])

         m_label_out_ = unet(images_batch)

         #print(m_label_out_.shape)#torch.Size([8, 2, 320, 480])

         # calculate the batch loss

         target_labels = target_labels.contiguous().view(-1)#执行contiguous()这个函数，把tensor变成在内存中连续分布的形式

         m_label_out_ = m_label_out_.transpose(1,3).transpose(1, 2).contiguous().view(-1, 2)

         target_labels = target_labels.long()

         loss = torch.nn.functional.cross_entropy(m_label_out_, target_labels)

         print(loss)

         # backward pass: compute gradient of the loss with respect to model parameters

         loss.backward()



         # perform a single optimization step (parameter update)

         optimizer.step()



         # update training loss

         train_loss += loss.item()

         if index % 100 == 0:

             print('step: {} \tcurrent Loss: {:.6f} '.format(index, loss.item()))

         index += 1

         # test(unet)

     # 计算平均损失

     train_loss = train_loss / dataloader.num_of_samples()

     # 显示训练集与验证集的损失函数

     print('Epoch: {} \tTraining Loss: {:.6f} '.format(epoch, train_loss))

     # test(unet)

     # save model

     unet.eval()

     torch.save(unet.state_dict(), './CrackForest-dataset-master/save_model_dir/unet_road_model.pkl')

     torch.save(unet.state_dict(), './CrackForest-dataset-master/save_model_dir/unet_road_model.pt')




    代码解读

 # -*- coding: utf-8 -*-


 import os,sys

 import torch

 import torchvision

 import numpy as np

 import cv2 as cv

 from Unet_model import *

 device="cuda" if torch.cuda.is_available() else "cpu"

 model_path='./CrackForest-dataset-master/save_model_dir/unet_road_model.pt'



 unet = Unet().to(device)

 model_dict=unet.load_state_dict(torch.load(model_path))

 #print(model_dict)



 def test(unet):

     #model_dict=unet.load_state_dict(torch.load(model_path))

     root_dir = './CrackForest-dataset-master/test/'

     fileNames = os.listdir(root_dir)

     # print(fileNames)

     for f in fileNames:

     image = cv.imread(os.path.join(root_dir, f), cv.IMREAD_GRAYSCALE)

     # print(image)

     h, w = image.shape

     # print(image.shape)

     img = np.float32(image) /255.0

     img = np.expand_dims(img, 0)

     x_input = torch.from_numpy(img).view( 1, 1, h, w)

     #probs = unet(x_input.cuda())

     probs = unet(x_input.to(device))

     #print(probs,probs.shape)#torch.Size([1, 2, 320, 480])

     m_label_out_ = probs.transpose(1, 3).transpose(1, 2).contiguous().view(-1, 2)

     #print(m_label_out_,m_label_out_.shape)#torch.Size([153600, 2])

     grad, output = m_label_out_.data.max(dim=1)

     #print(m_label_out_.data.max(dim=1))

     output[output > 0] = 255

     predic_ = output.view(h, w).cpu().detach().numpy()



     # print(predic_)

     # print(predic_.max())

     # print(predic_.min())



     #print(predic_.argmax(-1))

     # print(predic_.shape)

     """显示测试结果"""

     result = cv.resize(np.uint8(predic_), (w, h))

     # cv.imshow("input", image)

     #

     # cv.imshow("unet-segmentation-demo", result)

     # cv.waitKey(0)

     """将结果保存在测试seg目录下"""

     #result = cv.resize(np.uint8(predic_), (w, h))

     result_image_path = os.path.join('./CrackForest-dataset-master/png_img_dir', f)#存放测试结果

     cv.imwrite(result_image_path, result)

     # cv.destroyAllWindows()



 if __name__ == '__main__':

     test(unet)




    代码解读
