Flume安装部署

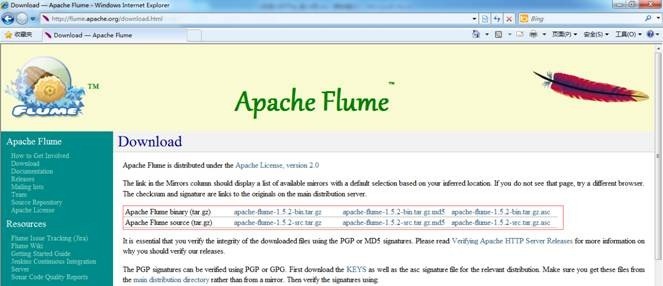

    rz 上传至/export/software/ 下

    解压
    tar -zxvf apache-flume-1.7.0-bin -C /export/servers/

    重命名
    cd ../servers
    mv apache-flume-1.7.0-bin flume-1.7











    AI写代码

    vim /etc/profile
    在内容最后追加
    编辑/etc/profile文件，声明flume的home路径和在path加入bin的路径：
    #FLUME_HOME
    export FLUME_HOME=/export/servers/flume-1.7
    export FLUME_CONF_DIR=$FLUME_HOME/conf
    export PATH=$PATH:$FLUME_HOME/bin

    ：wq
    退出后
    编译配置文件/etc/profile，并确认生效
    source /etc/profile
    echo $PATH
















    AI写代码

    在$FLUME_HOME/conf 下复制改名flume-env.sh.template为flume-env.sh，修改conf/flume-env.sh配置文件
    cd /export/servers/flume-1.7/conf
    cp flume-env.sh.template flume-env.sh
    vim flume-env.sh

    修改配置文件内容 ：
    JAVA_HOME=/usr/java/jdk1.8.0_291
    JAVA_OPTS="-Xms100m -Xmx200m -Dcom.sun.management.jmxremote"











    AI写代码

1 修改flume-conf配置文件
    在$FLUME_HOME/conf目录下修改flume-conf.properties.template文件，复制并改名为flume-conf，
    cd /app/flume-1.5.2/conf
    cp flume-conf.properties.template flume-conf.properties
    sudo vi flume-conf.properties

    5.2 修改flume-conf配置文件内容
    # The configuration file needs to define the sources, the channels and the sinks.
    # Sources, channels and sinks are defined per agent, in this case called 'a1'
    a1.sources = r1
    a1.sinks = k1
    a1.channels = c1

    # For each one of the sources, the type is defined
    a1.sources.r1.type = netcat
    a1.sources.r1.bind = localhost
    a1.sources.r1.port = 44444

    #The channel can be defined as follows.
    a1.sources.r1.channels = c1

    # Each sink's type must be defined
    a1.sinks.k1.type = logger

    #Specify the channel the sink should use
    a1.sinks.k1.channel = c1

    # Each channel's type is defined.
    a1.channels.c1.type = memory

    # Other config values specific to each type of channel(sink or source)
    # can be defined as well
    # In this case, it specifies the capacity of the memory channel
    a1.channels.c1.capacity = 1000
    a1.channels.c1.transactionCapacity = 100






































    AI写代码

3 在flume的安装目录/flume-1.5.2下运行
    cd /export/servers/flume-1.7
    ./bin/flume-ng agent --conf ./conf/ --conf-file ./conf/flume-conf.properties --name a1 -Dflume.root.logger=INFO,console






    AI写代码

4 再打开一个终端，输入如下命令：

    telnet localhost 44444
    hello Flume
    提示"command not found"，使用yum install telnet进行安装








    AI写代码

 在$FLUME_HOME/conf目录下修改flume-conf.properties.template文件，复制并改名为flume-conf2.properties
    cd /export/servers/flume-1.7/conf
    cp flume-conf.properties.template flume-conf2.properties
    vim flume-conf2.properties

    a1.sources = r1
    a1.sinks = k1
    a1.channels = c1
    a1.sources.r1.type = exec
    a1.sources.r1.channels = c1
    a1.sources.r1.command = tail -F  /usr/local/hadoop/logs/hadoop-root-datanode-node1.log
    a1.sinks.k1.type = hdfs
    a1.sinks.k1.channel = c1
    a1.sinks.k1.hdfs.path = hdfs://192.168.0.175:8888/test
    a1.sinks.k1.hdfs.filePrefix = events-
    a1.sinks.k1.hdfs.round = true
    a1.sinks.k1.hdfs.roundValue = 10
    a1.sinks.k1.hdfs.roundUnit = minute
    a1.sinks.k1.hdfs.rollSize = 4000000
    a1.sinks.k1.hdfs.rollCount = 0
    a1.sinks.k1.hdfs.writeFormat = Text
    a1.sinks.k1.hdfs.fileType = DataStream
    a1.sinks.k1.hdfs.batchSize = 10
    a1.channels.c1.type = memory
    a1.channels.c1.capacity = 1000
    a1.channels.c1.transactionCapacity = 100


    2. 在flume的安装目录/flume-1.5.2下运行
    cd /export/servers/flume-1.7
    ./bin/flume-ng agent --conf ./conf/ --conf-file ./conf/flume-conf2.properties --name a1 -Dflume.root.logger=INFO,console


    3. 不断收集hadoop-hadoop-namenode-hadoop1.log的数据写入HDFS中


    4. 查看hdfs中/class12/out_flume中的文件

    hadoop fs -ls /test
    hadoop fs -cat /test/event-.1623059478955











































    AI写代码

    package com.flume.flume;

    import org.apache.flume.*;
    import org.apache.flume.conf.Configurable;
    import org.apache.flume.sink.AbstractSink;

    import java.sql.Connection;
    import java.sql.DriverManager;
    import java.sql.PreparedStatement;
    import java.sql.SQLException;

    public class MySink extends AbstractSink implements Configurable {

    private String msgPrefix;

    /** * 用来保存数据,不断调用次方法
     * @return
     * @throws EventDeliveryException
     */
    @Override
    public Status process() throws EventDeliveryException {
        //获取sink对应的channnel
        Channel channel = getChannel();
        Connection connection = null;
        PreparedStatement statement = null;
        //获取事务对象
        Transaction transaction = channel.getTransaction();
        try{
            //开启事务
            transaction.begin();
            //从channel中获取数据
            Event event = channel.take();

            //切割数据
            String data = new String(event.getBody());
            String[] arr = data.split(",");
            int id = Integer.parseInt(arr[0]);
            String name = arr[1];
            int age = Integer.parseInt(arr[2]);

            //保存到mysql
            //1、获取connect
            connection = DriverManager.getConnection("jdbc:mysql://192.168.0.175:3306/dataxweb?useSSL=false","root","jnh139271");
            statement = connection.prepareStatement("insert into flume_test values(?,?,?)");
            saveToMysql(id,name,age,connection,statement);
            //模拟数据保存
            //System.out.println(msgPrefix+":"+new String(take.getBody()));
            //提交事务
            transaction.commit();

            return Status.READY;
        }catch (Exception e){
            transaction.rollback();
        }finally {
            //关闭事务
            transaction.close();
            if(statement!=null)
            //5、关闭
            {
                try {
                    statement.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
            if(connection!=null) {
                try {
                    connection.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
        }

        return Status.BACKOFF;
    }

    public void saveToMysql(int id, String name, int age, Connection connection, PreparedStatement statement) throws SQLException {

        //2、获取statement对象
        //sql注入 【 select * from table where name='zhangsan' or 1=1】
        //connection.createStatement();

        //3、赋值
        statement.setInt(1,id);
        statement.setString(2,name);
        statement.setInt(3,age);
        System.out.println(id+","+name+","+age);
        //4、保存
        statement.executeUpdate();


    }
    /** * 获取sink的配置属性
     * @param context
     */
    @Override
    public void configure(Context context) {

        msgPrefix = context.getString("msg.prefix");

    }
    }












































































































    AI写代码

    #定义agent
    a1.sources = r1
    a1.channels = c1
    a1.sinks = k1

    #定义source
    a1.sources.r1.type = netcat
    a1.sources.r1.bind = 0.0.0.0
    a1.sources.r1.port = 9999

    #定义channel
    a1.channels.c1.type = memory
    a1.channels.c1.capacity = 1000
    a1.channels.c1.transactionCapacity = 1000

    #定义sink
    a1.sinks.k1.type = com.atguigu.flume.MySink
    a1.sinks.k1.msg.prefix = message

    #定义source、channel、sink之间的绑定关系
    a1.sources.r1.channels = c1
    a1.sinks.k1.channel = c1

























    AI写代码

    cd  /export/servers/flume-1.7

    bin/flume-ng agent -c conf/ -n a1 -f job/mysik.config -Dflume.root.logger=INFO,console

    重新开启终端
    Last login: Tue Jun  8 13:37:58 2021 from 192.168.0.15
    [root@node1 ~]# nc 192.168.0.175 12344
    -bash: nc: 未找到命令
    [root@node1 ~]# yum install nc
    完成后
    [root@node1 ~]# nc 192.168.0.175 12344
    1,test,666
    OK
    这是启动窗口就会显示输出
    1,test,666
    查看数据库
    1,test,666

    测试完成






















    AI写代码
