（生物信息学）R语言绘图初-中-高级——3-10分文章必备——森林图（初级）

 setwd("D:\ 自噬临床模型预测\ 自噬相关基因临床模型预测\ 取交集，做Venn图")


 dir()

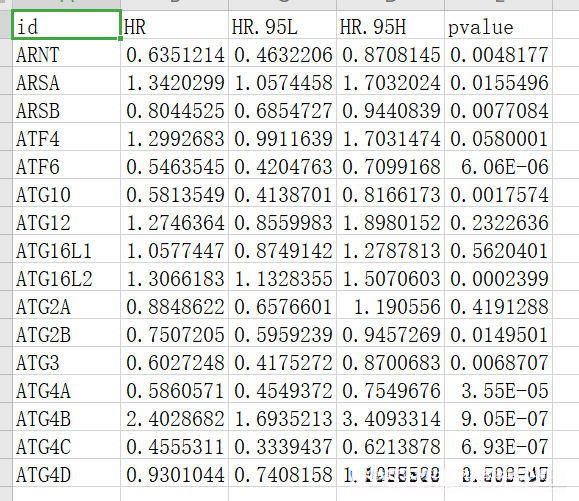

 data <- read.csv("uniCox.csv",header = T,sep = ",")

 gene <- read.csv("Genes.csv",header = T,sep = ",")

 head(data)

 head(gene)

 dim(data)

 dim(gene)



 #> head(data)

 #     id        HR    HR.95L    HR.95H      pvalue

 #1  ARNT 0.6351214 0.4632206 0.8708145 0.004817746

 #2  ARSA 1.3420299 1.0574458 1.7032024 0.015549633

 #3  ARSB 0.8044525 0.6854727 0.9440839 0.007708357

 #4  ATF4 1.2992683 0.9911638 1.7031474 0.058000088

 #5  ATF6 0.5463545 0.4204763 0.7099168 0.000006060

 #6 ATG10 0.5813549 0.4138701 0.8166173 0.001757369

 #> head(gene)

 #  X   gene

 #1 1   MTOR

 #2 2 CDKN2A

 #3 3  ERBB2

 #4 4  LAMP1

 #5 5  HSPA8

 #6 6   BAG1

 #> dim(data)

 #[1] 213   5

 #> dim(gene)

 #[1] 41  2




    AI助手

 rownames(data) <- data$id


 data <- data[,-1]

 head(data)



 #> head(data)

 #              HR    HR.95L    HR.95H       pvalue

 #MTOR   0.6400590 0.4651810 0.8806799 0.0061381040

 #CDKN2A 1.2660554 1.0990494 1.4584388 0.0010810870

 #ERBB2  0.6362310 0.5311304 0.7621290 0.0000009170

 #LAMP1  0.6604439 0.4853477 0.8987087 0.0083037820

 #HSPA8  0.6870117 0.5782518 0.8162275 0.0000196000

 #BAG1   0.5103609 0.4004077 0.6505076 0.0000000553




    AI助手

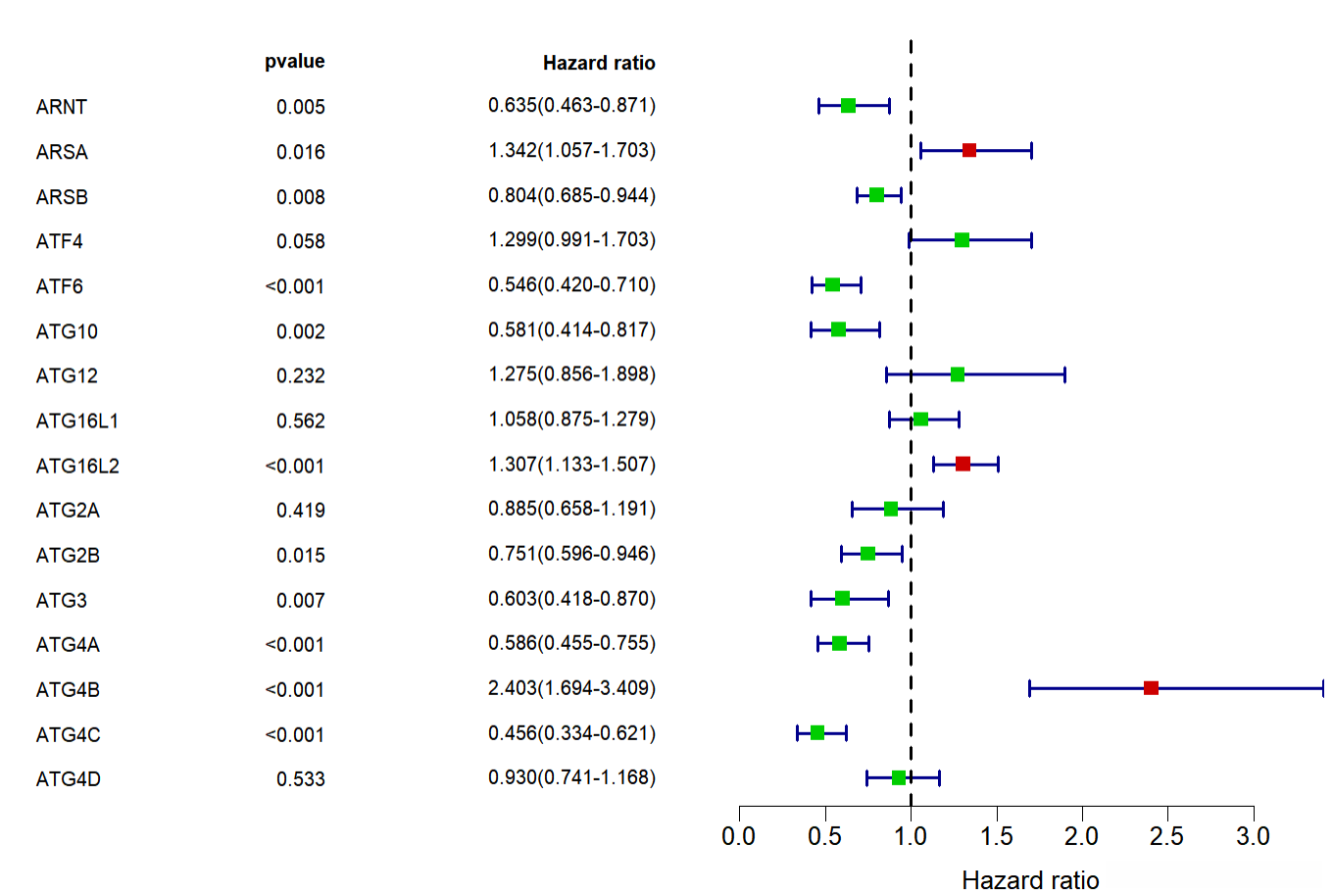

 rt <- data


 hr <- sprintf("%.3f",rt$"HR")

 hrLow  <- sprintf("%.3f",rt$"HR.95L")

 hrHigh <- sprintf("%.3f",rt$"HR.95H")

 Hazard.ratio <- paste0(hr,"(",hrLow,"-",hrHigh,")")

 pVal <- ifelse(rt$pvalue<0.001, "<0.001", sprintf("%.3f", rt$pvalue))



 gene <- rownames(rt)



 n <- nrow(rt)

 nRow <- n+1

 ylim <- c(1,nRow)

 layout(matrix(c(1,2),nc=2),width=c(3,2.5))

 xlim = c(0,3)

 par(mar=c(4,2.5,2,1))

 plot(1,xlim=xlim,ylim=ylim,type="n",axes=F,xlab="",ylab="")

 text.cex=0.8

 text(0,n:1,gene,adj=0,cex=text.cex)

 text(1.5-0.5*0.2,n:1,pVal,adj=1,cex=text.cex);text(1.5-0.5*0.2,n+1,'pvalue',cex=text.cex,font=2,adj=1)

 text(3,n:1,Hazard.ratio,adj=1,cex=text.cex);text(3,n+1,'Hazard ratio',cex=text.cex,font=2,adj=1,)



 par(mar=c(4,1,2,1),mgp=c(2,0.5,0))

 xlim = c(0,max(as.numeric(hrLow),as.numeric(hrHigh)))

 plot(1,xlim=xlim,ylim=ylim,type="n",axes=F,ylab="",xaxs="i",xlab="Hazard ratio")

 arrows(as.numeric(hrLow),n:1,as.numeric(hrHigh),n:1,angle=90,code=3,length=0.05,col="darkblue",lwd=2.5)

 abline(v=1,col="black",lty=2,lwd=2)

 boxcolor = ifelse((as.numeric(hr)>1)&(pVal<0.05),'red3',"green3")

 points(as.numeric(hr), n:1, pch = 15, col = boxcolor, cex=1.3)

 axis(1)
