Python金融数据挖掘 第6章 复习思考题3

 # 引入库


 import matplotlib.pyplot as plt

 import numpy as np

 import seaborn as sns

 import pandas as pd



 # 图表内嵌中文字体问题

 plt.rcParams['font.sans-serif']=['SimHei']

 plt.rcParams['axes.unicode_minus'] = False

 sns.set_style('whitegrid',{'font.sans-serif':['simhei', 'Arial']})



 # 导入数据

 titanic = pd.read_csv('titanic.csv')



 # 统计幸存者的是否独立登船比例

 survived = titanic.groupby(['alone','survived']).size().unstack()

 survived['sum'] = survived[0]+survived[1]

 survived['生还率'] = survived[1]/survived['sum']

 print('幸存者按照是否独立登船统计的生还者、遇难者：')

 print('0：遇难，1：生还')

 print(survived)

 print('幸存与否与独立登船的相关系数：')

 print(titanic['survived'].corr(titanic['alone']))

 mm = titanic['survived'].corr(titanic['alone'])

 if mm > 0:

     print('幸存与否与独立登船呈正相关')

 else:

     print('幸存与否与独立登船呈负相关')

 print()

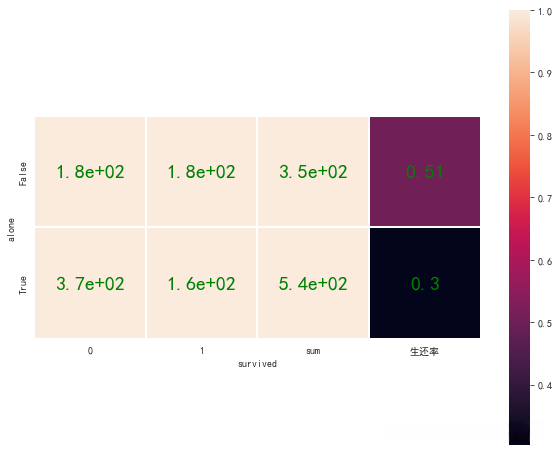

 # 画相关系数矩阵

 plt.figure(figsize=(10,8))



 # sns.heatmap(survived,corr(),linewidths = 0.1,vmax=1.0,square=True,linecolor='white', annot=True,annot_kws={'size':20,'weight':'bold','color':'white'})

 sns.heatmap(survived,linewidths = 0.1,vmax=1.0,square=True,linecolor='white', annot=True,annot_kws={'size':20,'weight':'bold','color':'green'})

 plt.savefig('相关矩阵.png',dpi=300,bbox_inches='tight')

 plt.show()



 # 年龄段与幸存者关系

 age_surv = titanic.loc[titanic['survived'] == 1,'age']

 age_unsurv = titanic.loc[titanic['survived'] == 0,'age']

 print('生还者年龄统计描述：')

 print(age_surv.describe())

 print('遇难者年龄统计描述：')

 print(age_unsurv.describe())

 print('幸存与否与年龄的相关系数：')

 print(titanic['survived'].corr(titanic['age']))

 nn = titanic['survived'].corr(titanic['age'])

 if nn > 0:

     print('幸存与否与年龄呈正相关')

 else:

     print('幸存与否与年龄呈负相关')



 # 画图

 f,ax = plt.subplots(figsize=(7,7))

 sns.set()

 sns.distplot(np.array(age_surv),hist = False,label = 'survived',kde_kws = {'color':'r','lw':1,'marker':'o'})

 sns.distplot(np.array(age_unsurv),hist = False,label = 'unsurvived',kde_kws = {'color':'k','lw':3})

 ax.set(title = '幸存/遇难者年龄分布图：')

 plt.savefig('幸存/遇难者年龄分布图.png',dpi=300, bbox_inches=" tight")

 plt.show()
