【图像分割】使用 MRI 图像进行脑肿瘤检测和分割（Matlab实现）

 clc


 close all

 clear all

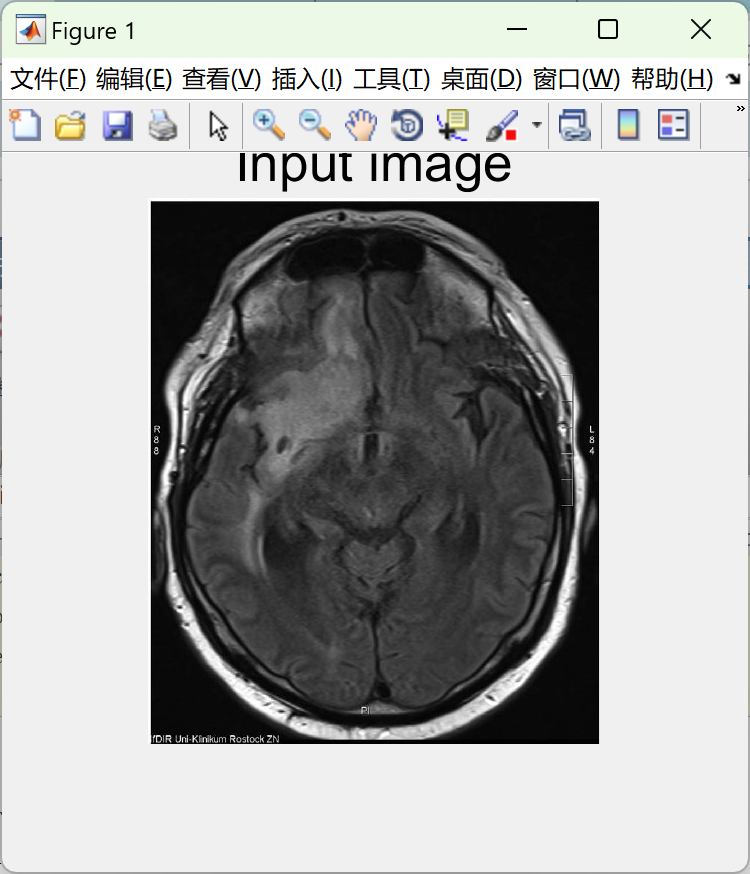

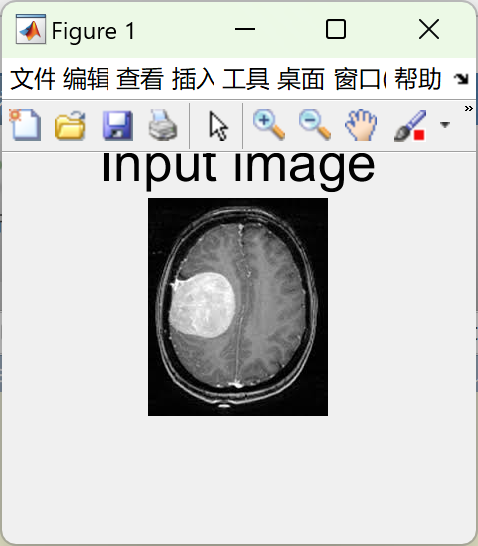

 %% Input

 [I,path]=uigetfile('*.jpg','select a input image');

 str=strcat(path,I);

 s=imread(str);



 figure;

 imshow(s);

 title('Input image','FontSize',20);



 %% Filter

 num_iter = 10;

     delta_t = 1/7;

     kappa = 15;

     option = 2;

     disp('Preprocessing image please wait . . .');

     inp = anisodiff_function(s,num_iter,delta_t,kappa,option);

     inp = uint8(inp);



 inp=imresize(inp,[256,256]);

 if size(inp,3)>1

     inp=rgb2gray(inp);

 end

 figure;

 imshow(inp);

 title('Filtered image','FontSize',20);



 %% thresholding

 sout=imresize(inp,[256,256]);

 t0=mean(s(:));

 th=t0+((max(inp(:))+min(inp(:)))./2);

 for i=1:1:size(inp,1)

     for j=1:1:size(inp,2)

     if inp(i,j)>th

         sout(i,j)=1;

     else

         sout(i,j)=0;

     end

     end

 end



 %% Morphological Operation



 label=bwlabel(sout);

 stats=regionprops(logical(sout),'Solidity','Area','BoundingBox');

 density=[stats.Solidity];

 area=[stats.Area];

 high_dense_area=density>0.7;

 max_area=max(area(high_dense_area));

 tumor_label=find(area==max_area);

 tumor=ismember(label,tumor_label);



 if max_area>200

    figure;

    imshow(tumor)

    title('tumor alone','FontSize',20);

 else

     h = msgbox('No Tumor!!','status');

     %disp('no tumor');

     return;

 end

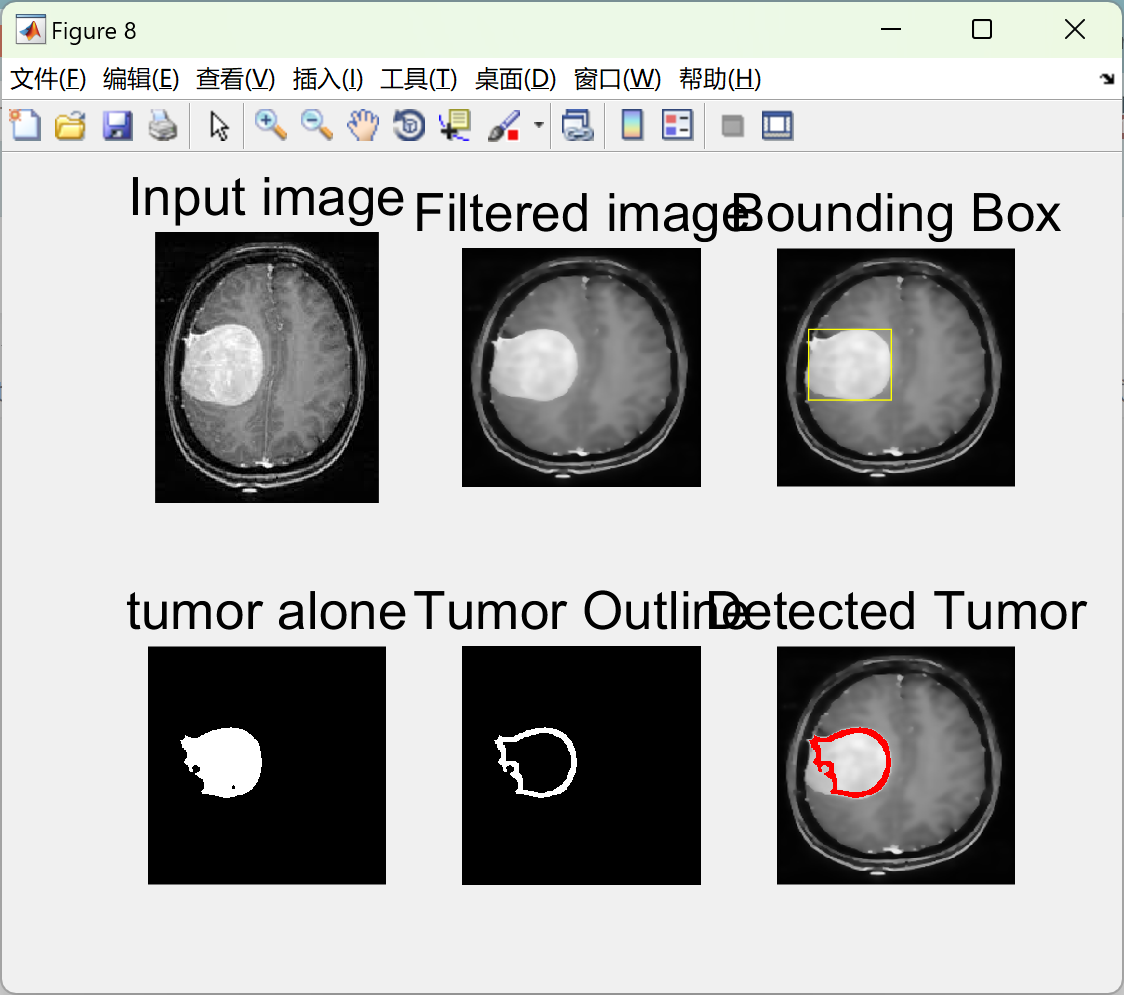

 %% Bounding box



 box = stats(tumor_label);

 wantedBox = box.BoundingBox;

 figure

 imshow(inp);

 title('Bounding Box','FontSize',20);

 hold on;

 rectangle('Position',wantedBox,'EdgeColor','y');

 hold off;
