124.RabbitMQ（二）：springboot整合rabbitmq，mq的使用场景
发布时间
阅读量：
阅读量
目录
一、基础配置
1.新建项目，引入依赖
2.编辑配置文件
二、helloworld模式
三、workqueue模式公平消费
四、发布订阅（广播）模型
五、Direct直接路由模型
六、Topic动态路由模型
七、MQ应用场景说明
1.异步处理
2.应用解耦
3.流量削峰
八、打赏请求
声明：本系列代码均通过测试，可放心使用
一、基础配置

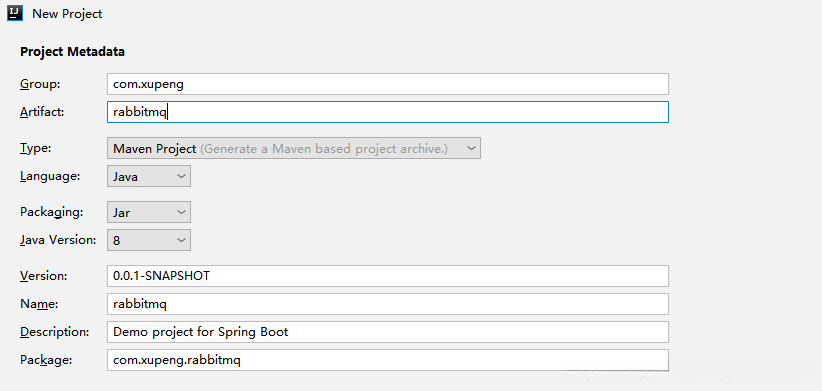

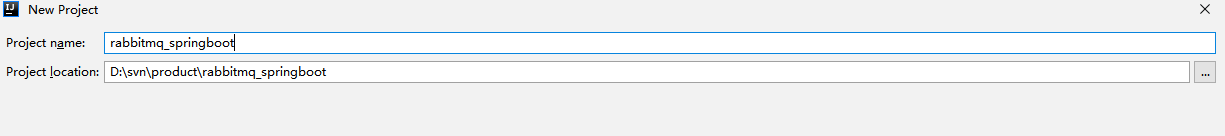

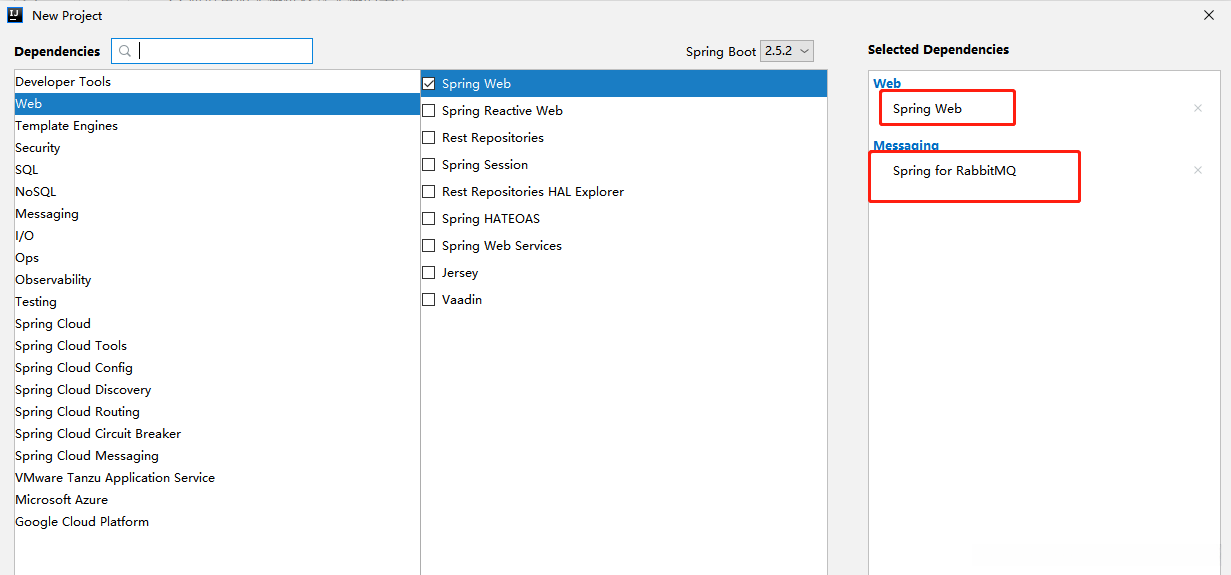

1.新建项目，引入依赖

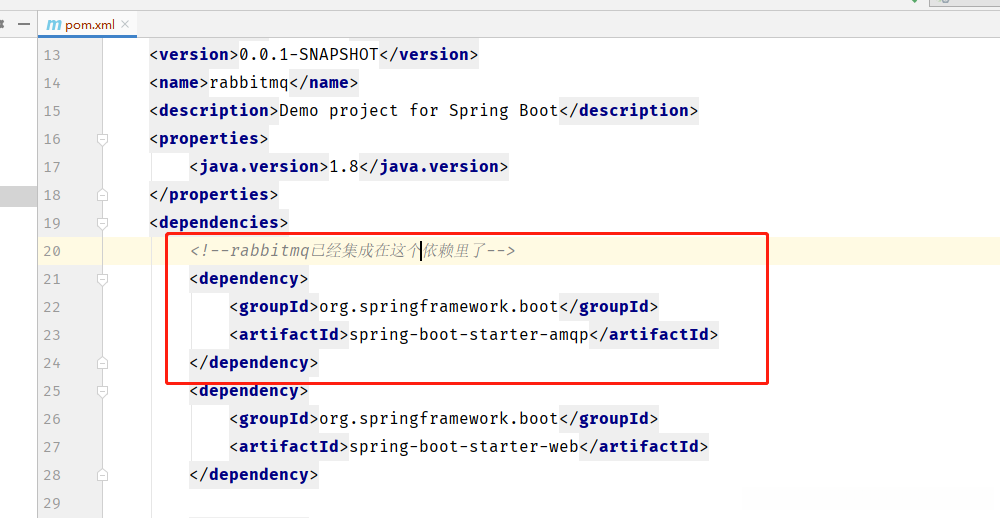

创建好后，查看一下pom.xml：
按照我们的方法，rabbitmq已经集成了。
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.5.2</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.xupeng</groupId>
<artifactId>rabbitmq</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>rabbitmq</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<!--rabbitmq已经集成在这个依赖里了-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.amqp</groupId>
<artifactId>spring-rabbit-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>2.编辑配置文件
spring:
application:
name: rabbitmq-springboot
rabbitmq:
host: 192.168.210.137
port: 5672
username: ems
password: ems
virtual-host: /ems二、helloworld模式
package com.xupeng.rabbitmq.hello;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 14:40]
*/
@Component
//默认持久化，非独占，非自动删除队列
@RabbitListener(queuesToDeclare = @Queue(value = "hello",durable = "true",autoDelete = "false"))
public class HelloConsumer {
@RabbitHandler
private void receive(String message){
System.out.println("message:"+message);
}
}RabbitmqApplicationTests：
package com.xupeng.rabbitmq;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
@SpringBootTest(classes = RabbitmqApplication.class)
@RunWith(SpringRunner.class)
public class RabbitmqApplicationTests {
@Autowired
private RabbitTemplate rabbitTemplate;
//helloworld
@Test
public void test(){
//参数一：队列名
//参数二：队列内容
rabbitTemplate.convertAndSend("hello","hello world");
}
}三、workqueue模式公平消费
WorkConsumer：
package com.xupeng.rabbitmq.work;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:08]
*/
@Component
public class WorkConsumer {
@RabbitListener(queuesToDeclare = @Queue("work"))
// @Queue(value = "hello",durable = "true",autoDelete = "false")
public void receive1(String message){
System.out.println("message1："+message);
}
@RabbitListener(queuesToDeclare = @Queue("work"))
public void receive2(String message){
System.out.println("message2："+message);
}

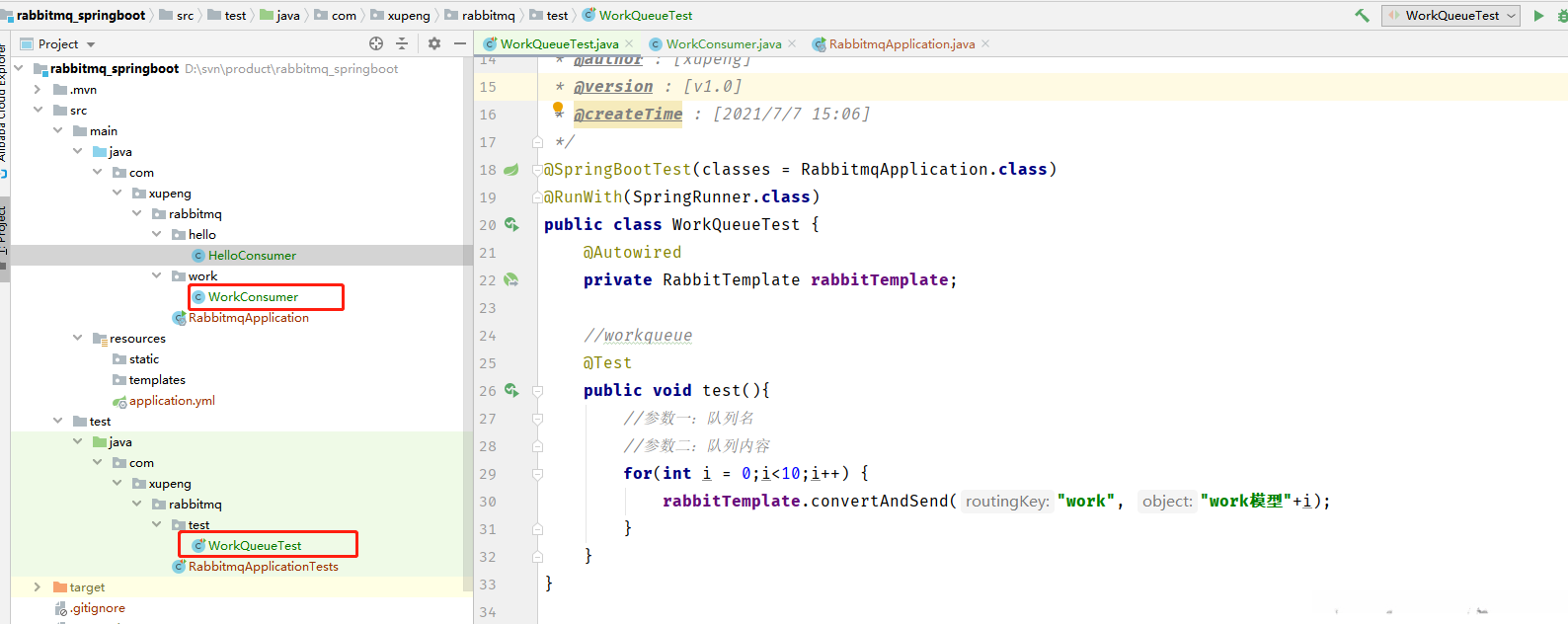

}WorkQueueTest：
package com.xupeng.rabbitmq.test;
import com.xupeng.rabbitmq.RabbitmqApplication;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:06]
*/
@SpringBootTest(classes = RabbitmqApplication.class)
@RunWith(SpringRunner.class)
public class WorkQueueTest {
@Autowired
private RabbitTemplate rabbitTemplate;
//workqueue
@Test
public void test(){
//参数一：队列名
//参数二：队列内容
for(int i = 0;i<10;i++) {
rabbitTemplate.convertAndSend("work", "work模型"+i);
}
}
}四、发布订阅（广播）模型

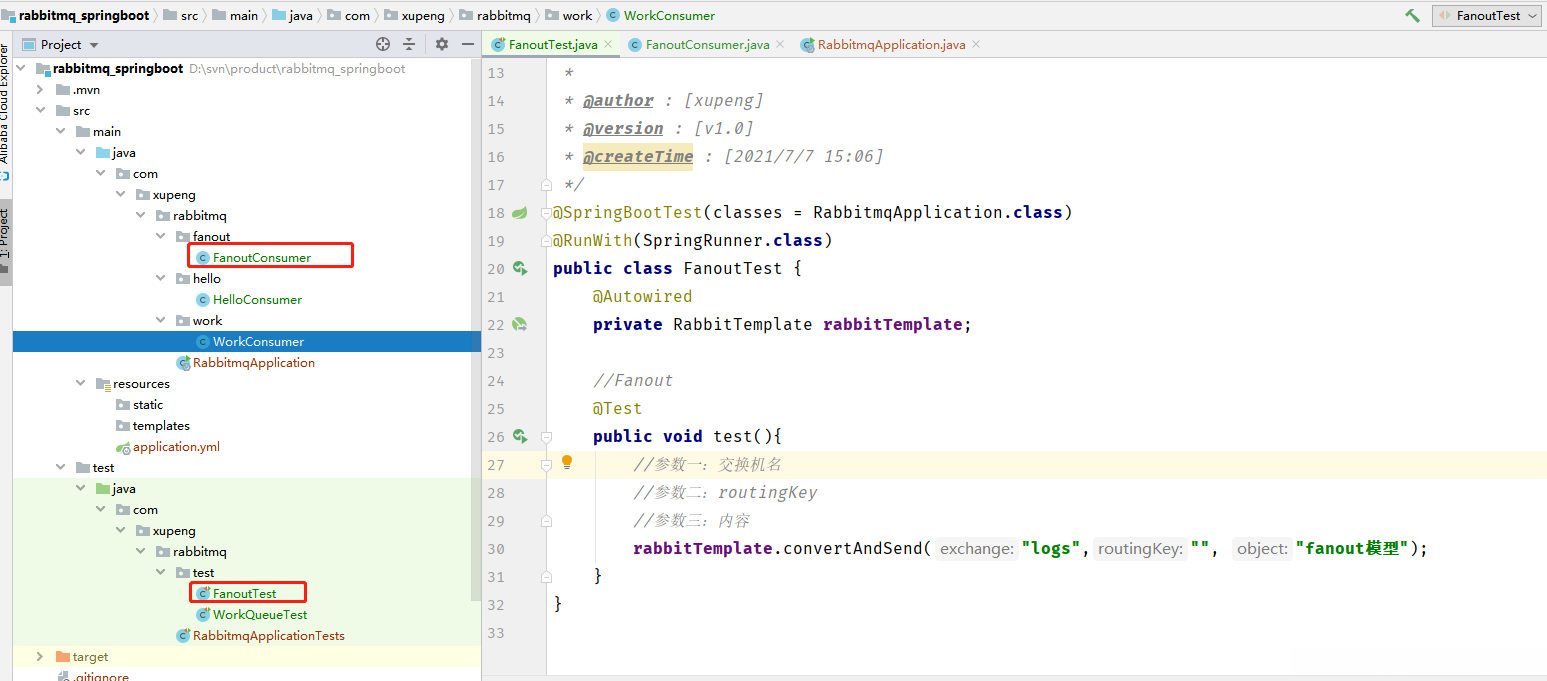

FanoutTest：
package com.xupeng.rabbitmq.test;
import com.xupeng.rabbitmq.RabbitmqApplication;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:06]
*/
@SpringBootTest(classes = RabbitmqApplication.class)
@RunWith(SpringRunner.class)
public class FanoutTest {
@Autowired
private RabbitTemplate rabbitTemplate;
//Fanout
@Test
public void test(){
//参数一：交换机名
//参数二：routingKey
//参数三：内容
rabbitTemplate.convertAndSend("logs","", "fanout模型");
}
}FanoutConsumer：
package com.xupeng.rabbitmq.fanout;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:16]
*/
@Component
public class FanoutConsumer {
@RabbitListener(bindings = @QueueBinding(
value = @Queue,//临时队列
exchange = @Exchange(value = "logs",type = "fanout")
))
public void receive1(String message){
System.out.println("message1："+message);
}
@RabbitListener(bindings = @QueueBinding(
value = @Queue,//临时队列
exchange = @Exchange(value = "logs",type = "fanout")
))
public void receive2(String message){
System.out.println("message2："+message);
}
}五、Direct直接路由模型

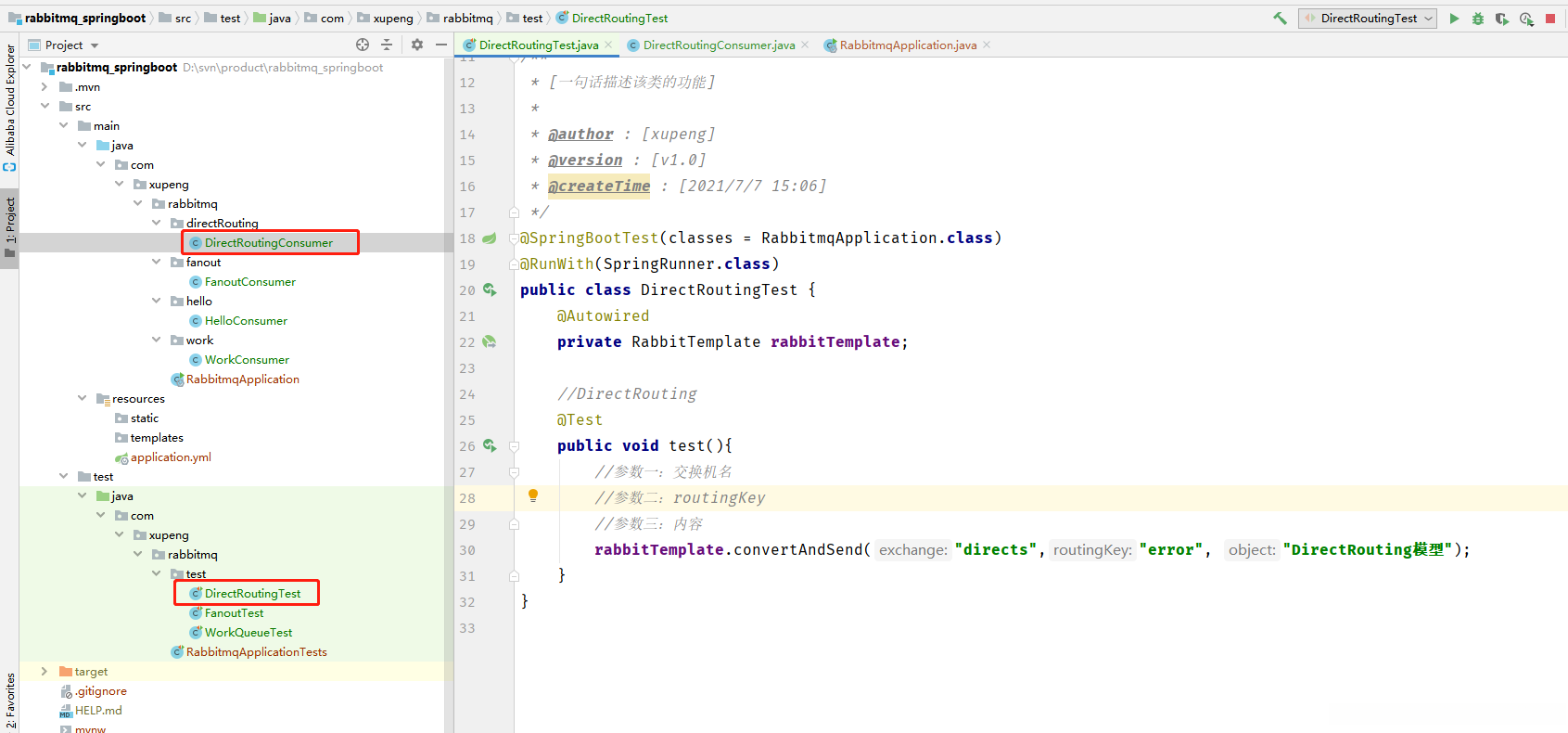

DirectRoutingTest：
package com.xupeng.rabbitmq.test;
import com.xupeng.rabbitmq.RabbitmqApplication;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:06]
*/
@SpringBootTest(classes = RabbitmqApplication.class)
@RunWith(SpringRunner.class)
public class DirectRoutingTest {
@Autowired
private RabbitTemplate rabbitTemplate;
//DirectRouting
@Test
public void test(){
//参数一：交换机名
//参数二：routingKey
//参数三：内容
rabbitTemplate.convertAndSend("directs","error", "DirectRouting模型");
}
}DirectRoutingConsumer：
package com.xupeng.rabbitmq.directRouting;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:24]
*/
@Component
public class DirectRoutingConsumer {
@RabbitListener(bindings = @QueueBinding(
value = @Queue,//临时队列
exchange = @Exchange(value = "directs", type = "direct"),//自定义交换机名称和类型
key = {"info","error","warning"}
))
public void receive1(String message) {
System.out.println("message1：" + message);
}
@RabbitListener(bindings = @QueueBinding(
value = @Queue,//临时队列
exchange = @Exchange(value = "directs", type = "direct"),//自定义交换机名称和类型
key = {"info"}
))
public void receive2(String message){
System.out.println("message2："+message);
}
}六、Topic动态路由模型
TopicRoutingTest：
package com.xupeng.rabbitmq.test;
import com.xupeng.rabbitmq.RabbitmqApplication;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:06]
*/
@SpringBootTest(classes = RabbitmqApplication.class)
@RunWith(SpringRunner.class)
public class TopicRoutingTest {
@Autowired
private RabbitTemplate rabbitTemplate;
//TopicRouting
@Test
public void test(){
//参数一：交换机名
//参数二：routingKey
//参数三：内容
rabbitTemplate.convertAndSend("topics","user.save.list", "TopicRouting模型");
}

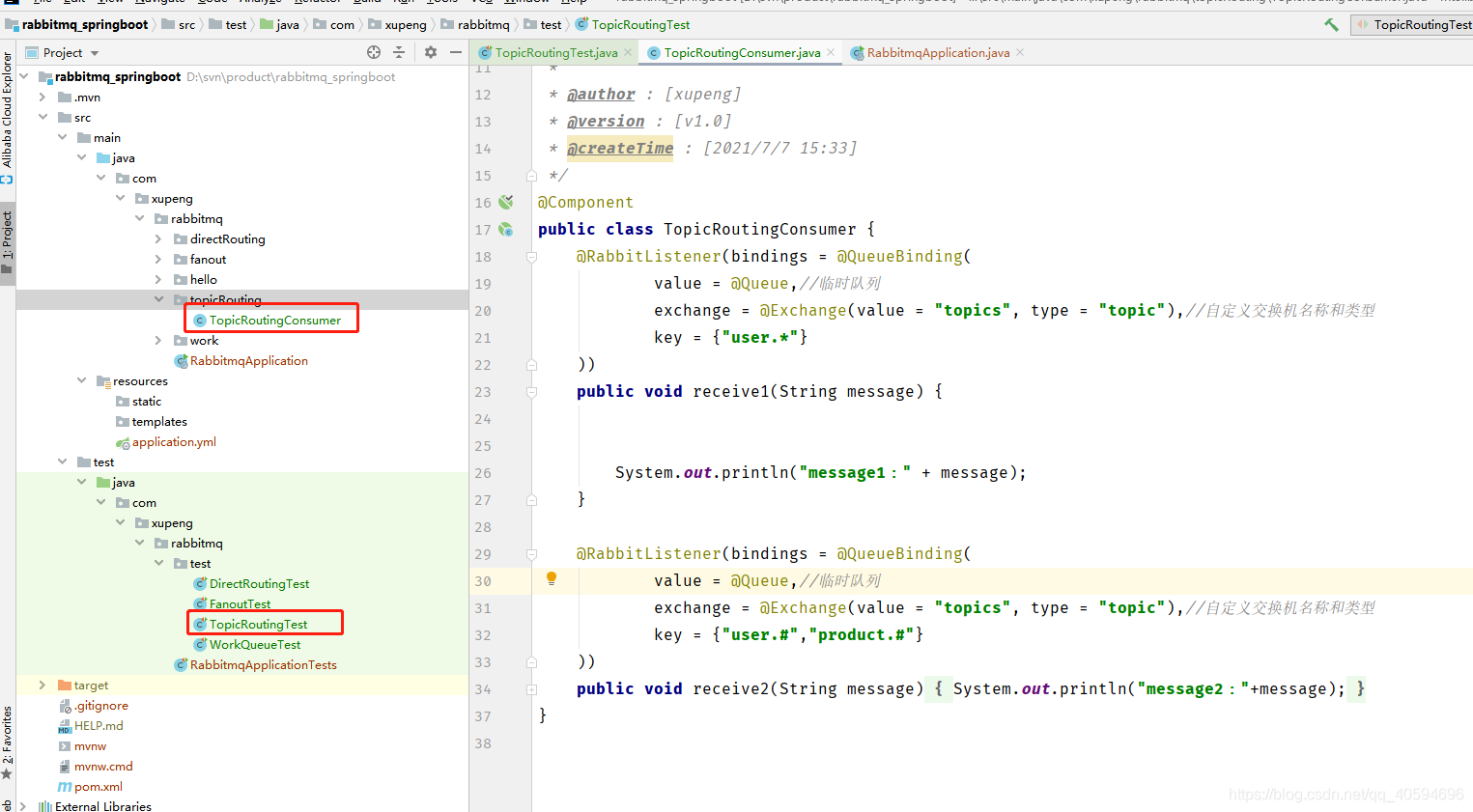

}TopicRoutingConsumer：
package com.xupeng.rabbitmq.topicRouting;
import org.springframework.amqp.rabbit.annotation.Exchange;
import org.springframework.amqp.rabbit.annotation.Queue;
import org.springframework.amqp.rabbit.annotation.QueueBinding;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
/** * [一句话描述该类的功能]
* * @author : [xupeng]
* @version : [v1.0]
* @createTime : [2021/7/7 15:33]
*/
@Component
public class TopicRoutingConsumer {
@RabbitListener(bindings = @QueueBinding(
value = @Queue,//临时队列
exchange = @Exchange(value = "topics", type = "topic"),//自定义交换机名称和类型
key = {"user.*"}
))
public void receive1(String message) {
System.out.println("message1：" + message);
}
@RabbitListener(bindings = @QueueBinding(
value = @Queue,//临时队列
exchange = @Exchange(value = "topics", type = "topic"),//自定义交换机名称和类型
key = {"user.#","product.#"}
))
public void receive2(String message){
System.out.println("message2："+message);
}
}七、MQ应用场景说明
1.异步处理
在用户注册成功之后，向其发送短信及电子邮箱。其中通过mq系统进行处理的为邮件及短信。无需等待上述两种通信渠道的全部完成。
2.应用解耦
订单系统与库存系统之间通过消息队列（mq）实现消息传递机制，在任何一个系统的故障情况下都不会影响另一方的正常运行。
3.流量削峰
在电商网站的双十一0秒促销期间，在流量发送请求至消息队列后转为主业务处理。为了优化资源分配，在消息队列中设置了请求数量上限（threshold），超出该阈值的请求将被丢弃。
八、打赏请求
如果本篇博客对您有所帮助，打赏一点呗，谢谢了呢~
