（生物信息学）R语言绘图初-中-高级——3-10分文章必备——点阵图（初级）



 setwd("C:\ Users\ Lijingxian\ Desktop\ 博客\ 作图（初级）")

 dir()

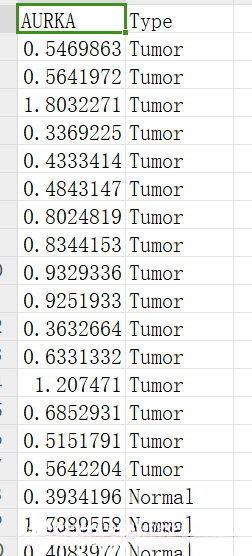

 data <- read.csv("点阵图.csv",header = T,sep = ",")

 head(data)





 library(ggplot2)

 library(ggpubr)

 head(data)

 a <- ggplot(data,aes(x=Type,y = AURKA))+

   geom_dotplot(aes(fill = factor(Type),color = factor(Type)),

            position = position_dodge(1.2),

            binaxis = "y", stackdir = "center",

            binpositions="all",binwidth = 0.05)+theme_classic()



 a

 b <- a+stat_summary( aes(x = Type,y = AURKA,fill = Type),

                  fun.y = "mean",position = position_dodge(1.2),

                  geom = "crossbar",fun.args = list(mult =1),

                  width = 0.4,color = "black",size = 0.1)

 b

 c <- b+stat_summary(aes(x = Type,y = AURKA,fill = Type),

                 position = position_dodge(1.2),fun.data = "mean_sd",

                 geom="errorbar", width = 0.3,color = "black",size = 0.2)

 c

 e <- c+theme(axis.text.x.bottom = element_text(angle = 45,vjust = 1,hjust = 1,size = 9,color = "black"))+

   theme(axis.text.y.left = element_text(vjust = 0.5,hjust = 0.5,size = 9,colour = "black"))+

   theme(axis.title.x.bottom = element_text(vjust = 0.5,hjust = 0.5,size = 11,colour = "black"))+

   theme(axis.title.y.left = element_text(vjust = 0.5,hjust = 0.5,size = 11,colour = "black"))+

   theme(legend.text = element_text(vjust = 0.5,hjust = 0.5,size = 9,colour = "black"))+

   theme(legend.title = element_text(vjust = 0.5,hjust = 0.5,size = 10,colour = "black"))

 e

 f <- e+labs(y = "AURKA mRNA expression",x="")

 f

 dir()

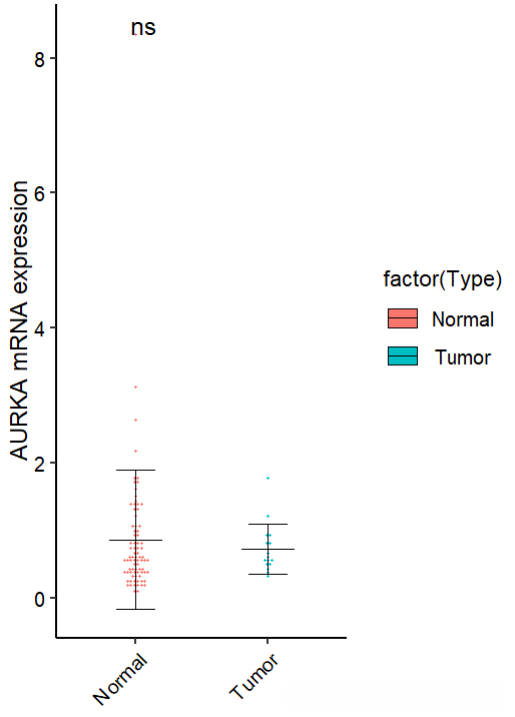

 g <- f+stat_compare_means(aes(group=Type),symnum.args=list(cutpoints = c(0, 0.001, 0.01, 0.05, 1), symbols = c("***", "**", "*", "ns")),label = "p.signif")

 g
