SRCNN-图像超分辨的学习

阅读量:

点击上方“Datawhal****e ”,选择“星标”公众号

第一时间获取价值内容
640?

文章摘要

《Learning a Deep Convolutional Network for Image Super-Resolution》的学习。

算法模型
640?wx_fmt=png

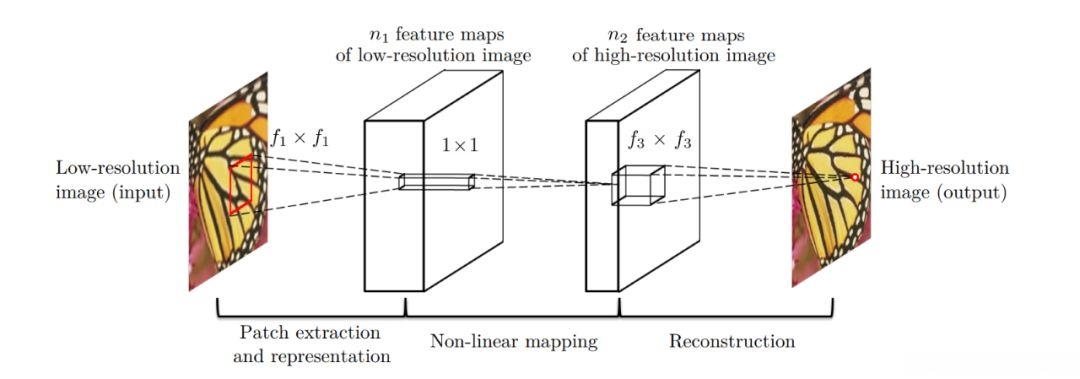

此图展示了SRCNN的网络结构。
640?wx_fmt=png

此图展示了在卷积神经网络下稀疏编码的结构。

SRCNN整个算法包括三个操作:

1. Patch extraction and representation

2. Non-linear mapping

3. Reconstruction

在该论文中,利用Relu作为收敛函数,利用最小均方差函数为Loss函数。

Loss函数: TensorFlow代码

复制代码
 // 主函数


 from model import SRCNN

 from utils import input_setup





 import numpy as np

 import tensorflow as tf





 import pprint

 import os





 flags = tf.app.flags

 flags.DEFINE_integer("epoch", 15000, "Number of epoch [15000]")

 flags.DEFINE_integer("batch_size", 128, "The size of batch images [128]")

 flags.DEFINE_integer("image_size", 33, "The size of image to use [33]")

 flags.DEFINE_integer("label_size", 21, "The size of label to produce [21]")

 flags.DEFINE_float("learning_rate", 1e-4, "The learning rate of gradient descent algorithm [1e-4]")

 flags.DEFINE_integer("c_dim", 1, "Dimension of image color. [1]")

 flags.DEFINE_integer("scale", 3, "The size of scale factor for preprocessing input image [3]")

 flags.DEFINE_integer("stride", 14, "The size of stride to apply input image [14]")

 flags.DEFINE_string("checkpoint_dir", "checkpoint", "Name of checkpoint directory [checkpoint]")

 flags.DEFINE_string("sample_dir", "sample", "Name of sample directory [sample]")

 flags.DEFINE_boolean("is_train", True, "True for training, False for testing [True]")

 FLAGS = flags.FLAGS





 pp = pprint.PrettyPrinter()





 def main(_):

   pp.pprint(flags.FLAGS.__flags)





   if not os.path.exists(FLAGS.checkpoint_dir):

     os.makedirs(FLAGS.checkpoint_dir)

   if not os.path.exists(FLAGS.sample_dir):

     os.makedirs(FLAGS.sample_dir)





   with tf.Session() as sess:

     srcnn = SRCNN(sess,

               image_size=FLAGS.image_size,

               label_size=FLAGS.label_size,

               batch_size=FLAGS.batch_size,

               c_dim=FLAGS.c_dim,

               checkpoint_dir=FLAGS.checkpoint_dir,

               sample_dir=FLAGS.sample_dir)





     srcnn.train(FLAGS)





 if __name__ == '__main__':

   tf.app.run()

Tensorflow完整代码:
https://github.com/tegg89/SRCNN-Tensorflow

结果
640?wx_fmt=png
640?wx_fmt=png
640?wx_fmt=png

双三次差值的 : PSNR=26.633759 dB

SRCNN的: PSNR=29.290147 dB

相比两种算法的PSNR,SRCNN有着明显的提升。

SRCNN的不足

利用Relu作为激活函数虽然速度快,但是训练的时候很”脆弱”,很容易就”die”;

SRCNN需要先通过双三次插值的方法对低分辨率的图片插值放大尺寸。

参考文献

[1] https://zhuanlan.zhihu.com/p/49846783

[2] https://medium.com/coinmonks/review-srcnn-super-resolution-3cb3a4f67a7c

[3] http://jiaqianlee.com/2018/06/09/SRCNN/
