WPF淡出淡入动画效果
这个效果运用OpacityMask属性,用于改变对象区域的不透明度的画笔。可以使元素的特定区域透明或部分透明,从而实现比较新颖的效果。
通过事件触发器触发Loaded事件实现,所以可以仅用前端XAML语言实现。
代码:
渐变淡出的动画和画刷资源
<Window.Resources>
</Window.Resources>
设置对象的OpacityMask属性
<Grid.OpacityMask>
</Grid.OpacityMask>
在设置对象的事件触发器
<Grid.Triggers>
<EventTrigger.Actions>
</EventTrigger.Actions>
</Grid.Triggers>
通过绑定按钮的Click事件实现(Click="btn_Cancel_Click")
<Button Name="btn_Cancel" Content="退出" Height="33" Width="76" FontSize="19" Foreground="Black" Background="SkyBlue" HorizontalAlignment="Left" VerticalAlignment="Top"
Cursor="Hand" FontFamily="Vivaldi" Margin="188,243,0,0" Click="btn_Cancel_Click">
后台代码
private void btn_Cancel_Click(object sender, RoutedEventArgs e)
{
MessageBoxResult dt = MessageBox.Show("是否退出界面?", "系统提示", MessageBoxButton.YesNo,
MessageBoxImage.Question);
if (dt == MessageBoxResult.Yes)
{
this.IsEnabled = false;
mainPanel.OpacityMask = this.Resources["ClosedBrush"] as LinearGradientBrush;
Storyboard std = this.Resources["ClosedStoryboard"] as Storyboard;
std.Completed += delegate { this.Close(); };
std.Begin();
}

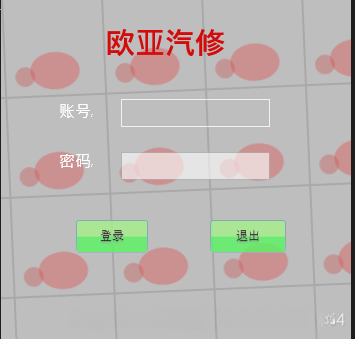

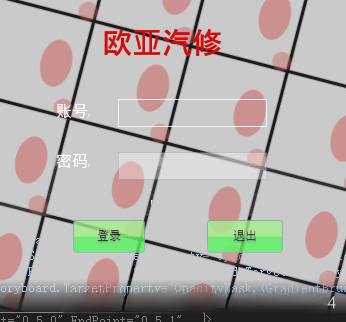

效果图:
