VTK与ITK在VS（2008,2012）下的安装

    C:/Qt/Qt5.2.1/5.2.1/msvc2012_64_opengl/lib/cmake/Qt5Gui/Qt5GuiConfigExtras.cmake
    set(CMAKE_LIBRARY_PATH "C:/Program Files (x86)/Windows Kits/8.0/Lib/win8/um/x64")

    cmake_minimum_required(VERSION 2.8)

    PROJECT(Cylinder)

    find_package(VTK REQUIRED)
    include(${VTK_USE_FILE})

    add_executable(Cylinder MACOSX_BUNDLE Cylinder)

    if(VTK_LIBRARIES)
      target_link_libraries(Cylinder ${VTK_LIBRARIES})
    else()
      target_link_libraries(Cylinder vtkHybrid vtkWidgets)
    endif()

 #include "vtkCylinderSource.h"


 #include "vtkPolyDataMapper.h"

 #include "vtkActor.h"

 #include "vtkRenderer.h"

 #include "vtkRenderWindow.h"

 #include "vtkRenderWindowInteractor.h"

 #include "vtkProperty.h"

 #include "vtkCamera.h"

 #include "vtkSmartPointer.h"



 int main()

 {

   // This creates a polygonal cylinder model with eight circumferential facets

   // (i.e, in practice an octagonal prism).

   vtkSmartPointer<vtkCylinderSource> cylinder =

     vtkSmartPointer<vtkCylinderSource>::New();

   cylinder->SetResolution(8);



   // The mapper is responsible for pushing the geometry into the graphics library.

   // It may also do color mapping, if scalars or other attributes are defined.

   vtkSmartPointer<vtkPolyDataMapper> cylinderMapper =

     vtkSmartPointer<vtkPolyDataMapper>::New();

   cylinderMapper->SetInputConnection(cylinder->GetOutputPort());



   // The actor is a grouping mechanism: besides the geometry (mapper), it

   // also has a property, transformation matrix, and/or texture map.

   // Here we set its color and rotate it around the X and Y axes.

   vtkSmartPointer<vtkActor> cylinderActor =

     vtkSmartPointer<vtkActor>::New();

   cylinderActor->SetMapper(cylinderMapper);

   cylinderActor->GetProperty()->SetColor(1.0000, 0.3882, 0.2784);

   cylinderActor->RotateX(30.0);

   cylinderActor->RotateY(-45.0);



   // The renderer generates the image

   // which is then displayed on the render window.

   // It can be thought of as a scene to which the actor is added

   vtkSmartPointer<vtkRenderer> renderer =

     vtkSmartPointer<vtkRenderer>::New();

   renderer->AddActor(cylinderActor);

   renderer->SetBackground(0.1, 0.2, 0.4);

   // Zoom in a little by accessing the camera and invoking its "Zoom" method.

   renderer->ResetCamera();

   renderer->GetActiveCamera()->Zoom(1.5);



   // The render window is the actual GUI window

   // that appears on the computer screen

   vtkSmartPointer<vtkRenderWindow> renderWindow =

     vtkSmartPointer<vtkRenderWindow>::New();

   renderWindow->SetSize(200, 200);

   renderWindow->AddRenderer(renderer);



   // The render window interactor captures mouse events

   // and will perform appropriate camera or actor manipulation

   // depending on the nature of the events.

   vtkSmartPointer<vtkRenderWindowInteractor> renderWindowInteractor =

     vtkSmartPointer<vtkRenderWindowInteractor>::New();

   renderWindowInteractor->SetRenderWindow(renderWindow);



   // This starts the event loop and as a side effect causes an initial render.

   renderWindowInteractor->Start();



   return 0;

 }

    cmake_minimum_required(VERSION 2.8)

    PROJECT(Cylinder)

    find_package(VTK REQUIRED)
    include(${VTK_USE_FILE})

    add_executable(Cylinder MACOSX_BUNDLE Cylinder)

    if(VTK_LIBRARIES)
      target_link_libraries(Cylinder ${VTK_LIBRARIES})
    else()
      target_link_libraries(Cylinder vtkHybrid vtkWidgets)
    endif()

  #include"vtkRenderWindow.h"


  #include"vtkSmartPointer.h"

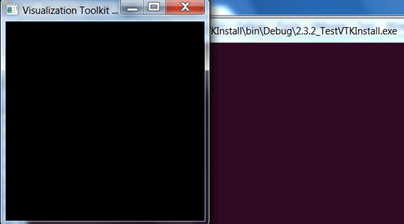

  int main()

 {

    vtkSmartPointer<vtkRenderWindow> renWin =vtkSmartPointer<vtkRenderWindow>::New();

    renWin->Render();

    std::cin.get();

     return 0;

  }

    #include "itkImage.h"


    #include <iostream>

    int main()

    {

       //声明图像类型,  像素类型为 unsigned short,  图像维数为 3维

       typedef itk::Image< unsigned short, 3 > ImageType;



       //新建一幅图像, 并将其赋值给图像类的智能指针, 智能指针不需要 delete

       //自动释放, ITK 中每一个类基本都提供智能指针, 且使用New() 实例化. 除少数极小的对象不使用智能指针

       ImageType::Pointer image = ImageType::New();

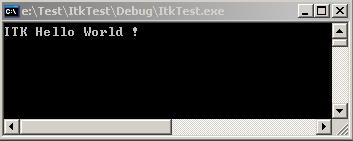

       std::cout << "ITK Hello World !" << std::endl;

       return 0;

     }

     CMAKE_MINIMUM_REQUIRED(VERSION 2.4)               //CMake 最小版本
     PROJECT(HelloWorld)                                                 //工程名
     FIND_PACKAGE(ITK)                                                   //寻找 ITK
     IF(ITK_FOUND)
            INCLUDE(${ITK_USE_FILE})    //找到则使用, 否则需要手动指定 D:/I_VTK/ITK/ITK-3.14.0-bin
     ELSE(ITK_FOUND)
          MESSAGE(FATAL_ERROR
                          "ITK not found. Please set ITK_DIR.") //没有找到,弹出对话框提示
     ENDIF(ITK_FOUND)

     ADD_EXECUTABLEHelloWorld HelloWorld.cxx )         //生成可执行文件名, 及需要编译的源文件

     //该工程所需要的 ITK 子系统, 该句会生成工程所需的 ITk lib库文件
     TARGET_LINK_LIBRARIES(HelloWorld  ITKCommon)

 #include "vtkConeSource.h"


 #include "vtkPolyDataMapper.h"

 #include "vtkRenderWindow.h"

 #include "vtkActor.h"

 #include "vtkRenderer.h"

 int main()

 {

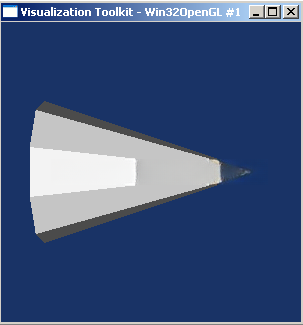

   // 创建一个圆锥，并设置其参数：高度、底面半径和分辨率。

   vtkConeSource *cone = vtkConeSource::New();

   cone->SetHeight( 3.0 );

   cone->SetRadius( 1.0 );

   cone->SetResolution( 10 );// 决定其棱角的多少

   // 创建一个多边形映射器，用于把多边形数据映射为可被计算机渲染的图元。

   vtkPolyDataMapper *coneMapper = vtkPolyDataMapper::New();

   coneMapper->SetInputConnection( cone->GetOutputPort() );

   // 创建一个演员，并关联一个映射器，从而确定了演员的形状。

   vtkActor *coneActor = vtkActor::New();

   coneActor->SetMapper( coneMapper );



   // 创建一个渲染器，添加要被渲染的演员，设置背景颜色。

   vtkRenderer *ren1= vtkRenderer::New();

   ren1->AddActor( coneActor );

   ren1->SetBackground( 0.1, 0.2, 0.4 );

   // 创建渲染窗口，供渲染器渲染用。

   vtkRenderWindow *renWin = vtkRenderWindow::New();

   renWin->AddRenderer( ren1 );

   renWin->SetSize( 300, 300 );

   // 渲染360次，这里主要是为了延时。

   int i;

   for (i = 0; i < 360; ++i)  renWin->Render();

   // 清除对象。

   cone->Delete();

   coneMapper->Delete();

   coneActor->Delete();

   ren1->Delete();

   renWin->Delete();

   return 0;

 }

 #include "itkImage.h"


 #include <iostream>

 int main()

 {

 //定义一个图像类型

   typedef itk::Image< unsigned short, 3 > ImageType;

   ImageType::Pointer image = ImageType::New();



 //输出：ITK Hello World！

   std::cout << "ITK Hello World !" << std::endl;

   return 0;

 }

 #include "itkImage.h"


 #include "itkImageFileReader.h"

 #include "itkImageToVTKImageFilter.h"

 #include "vtkImageViewer.h"

 #include "vtkRenderWindowInteractor.h"

 #include "vtkImageActor.h"

 #include "vtkRenderer.h"

 #include "vtkRenderWindow.h"

 #include <iostream>

 using namespace std;

 int main( int argc, char **argv) {



 typedef itk::Image<unsigned short,2> ImageType;

 typedef itk::ImageFileReader<ImageType> ReaderType;// 文件读取器

 typedef itk::ImageToVTKImageFilter<ImageType> ConnectorType;// VTK与ITK链接器



 ReaderType::Pointer reader= ReaderType::New();

 ConnectorType::Pointer connector= ConnectorType::New();

 reader->SetFileName("E:\ Program Files\ ITK\ InsightToolkit\ Wrapping\ WrapITK\ images\ ThresholdSegmentationLevelSetWhiteMatterTest.png");

 connector->SetInput(reader->GetOutput());



 vtkImageActor *actor = vtkImageActor::New();

 actor->SetInput(connector->GetOutput());

 vtkRenderer * ren = vtkRenderer::New();

 ren->AddActor(actor);

 vtkRenderWindow *renWin = vtkRenderWindow::New();

 renWin->AddRenderer(ren);



 vtkImageViewer* viewer= vtkImageViewer::New();

 // 绘制窗口交互器

 vtkRenderWindowInteractor* renderWindowInteractor=vtkRenderWindowInteractor::New();

 viewer->SetInput( connector->GetOutput() );

 viewer->SetupInteractor( renderWindowInteractor);

 viewer->SetColorWindow( 255);

 viewer->SetColorLevel( 128);

 viewer->Render();

 renderWindowInteractor->Initialize();

 renderWindowInteractor->Start();



 return 0;

 }

 #include <iostream>


 #include "itkMesh.h"

 #include "itkLineCell.h"

 #include "itkTriangleCell.h"

 #include "vtkPolyDataReader.h"

 #include "vtkPolyData.h"

 #include "vtkPoints.h"

 #include "vtkCellArray.h"



 int main( int argc, char * argv [] )

 {

   vtkPolyDataReader * reader = vtkPolyDataReader::New();

   reader->SetFileName("E:/Program Files/VTK/vtkdata/Data/fran_cut.vtk");

   reader->Update();// 触发立即执行读取操作



   vtkPolyData * polyData = reader->GetOutput();



   const unsigned int PointDimension   = 3;

   const unsigned int MaxCellDimension = 2;

   typedef itk::DefaultStaticMeshTraits<

                   vtkFloatingPointType,

                   PointDimension,

                   MaxCellDimension,

                   vtkFloatingPointType,

                   vtkFloatingPointType  >       MeshTraits;



   typedef itk::Mesh<

                   vtkFloatingPointType,

                   PointDimension,

                   MeshTraits              >     MeshType;



   MeshType::Pointer  mesh = MeshType::New();



   const unsigned int numberOfPoints = polyData->GetNumberOfPoints();



   vtkPoints * vtkpoints = polyData->GetPoints();



   mesh->GetPoints()->Reserve( numberOfPoints );



   for(unsigned int p =0; p < numberOfPoints; p++)

     {

     vtkFloatingPointType * apoint = vtkpoints->GetPoint( p );

 mesh->SetPoint( p, MeshType::PointType( apoint ));

 }



   vtkCellArray * triangleStrips = polyData->GetStrips();

   vtkIdType  * cellPoints;

   vtkIdType    numberOfCellPoints;

   unsigned int numberOfTriangles = 0;

   triangleStrips->InitTraversal();



   while( triangleStrips->GetNextCell( numberOfCellPoints, cellPoints ) )

     {

     numberOfTriangles += numberOfCellPoints-2;

 }



   vtkCellArray * polygons = polyData->GetPolys();

   polygons->InitTraversal();



   while( polygons->GetNextCell( numberOfCellPoints, cellPoints ) )

     {

     if( numberOfCellPoints == 3 )

       {

       numberOfTriangles ++;

       }

 }



   mesh->GetCells()->Reserve( numberOfTriangles );

   typedef MeshType::CellType   CellType;

   typedef itk::TriangleCell< CellType > TriangleCellType;

   int cellId = 0;



   triangleStrips->InitTraversal();



   while( triangleStrips->GetNextCell( numberOfCellPoints, cellPoints ) )

     {

     unsigned int numberOfTrianglesInStrip = numberOfCellPoints - 2;

     unsigned long pointIds[3];

     pointIds[0] = cellPoints[0];

     pointIds[1] = cellPoints[1];

 pointIds[2] = cellPoints[2];



     for( unsigned int t=0; t < numberOfTrianglesInStrip; t++ )

       {

       MeshType::CellAutoPointer c;

       TriangleCellType * tcell = new TriangleCellType;

       tcell->SetPointIds( pointIds );

       c.TakeOwnership( tcell );

       mesh->SetCell( cellId, c );

       cellId++;

       pointIds[0] = pointIds[1];

       pointIds[1] = pointIds[2];

       pointIds[2] = cellPoints[t+3];

       }



 }



   polygons->InitTraversal();

   while( polygons->GetNextCell( numberOfCellPoints, cellPoints ) )

     {

     if( numberOfCellPoints !=3 )      {

       continue;

       }



     MeshType::CellAutoPointer c;

     TriangleCellType * t = new TriangleCellType;

     t->SetPointIds( (unsigned long*)cellPoints );

     c.TakeOwnership( t );

     mesh->SetCell( cellId, c );

     cellId++;

 }

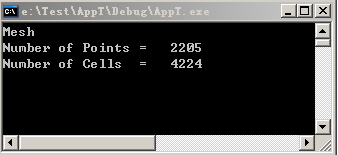

   std::cout << "Mesh  " << std::endl;

   std::cout << "Number of Points =   " << mesh->GetNumberOfPoints() << std::endl;

   std::cout << "Number of Cells  =   " << mesh->GetNumberOfCells()  << std::endl;

 getchar();

   reader->Delete();

   return 0;

 }

 #include "itkCommand.h"


 #include "itkImage.h"

 #include "itkVTKImageExport.h"

 #include "itkVTKImageImport.h"

 #include "itkConfidenceConnectedImageFilter.h"

 #include "itkCastImageFilter.h"

 #include "itkRGBPixel.h"

 #include "itkImageFileReader.h"

 #include "itkImageFileWriter.h"

 #include "vtkImageImport.h"

 #include "vtkImageExport.h"

 #include "vtkImageActor.h"

 #include "vtkInteractorStyleImage.h"

 #include "vtkRenderer.h"

 #include "vtkRenderWindow.h"

 #include "vtkRenderWindowInteractor.h"

 #include "vtkActor.h"

 #include "vtkPolyData.h"

 #include "vtkPolyDataMapper.h"

 #include "vtkContourFilter.h"

 #include "vtkImageData.h"

 #include "vtkDataSet.h"

 #include "vtkProperty.h"



 template <typename ITK_Exporter, typename VTK_Importer>

 void ConnectPipelines(ITK_Exporter exporter, VTK_Importer* importer)

 {

   importer->SetUpdateInformationCallback(exporter->GetUpdateInformationCallback());

   importer->SetPipelineModifiedCallback(exporter->GetPipelineModifiedCallback());

   importer->SetWholeExtentCallback(exporter->GetWholeExtentCallback());

   importer->SetSpacingCallback(exporter->GetSpacingCallback());

   importer->SetOriginCallback(exporter->GetOriginCallback());

   importer->SetScalarTypeCallback(exporter->GetScalarTypeCallback());

   importer->SetNumberOfComponentsCallback(exporter->GetNumberOfComponentsCallback());

   importer->SetPropagateUpdateExtentCallback(exporter->GetPropagateUpdateExtentCallback());

   importer->SetUpdateDataCallback(exporter->GetUpdateDataCallback());

   importer->SetDataExtentCallback(exporter->GetDataExtentCallback());

   importer->SetBufferPointerCallback(exporter->GetBufferPointerCallback());

   importer->SetCallbackUserData(exporter->GetCallbackUserData());

 }



 template <typename VTK_Exporter, typename ITK_Importer>

 void ConnectPipelines(VTK_Exporter* exporter, ITK_Importer importer)

 {

   importer->SetUpdateInformationCallback(exporter->GetUpdateInformationCallback());

   importer->SetPipelineModifiedCallback(exporter->GetPipelineModifiedCallback());

   importer->SetWholeExtentCallback(exporter->GetWholeExtentCallback());

   importer->SetSpacingCallback(exporter->GetSpacingCallback());

   importer->SetOriginCallback(exporter->GetOriginCallback());

   importer->SetScalarTypeCallback(exporter->GetScalarTypeCallback());

   importer->SetNumberOfComponentsCallback(exporter->GetNumberOfComponentsCallback());

   importer->SetPropagateUpdateExtentCallback(exporter->GetPropagateUpdateExtentCallback());

   importer->SetUpdateDataCallback(exporter->GetUpdateDataCallback());

   importer->SetDataExtentCallback(exporter->GetDataExtentCallback());

   importer->SetBufferPointerCallback(exporter->GetBufferPointerCallback());

   importer->SetCallbackUserData(exporter->GetCallbackUserData());

 }



 int main()

 {

     typedef unsigned char PixelType;

     const unsigned int Dimension = 2;

     typedef itk::Image< PixelType, Dimension > ImageType;



     typedef itk::ImageFileReader< ImageType > ReaderType;



     ReaderType::Pointer reader  = ReaderType::New();

     reader->SetFileName( "E:/Program Files/VTK/vtkdata/Data/fullhead15.png" );

     reader->Update();



     typedef itk::ConfidenceConnectedImageFilter<ImageType,ImageType> SegmentationFilterType;



     SegmentationFilterType::Pointer filter = SegmentationFilterType::New();



     filter->SetInput( reader->GetOutput() );

     filter->SetNumberOfIterations(2);

     filter->SetReplaceValue(255);

     filter->SetMultiplier(2.5);



     ImageType::IndexType index;

     index[0] = 100;

     index[1] = 100;

 filter->SetSeed( index );



     typedef itk::VTKImageExport< ImageType > ExportFilterType;

     ExportFilterType::Pointer itkExporter1 = ExportFilterType::New();

     ExportFilterType::Pointer itkExporter2 = ExportFilterType::New();



     itkExporter1->SetInput( reader->GetOutput() );

     itkExporter2->SetInput( filter->GetOutput() );



     vtkImageImport* vtkImporter1 = vtkImageImport::New();

     ConnectPipelines(itkExporter1, vtkImporter1);



     vtkImageImport* vtkImporter2 = vtkImageImport::New();

     ConnectPipelines(itkExporter2, vtkImporter2);



     vtkImageActor* actor = vtkImageActor::New();

     actor->SetInput(vtkImporter1->GetOutput());



     vtkInteractorStyleImage * interactorStyle = vtkInteractorStyleImage::New();



     vtkRenderer* renderer = vtkRenderer::New();

     vtkRenderWindow* renWin = vtkRenderWindow::New();

     vtkRenderWindowInteractor* iren = vtkRenderWindowInteractor::New();



     renWin->SetSize(500, 500);

     renWin->AddRenderer(renderer);

     iren->SetRenderWindow(renWin);

     iren->SetInteractorStyle( interactorStyle );



     renderer->AddActor(actor);

     renderer->SetBackground(0.4392, 0.5020, 0.5647);



     vtkContourFilter * contour = vtkContourFilter::New();

     contour->SetInput( vtkImporter2->GetOutput() );

 contour->SetValue(0, 128);



     vtkPolyDataMapper * polyMapper = vtkPolyDataMapper::New();

     vtkActor          * polyActor  = vtkActor::New();



     polyActor->SetMapper( polyMapper );

     polyMapper->SetInput( contour->GetOutput() );

     polyMapper->ScalarVisibilityOff();



     vtkProperty * property = vtkProperty::New();

     property->SetRepresentationToSurface();

     property->SetAmbient(0.1);

     property->SetDiffuse(0.1);

     property->SetSpecular(0.5);

     property->SetColor(1.0,0.0,0.0);

     property->SetLineWidth(2.0);



     polyActor->SetProperty( property );

     renderer->AddActor( polyActor );

     renWin->Render();

     iren->Start();



     actor->Delete();

     interactorStyle->Delete();

     polyActor->Delete();

     vtkImporter1->Delete();

     vtkImporter2->Delete();

     contour->Delete();

     property->Delete();

     polyMapper->Delete();

     renWin->Delete();

     renderer->Delete();

 iren->Delete();



   return 0;

 }

    <pre name="code" class="plain" data-index="14"><pre data-index="15"></pre>
    <pre data-index="16"></pre>
    <pre data-index="17"></pre>
    <pre data-index="18"></pre>
    <pre data-index="19"></pre>
    <pre data-index="20"></pre>
    <pre data-index="21"></pre>
    <pre data-index="22"></pre>
    <pre data-index="23"></pre>
    <pre data-index="24"></pre>
    <pre data-index="25"></pre>
    <pre data-index="26"></pre>
    <pre data-index="27"></pre>
    <pre data-index="28"></pre>
    <pre data-index="29"></pre>
    <pre data-index="30"></pre>
    <pre data-index="31"></pre>
    <pre data-index="32"></pre>
    <pre data-index="33"></pre>
    <pre data-index="34"></pre>
    <pre data-index="35"></pre>
    <pre data-index="36"></pre>
    <pre data-index="37"></pre>
    <pre data-index="38"></pre>
    <pre data-index="39"></pre>
    <pre data-index="40"></pre>
    <pre data-index="41"></pre>
    <pre data-index="42"></pre>
    <pre data-index="43"></pre>
    <pre data-index="44"></pre>
    </pre>
