HAProxy 简单示例及 HAProxy_Log 的配置
-
1、实验拓扑
-
2、后端 HTTP 主机配置
-
- 2.1 HTTP 主机的安装及 conf 文件配置
- 2.2 HTTP 虚拟主机的默认网页配置
- 2.3 HTTP 虚拟主机的服务启动及网页测试
-
3、HAProxy 主机配置（代理配置）
-
- 3.1 HAProxy 主机的 haproxy.cfg 文件配置
- 3.2 HAProxy 主机的服务启动
-
4、HAProxy 主机配置（log 配置）
-
- 4.1 HAProxy 主机的 haproxy.cfg 文件查看
- 4.2 HAProxy 主机的 Rsyslog 程序的文件配置
- 4.3 HAProxy 主机的 Rsyslog 的服务重启
-
5、用户进行访问
-
- 5.1 进行访问，看是否能够成功访问（权重配置是否生效）
- 5.2 查看 HAProxy 的相关日志
- 5.3 后端 HTTPD 主机的 httpd_access 日志查看

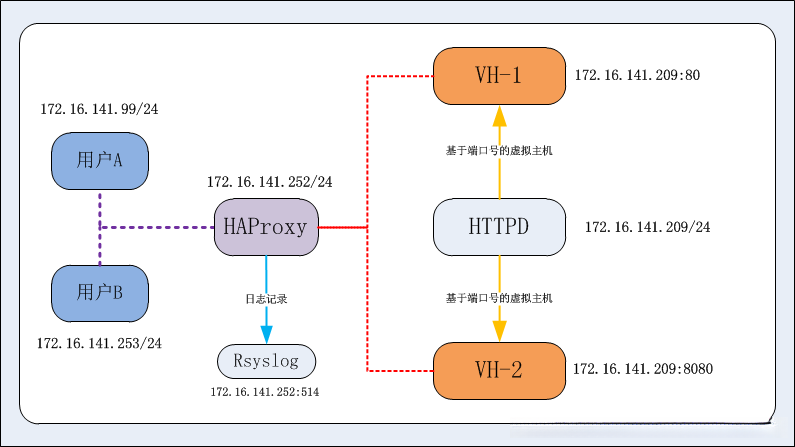

1、实验拓扑
2、后端 HTTP 主机配置
2.1 HTTP 主机的安装及 conf 文件配置
[root@Tang-1 ~]# ipinfo
enp1s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.16.141.209 netmask 255.255.255.0 broadcast 172.16.141.255
[root@Tang-1 ~]# rpm -q httpd # 安装 HTTPD
httpd-2.4.6-90.el7.centos.x86_64
[root@Tang-1 ~]# cat /etc/httpd/conf.d/mylisten.conf # 虚拟主机的配置
Listen 8080
<VirtualHost 172.16.141.209:8080> # 虚拟主机 1 的配置
ServerName www.neo.tang
DocumentRoot "/data/web/neo"
<Directory "/data/web/neo">
AllowOverride None
Options None
Require all granted
</Directory>
</virtualHost>
Listen 80
<VirtualHost 172.16.141.209:80> # 虚拟主机 2 的配置
ServerName www.neo.tang
DocumentRoot "/data/web/tang"
<Directory "/data/web/tang">
AllowOverride None
Options None
Require all granted
</Directory>
</virtualHost>2.2 HTTP 虚拟主机的默认网页配置
[root@Tang-1 ~]# cat /data/web/neo/index.html
<h1>This is neo's website!</h1>
[root@Tang-1 ~]# cat /data/web/tang/index.html
<h1>This is tang's website!</h1>2.3 HTTP 虚拟主机的服务启动及网页测试
[root@Tang-1 ~]# systemctl start httpd # 启动服务
[root@Tang-1 ~]# ss -tnl # 查看端口号是否正常启动
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 :::80 :::*
LISTEN 0 128 :::8080 :::*
LISTEN 0 128 :::22 :::*
LISTEN 0 100 ::1:25 :::* [root@Tang haproxy]# curl http://172.16.141.209:80 # 访问虚拟主机的默认网页
<h1>This is tang's website!</h1>
[root@Tang haproxy]# curl http://172.16.141.209:8080 # 访问虚拟主机的默认网页
<h1>This is neo's website!</h1>3、HAProxy 主机配置（代理配置）
3.1 HAProxy 主机的 haproxy.cfg 文件配置
[root@Tang ~]# ipinfo
enp1s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.16.141.252 netmask 255.255.255.0 broadcast 172.16.141.255
[root@Tang haproxy]# vim /etc/haproxy/haproxy.cfg
frontend web
bind *:80
default_backend websrvs
backend websrvs
balance roundrobin
server srv1 172.16.141.209:80 weight 1 check
server srv2 172.16.141.209:8080 weight 2 check3.2 HAProxy 主机的服务启动
[root@Tang haproxy]# systemctl start haproxy
[root@Tang haproxy]# ss -tnl
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:80 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 :::22 :::*4、HAProxy 主机配置（log 配置）
4.1 HAProxy 主机的 haproxy.cfg 文件查看
[root@Tang haproxy]# vim /etc/haproxy/haproxy.cfg
global
# to have these messages end up in /var/log/haproxy.log you will
# need to:
#
# 1) configure syslog to accept network log events. This is done
# by adding the '-r' option to the SYSLOGD_OPTIONS in
# /etc/sysconfig/syslog
#
# 2) configure local2 events to go to the /var/log/haproxy.log
# file. A line like the following can be added to
# /etc/sysconfig/syslog
#
# local2.* /var/log/haproxy.log
#
log 127.0.0.1 local24.2 HAProxy 主机的 Rsyslog 程序的文件配置
[root@Tang ~]# vim /etc/rsyslog.conf
local2.* /var/log/haproxy/haproxy.log
# Provides UDP syslog reception
$ModLoad imudp
$UDPServerRun 514
# Provides TCP syslog reception
$ModLoad imtcp
$InputTCPServerRun 5144.3 HAProxy 主机的 Rsyslog 的服务重启
[root@Tang ~]# systemctl start rsyslog # 启动 Rsyslog
[root@Tang ~]# ss -tnl # 查看 514 端口号是否成功监听
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:80 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 25 *:514 *:*
LISTEN 0 128 :::22 :::*
LISTEN 0 25 :::514 :::*5、用户进行访问
5.1 进行访问，看是否能够成功访问（权重配置是否生效）
[root@Tang-2 ~]# ipinfo
enp1s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.16.141.253 netmask 255.255.255.0 broadcast 172.16.141.255 [root@Tang-2 ~]# for i in {1..12}; do curl http://172.16.141.252; done
<h1>This is tang's website!</h1>
<h1>This is neo's website!</h1>
<h1>This is neo's website!</h1>
<h1>This is tang's website!</h1>
<h1>This is neo's website!</h1>
<h1>This is tang's website!</h1>
<h1>This is neo's website!</h1>
<h1>This is neo's website!</h1>
<h1>This is tang's website!</h1>
<h1>This is neo's website!</h1>
<h1>This is tang's website!</h1>
<h1>This is neo's website!</h1>5.2 查看 HAProxy 的相关日志
[root@Tang ~]# tail /var/log/haproxy/haproxy.log
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37450 [06/Nov/2019:14:47:22.692] web websrvs/srv2 0/0/0/1/1 200 292 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37452 [06/Nov/2019:14:47:22.705] web websrvs/srv1 0/0/0/1/1 200 293 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37454 [06/Nov/2019:14:47:22.719] web websrvs/srv2 0/0/0/1/1 200 292 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37456 [06/Nov/2019:14:47:22.732] web websrvs/srv1 0/0/0/1/1 200 293 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37458 [06/Nov/2019:14:47:22.744] web websrvs/srv2 0/0/0/1/1 200 292 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37460 [06/Nov/2019:14:47:22.757] web websrvs/srv2 0/0/0/1/1 200 292 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37462 [06/Nov/2019:14:47:22.770] web websrvs/srv1 0/0/0/1/1 200 293 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37464 [06/Nov/2019:14:47:22.783] web websrvs/srv2 0/0/0/1/1 200 292 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37466 [06/Nov/2019:14:47:22.796] web websrvs/srv1 0/0/0/1/1 200 293 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"
Nov 6 14:47:22 neo haproxy[30442]: 172.16.141.253:37468 [06/Nov/2019:14:47:22.809] web websrvs/srv2 0/0/0/1/1 200 292 - - ---- 1/1/0/0/0 0/0 "GET / HTTP/1.1"5.3 后端 HTTPD 主机的 httpd_access 日志查看
[root@Tang-1 ~]# tail /var/log/httpd/access_log
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 32 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 33 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 32 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 33 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 32 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 32 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 33 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 32 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 33 "-" "curl/7.29.0"
172.16.141.252 - - [06/Nov/2019:14:47:22 +0800] "GET / HTTP/1.1" 200 32 "-" "curl/7.29.0"全部评论 (0)
