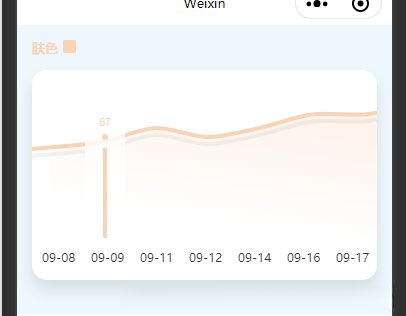

先上图 不能耽误大家时间。由于也是才入手小程序 很多不会代码有点乱 看官些能用就用不能用就看看哈。
view代码
<view class="efficacy">
<!-- 曲线 -->
<view class="chartsBox">
<view style="display:flex;justify-content: space-between;">
<view class="efficacyName" style="color:{{curve.lineColor}}">{{curve.name}}
<view style="background:{{curve.lineColor}}"></view>
</view>
</view>
<view class="canvasBox">
<scroll-view class="temp_day_box" scroll-x bindscroll='scrollCanvas'>
<canvas canvas-id='curveCanvas' id='curveCanvas' class='curveCanvas'> </canvas>
<canvas canvas-id='lines' id='lines' class='lines'> </canvas>
<view class="xCoordinate" bindtap="getZuoBiao" >
<view class="xCoordinateTime{{index}} xCoordinateTime" wx:for="{{curve.date}}" wx:key="index" data-index="{{index}}" >
{{item}}
<!-- 分数提示线 -->
<cover-view class="scoreTip" wx-if="{{numShiow&&index==tipIndex}}">
<cover-view class="scoreBg" style="height:{{144}}px;">
<cover-view class="score" style="top:-{{180-tipHeight}}px;color:{{curve.lineColor}}">{{score}}</cover-view>
<cover-view class="scoreBox" style="top:-{{174-tipHeight}}px;background:{{curve.lineColor}}"></cover-view>
</cover-view>
<cover-view class="scoreLine" style="height:{{190-tipHeight}}px;background:{{curve.lineColor}}"></cover-view>
</cover-view>
</view>
</view>
</scroll-view>
</view>
</view>
</view>css代码
/* pages/curveCharts/curveCharts.wxss *//* pages/experience/tests/tests.wxss */
.efficacy{
/* width: 100%; */
/* height: 1000px; */
background: #eef7fe;
padding:30rpx;
}
/* 曲线 */
.efficacyName {
color: #e2c162;
font-size: 26rpx;
font-weight: bold;
display: flex;
margin-bottom: 30rpx;
line-height: 30rpx;
}
.efficacyName>view {
width: 26rpx;
height: 26rpx;
margin-left: 10rpx;
border-radius: 4rpx;
}
.chartsBox{
position: relative;
width: 100%;
margin-bottom:40rpx;
}
.canvasBox{
width:690rpx;
height:420rpx;
position: relative;
background: #fff;
border-radius: 30rpx;
box-shadow: 0 10px 15px rgba(0,0,0,0.1);
overflow: auto;
overflow-y:hidden;
/* overflow-x:scroll; */
}
.curveCanvas{
/* width:100%; */
width:450px;
height:500rpx;
position: relative;
left: -10px;
top: -28px;
}
.xCoordinate{
position: absolute;
top: 0;
/* left:30rpx; */
display: flex;
/* width: 690rpx; */
height: 100%;
overflow: auto;
}
.xCoordinateTime{
padding-left:4rpx;
font-size:20rpx;
color: #fff;
/* color: red; */
width: 98rpx;
}
.lines{
/* width:100%; */
width:450px;
position: absolute;
top: -21px;
left: -10px;
}
canvas{
width:none;
height: none;
}
.scoreTip{
position: absolute;
top:0;
height:345rpx;
}
.scoreBg{
width:80rpx;
height:170rpx;
background: rgba(255, 255, 255, 0.8);
display: flex;
flex-direction: column;
align-items: center;
justify-content: flex-end;
position: relative;
}
.score{
color: #d2b567;
font-size: 20rpx;
position: relative;
bottom: 10rpx;
top: 10rpx;
}
.scoreBox{
width: 12rpx;
height: 12rpx;
background:#d2b567;
border-radius: 50%;
position: relative;
bottom: 10rpx;
top: 10rpx;
}
.scoreLine{
width:8rpx;
height:119px;
background:#d2b567;
border-radius:3rpx;
position: absolute;
left:0;
right: 0;
bottom:8rpx;
margin:auto;
}js代码
// pages/experience/tests/tests.js
let curve = {
mW: 345, //canvas宽
mH: 250, //canvas高
mCenter: 180, //中心点
hCenter: 125, //中心点
points: []
};
Page({
/** * 页面的初始数据
*/
data: {
// 数字提示
numShiow: false,
tipLeft: 0, //提示的x坐标
tipHeight: 0, //提示线条的高度
curveColText: ['100', '80', '60', '40', '20', '0'], //y轴
// 主要数据
curve: {
bgColor: "#fcede0",
date: ["09-08", "09-09", "09-11", "09-12", "09-14", "09-16", "09-17", "09-18", "09-28"],
lineColor: "#f9d3b5",
list: [62, 67, 76, 70, 76, 85, 85, 88, 57],
name: "肤色",
xData: [],
},
tipIndex: 0,
whatShow: false,
getshow: false,
},
/** * 生命周期函数--监听页面加载
*/
onLoad: function (options) {
let {curveColText } = this.data //y坐标
let {bgColor,date,lineColor,list,xData } = this.data.curve //y坐标
let curveCanvas = wx.createCanvasContext('curveCanvas');
let lines = wx.createCanvasContext('lines');
this.drawLines(list, lines);
this.drawCurve(curveCanvas, curveColText, date, list, xData, lineColor, bgColor);
},
// gundong
scrollCanvas: function (e) {
console.log(e);
let index = e.currentTarget.dataset.index
var canvasLen = e.detail.scrollLeft;
this.setData({
indexScroll: index,
canvasLen: canvasLen
})
},
/** * 生命周期函数--监听页面初次渲染完成
*/
onReady: function () {
},
// 获取坐标
getZuoBiao(e) {
let indexs = e.currentTarget.dataset.indexs
let index = e.target.dataset.index
let x = e.detail.x
this.setData({
tipIndexs: indexs,
tipIndex: index
})
console.log(e)
let tipHeight =this.data.curve.xData[index].y
let tipLeft =this.data.curve.xData[index].x
console.log('x坐标',x)
console.log(tipHeight)
this.setData({
numShiow: true,
tipLeft:tipLeft-10,
tipHeight:tipHeight
})
let score = this.data.curve.list[index]
console.log(this.data.curve.list[index])
console.log(this.data.curve.date[index])
this.setData({
score: score,
})
},
/** * 生命周期函数--监听页面显示
*/
onShow: function () {
},
//
// 曲线
drawCurve(curveCtx, curveColText, curveText, curveData, xData, LineColor, colorEnd) {
this.drawLineBg(curveCtx); //画横纵坐标框架
this.drawLineColText(curveColText, curveCtx); //绘制纵坐标文字
this.drawLineRowText(curveText, curveCtx, xData); //绘制横坐标文字
this.drawCurveCtx(curveData, curveCtx, xData, LineColor, colorEnd); //绘制曲线
curveCtx.draw();
},
// 阴影
drawLines(curveData, curveCtx) {
this.drawCurveCtxs(curveData, curveCtx); //绘制曲线
curveCtx.draw();
},
drawCurveCtx(mData, lineCtx, xData, LineColor, colorEnd) {
curve.points = [];
for (let i = 0; i < mData.length; i++) {
curve.points.push({
x: 29.5 + i * 52,
y: 200 - mData[i] / 100
});
}
this.drawCurvePath(curve.points, lineCtx, LineColor, colorEnd);
// 获取y轴做线条高度
curve.points.forEach((v, i) => {
xData[i].y = v.y
})
},
// 阴影
drawCurveCtxs(mData, lineCtx) {
curve.points = [];
for (let i = 0; i < mData.length; i++) {
curve.points.push({
x: 29.5 + i * 52,
y: 200 - mData[i] / 100
});
}
this.drawCurvePaths(curve.points, lineCtx);
},
// 绘制曲线背景
drawCurvePath(path, ctx, LineColor, colorEnd) {
var point = getControlPoint(path);
ctx.beginPath();
const grd = ctx.createLinearGradient(174, 180, 200, 0);
grd.addColorStop(0, '#ffffff');
grd.addColorStop(0.8, colorEnd);
grd.addColorStop(1, colorEnd);
ctx.setFillStyle(grd);
ctx.setGlobalAlpha(0.8);
ctx.beginPath();
ctx.moveTo(29, 200);
ctx.lineTo(curve.points[0].x, curve.points[0].y);
var int = 0;
for (let i = 0; i < curve.points.length; i++) {
if (i == 0) {
ctx.quadraticCurveTo(point[0].x, point[0].y, curve.points[1].x, curve.points[1].y);
int = int + 1;
} else if (i < curve.points.length - 2) {
ctx.bezierCurveTo(point[int].x, point[int].y, point[int + 1].x, point[int + 1].y, curve.points[i + 1].x, curve.points[i + 1].y);
int += 2;
} else if (i == curve.points.length - 2) {
ctx.quadraticCurveTo(point[point.length - 1].x, point[point.length - 1].y, curve.points[curve.points.length - 1].x, curve.points[curve.points.length - 1].y);
}
}
ctx.lineTo(curve.points[curve.points.length - 1].x, 200);
ctx.fill();
ctx.closePath();
this.drawCurveSign(point, ctx, LineColor)
},
// 绘制点加线
drawCurveSign(point, ctx, LineColor) {
// 绘制线
ctx.beginPath();
ctx.setStrokeStyle(LineColor);
ctx.setGlobalAlpha(1);
ctx.setLineWidth(4);
var int = 0;
ctx.moveTo(curve.points[0].x - 20, curve.points[0].y);
for (var i = 0; i < curve.points.length; i++) {
if (i == 0) {
ctx.quadraticCurveTo(point[0].x, point[0].y, curve.points[1].x, curve.points[1].y);
int = int + 1;
} else if (i < curve.points.length - 2) {
ctx.bezierCurveTo(point[int].x, point[int].y, point[int + 1].x, point[int + 1].y, curve.points[i + 1].x, curve.points[i + 1].y);
int += 2;
} else if (i == curve.points.length - 2) {
ctx.quadraticCurveTo(point[point.length - 1].x, point[point.length - 1].y, curve.points[curve.points.length - 1].x, curve.points[curve.points.length - 1].y);
}
}
ctx.stroke();
// 绘制点
// ctx.beginPath();
// ctx.setGlobalAlpha(1);
// for (let i = 0; i < curve.points.length; i++) {
// ctx.beginPath();
// ctx.arc(curve.points[i].x, curve.points[i].y, 5, 0, 2 * Math.PI);
// console.log('点',curve.points[i].x, curve.points[i].y, 5, 0, 2 * Math.PI)
// ctx.setFillStyle("#3388FF");
// ctx.fill();
// ctx.closePath();
// }
},
// 阴影
// 绘制曲线背景
drawCurvePaths(path, ctx) {
var point = getControlPoint(path);
ctx.beginPath();
this.drawCurveSigns(point, ctx)
},
drawCurveSigns(point, ctx) {
// 绘制线
ctx.beginPath();
ctx.setStrokeStyle("rgba(0,0,0,0.05)");
// ctx.setStrokeStyle("red");
ctx.setGlobalAlpha(1);
ctx.setLineWidth(4);
var int = 0;
ctx.moveTo(curve.points[0].x - 20, curve.points[0].y);
for (var i = 0; i < curve.points.length; i++) {
if (i == 0) {
ctx.quadraticCurveTo(point[0].x, point[0].y, curve.points[1].x, curve.points[1].y);
int = int + 1;
} else if (i < curve.points.length - 2) {
ctx.bezierCurveTo(point[int].x, point[int].y, point[int + 1].x, point[int + 1].y, curve.points[i + 1].x, curve.points[i + 1].y);
int += 2;
} else if (i == curve.points.length - 2) {
ctx.quadraticCurveTo(point[point.length - 1].x, point[point.length - 1].y, curve.points[curve.points.length - 1].x, curve.points[curve.points.length - 1].y);
}
}
ctx.stroke();
},
// 画横坐标
drawLineBg(lineCtx) {
lineCtx.setStrokeStyle("#fff");
for (let i = 0; i < 6; i++) {
lineCtx.moveTo(curve.mCenter - 160, 50 + 30 * i);
lineCtx.lineTo(curve.mCenter + 160, 50 + 30 * i);
lineCtx.stroke();
}
},
// 绘制横坐标文字
drawLineRowText(mData, lineCtx, xData) {
lineCtx.setFillStyle("#333");
lineCtx.setFontSize(12); //设置字体
for (let i = 0; i < mData.length; i++) {
if (mData.length >= 3 && mData[1] != '') {
lineCtx.fillText(mData[i], 20 + i * 49, 220);
xData.push({
tiem: mData[i],
x: 20 + i * 49,
y: 0
})
// lineCtx.fillText(mData[i][1], 15 + i * 65, 235);
} else if (mData[1] == '') {
// 数据小于等于2的时候的坐标
lineCtx.fillText(mData[i], 60 + i * 90, 220);
// lineCtx.fillText(mData[i][1], 35 + i * 80, 235);
xData.push({
tiem: mData[i],
x: 20 + i * 49,
y: 0
})
} else if (mData[2] == '') {
// 数据小于等于1的时候的坐标
lineCtx.fillText(mData[i], 20 + i * 90, 220);
// lineCtx.fillText(mData[i][1], 35 + i * 80, 235);
xData.push({
tiem: mData[i],
x: 20 + i * 49,
y: 0
})
}
}
// this.setData({
// xData: xData
// })
},
// 绘制纵坐标文字
drawLineColText(mData, lineCtx) {
lineCtx.beginPath();
lineCtx.setFillStyle("#fff");
for (let i = 0; i < 6; i++) {
lineCtx.fillText(mData[i], 10, 55 + 30 * i);
}
},
/** * 生命周期函数--监听页面隐藏
*/
onHide: function () {
},
/** * 生命周期函数--监听页面卸载
*/
onUnload: function () {
},
/** * 页面相关事件处理函数--监听用户下拉动作
*/
onPullDownRefresh: function () {
},
/** * 页面上拉触底事件的处理函数
*/
onReachBottom: function () {
},
/** * 用户点击右上角分享
*/
onShareAppMessage: function () {
},
// 日历
// 日历
onDayClick: function (event) {
console.log(event.detail)
wx.showToast({
title: '日期被点击，具体信息请看Console信息',
icon: 'none'
})
},
onRangeComplete: function (event) {
console.log(event.detail)
var begin = new Date(event.detail.begin);
var end = new Date(event.detail.end);
// + ' ' + d.getHours() + ':' + d.getMinutes() + ':' + d.getSeconds()
var begintime = begin.getFullYear() + '-' + (begin.getMonth() + 1) + '-' + begin.getDate();
var endtime = end.getFullYear() + '-' + (end.getMonth() + 1) + '-' + end.getDate();
console.log(begintime)
console.log(endtime)
this.setData({
beginDate: begintime,
endDate: endtime
})
this.getJieGuo(begintime, endtime)
},
onMonthChange: function (event) {
console.log(event.detail)
wx.showToast({
title: '月份变换，具体信息请看Console信息',
icon: 'none'
})
},
})
// quxian
// 折线变曲线
let Vector2 = function (x, y) {
this.x = x;
this.y = y;
};
Vector2.prototype = {
"length": function () {
return Math.sqrt(this.x * this.x + this.y * this.y);
},
"normalize": function () {
let inv = 1 / this.length() == Infinity ? 0 : 1 / this.length();
return new Vector2(this.x * inv, this.y * inv);
},
"add": function (v) {
return new Vector2(this.x + v.x, this.y + v.y);
},
"multiply": function (f) {
return new Vector2(this.x * f, this.y * f);
},
"dot": function (v) {
return this.x * v.x + this.y * v.y;
},
"angle": function (v) {
return Math.acos(this.dot(v) / (this.length() * v.length())) * 180 / Math.PI;
}
};
function getControlPoint(path) {
let rt = 0.3;
let count = path.length - 2;
let arr = [];
for (let i = 0; i < count; i++) {
let a = path[i];
let b = path[i + 1];
let c = path[i + 2];
let v1 = new Vector2(a.x - b.x, a.y - b.y);
let v2 = new Vector2(c.x - b.x, c.y - b.y);
let v1Len = v1.length();
let v2Len = v2.length();
let centerV = v1.normalize().add(v2.normalize()).normalize();
let ncp1 = new Vector2(centerV.y, centerV.x * -1);
let ncp2 = new Vector2(centerV.y * -1, centerV.x);
if (ncp1.angle(v1) < 90) {
let p1 = ncp1.multiply(v1Len * rt).add(b);
let p2 = ncp2.multiply(v2Len * rt).add(b);
arr.push(p1, p2);
} else {
let p1 = ncp1.multiply(v2Len * rt).add(b);
let p2 = ncp2.multiply(v1Len * rt).add(b);
arr.push(p2, p1);
}
}
return arr;
};全部评论 (0)
还没有任何评论哟~
