QT地铁路线查询项目（四）

 #ifndef MAINWINDOW_H


 #define MAINWINDOW_H



 #include <QMainWindow>

 #include <QImage>

 #include <iostream>

 using namespace std;



 #define M 241

 //队列结构体

 typedef struct

 {

     int q[10000];

     //队头、队尾

     int f,r;

 }queue;



 //站点信息

 struct StationInfo

 {

     int id;

     int line;

     int istransfer;

     char staname[20];

 };



 static struct StationInfo sta[239]={

     {1,1,1,"西塱"},

     {2,1,0,"坑口"},

     {3,1,0,"花地湾"},

     {4,1,0,"芳村"},

     {5,1,1,"黄沙"},

     {6,1,0,"长寿路"},

     {7,1,1,"陈家祠"},

     {8,1,0,"西门口"},

     {9,1,1,"公园前"},

     {10,1,0,"农讲所"},

     {11,1,0,"烈士陵园"},

     {12,1,1,"东山口"},

     {13,1,1,"杨箕"},

     {14,1,1,"体育西路"},

     {15,1,0,"体育中心"},

     {16,1,1,"广州东站"},

     {17,2,1,"广州南站"},

     {18,2,1,"石壁"},

     {19,2,0,"会江"},

     {20,2,0,"南浦"},

     {21,2,0,"洛溪"},

     {22,2,1,"南洲"},

     {23,2,0,"东晓南"},

     {24,2,0,"江泰路"},

     {25,2,1,"昌岗"},

     {26,2,0,"江南西"},

     {27,2,0,"市二宫"},

     {28,2,1,"海珠广场"},

     {29,2,0,"纪念堂"},

     {30,2,0,"越秀公园"},

     {31,2,1,"广州火车站"},

     {32,2,0,"三元里"},

     {33,2,0,"飞翔公园"},

     {34,2,0,"白云公园"},

     {35,2,0,"白云文化广场"},

     {36,2,0,"萧岗"},

     {37,2,0,"江夏"},

     {38,2,0,"黄边"},

     {39,2,1,"嘉禾望岗"},

     {40,3,0,"番禺广场"},

     {41,3,0,"市桥"},

     {42,3,1,"汉溪长隆"},

     {43,3,0,"大石"},

     {44,3,0,"厦滘"},

     {45,3,1,"沥滘"},

     {46,3,0,"大塘"},

     {47,3,1,"客村"},

     {48,3,0,"广州塔"},

     {49,3,1,"珠江新城"},

     {50,3,0,"石牌桥"},

     {51,3,0,"岗顶"},

     {52,3,0,"华师"},

     {53,3,0,"五山"},

     {54,3,1,"天河客运站"},

     {55,3,0,"林和西"},

     {56,3,1,"燕塘"},

     {57,3,0,"梅花园"},

     {58,3,0,"京溪南方医院"},

     {59,3,0,"同和"},

     {60,3,0,"永泰"},

     {61,3,0,"白云大道北"},

     {62,3,0,"龙归"},

     {63,3,0,"人和"},

     {64,3,1,"高增"},

     {65,3,0,"机场南"},

     {66,3,1,"机场北"},

     {67,4,0,"南沙客运港"},

     {68,4,0,"南横"},

     {69,4,0,"塘坑"},

     {70,4,0,"大涌"},

     {71,4,0,"广隆"},

     {72,4,0,"飞沙角"},

     {73,4,0,"金洲"},

     {74,4,0,"蕉门"},

     {75,4,0,"黄阁"},

     {76,4,0,"黄阁汽车城"},

     {77,4,0,"庆盛"},

     {78,4,0,"东涌"},

     {79,4,0,"低涌"},

     {80,4,0,"海傍"},

     {81,4,0,"石碁"},

     {82,4,0,"新造"},

     {83,4,1,"大学城南"},

     {84,4,0,"大学城北"},

     {85,4,0,"官洲"},

     {86,4,1,"万胜围"},

     {87,4,1,"车陂南"},

     {88,4,0,"车陂"},

     {89,4,1,"黄村"},

     {90,5,0,"滘口"},

     {91,5,1,"坦尾"},

     {92,5,0,"中山八"},

     {93,5,0,"西场"},

     {94,5,1,"西村"},

     {95,5,0,"小北"},

     {96,5,0,"淘金"},

     {97,5,1,"区庄"},

     {98,5,0,"动物园"},

     {99,5,0,"五羊邨"},

     {100,5,0,"猎德"},

     {101,5,0,"潭村"},

     {102,5,0,"员村"},

     {103,5,0,"科韵路"},

     {104,5,0,"东圃"},

     {105,5,0,"三溪"},

     {106,5,0,"鱼珠"},

     {107,5,0,"大沙地"},

     {108,5,0,"大沙东"},

     {109,5,0,"文冲"},

     {110,6,0,"浔峰岗"},

     {111,6,0,"横沙"},

     {112,6,0,"沙贝"},

     {113,6,0,"河沙"},

     {114,6,0,"如意坊"},

     {115,6,0,"文化公园"},

     {116,6,0,"一德路"},

     {117,6,0,"北京路"},

     {118,6,0,"团一大广场"},

     {119,6,0,"东湖"},

     {120,6,0,"黄花岗"},

     {121,6,0,"沙河顶"},

     {122,6,0,"天平架"},

     {123,6,0,"长湴"},

     {124,6,0,"植物园"},

     {125,6,0,"龙洞"},

     {126,6,0,"柯木塱"},

     {127,6,0,"高塘石"},

     {128,6,0,"黄陂"},

     {129,6,0,"金峰"},

     {130,6,0,"暹岗"},

     {131,6,0,"苏元"},

     {132,6,0,"萝岗"},

     {133,6,0,"香雪"},

     {134,7,0,"香谢村"},

     {135,7,0,"钟村"},

     {136,7,0,"南村万博"},

     {137,7,0,"员岗"},

     {138,7,0,"板桥"},

     {139,8,0,"滘心"},

     {140,8,0,"亭岗"},

     {141,8,0,"石井"},

     {142,8,0,"小坪"},

     {143,8,0,"石潭"},

     {144,8,0,"聚龙"},

     {145,8,0,"上步"},

     {146,8,0,"同德"},

     {147,8,0,"鹅掌坦"},

     {148,8,0,"彩虹桥"},

     {149,8,0,"华林寺"},

     {150,8,0,"同福西"},

     {151,8,0,"凤凰新村"},

     {152,8,1,"沙园"},

     {153,8,0,"宝岗大道"},

     {154,8,0,"晓港"},

     {155,8,0,"中大"},

     {156,8,0,"鹭江"},

     {157,8,0,"赤岗"},

     {158,8,0,"磨碟沙"},

     {159,8,0,"新港东"},

     {160,8,0,"琶洲"},

     {161,9,0,"飞鹅岭"},

     {162,9,0,"花都汽车城"},

     {163,9,0,"广州北站"},

     {164,9,0,"花城路"},

     {165,9,0,"花果山公园"},

     {166,9,0,"花都广场"},

     {167,9,0,"马鞍山公园"},

     {168,9,0,"莲塘"},

     {169,9,0,"清布"},

     {170,9,0,"清塘"},

     {171,13,0,"裕丰围"},

     {172,13,0,"双岗"},

     {173,13,0,"南海神庙"},

     {174,13,0,"夏园"},

     {175,13,0,"南岗"},

     {176,13,0,"沙村"},

     {177,13,0,"白沙"},

     {178,13,0,"新塘"},

     {179,13,0,"官湖"},

     {180,13,0,"新沙"},

     {181,14,0,"白云东平"},

     {182,14,0,"夏良"},

     {183,14,0,"太和"},

     {184,14,0,"竹料"},

     {185,14,0,"钟落潭"},

     {186,14,0,"马沥"},

     {187,14,1,"新和"},

     {188,14,0,"太平"},

     {189,14,0,"神岗"},

     {190,14,0,"赤草"},

     {191,14,0,"从化客运站"},

     {192,14,0,"东风"},

     {193,14,0,"红卫"},

     {194,14,0,"新南"},

     {195,14,0,"枫下"},

     {196,14,0,"知识城"},

     {197,14,0,"何棠下"},

     {198,14,0,"旺村"},

     {199,14,0,"汤村"},

     {200,14,0,"镇龙北"},

     {201,14,1,"镇龙"},

     {202,21,0,"天河公园"},

     {203,21,0,"棠东"},

     {204,21,0,"大观南路"},

     {205,21,0,"天河智慧城"},

     {206,21,0,"神舟路"},

     {207,21,0,"科学城"},

     {208,21,0,"水西"},

     {209,21,0,"长平"},

     {210,21,0,"金坑"},

     {211,21,0,"镇龙西"},

     {212,21,0,"中新"},

     {213,21,0,"坑贝"},

     {214,21,0,"凤岗"},

     {215,21,0,"朱村"},

     {216,21,0,"山田"},

     {217,21,0,"钟岗"},

     {218,21,0,"增城广场"},

     {219,15,0,"新城东"},

     {220,15,0,"东平"},

     {221,15,0,"世纪莲"},

     {222,15,0,"澜石"},

     {223,15,0,"魁奇路"},

     {224,15,0,"季华园"},

     {225,15,0,"同济路"},

     {226,15,0,"祖庙"},

     {227,15,0,"普君北路"},

     {228,15,0,"朝安"},

     {229,15,0,"桂城"},

     {230,15,0,"南桂路"},

     {231,15,0,"礌岗"},

     {232,15,0,"千灯湖"},

     {233,15,0,"金融高新区"},

     {234,15,0,"龙溪"},

     {235,15,0,"菊树"},

     {236,15,0,"鹤洞"},

     {237,15,0,"沙涌"},

     {238,15,0,"燕岗"},

     {239,15,0,"石溪"},

 };



 namespace Ui {

 class MainWindow;

 }



 class MainWindow : public QMainWindow

 {

     Q_OBJECT



 public:

     explicit MainWindow(QWidget *parent = nullptr);

     ~MainWindow();

 protected:

     void paintEvent(QPaintEvent *);

 public:



     //入队操作

     void enq(queue *Q,int x);

     //取队头元素

     int front(queue *Q);

     //出队操作

     void dep(queue *Q);

     //判断队列是否为空队列

     int qempty(queue Q);



     //将地图初始化

     void readgraph();

 //    //寻找最短路径

     void shortest(int a,int b);

 //    //打印路径

     void writepath(int a,int b);

     QString printPayh(int a,int b);



 //  查找

     int search(QString str);

 private slots:

     void on_pushButton_clicked();

 private:

     Ui::MainWindow *ui;



     //队列声明

     queue m_Q;

     //站点总数

     int m_n;

     int m_i,m_j,m_x,m_y;

     //判断是否结束的标志

     int m_finished;



     //表示连接关系的矩阵

     int nodelist[M][M];

     int z[M];



     QImage m_Image;//摄像机背景图片

 };



 #endif // MAINWINDOW_H




    代码解读

 #include "mainwindow.h"


 #include "ui_mainwindow.h"

 #include <QListView>

 #include <QLineEdit>

 #include <QCompleter>

 #include <QDebug>

 #include <QMessageBox>

 #include <QPainter>

 MainWindow::MainWindow(QWidget *parent) :

     QMainWindow(parent),

     ui(new Ui::MainWindow)

 {

     ui->setupUi(this);

     setMinimumSize(1280, 860);

     setMaximumSize(1280, 860);



     m_Image = QImage(":/bg.png");



     QStringList strList;

     for(int i=0; i<239;i++)

     {

     strList<<QString::fromLocal8Bit(sta[i].staname);

     }

     QCompleter *pstartCompleter = new QCompleter(strList, this);

     ui->lineEdit_strat->setCompleter(pstartCompleter);



     QCompleter *pEndCompleter = new QCompleter(strList, this);

     ui->lineEdit_end->setCompleter(pEndCompleter);

 }



 MainWindow::~MainWindow()

 {

     delete ui;

 }



 void MainWindow::paintEvent(QPaintEvent *)

 {

     QPainter painter(this);

     painter.setRenderHints(QPainter::Antialiasing);

     painter.save();

     int offset = 2;

     if(!m_Image.isNull())

     {

     QRect rect(offset / 2, offset / 2, width() - offset, height()-offset);

     painter.drawImage(rect, m_Image);

     }

     painter.restore();

 }



 QString MainWindow::printPayh(int a,int b)

 {



     QStringList strList;

     //将地图初始化

     m_i=b;

     int index = 0;

     while(m_i!=a)

     {

     QString strtmp,strEnd;

     if(sta[m_i-1].istransfer)

     {

         strtmp = QString(QStringLiteral("(换乘%1号线)%2")).arg(sta[m_i-1].line).arg(QString::fromLocal8Bit(sta[m_i-1].staname));

     }

     else

     {

         strtmp = QString(QStringLiteral("%1")).arg(QString::fromLocal8Bit(sta[m_i-1].staname));

     }

     strEnd = QString(QStringLiteral("%1[终点站]")).arg(QString::fromLocal8Bit(sta[m_i-1].staname));

     if(index == 0)

     {

         strList<<strEnd;

     }else

     {

         strList<<strtmp;

     }

     m_i=z[m_i];

     index++;

     }



     if(!sta[a-1].istransfer)

     {

     printf("|%d号线|",sta[a-1].line);

     strList<<QString(QStringLiteral("[起始站](%1号线)%2")).arg(sta[a-1].line).arg(QString::fromLocal8Bit(sta[a-1].staname));

     }else {

     strList<<QString(QStringLiteral("[起始站]%1")).arg(QString::fromLocal8Bit(sta[a-1].staname));

     }



     QString str;

     for(int i=strList.size()-1;i>=0;i--)

     {

     if(i != strList.size()-1)

     {

        str.append("->");

     }

     str.append(strList[i]);

     }

     return str;

 }





 void MainWindow::writepath(int a,int b)

 {

     //将地图初始化

     m_i=b;

     while(m_i!=a)

     {

     if(sta[m_i-1].istransfer)

     {

         printf("|换乘|");

     }

     else

     {

         printf("|%d号线|",sta[m_i-1].line);

     }

     printf("%s <- ",sta[m_i-1].staname);

     m_i=z[m_i];

     }

     if(!sta[a-1].istransfer)

     {

     printf("|%d号线|",sta[a-1].line);

     }

     printf("%s",sta[a-1].staname);

     printf("\n");

 }



 //寻找最短路径

 void MainWindow::shortest(int a,int b)

 {

     if(a==b)

     nodelist[a][a]=2;

     else

     {

     enq(&m_Q,a);

     nodelist[a][a]=2;

     m_finished=0;

     while(!qempty(m_Q)&&!m_finished)

     {

         //取队头结点

         a=front(&m_Q);

         //删除一个队头结点

         dep(&m_Q);

         //从ID为1的结点开始check

         m_j=1;

         while(m_j<=m_n&&!m_finished)

         {

             //必须保证结点j和刚出队的结点a直接相连

             //且结点j没有被访问过

             if(nodelist[a][m_j]==1&&nodelist[m_j][m_j]!=2)

             {

                 enq(&m_Q,m_j);

                 //标志结点j已经被访问过

                 nodelist[m_j][m_j]=2;

                 //保证能够通过z[j]索引到结点a

                 z[m_j]=a;

                 //广度优先遍历到达终点

                 if(m_j==b)

                 {

                     m_finished=1;

                 }

             }

             if(!m_finished)

                 m_j++;

         }

     }

     if(!m_finished)

         printf("没有路径!");

     }

 }



 void MainWindow::readgraph()

 {

     int i,j;

     //初始化站点总数

     m_n=M-2;

     //先将矩阵所有元素置零

     for(i=0;i<M;i++)

     for(j=0;j<M;j++)

         nodelist[i][j]=0;

     //初始化1号线

     for(i=1;i<16;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化2号线

     for(i=17;i<39;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化3号线

     for(i=40;i<66;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化4号线

     for(i=67;i<89;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化5号线

     for(i=90;i<109;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化6号线

     for(i=110;i<133;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化7号线

     for(i=134;i<138;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化8号线

     for(i=139;i<160;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化9号线

     for(i=161;i<170;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化13号线

     for(i=171;i<180;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化14号线

     for(i=181;i<201;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化21号线

     for(i=202;i<218;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化广佛线

     for(i=219;i<239;i++)

     {

     nodelist[i][i+1]=1;

     nodelist[i+1][i]=1;

     }

     //初始化换乘站点的连接信息

     nodelist[1][17]=1;//连接西塱和菊树

     nodelist[17][1]=1;//连接菊树和西塱

     nodelist[1][19]=1;//连接西塱和鹤洞

     nodelist[19][1]=1;//连接鹤洞和西塱

     nodelist[5][114]=1;//连接黄沙和如意坊

     nodelist[114][5]=1;//连接如意坊和黄沙

     nodelist[5][115]=1;//连接黄沙和文化公园

     nodelist[115][5]=1;//连接文化公园和黄沙

     nodelist[7][148]=1;//连接陈家祠和彩虹桥

     nodelist[148][7]=1;//连接彩虹桥和陈家祠

     nodelist[7][149]=1;//连接陈家祠和华林寺

     nodelist[149][7]=1;//连接华林寺和陈家祠

     nodelist[9][29]=1;//连接公园前和纪念堂

     nodelist[29][9]=1;//连接纪念堂和公园前

     nodelist[9][28]=1;//连接公园前和海珠广场

     nodelist[28][9]=1;//连接海珠广场和公园前

     nodelist[12][119]=1;//连接东山口和东湖

     nodelist[119][12]=1;//连接东湖和东山口

     nodelist[12][97]=1;//连接东山口和区庄

     nodelist[97][12]=1;//连接区庄和东山口

     nodelist[13][98]=1;//连接杨箕和动物园

     nodelist[98][13]=1;//连接动物园和杨箕

     nodelist[13][99]=1;//连接杨箕和五羊邨

     nodelist[99][13]=1;//连接五羊邨和杨箕

     nodelist[14][49]=1;//连接体育西路和珠江新城

     nodelist[49][14]=1;//连接珠江新城和体育西路

     nodelist[14][50]=1;//连接体育西路和石牌桥

     nodelist[50][14]=1;//连接石牌桥和体育西路

     nodelist[14][55]=1;//连接体育西路和林和西

     nodelist[55][14]=1;//连接林和西和体育西路

     nodelist[16][55]=1;//连接广州东站和林和西

     nodelist[55][16]=1;//连接林和西和广州东站

     nodelist[16][56]=1;//连接广州东站和燕塘

     nodelist[56][16]=1;//连接燕塘和广州东站

     nodelist[18][134]=1;//连接石壁和谢村

     nodelist[134][18]=1;//连接谢村和石壁

     nodelist[22][45]=1;//连接南洲和沥滘

     nodelist[45][22]=1;//连接沥滘和南洲

     nodelist[22][239]=1;//连接南洲和石溪

     nodelist[239][22]=1;//连接石溪和南洲

     nodelist[25][154]=1;//连接昌岗和晓港

     nodelist[154][25]=1;//连接晓港和昌岗

     nodelist[25][153]=1;//连接昌岗和宝岗大道

     nodelist[153][25]=1;//连接宝岗大道和昌岗

     nodelist[28][116]=1;//连接海珠广场和一德路

     nodelist[116][28]=1;//连接一德路和海珠广场

     nodelist[28][117]=1;//连接海珠广场和北京路

     nodelist[117][28]=1;//连接北京路和海珠广场

     nodelist[31][95]=1;//连接广州火车站和小北

     nodelist[95][31]=1;//连接小北和广州火车站

     nodelist[31][94]=1;//连接广州火车站和西村

     nodelist[94][31]=1;//连接西村和广州火车站

     nodelist[39][61]=1;//连接嘉禾望岗和白云大道北

     nodelist[61][39]=1;//连接白云大道北和嘉禾望岗

     nodelist[39][62]=1;//连接嘉禾望岗和龙归

     nodelist[62][39]=1;//连接龙归和嘉禾望岗

     nodelist[39][181]=1;//连接嘉禾望岗和白云东平

     nodelist[181][39]=1;//连接白云东平和嘉禾望岗

     nodelist[64][170]=1;//连接高增和清塘

     nodelist[170][64]=1;//连接清塘和高增

     nodelist[83][138]=1;//连接大学城南和板桥

     nodelist[138][83]=1;//连接板桥和大学城南

     nodelist[86][160]=1;//连接万胜围和琶洲

     nodelist[160][86]=1;//连接琶洲和万胜围

     nodelist[87][103]=1;//连接车陂南和科韵路

     nodelist[103][87]=1;//连接科韵路和车陂南

     nodelist[87][104]=1;//连接车陂南和东圃

     nodelist[104][87]=1;//连接东圃和车陂南

     nodelist[89][204]=1;//连接黄村和大观南路

     nodelist[204][89]=1;//连接大观南路和黄村

     nodelist[89][203]=1;//连接黄村和棠东

     nodelist[203][89]=1;//连接棠东和黄村

     nodelist[91][113]=1;//连接坦尾和河沙

     nodelist[113][91]=1;//连接河沙和坦尾

     nodelist[91][114]=1;//连接坦尾和如意坊

     nodelist[114][91]=1;//连接如意坊和坦尾

     nodelist[94][148]=1;//连接西村和彩虹桥

     nodelist[148][94]=1;//连接彩虹桥和西村

     nodelist[94][147]=1;//连接西村和鹅掌坦

     nodelist[147][94]=1;//连接鹅掌坦和西村

     nodelist[97][120]=1;//连接区庄和黄花岗

     nodelist[120][97]=1;//连接黄花岗和区庄

     nodelist[56][122]=1;//连接燕塘和天平架

     nodelist[122][56]=1;//连接天平架和燕塘

     nodelist[56][54]=1;//连接燕塘和天河客运站

     nodelist[54][56]=1;//连接天河客运站和燕塘

     nodelist[131][207]=1;//连接苏元和科学城

     nodelist[207][131]=1;//连接科学城和苏元

     nodelist[131][208]=1;//连接苏元和水西

     nodelist[208][131]=1;//连接水西和苏元

     nodelist[102][202]=1;//连接员村和天河公园

     nodelist[202][102]=1;//连接天河公园和员村

     nodelist[106][171]=1;//连接鱼珠和裕丰围

     nodelist[171][106]=1;//连接裕丰围和鱼珠

     nodelist[115][149]=1;//连接文化公园和华林寺

     nodelist[149][115]=1;//连接华林寺和文化公园

     nodelist[115][150]=1;//连接文化公园和同福西

     nodelist[150][115]=1;//连接同福西和文化公园

     nodelist[42][135]=1;//连接汉溪长隆和钟村

     nodelist[135][42]=1;//连接钟村和汉溪长隆

     nodelist[42][136]=1;//连接汉溪长隆和南村万博

     nodelist[136][42]=1;//连接南村万博和汉溪长隆

     nodelist[54][123]=1;//连接天河客运站和长湴

     nodelist[123][54]=1;//连接长湴和天河客运站

     nodelist[49][99]=1;//连接珠江新城和五羊邨

     nodelist[99][49]=1;//连接五羊邨和珠江新城

     nodelist[49][100]=1;//连接珠江新城和猎德

     nodelist[100][49]=1;//连接猎德和珠江新城

     nodelist[47][156]=1;//连接客村和鹭江

     nodelist[156][47]=1;//连接鹭江和客村

     nodelist[47][157]=1;//连接客村和赤岗

     nodelist[157][47]=1;//连接赤岗和客村

     nodelist[152][237]=1;//连接沙园和沙涌

     nodelist[237][152]=1;//连接沙涌和沙园

     nodelist[152][238]=1;//连接沙园和燕岗

     nodelist[238][152]=1;//连接燕岗和沙园

     nodelist[187][193]=1;//连接新和和红卫

     nodelist[193][187]=1;//连接红卫和新和

     nodelist[201][211]=1;//连接镇龙和镇龙西

     nodelist[211][201]=1;//连接镇龙西和镇龙

     nodelist[201][212]=1;//连接镇龙和中新

     nodelist[212][201]=1;//连接中西和镇龙

 }



 //入队操作

 void MainWindow::enq(queue *Q,int x)

 {

     Q->q[Q->r]=x;

     if(Q->r==9999)

     Q->r=0;

     else

     Q->r++;

     if(Q->r==Q->f)

     printf("队溢出!\n");

 }



 //取队头元素

 int MainWindow::front(queue *Q)

 {

     if(Q->r==Q->f)

     {

     printf("front函数:队空!\n");

     return 0;

     }

     else

     return Q->q[Q->f];

 }



 //出队操作

 void MainWindow::dep(queue *Q)

 {

     if(Q->r==Q->f)

     printf("dep函数:队空!\n");

     else

     {

     if(Q->f==9999)

         Q->f=0;

     else

         Q->f++;

     }

 }



 //判断队列是否为空队列

 int MainWindow::qempty(queue Q)

 {

     if(Q.f==Q.r)

     return 1;

     else

     return 0;

 }



 int MainWindow::search(QString str)

 {

     for(int i= 0; i<239; i++)

     {

     if(QString::fromLocal8Bit(sta[i].staname) == str)

     {

         return sta[i].id;

     }

     }

     return -1; //失败

 }

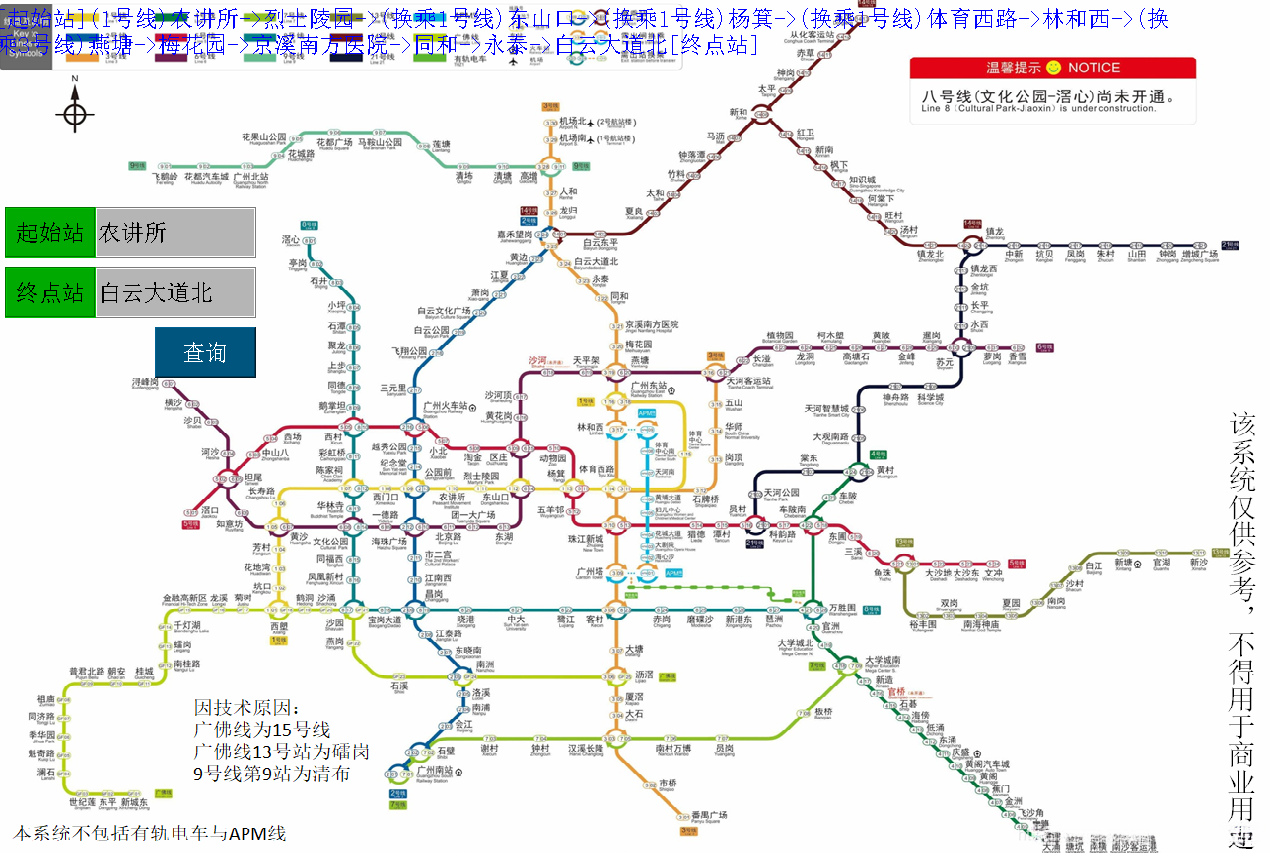

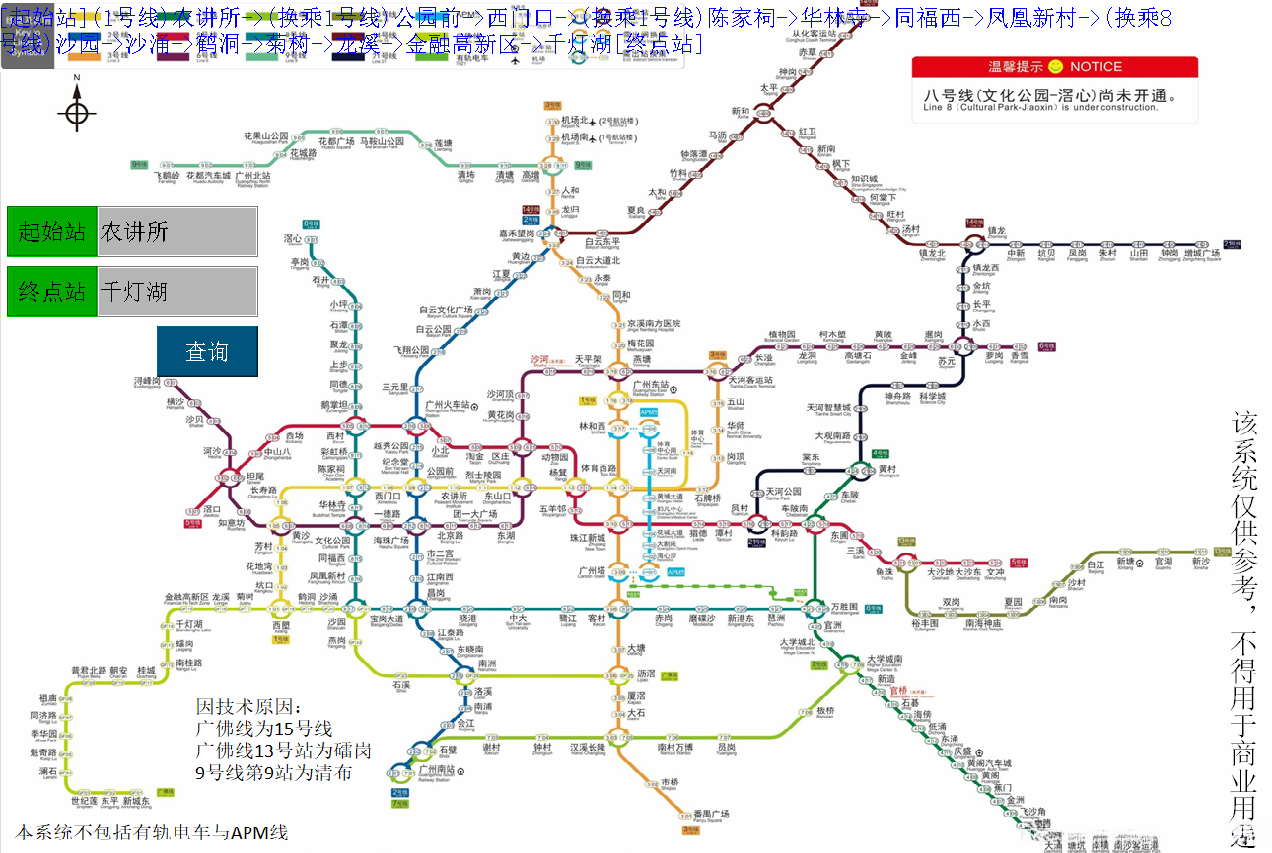

 void MainWindow::on_pushButton_clicked()

 {

     QString strStart = ui->lineEdit_strat->text();

     QString strEnd = ui->lineEdit_end->text();

     if(strStart.isEmpty() || strEnd.isEmpty())

     {

     QMessageBox::critical(this, QStringLiteral("错误"), QStringLiteral("请输入正确的起始站和终点站"), QMessageBox::Close);

     return;

     }



     int istart = search(strStart);

     if(istart == -1)

     {

     QMessageBox::critical(this, QStringLiteral("错误"), QStringLiteral("没有找到你需要的起始站"), QMessageBox::Close);

     return;

     }

     int isEnd = search(strEnd);



     if(isEnd == -1)

     {

     QMessageBox::critical(this, QStringLiteral("错误"), QStringLiteral("没有找到你要的终点站"), QMessageBox::Close);

     return;

     }

     qDebug()<<istart<<"-------ssss-----"<<isEnd<<endl;

     m_Q.f = 0;

     m_Q.r = 0;

     memset(m_Q.q,0x00,10000);



     m_n = 0;

     m_i = m_j =m_x = m_y=0;

     //判断是否结束的标志

     m_finished = 0;



     readgraph();

     shortest(istart, isEnd);

     ui->label_showLin->setText(printPayh(istart, isEnd));

 }




    代码解读
