python 数据可视化大屏制作

 from pyecharts import options as opts


 from pyecharts.globals import ThemeType #导入主题库

 from pyecharts.globals import SymbolType #主题库

 from pyecharts.charts import Pie,Bar,Map,WordCloud,Page  #玫瑰图，柱状图，地图，词云，组合图

 import pandas as pd




    代码解读

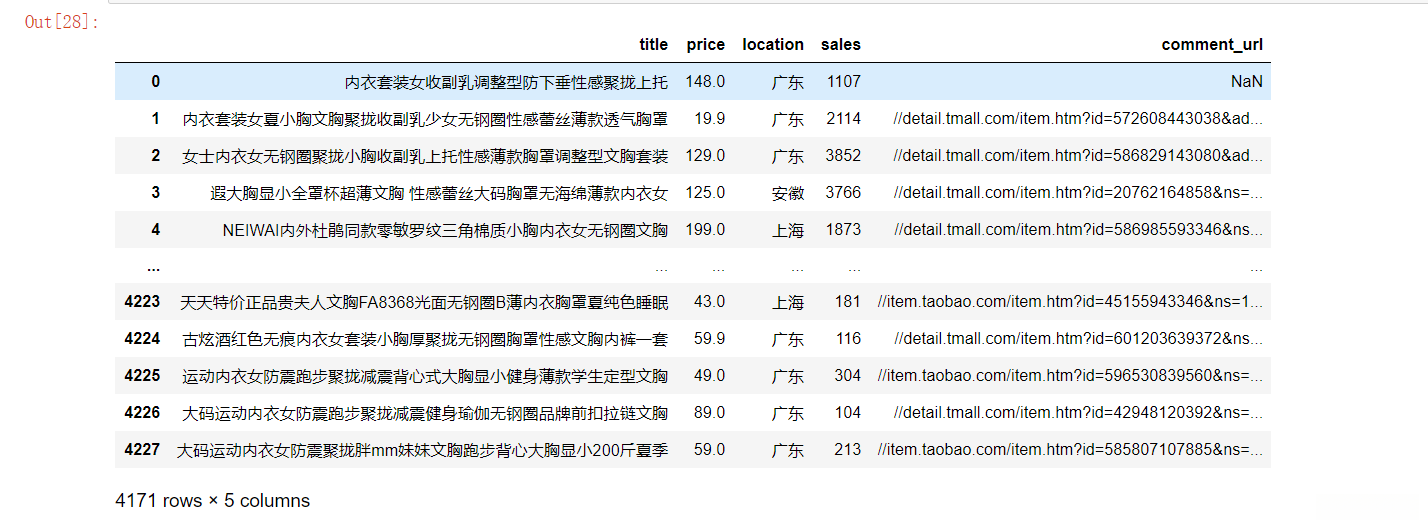

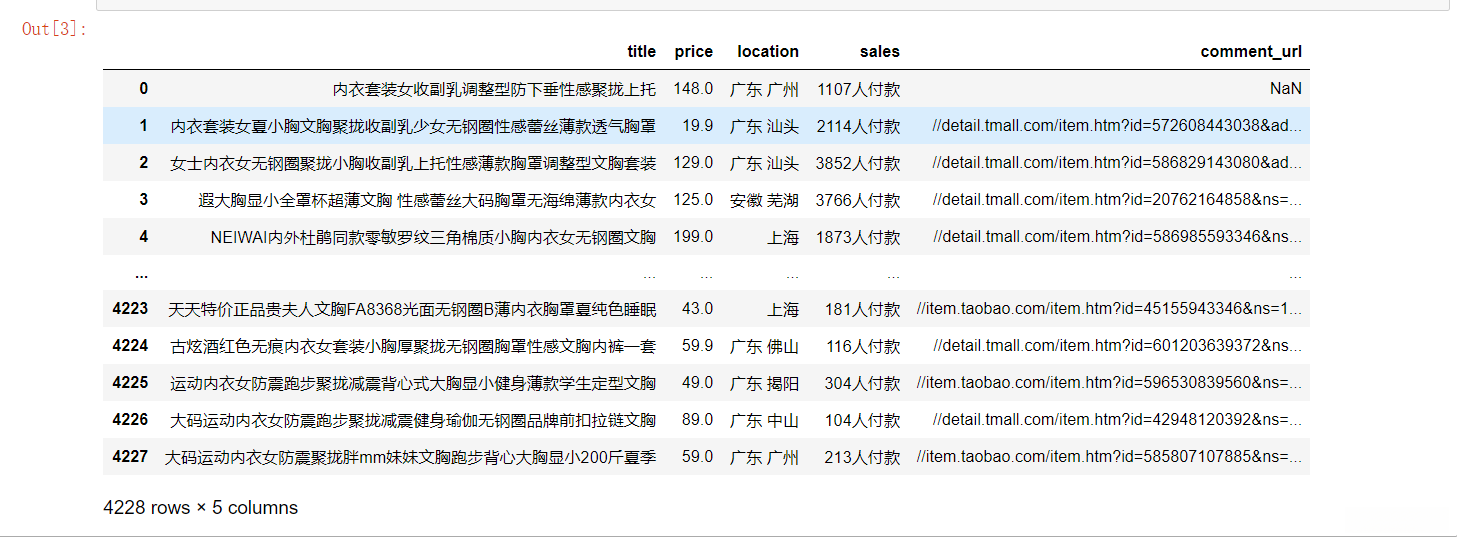

 df_taobao = pd.read_excel("D:/可视化项目/数据可视化演示/taobao_goods.xlsx") #读取数据


 df_taobao




    代码解读

 #删除重复值


 df_taobao.drop_duplicates(inplace=True)




    代码解读

 #提取省份


 ld_list = []

 for ld in df_taobao["location"]:

     ld_list.append(ld.split(" ")[0])  #使用分割提取



 #原数据表中替换省份

 df_taobao["location"] = ld_list

 df_taobao




    代码解读

 #销售数据格式转换


 sales_list = []

 for sale in df_taobao["sales"]:

     sale = sale[:-3].replace("+","")  #去掉“人付款”三字

     if "万" in sale:

     sale = int(float(sale[:-1])*10000) #将万转换为元

     print(sale)

     sales_list.append(sale)

 df_taobao["sales"] = sales_list




    代码解读

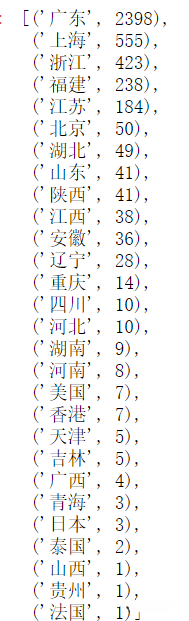

 locations = [location for location in df_taobao["location"].value_counts().items()]  #提取省份和数量使用items组成元组


 locations




    代码解读

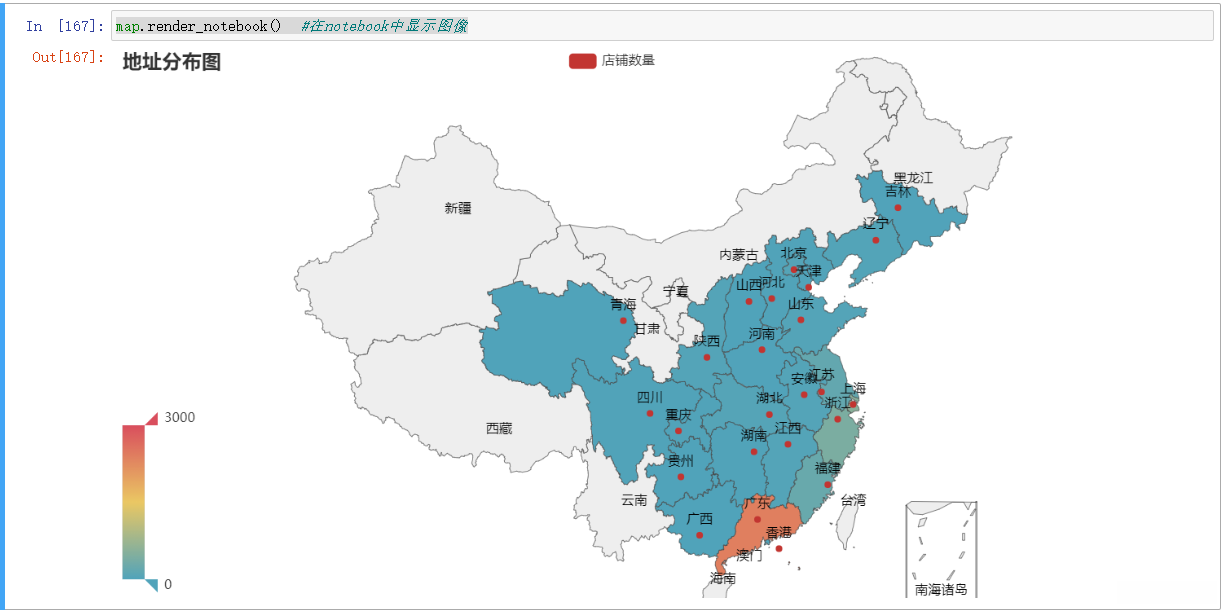

 #地图


 map = (

 Map()

     .add("店铺数量",[list(location) for location in locations],"china")  #显示店铺数量，使用china地图

     .set_global_opts(

     title_opts = opts.TitleOpts(title = "地址分布图"), #设置标题

      visualmap_opts = opts.VisualMapOpts(max_ = 3000),  #设置阈值



     )

 )

 map.render() #保存为html

 map.render_notebook()  #在notebook中显示图像




    代码解读

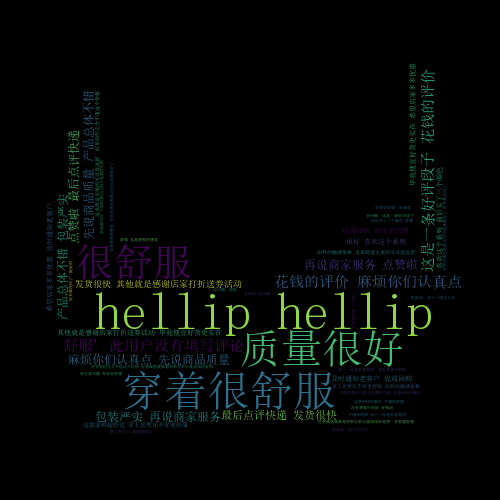

 #用户评论词云


 from wordcloud import WordCloud

 import numpy as np

 import matplotlib.pyplot as plt

 from PIL import Image

 import jieba

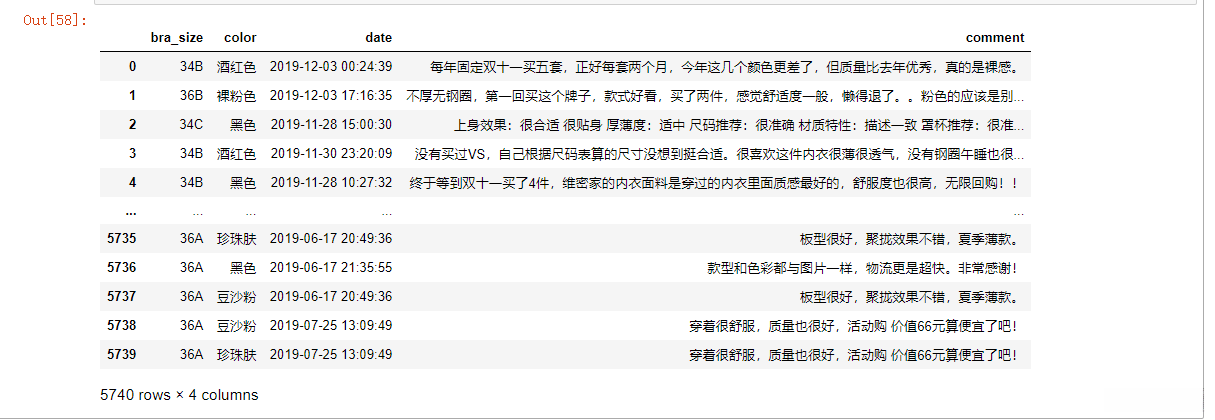

 df_commments = pd.read_excel("D:/可视化项目/数据可视化演示/goods_comments.xlsx")

 df_commments




    代码解读

    text = "".join(jieba.lcut(str([i for i in df_commments["comment"]])))  #将所有评论组合成一个text

    代码解读

 mask =np.array( Image.open("D:/可视化项目/数据可视化演示/bra.jpg"))  #词云背景图片


 wc = WordCloud(mask=mask,font_path='C:/Windows/Fonts/simsun.ttc',mode="RGBA").generate(text) #设置格式

 plt.imshow(wc,interpolation="bilinear") #显示词云

 wc.to_file("词.png")  #保存




    代码解读

 from pyecharts.faker import Faker  #假数据库

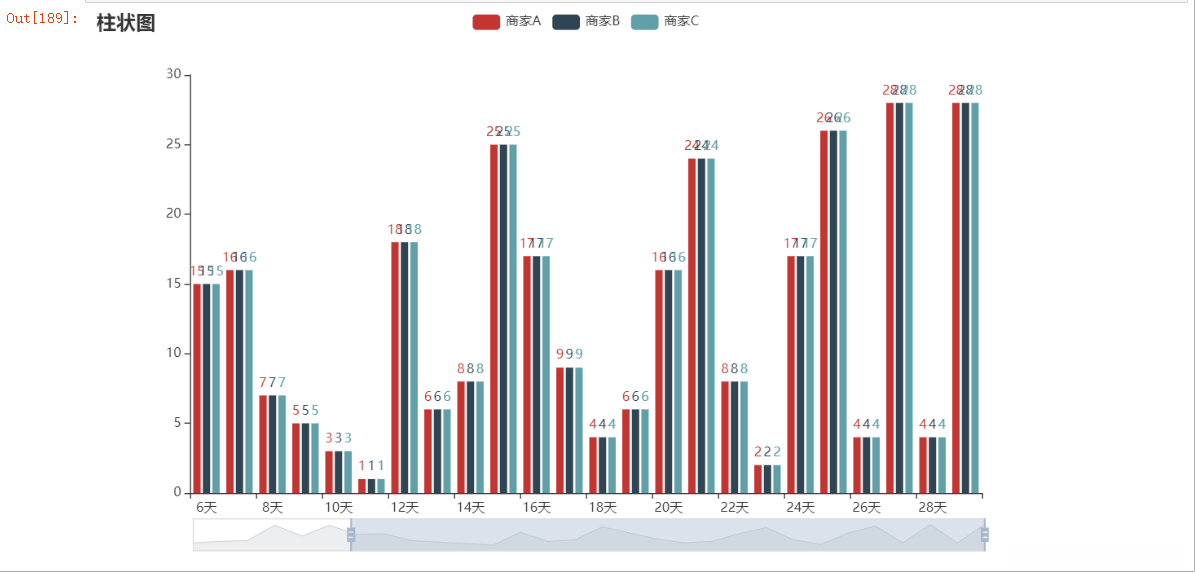

 bar = (

     Bar()

     .add_xaxis(Faker.days_attrs)

     .add_yaxis("商家A",Faker.days_values)

     .add_yaxis("商家B",Faker.days_values)

     .add_yaxis("商家C",Faker.days_values)

     .set_global_opts(

     title_opts=opts.TitleOpts(title = "柱状图"),

     datazoom_opts = [opts.DataZoomOpts()] #设置动态图

     )

 )

 bar.render_notebook()




    代码解读

 from pyecharts import options as opts


 from pyecharts.charts import Pie

 from pyecharts.faker import Faker



 v = Faker.choose()

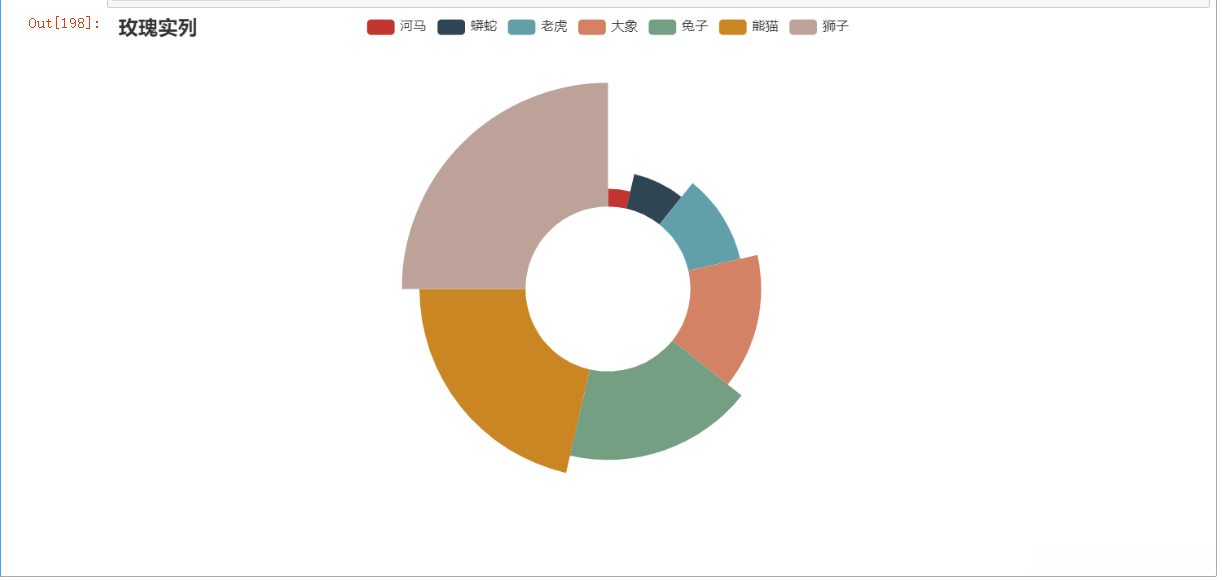

 pie =(

     Pie()

     .add(

     "",

     [list(z) for z in zip(v,list(range(10,1000,10)))],

     radius = ["30%","75%"],    #图像中心园的大小

 #     center=["75%","50%"],   显示在图像的区域



     rosetype = "radius",

     label_opts=opts.LabelOpts(is_show=False),

     )

     .set_global_opts(title_opts=opts.TitleOpts(title="玫瑰实列"))

 )

 pie.render_notebook()




    代码解读

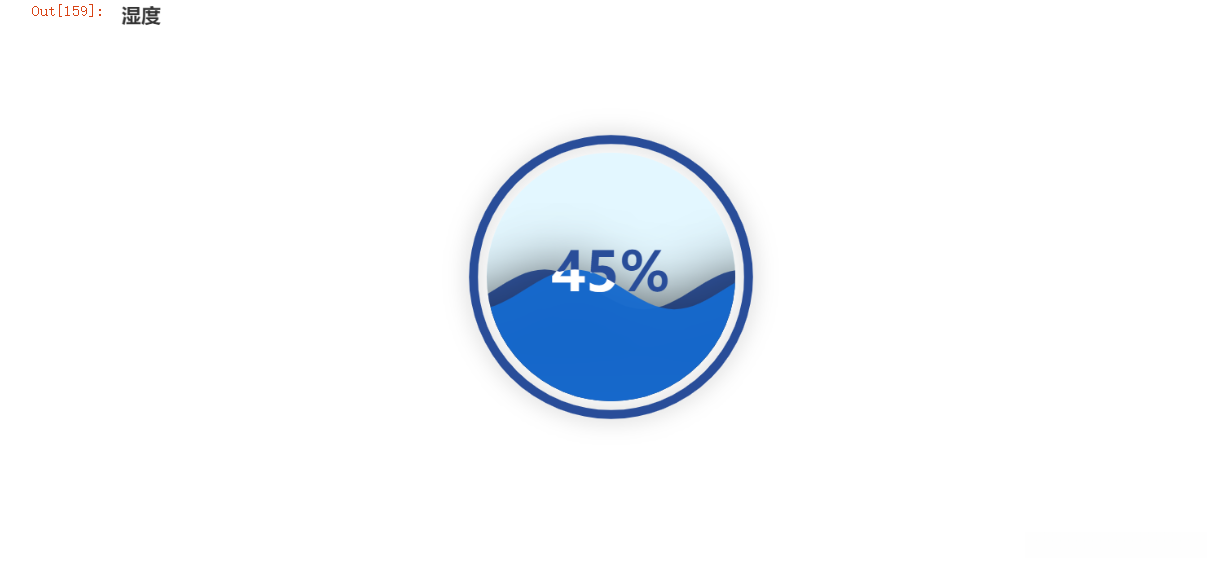

 from pyecharts import options as opts


 from pyecharts.charts import Liquid

 liquid = (

     Liquid()

     .add("lq",[0.45,0.45])

     #第一个值显示数值，第二个是水位高度

     .set_global_opts(title_opts = opts.TitleOpts(title = "湿度"))

 )

 liquid.render_notebook()




    代码解读

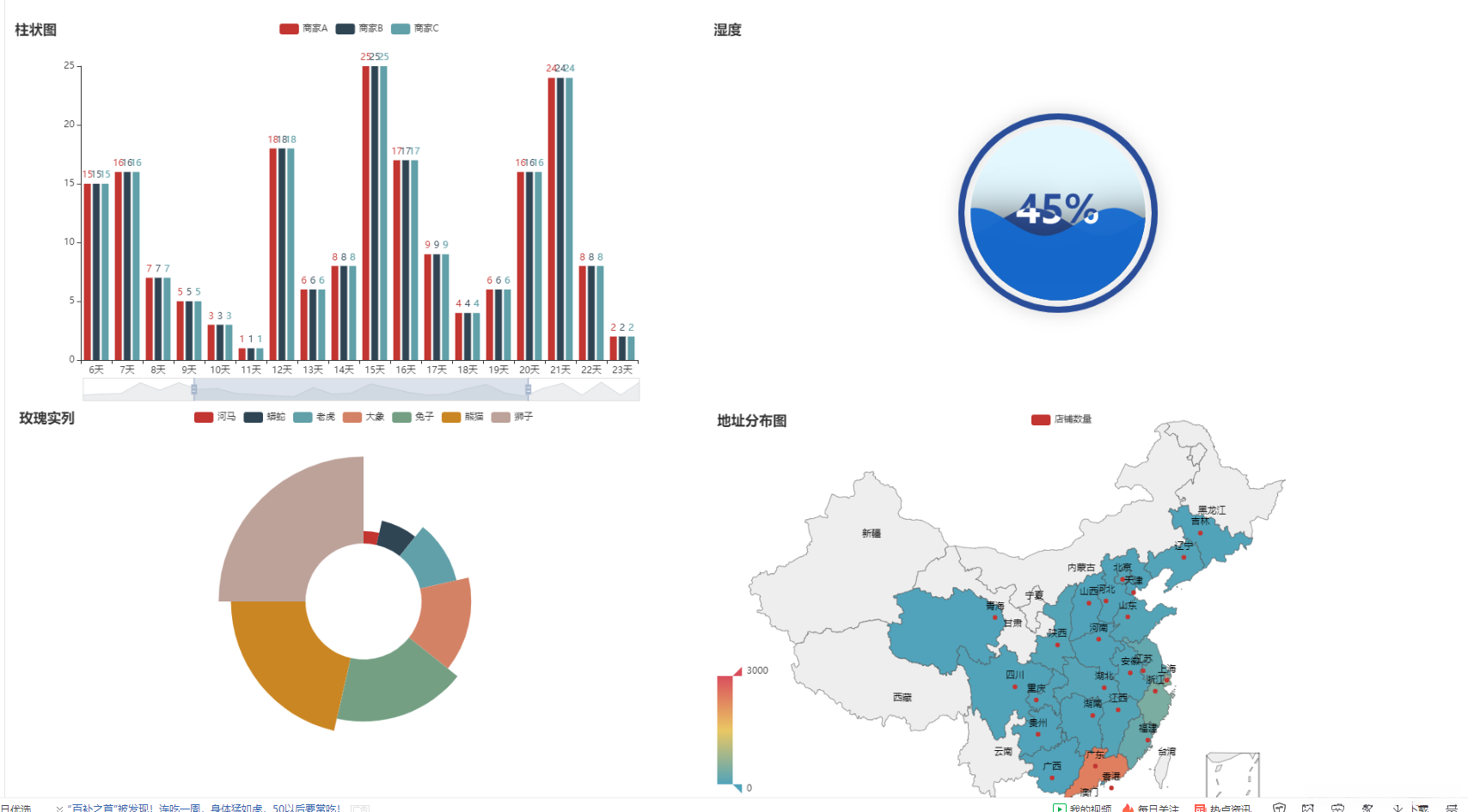

 page = Page(layout=Page.DraggablePageLayout)


 page.add(

 bar,

 liquid,

 pie,

 map,

 )  #将写的单个图片全导入

 page.render_notebook()

 page.render() #保存组合图

 Page.save_resize_html("render.html",cfg_file="chart_config (1).json") #保存组合图为json格式




    代码解读
