[Pytorch练手]使用CNN图像分类

需求

在4*4的图片中，比较外围黑色像素点和内圈黑色像素点个数的大小将图片分类

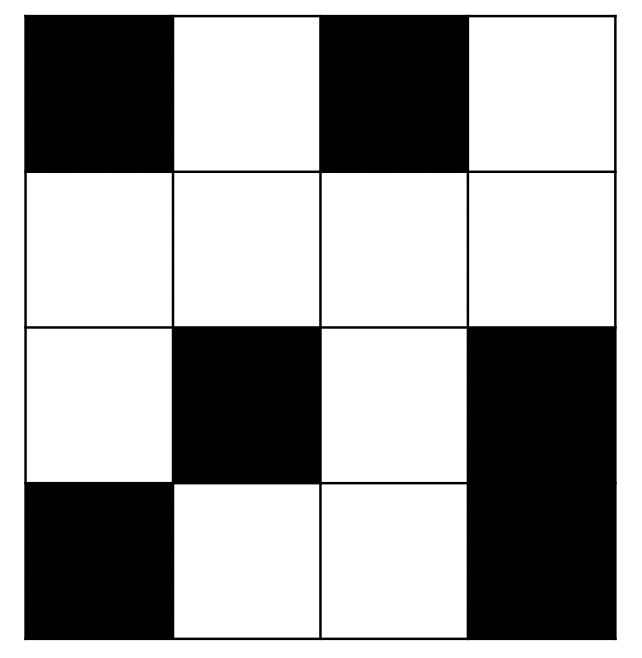

如上图图片外围黑色像素点5个大于内圈黑色像素点1个分为0类反之1类

想法

通过numpy、PIL构造4*4的图像数据集

构造自己的数据集类

读取数据集对数据集选取减少偏斜

cnn设计因为特征少，直接1*1卷积层

或者在44外围添加padding成66,设计22的卷积核得出33再接上全连接层

代码

import torch

import torchvision

import torchvision.transforms as transforms

import numpy as np

from PIL import Image

构造数据集

import csv

import collections

import os

import shutil

def buildDataset(root,dataType,dataSize):

"""构造数据集

构造的图片存到root/{dataType}Data

图片地址和标签的csv文件存到 root/{dataType}DataInfo.csv

Args:

root:str

项目目录

dataType:str

'train'或者‘test'

dataNum:int

数据大小

Returns:

"""

dataInfo = []

dataPath = f'{root}/{dataType}Data'

if not os.path.exists(dataPath):

os.makedirs(dataPath)

else:

shutil.rmtree(dataPath)

os.mkdir(dataPath)

for i in range(dataSize):

创建0，1 数组

imageArray=np.random.randint(0,2,(4,4))

计算0，1数量得到标签

allBlackNum = collections.Counter(imageArray.flatten())[0]

innerBlackNum = collections.Counter(imageArray[1:3,1:3].flatten())[0]

label = 0 if (allBlackNum-innerBlackNum)>innerBlackNum else 1

将图片保存

path = f'{dataPath}/{i}.jpg'

dataInfo.append([path,label])

im = Image.fromarray(np.uint8(imageArray*255))

im = im.convert('1')

im.save(path)

将图片地址和标签存入csv文件

filePath = f'{root}/{dataType}DataInfo.csv'

with open(filePath, 'w') as f:

writer = csv.writer(f)

writer.writerows(dataInfo)

root=r'/Users/null/Documents/PythonProject/Classifier'

构造训练数据集

buildDataset(root,'train',20000)

构造测试数据集

buildDataset(root,'test',10000)

读取数据集

class MyDataset(torch.utils.data.Dataset):

def init(self, root, datacsv, transform=None):

super(MyDataset, self).init()

with open(f'{root}/{datacsv}', 'r') as f:

imgs = []

读取csv信息到imgs列表

for path,label in map(lambda line:line.rstrip().split(','),f):

imgs.append((path, int(label)))

self.imgs = imgs

self.transform = transform if transform is not None else lambda x:x

def getitem(self, index):

path, label = self.imgs[index]

img = self.transform(Image.open(path).convert('1'))

return img, label

def len(self):

return len(self.imgs)

trainData=MyDataset(root = root,datacsv='trainDataInfo.csv', transform=transforms.ToTensor())

testData=MyDataset(root = root,datacsv='testDataInfo.csv', transform=transforms.ToTensor())

处理数据集使得数据集不偏斜

import itertools

def chooseData(dataset,scale):

将类别为1的排序到前面

dataset.imgs.sort(key=lambda x:x[1],reverse=True)

获取类别1的数目 ，取scale倍的数组，得数据不那么偏斜

trueNum =collections.Counter(itertools.chain.from_iterable(dataset.imgs))[1]

end = min(trueNum*scale,len(dataset))

dataset.imgs=dataset.imgs[:end]

scale = 4

chooseData(trainData,scale)

chooseData(testData,scale)

len(trainData),len(testData)

(2250, 1122)

import torch.utils.data as Data

超参数

batchSize = 50

lr = 0.1

numEpochs = 20

trainIter = Data.DataLoader(dataset=trainData, batch_size=batchSize, shuffle=True)

testIter = Data.DataLoader(dataset=testData, batch_size=batchSize)

定义模型

from torch import nn

from torch.autograd import Variable

from torch.nn import Module,Linear,Sequential,Conv2d,ReLU,ConstantPad2d

import torch.nn.functional as F

class Net(Module):

def init(self):

super(Net, self).init()

self.cnnLayers = Sequential(

padding添加1层常数1,设定卷积核为2*2

ConstantPad2d(1, 1),

Conv2d(1, 1, kernel_size=2, stride=2,bias=True)

)

self.linearLayers = Sequential(

Linear(9, 2)

)

def forward(self, x):

x = self.cnnLayers(x)

x = x.view(x.shape[0], -1)

x = self.linearLayers(x)

return x

class Net2(Module):

def init(self):

super(Net2, self).init()

self.cnnLayers = Sequential(

Conv2d(1, 1, kernel_size=1, stride=1,bias=True)

)

self.linearLayers = Sequential(

ReLU(),

Linear(16, 2)

)

def forward(self, x):

x = self.cnnLayers(x)

x = x.view(x.shape[0], -1)

x = self.linearLayers(x)

return x

定义损失函数

交叉熵损失函数

loss = nn.CrossEntropyLoss()

loss2 = nn.CrossEntropyLoss()

定义优化算法

net = Net()

optimizer = torch.optim.SGD(net.parameters(),lr = lr)

net2 = Net2()

optimizer2 = torch.optim.SGD(net2.parameters(),lr = lr)

训练模型

计算准确率

def evaluateAccuracy(dataIter, net):

accSum, n = 0.0, 0

with torch.no_grad():

for X, y in dataIter:

accSum += (net(X).argmax(dim=1) == y).float().sum().item()

n += y.shape[0]

return accSum / n

def train(net, trainIter, testIter, loss, numEpochs, batchSize,

optimizer):

for epoch in range(numEpochs):

trainLossSum, trainAccSum, n = 0.0, 0.0, 0

for X,y in trainIter:

yHat = net(X)

l = loss(yHat,y).sum()

optimizer.zero_grad()

l.backward()

optimizer.step()

计算训练准确度和loss

trainLossSum += l.item()

trainAccSum += (yHat.argmax(dim=1) == y).sum().item()

n += y.shape[0]

评估测试准确度

testAcc = evaluateAccuracy(testIter, net)

print('epoch {:d}, loss {:.4f}, train acc {:.3f}, test acc {:.3f}'.format(epoch + 1, trainLossSum / n, trainAccSum / n, testAcc))

Net模型训练

train(net, trainIter, testIter, loss, numEpochs, batchSize,optimizer)

epoch 1, loss 0.0128, train acc 0.667, test acc 0.667

epoch 2, loss 0.0118, train acc 0.683, test acc 0.760

epoch 3, loss 0.0104, train acc 0.742, test acc 0.807

epoch 4, loss 0.0093, train acc 0.769, test acc 0.772

epoch 5, loss 0.0085, train acc 0.797, test acc 0.745

epoch 6, loss 0.0084, train acc 0.798, test acc 0.807

epoch 7, loss 0.0082, train acc 0.804, test acc 0.816

epoch 8, loss 0.0078, train acc 0.816, test acc 0.812

epoch 9, loss 0.0077, train acc 0.818, test acc 0.817

epoch 10, loss 0.0074, train acc 0.824, test acc 0.826

epoch 11, loss 0.0072, train acc 0.836, test acc 0.819

epoch 12, loss 0.0075, train acc 0.823, test acc 0.829

epoch 13, loss 0.0071, train acc 0.839, test acc 0.797

epoch 14, loss 0.0067, train acc 0.849, test acc 0.824

epoch 15, loss 0.0069, train acc 0.848, test acc 0.843

epoch 16, loss 0.0064, train acc 0.864, test acc 0.851

epoch 17, loss 0.0062, train acc 0.867, test acc 0.780

epoch 18, loss 0.0060, train acc 0.871, test acc 0.864

epoch 19, loss 0.0057, train acc 0.881, test acc 0.890

epoch 20, loss 0.0055, train acc 0.885, test acc 0.897

Net2模型训练

batchSize = 50

lr = 0.1

numEpochs = 15 下得出的结果

train(net2, trainIter, testIter, loss2, numEpochs, batchSize,optimizer2)

epoch 1, loss 0.0119, train acc 0.638, test acc 0.676

epoch 2, loss 0.0079, train acc 0.823, test acc 0.986

epoch 3, loss 0.0046, train acc 0.987, test acc 0.977

epoch 4, loss 0.0030, train acc 0.983, test acc 0.973

epoch 5, loss 0.0023, train acc 0.981, test acc 0.976

epoch 6, loss 0.0019, train acc 0.980, test acc 0.988

epoch 7, loss 0.0016, train acc 0.984, test acc 0.984

epoch 8, loss 0.0014, train acc 0.985, test acc 0.986

epoch 9, loss 0.0013, train acc 0.987, test acc 0.992

epoch 10, loss 0.0011, train acc 0.989, test acc 0.993

epoch 11, loss 0.0010, train acc 0.989, test acc 0.996

epoch 12, loss 0.0010, train acc 0.992, test acc 0.994

epoch 13, loss 0.0009, train acc 0.993, test acc 0.994

epoch 14, loss 0.0008, train acc 0.995, test acc 0.996

epoch 15, loss 0.0008, train acc 0.994, test acc 0.998

测试

test = torch.Tensor([[[[0,0,0,0],[0,1,1,0],[0,1,1,0],[0,0,0,0]]],

[[[1,1,1,1],[1,0,0,1],[1,0,0,1],[1,1,1,1]]],

[[[0,1,0,1],[1,0,0,1],[1,0,0,1],[0,0,0,1]]],

[[[0,1,1,1],[1,0,0,1],[1,0,0,1],[0,0,0,1]]],

[[[0,0,1,1],[1,0,0,1],[1,0,0,1],[1,0,1,0]]],

[[[0,0,1,0],[0,1,0,1],[0,0,1,1],[1,0,1,0]]],

[[[1,1,1,0],[1,0,0,1],[1,0,1,1],[1,0,1,1]]]

])

target=torch.Tensor([0,1,0,1,1,0,1])

test

tensor([[[[0., 0., 0., 0.],

[0., 1., 1., 0.],

[0., 1., 1., 0.],

[0., 0., 0., 0.]]],

​

[[[1., 1., 1., 1.],

[1., 0., 0., 1.],

[1., 0., 0., 1.],

[1., 1., 1., 1.]]],

​

[[[0., 1., 0., 1.],

[1., 0., 0., 1.],

[1., 0., 0., 1.],

[0., 0., 0., 1.]]],

​

[[[0., 1., 1., 1.],

[1., 0., 0., 1.],

[1., 0., 0., 1.],

[0., 0., 0., 1.]]],

​

[[[0., 0., 1., 1.],

[1., 0., 0., 1.],

[1., 0., 0., 1.],

[1., 0., 1., 0.]]],

​

[[[0., 0., 1., 0.],

[0., 1., 0., 1.],

[0., 0., 1., 1.],

[1., 0., 1., 0.]]],

​

[[[1., 1., 1., 0.],

[1., 0., 0., 1.],

[1., 0., 1., 1.],

[1., 0., 1., 1.]]]])

with torch.no_grad():

output = net(test)

output2 = net2(test)

predictions =output.argmax(dim=1)

predictions2 =output2.argmax(dim=1)

比较结果

print(f'Net测试结果{predictions.eq(target)}')

print(f'Net2测试结果{predictions2.eq(target)}')

Net测试结果tensor([ True, True, False, True, True, True, True])

Net2测试结果tensor([False, True, False, True, True, False, True])
