UE C++学习笔记： 时间轴组件Timeline

    //包含必要头文件
    #include "Components/TimelineComponent.h"

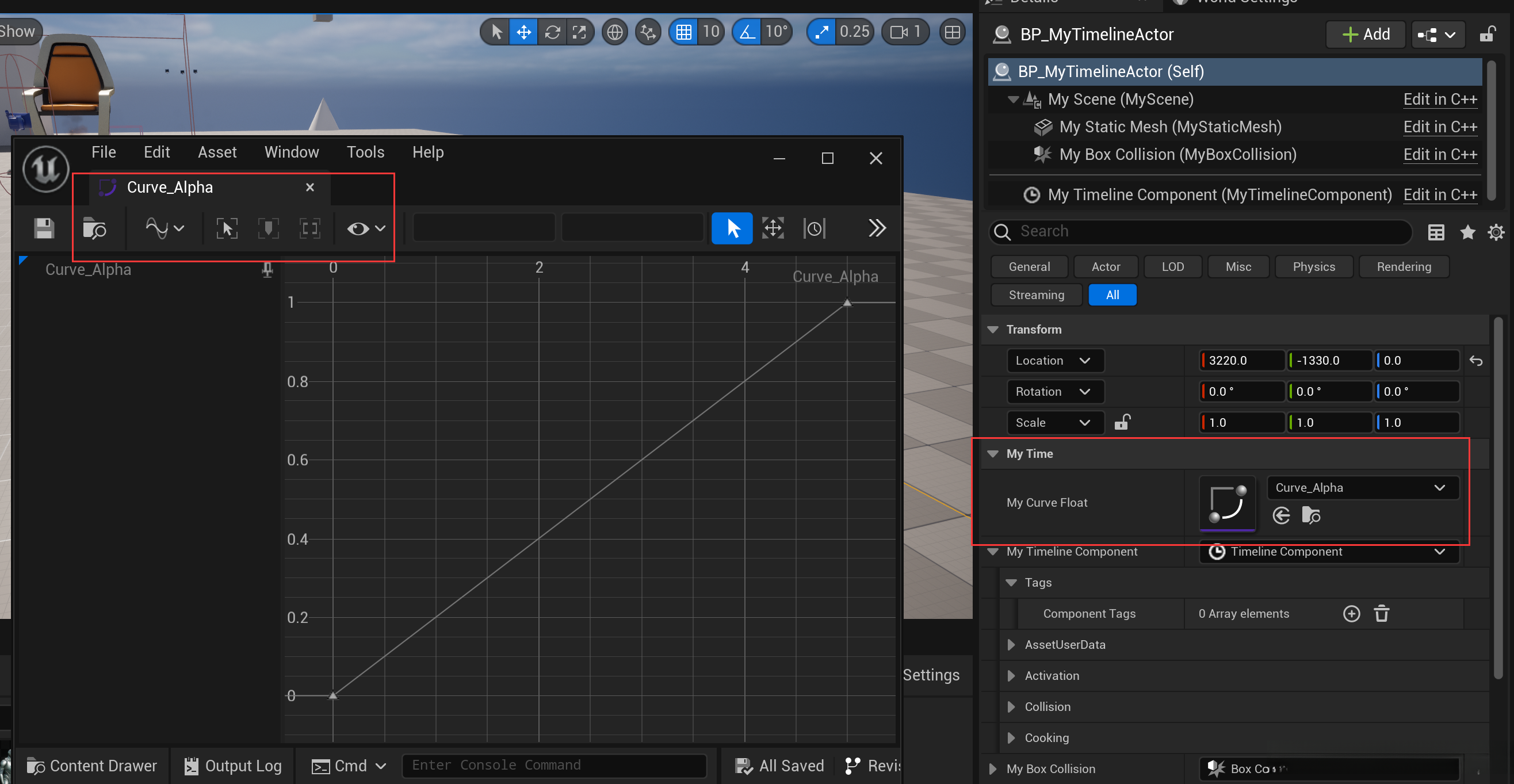

    //声明变量：浮点数曲线
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category="MyTime")
    UCurveFloat* MyCurveFloat;
    //声明变量：时间轴组件
    UPROPERTY(EditAnywhere, BlueprintReadWrite, Category="MyTime")
    UTimelineComponent* MyTimelineComponent;













    //这个委托格式是Timeline组件中定义的。表示由 Float触发的事
    FOnTimelineFloat TimelinePlay_Delegate;
    //这个是 Finish结束时触发的事
    FOnTimelineEvent TimelineFinished_Delegate;

    //声明两个和上面委托入参一致的函数，用于绑定
    UFUNCTION()
    void FunHua_TimelinePlay(float Output);
    UFUNCTION()
    void FunHua_TimelineFinished();














    void AMyTimelineActor::FunHua_TimelinePlay(float Output)
    {
    //让Mesh组件随着float输出0~1混合的位置进行上下移动
    	FVector TempVector = FMath::Lerp(FVector(0, 0, 0), FVector(0, 0, 300), Output);
    	MyStaticMesh->SetRelativeLocation(TempVector);
    	//GEngine->AddOnScreenDebugMessage(-1, 5.f, FColor::Red,TEXT("TImeLine开始"));
    }

    void AMyTimelineActor::FunHua_TimelineFinished()
    {
    	GEngine->AddOnScreenDebugMessage(-1, 5.f, FColor::Red,TEXT("TImeLine结束"));
    }
















    MyTimelineComponent = CreateDefaultSubobject<UTimelineComponent>(TEXT("MyTimelineComponent"));





    //对定义的委托变量Play_Delegate绑定函数
    TimelinePlay_Delegate.BindUFunction(this,TEXT("FunHua_TimelinePlay"));
    //对定义的委托变量Finish_Delegate绑定函数
    TimelineFinished_Delegate.BindUFunction(this,TEXT("FunHua_TimelineFinished"));

    //添加Float曲线。传参是（Float曲线，Play的委托）
    MyTimelineComponent->AddInterpFloat(MyCurveFloat, TimelinePlay_Delegate);

    //将定义的委托变量Finish_Delegate设置为时间轴Finish时的事件，传参数是Delegate
    MyTimelineComponent->SetTimelineFinishedFunc(TimelineFinished_Delegate);

    //设置速率
    MyTimelineComponent->SetPlayRate(5.f);
    //设置循环
    MyTimelineComponent->SetLooping(false);



















    MyTimelineComponent->PlayFromStart();
    MyTimelineComponent->Reverse();






    //组件声明
    UPROPERTY(EditAnywhere, BlueprintReadOnly, Category="MyTime")
    UBoxComponent* MyBoxCollision;
    //定义函数。用于绑定：BeginOverlap
    UFUNCTION()
    void FunHua_BeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep,const FHitResult& SweepResult);
    //定义函数。用于绑定：EndOverlap
    UFUNCTION()
    void FunHua_EndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);















    //构造函数
    //初始化MyBoxCollison
    MyBoxCollision = CreateDefaultSubobject<UBoxComponent>(TEXT("MyBoxCollision"));
    MyBoxCollision->SetupAttachment(RootComponent);
    MyBoxCollision->SetBoxExtent(FVector(200, 100, 100));
    MyBoxCollision->SetRelativeLocation(FVector(300.f, 0.f, 100.f));

    //绑定Overlap触发事件
    MyBoxCollision->OnComponentBeginOverlap.AddDynamic(this, &AMyTimelineActor::FunHua_BeginOverlap);
    MyBoxCollision->OnComponentEndOverlap.AddDynamic(this, &AMyTimelineActor::FunHua_EndOverlap);

    //函数实现
    //BeginOverlap
    void AMyTimelineActor::FunHua_BeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep,const FHitResult& SweepResult)
    {
    	AMyCharacter* TempCharacter = Cast<AMyCharacter>(OtherActor);
    	if (TempCharacter)
    	{//调用时间轴的Play
    		MyTimelineComponent->PlayFromStart();
    	}
    }
    //EndOverlap
    void AMyTimelineActor::FunHua_EndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
    {
    	AMyCharacter* TempCharacter = Cast<AMyCharacter>(OtherActor);
    	if (TempCharacter)
    	{//调用时间轴的Reverse
    		MyTimelineComponent->Reverse();
    	}
    }
