Python-OpenCv-答题卡识别

 import cv2


 import numpy as np



 def cv_show(name,img):

     cv2.imshow(name,img)

     cv2.waitKey(0)

     cv2.destroyAllWindows()



 ANSWER_KEY = {0:1,1:4,2:0,3:3,4:1}

 img = cv2.imread("test_01.png")

 contours_Img = img.copy()

 gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)#灰度图

 blur = cv2.GaussianBlur(gray,(5,5),0)#高斯（平滑处理）

 edge = cv2.Canny(blur,75,200)#边缘检测

 #轮廓检测

 cnts,h = cv2.findContours(edge,cv2.RETR_EXTERNAL,cv2.CHAIN_APPROX_SIMPLE)#外边缘

 #cnts = cv2.findContours(edge,cv2.RETR_EXTERNAL,cv2.CHAIN_APPROX_SIMPLE)【0】功能一样

 cv2.drawContours(img,cnts,-1,(0,255,0),2)#绘制轮廓

 cv_show("img",img)

 def order_points(pts):


     rect = np.zeros((4,2),dtype="float32")

     s = pts.sum(axis=1)

     rect[0] = pts[np.argmin(s)]

     rect[2] = pts[np.argmax(s)]

     d = np.diff(pts,axis=1)

     rect[1]= pts[np.argmin(d)]

     rect[3]= pts[np.argmax(d)]

     return rect





 def four_point_transform(img,pts):

     rect = order_points(pts)

     (tl,tr,br,bl) = rect



     widthA = np.sqrt(((br[0] - bl[0])**2)+((br[1] - bl[1])**2))

     #y2-y1的平方+x2-x1的平方再开根号

     widthB = np.sqrt(((tr[0] - tl[0])**2)+((tr[1] - tl[1])**2))

     maxWidth = max(int(widthA),int(widthB))

     heightA = np.sqrt(((tr[0] - br[0])**2)+((tr[1] - br[1])**2))

     heightB = np.sqrt(((tl[0] - bl[0])**2)+((tl[1] - bl[1])**2))

     maxHeight = max(int(heightA),int(heightB))





     dst =np.array([[0,0],\

     [maxWidth - 1,0],\

     [maxWidth - 1,maxHeight - 1,],\

     [0,maxHeight - 1]],dtype = "float32")



     M =cv2.getPerspectiveTransform(rect,dst)

     warp = cv2.warpPerspective(img,M,(maxWidth,maxHeight))



     return warp#返回变换后的结果

 dotCnt = None

 if len(cnts)>0:

     cnts = sorted(cnts, key=cv2.contourArea,reverse = True)

     for c in cnts:

     peri = cv2.arcLength(c,True)

     approx = cv2.approxPolyDP(c,0.02*peri,True)

     if len(approx)==4:

         dotCnt=approx



 warp = four_point_transform(gray,dotCnt.reshape(4,2))



 cv_show("warp",warp)

 def sort_contours(cnts,method="left-to-right")


     reverse = False

     i = 0

     if method == "right-to-left" or method=="bottom-to-top":

     reverse = True

     if method == "top-to-bottom" or method=="bottom-to-top":

     i = 1

     boundingBoxes = [cv2.boundingRect(c) for c in cnts]

     (cnts,boundingBoxes) = zip(*sorted(zip(cnts,boundingBoxes),\

                                    key=lambda b:b[1][i], reverse=reverse))

     return cnts,boundingBoxes



 thresh = cv2.threshold(warp,0,255,cv2.THRESH_BINARY_INV | cv2.THRESH_OTSU)[1]

 thresh_contours = thresh.copy()

 cnts,h = cv2.findContours(thresh.copy(),cv2.RETR_EXTERNAL,cv2.CHAIN_APPROX_SIMPLE)



 cv2.drawContours(thresh_contours,cnts,-1,(0,255,0),2)

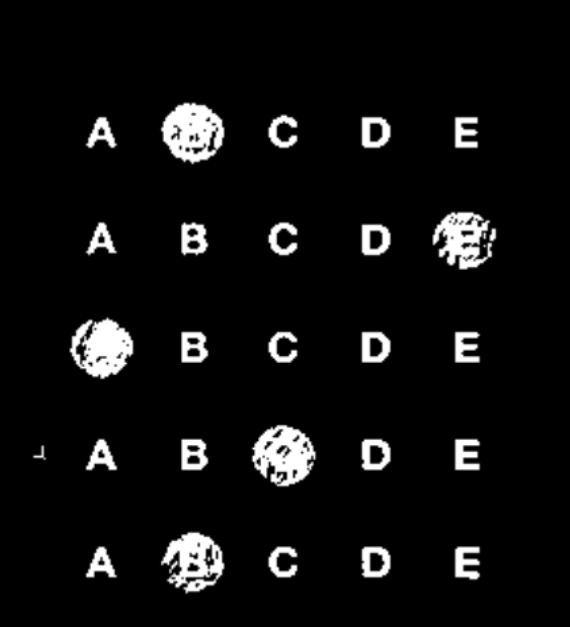

 cv_show("thresh_contours",thresh_contours)

 questionCnts = []




 for c in cnts:

     (x,y,w,h) = cv2.boundingRect(c)

     ar = w / float(h)#宽高比

     if w > 20 and h > 20 and ar > 0.9 and ar < 1.1:#宽大于20个像素.....

     questionCnts.append(c)



 questionCnts = sort_contours(questionCnts, method = "top-to-bottom")

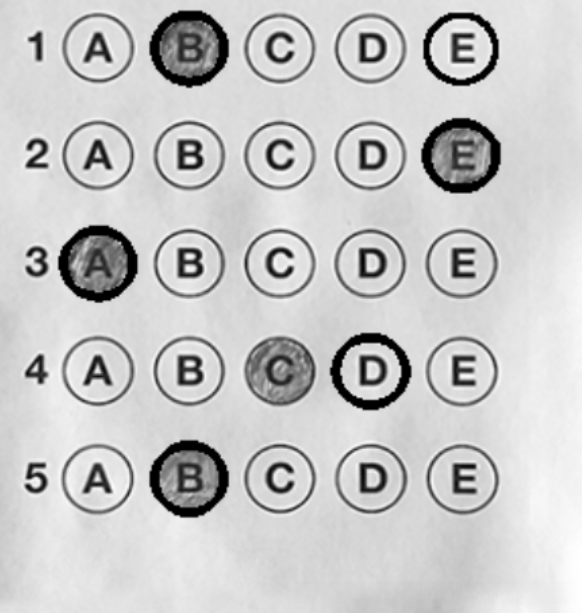

 cv2.drawContours(warp,questionCnts,1,(0,255,255),2)

 correct = 0



 for (q,i) in enumerate(np.arange(0,len(questionCnts),5)):

     cnts = sort_contours(questionCnts[i:i + 5])[0]

     bubbled = None

     for (j,c) in enumerate(cnts):

     mask = np.zeros(thresh.shape,dtype="uint8")

     cv2.drawContours(mask,[c],-1,255,-1)

     cv_show("mask",mask)



     mask = cv2.bitwise_and(thresh,thresh,mask = mask)

     total = cv2.countNonZero(mask)#看mask里面那个是空的



     if bubbled is None or total > bubbled[0]:

         bubbled = (total,j)



     color = (0,0,255)

     k = ANSWER_KEY[q]

     if k == bubbled[1]:

     color = (0,255,0)

     correct += 1

     cv2.drawContours(warp,[cnts[k]],-1,color,3)



 score = (correct / 5.0)*100

 cv2.putText(warp,"Total:{:.2f}".format(score),(10,30),cv2.FONT_HERSHEY_SIMPLEX,\

         0.9,(0,0,0),2)

 cv_show("warp",warp)
