ENSP---VLAN配置实验
发布时间
阅读量：
阅读量
目录
一、实验目标
二、实验拓扑
三、基本配置
四、创建VLAN
五、客户端配置IP地址
六、验证VLAN
七、配置Hybrid
八、配置文件
一、实验目标
- 掌握VLAN的创建方法；
- 掌握Trunk、Access链路的接口配置方法；
- 掌握Hybird接口的配置方法；
- 掌握将接口与VLAN相关联的配置方法。

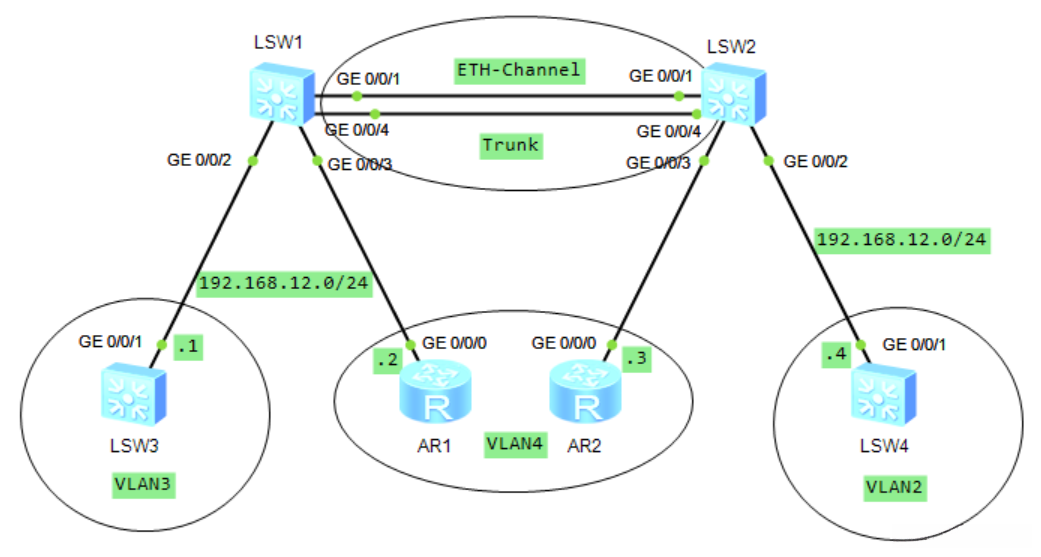

二、实验拓扑
三、基本配置
在S1、S2上创建Eth-Trunk 1，并配置为静态LACP模式，然后将这两台交换机的两个接口分别加入Eth-Ttrunk 1:
S1:
[S1]int Eth-Trunk 1
[S1-Eth-Trunk1]mode lacp
[S1-Eth-Trunk1]q
Apr 4 2022 15:25:33-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 5, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S1]int g0/0/1
[S1-GigabitEthernet0/0/1]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[S1-GigabitEthernet0/0/1]
Apr 4 2022 15:25:53-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 6, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S1-GigabitEthernet0/0/1]
[S1-GigabitEthernet0/0/1]q
[S1]int g0/0/4
[S1-GigabitEthernet0/0/4]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[S1-GigabitEthernet0/0/4]q
[S1]
Apr 4 2022 15:26:03-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 7, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S1]S2:
[S2]int Eth-Trunk 1
[S2-Eth-Trunk1]mode lacp
[S2-Eth-Trunk1]
Apr 4 2022 15:26:33-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 5, the ch
ange loop count is 0, and the maximum number of records is 4095.q
[S2]int g0/0/1
[S2-GigabitEthernet0/0/1]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[S2-GigabitEthernet0/0/1]
Apr 4 2022 15:26:39-08:00 S2 %%01IFNET/4/IF_STATE(l)[0]:Interface Eth-Trunk1 ha
s turned into UP state.
Apr 4 2022 15:26:43-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 6, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S2-GigabitEthernet0/0/1]q
[S2]int g0/0/4
[S2-GigabitEthernet0/0/4]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[S2-GigabitEthernet0/0/4]q
[S2]
Apr 4 2022 15:27:03-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 7, the ch
ange loop count is 0, and the maximum number of records is 4095.华为交换机端口默认为Hybrid模式，这里要配置Eth-Trunk接口类型为Trunk，并允许所有VLAN通过该端口：
S1：
[S1]int Eth-Trunk 1
[S1-Eth-Trunk1]port link-type trunk
Apr 4 2022 15:33:53-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 8, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S1-Eth-Trunk1]port trunk allow-pass vlan all
[S1-Eth-Trunk1]
Apr 4 2022 15:34:03-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 9, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S1-Eth-Trunk1]S2：
[S2]int Eth-Trunk 1
[S2-Eth-Trunk1]port link-type trunk
[S2-Eth-Trunk1]
Apr 4 2022 15:34:23-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 8, the ch
ange loop count is 0, and the maximum number of records is 4095.
[S2-Eth-Trunk1]port trunk allow-pass vlan all
[S2-Eth-Trunk1]
Apr 4 2022 15:34:43-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 9, the ch
ange loop count is 0, and the maximum number of records is 4095.四、创建VLAN
本实验中，交换机S3、S4，路由器R1、R2作为客户端，在S1、S2上分别创建VLAN2、3、4，并使用两种不同的方式将端口加入VLAN中，将所有连接客户端的端口类型配置为Access：
将S1上端口G0/0/2、G0/0/3分别加入VLAN3、VALN4：
S1：
[S1]int g0/0/2
[S1-GigabitEthernet0/0/2]port link-type access
Apr 4 2022 15:46:43-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 12, the c
hange loop count is 0, and the maximum number of records is 4095.
[S1-GigabitEthernet0/0/2]int g0/0/3
[S1-GigabitEthernet0/0/3]port link-type access
[S1-GigabitEthernet0/0/3]q
[S1]vlan 2
[S1-vlan2]vlan 3
[S1-vlan3]port g0/0/2
[S1-vlan3]vlan 4
Apr 4 2022 15:48:13-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 18, the c
hange loop count is 0, and the maximum number of records is 4095.
[S1-vlan4]port g0/0/3
[S1-vlan4]q
[S1]
Apr 4 2022 15:48:23-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 19, the c
hange loop count is 0, and the maximum number of records is 4095.
[S1]将S2上端口G0/0/2、G0/0/3分别加入VLAN2、VLAN4：
S2：
[S2]vlan batch 2 to 4
Info: This operation may take a few seconds. Please wait for a moment...done.
[S2]
Apr 4 2022 15:52:43-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 12, the c
hange loop count is 0, and the maximum number of records is 4095.
[S2]int g0/0/2
[S2-GigabitEthernet0/0/2]port link-type access
[S2-GigabitEthernet0/0/2]port default vlan 2
[S2-GigabitEthernet0/0/2]q
Apr 4 2022 15:54:13-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 13, the c
hange loop count is 0, and the maximum number of records is 4095
[S2]int g0/0/3
[S2-GigabitEthernet0/0/3]port link-type access
[S2-GigabitEthernet0/0/3]port default vlan 4
[S2-GigabitEthernet0/0/3]q
[S2]
Apr 4 2022 15:55:03-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 14, the c

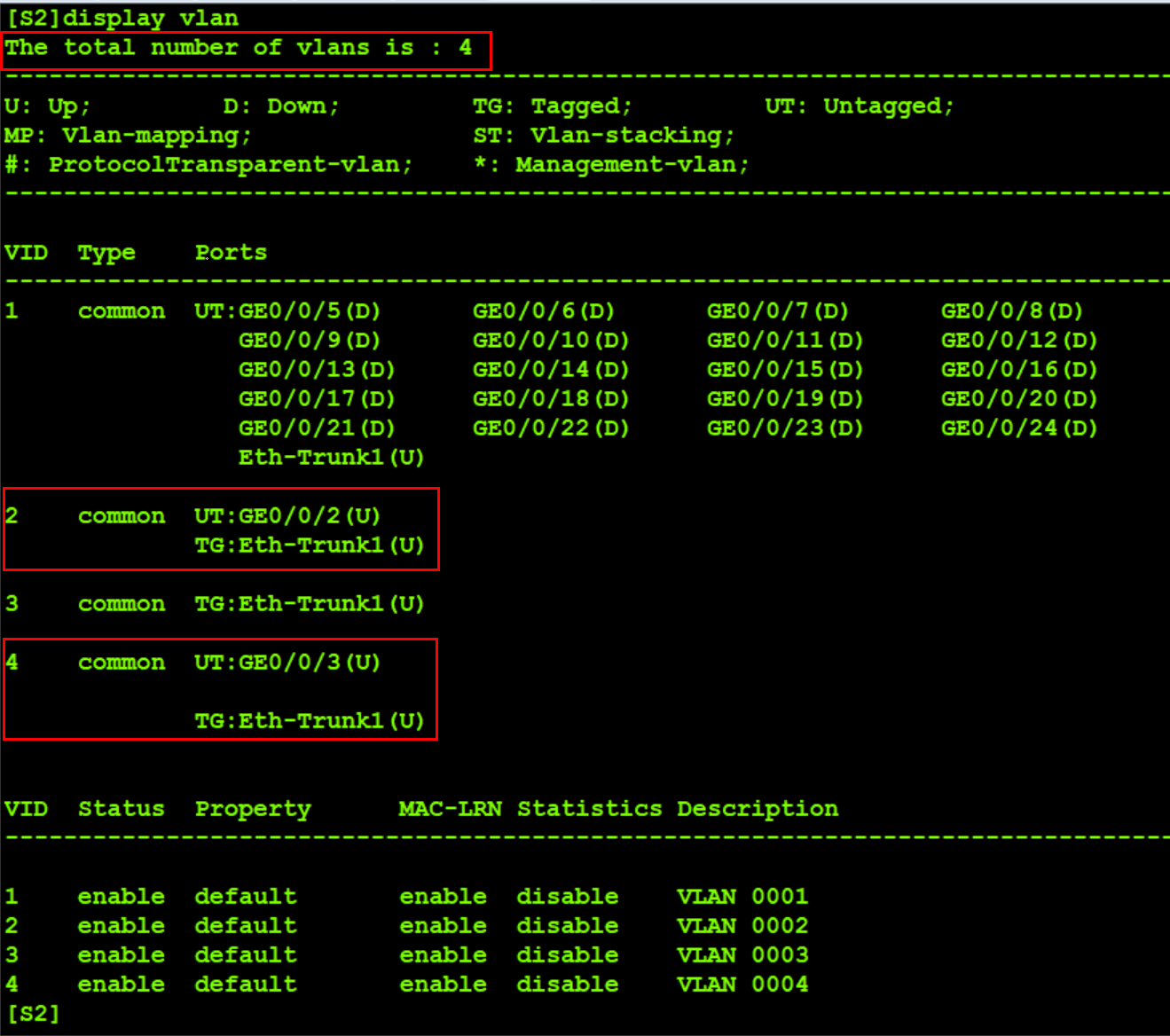

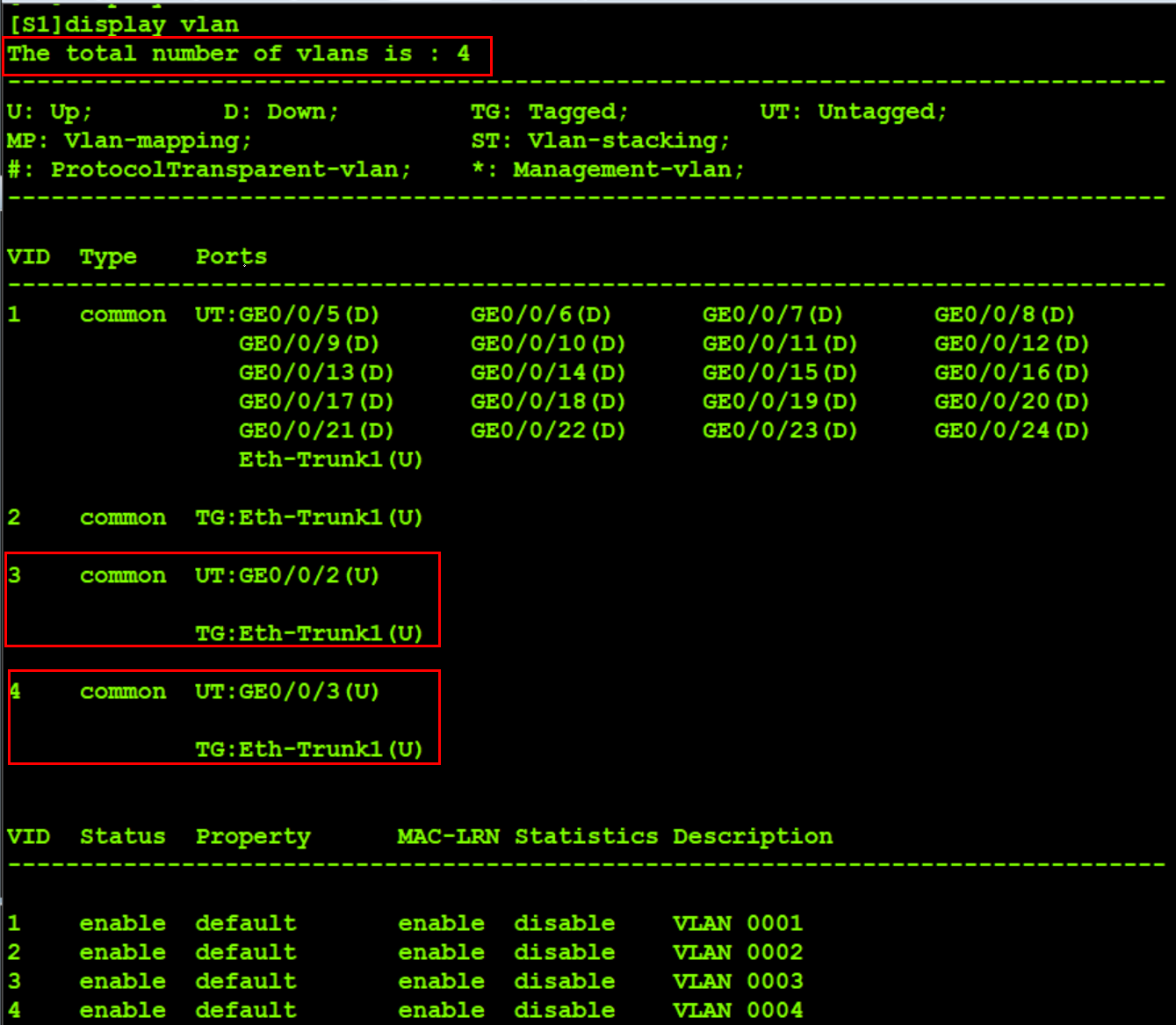

hange loop count is 0, and the maximum number of records is 4095.查看S1、S2上VLAN配置，确认正确加入端口：
S1：
S2：
五、客户端配置IP地址
分别为主机S3、S4、R1、R2配置IP地址，由于不能直接为交换机端口配置IP地址，所以这里在S3、S4的本地管理接口VLANIF 1接口配置IP地址：
S3：
[S3]int Vlanif 1
[S3-Vlanif1]ip address 192.168.12.1 24
[S3-Vlanif1]
Apr 4 2022 16:11:13-08:00 S3 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface Vlanif1 has entered the UP state.
[S3-Vlanif1]q
[S3]
Apr 4 2022 16:11:23-08:00 S3 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 5, the ch
ange loop count is 0, and the maximum number of records is 4095.R1：
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.12.2 24
[R1-GigabitEthernet0/0/0]
Apr 4 2022 16:12:28-08:00 R1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R1-GigabitEthernet0/0/0]R2：
[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.12.3 24
Apr 4 2022 16:13:09-08:00 R2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R2-GigabitEthernet0/0/0]S4：
[S4]int Vlanif1
[S4-Vlanif1]IP address 192.168.12.4 24
[S4-Vlanif1]
Apr 4 2022 16:13:58-08:00 S4 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface Vlanif1 has entered the UP state.
[S4-Vlanif1]
Apr 4 2022 16:14:04-08:00 S4 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 5, the ch
ange loop count is 0, and the maximum number of records is 4095.六、验证VLAN
这里可以在R1上使用PING命令检测与R2的连通性，因为它们同属于VLAN4，所以只要配置成功，双方是可以通信的，而R1与其它两台主机S3、S4是不连通的，因为它们不属于同一VLAN，不能直接通信：
R1：

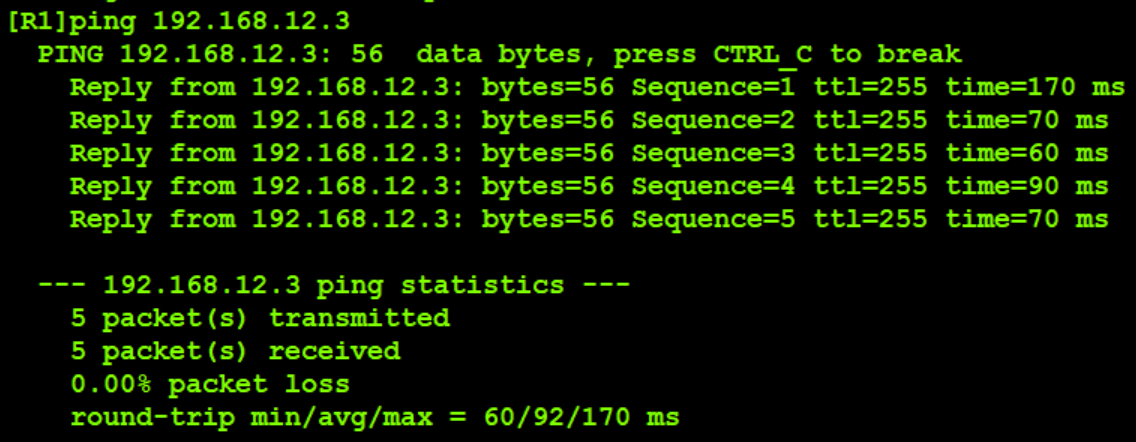

检测R1与R2之间的连通性
检测R1与S4之间的连通性
七、配置Hybrid
这里配置S1上的G0/0/3、S2上的G0/0/2、G0/0/3端口为Hybrid类型，可以为来自不同VLAN的流量打上或去除VALN标签，使得VLAN２、VALN４之间可以通信：
Ｓ１：
[S1]int g0/0/3
[S1-GigabitEthernet0/0/3]undo port default vlan
[S1-GigabitEthernet0/0/3]
Apr 4 2022 16:35:15-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 20, the c
hange loop count is 0, and the maximum number of records is 4095.
[S1-GigabitEthernet0/0/3]port link-type hybrid
[S1-GigabitEthernet0/0/3]port hybrid untagged vlan 2 4
[S1-GigabitEthernet0/0/3]port hybrid pvid vlan 4
[S1-GigabitEthernet0/0/3]q
[S1]
Apr 4 2022 16:36:15-08:00 S1 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 23, the c
hange loop count is 0, and the maximum number of records is 4095.Ｓ２：
[S2]int g0/0/2
[S2-GigabitEthernet0/0/2]undo port default vlan
Apr 4 2022 16:37:54-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 15, the c
hange loop count is 0, and the maximum number of records is 4095.
[S2-GigabitEthernet0/0/2]port link-type hybrid
[S2-GigabitEthernet0/0/2]port hybrid untagged vlan 2 4
[S2-port-group-hybrid]port hybrid pvid vlan 2
[S2-port-group-hybrid]q
[S2]int g0/0/3
[S2-GigabitEthernet0/0/3]undo port default vlan
[S2-GigabitEthernet0/0/3]port link-type hybrid
Apr 4 2022 16:40:04-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 20, the c
hange loop count is 0, and the maximum number of records is 4095.
[S2-GigabitEthernet0/0/3]port hybrid untagged vlan 2 4
Apr 4 2022 16:40:14-08:00 S2 DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5.25.
191.3.1 configurations have been changed. The current change number is 21, the c
hange loop count is 0, and the maximum number of records is 4095.h
[S2-GigabitEthernet0/0/3]port hybrid pvid vlan 4
[S2-GigabitEthernet0/0/3]q

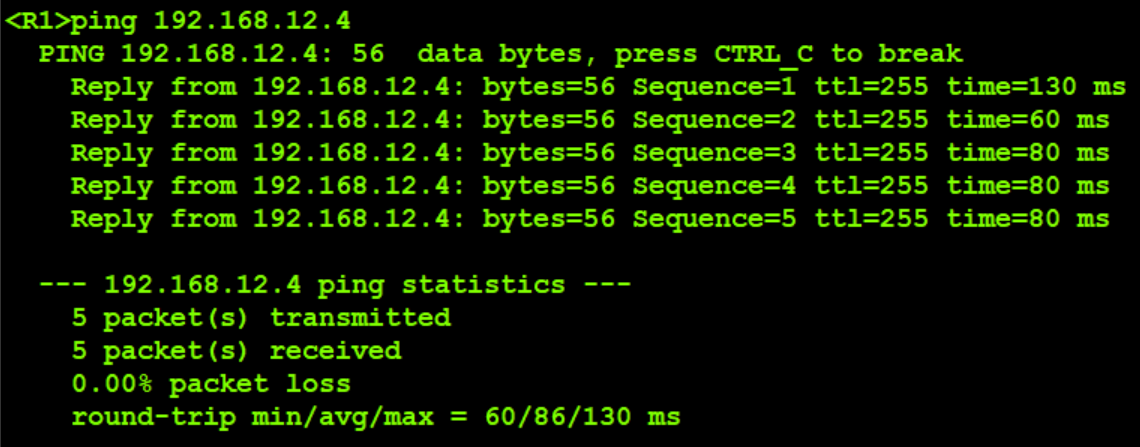

[S2]测试Ｒ１与Ｓ４之间能否通信：
检测Ｒ１与Ｓ４之间的连通性
八、配置文件
Ｓ１：
[S1]display current-configuration
#
sysname S1
#
vlan batch 2 to 4
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Eth-Trunk1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
mode lacp-static
#
interface GigabitEthernet0/0/1
eth-trunk 1
#
interface GigabitEthernet0/0/2
port link-type access
port default vlan 3
#
interface GigabitEthernet0/0/3
port hybrid pvid vlan 4
port hybrid untagged vlan 2 4
#
interface GigabitEthernet0/0/4
eth-trunk 1
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
port-group g0
#
return
[S1]Ｓ２：
[S2]display current-configuration
#
sysname S2
#
vlan batch 2 to 4
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Eth-Trunk1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
mode lacp-static
#
interface GigabitEthernet0/0/1
eth-trunk 1
#
interface GigabitEthernet0/0/2
port hybrid untagged vlan 2 4
#
interface GigabitEthernet0/0/3
port hybrid pvid vlan 4
port hybrid untagged vlan 2 4
#
interface GigabitEthernet0/0/4
eth-trunk 1
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
port-group hybrid
#
returnＳ３：
<S3>display current-configuration
#
sysname S3
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
ip address 192.168.12.1 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<S3>Ｓ４：
<S4>display current-configuration
#
sysname S4
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
ip address 192.168.12.4 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return
<S4>Ｒ１：
<R1>display current-configuration
[V200R003C00]
#
sysname R1
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
drop illegal-mac alarm
#
set cpu-usage threshold 80 restore 75
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface GigabitEthernet0/0/0
ip address 192.168.12.2 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
<R1>Ｒ２：
<R2>display current-configuration
[V200R003C00]
#
sysname R2
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
drop illegal-mac alarm
#
set cpu-usage threshold 80 restore 75
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface GigabitEthernet0/0/0
ip address 192.168.12.3 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
<R2>全部评论 (0)
还没有任何评论哟~
