深度学习（二）卷积神经网络CNN

 '''

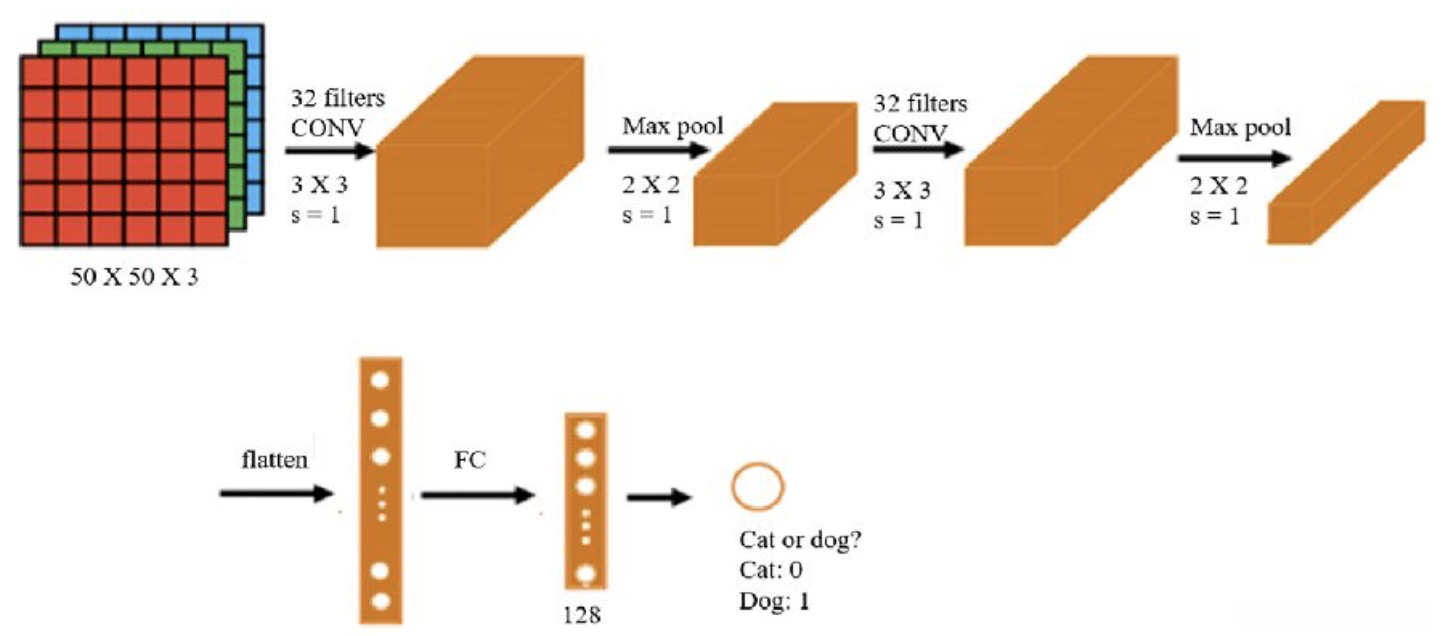

 基于dataset\training_set数据，根据提供的结构，建立CNN模型，识别图片中的猫/狗，计算预测准确率

 '''

 # 1. load the data

 from keras.preprocessing.image import ImageDataGenerator

 train_datagen = ImageDataGenerator(rescale=1./255)# 1./255：归一化，图像的灰度值都除以255



 training_set = train_datagen.flow_from_directory('./dataset/training_set',target_size=(50,50),batch_size=32,class_mode='binary') # flow_from_directory 文件路径

 # batch_size：每次选32张图片进行反向梯度搜索来求解cnn，size越小，损失函数越不稳定

 # class_mode：模式为二分类



 # 2. 确认输入数据标签

 training_set.class_indices

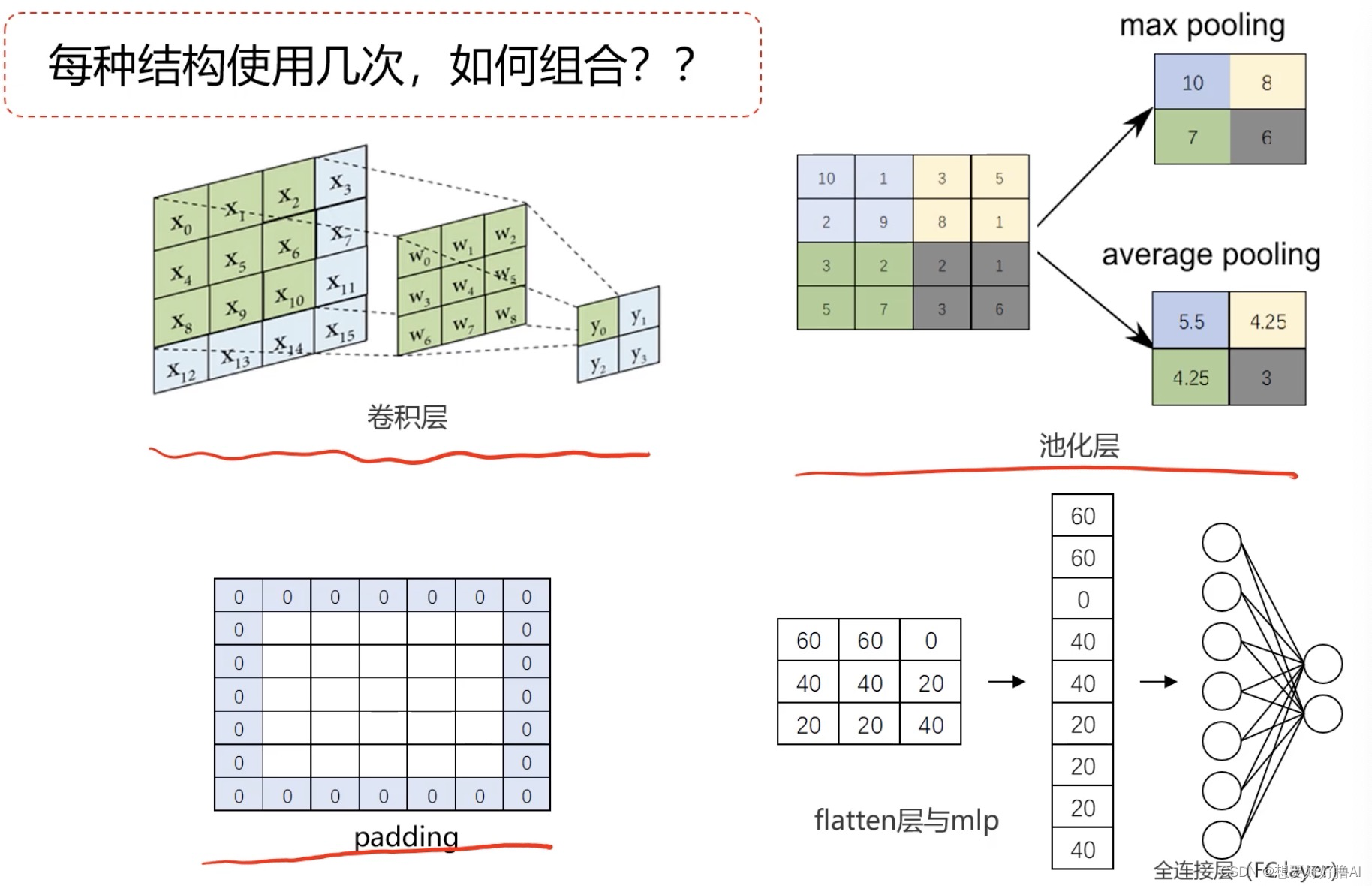

 #3. 建立CNN模型 set up the cnn model

 from keras.models import Sequential

 from keras.layers import Conv2D, MaxPool2D, Flatten, Dense

 #创建顺序模型的实例

 model = Sequential()

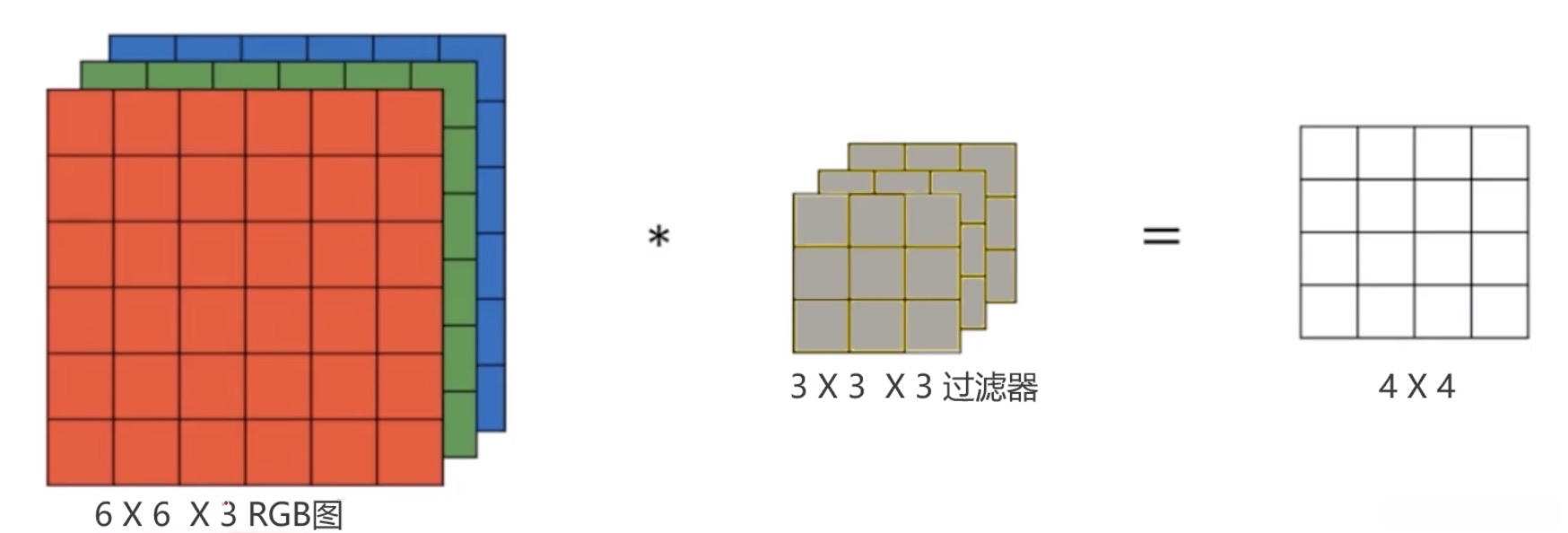

 #卷积层

 model.add(Conv2D(32,(3,3),input_shape=(50,50,3),activation='relu')) # 32个filters，每个3*3，输入像素为50*50*3通道

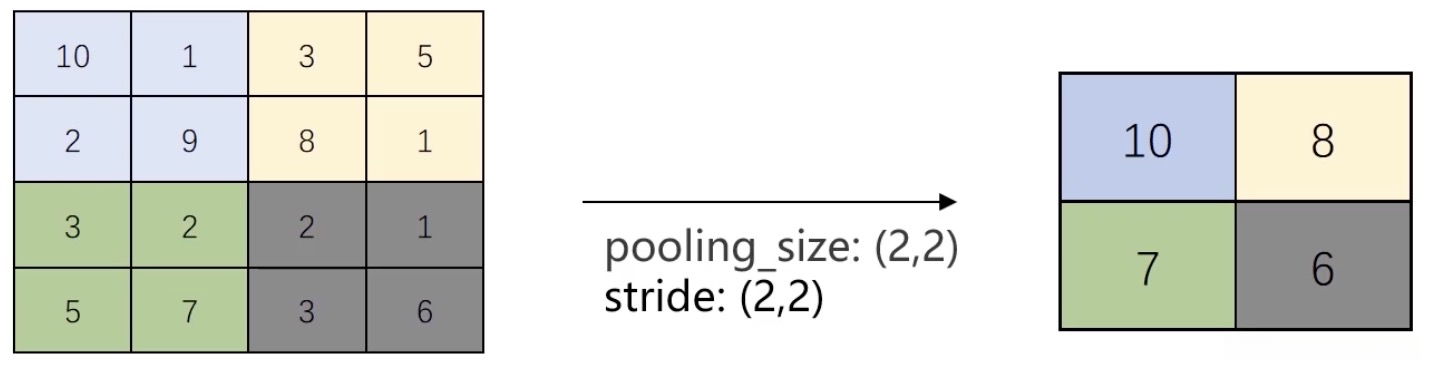

 #池化层

 model.add(MaxPool2D(pool_size=(2,2))) # 默认s=1

 #卷积层

 model.add(Conv2D(32,(3,3),activation='relu'))

 #池化层

 model.add(MaxPool2D(pool_size=(2,2)))

 #flattening layer

 model.add(Flatten()) # 将（m行*n列）转换成（m*n行1列）

 #FC layer

 model.add(Dense(units=128,activation='relu'))

 #输出层

 model.add(Dense(units=1,activation='sigmoid'))



 # 4. 配置模型参数 configure the model

 model.compile(optimizer='adam',loss='binary_crossentropy',metrics=['accuracy']) # 每次训练完后用accuracy进行评估



 # 5. 查看模型每层的结构，及多少参数

 model.summary()



 # 6. 训练模型 train the model

 model.fit_generator(training_set,epochs=20) # 因为是通过keras中的ImageGenerator生成图像的，所以训练时要用fit_generator



 # 7. 计算训练数据集的准确率，用evaluate_generator方法 accuracy on the training data

 accuracy_train = model.evaluate_generator(training_set)

 print(accuracy_train)



 # 8. 计算测试数据集的准确率 accuracy on the test data

 test_set = train_datagen.flow_from_directory('./dataset/test_set',target_size=(50,50),batch_size=32,class_mode='binary')



 accuracy_test = model.evaluate_generator(test_set)

 print(accuracy_test)




    AI助手

 '''


 从网站下载猫/狗图片，对其进行预测

 '''

 # 9. 加载单个狗图片，对其进行归一化，维度转换，及预测

 from keras.preprocessing.image import load_img, img_to_array

 pic_dog = 'dog.jpg'

 pic_dog = load_img(pic_dog,target_size=(50,50))

 pic_dog = img_to_array(pic_dog)

 pic_dog = pic_dog/255

 pic_dog = pic_dog.reshape(1,50,50,3)

 result = model.predict_classes(pic_dog)

 print(result) # 结果为[[1]]



 # 10. 加载单个猫图片，对其进行归一化，维度转换，及预测

 pic_cat = 'cat1.jpg'

 pic_cat = load_img(pic_cat,target_size=(50,50))

 pic_cat = img_to_array(pic_cat)

 pic_cat = pic_cat/255

 pic_cat = pic_cat.reshape(1,50,50,3)

 result = model.predict_classes(pic_cat)

 print(result) # 结果为[[0]]



 # 11. 获取类别序列

 training_set.class_indices # {'cats': 0, 'dogs': 1}

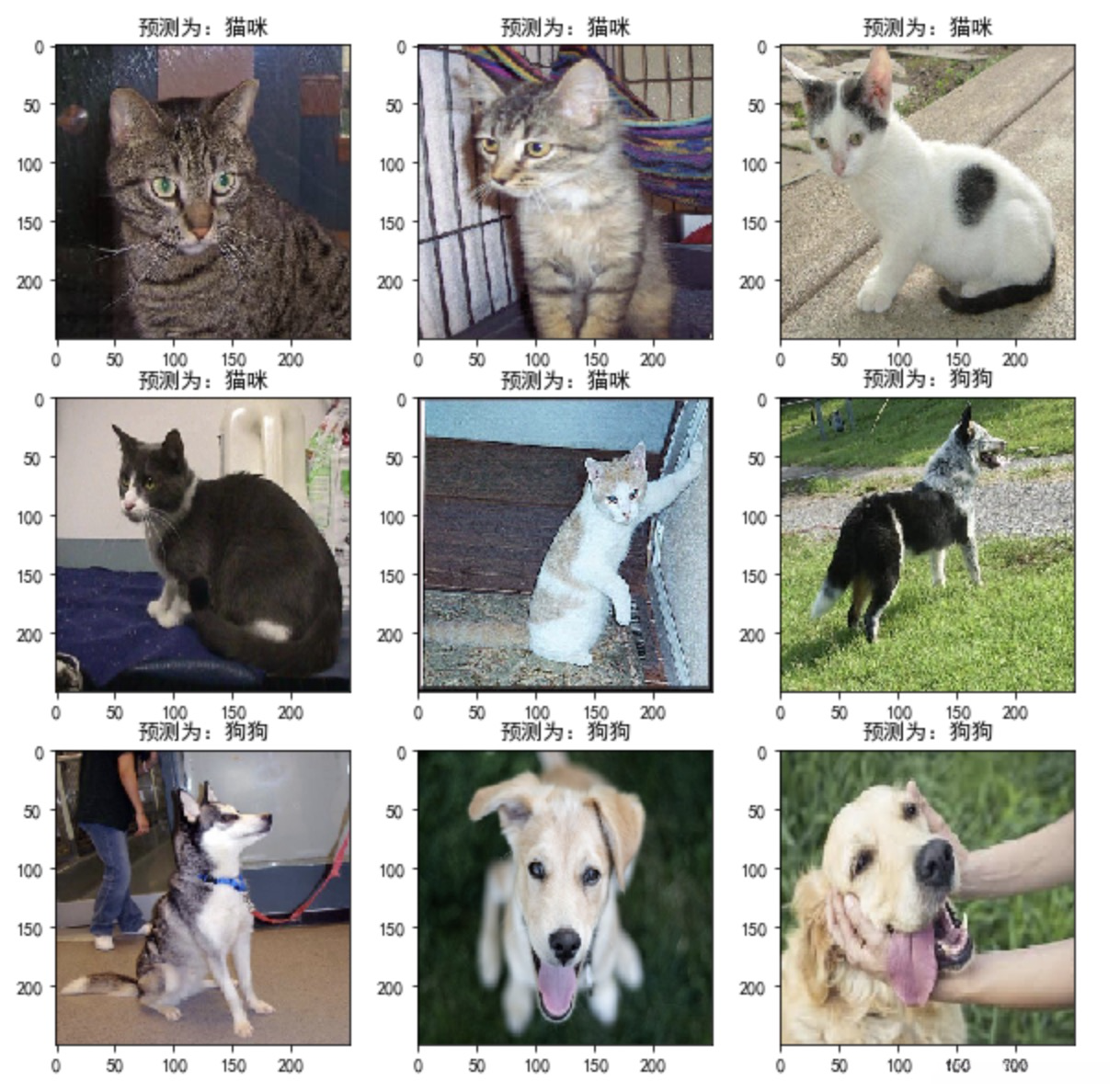

 # 12. 在多张图中预测其类别 make prediction on multiple images

 import matplotlib as mlp

 font2 = {'family' : 'SimHei',

 'weight' : 'normal',

 'size'   : 20,

 }

 mlp.rcParams['font.family'] = 'SimHei'

 mlp.rcParams['axes.unicode_minus'] = False

 from matplotlib import pyplot as plt

 from matplotlib.image import imread

 from keras.preprocessing.image import load_img

 from keras.preprocessing.image import img_to_array

 from keras.models import load_model

 a = [i for i in range(1,10)]

 fig = plt.figure(figsize=(10,10))

 for i in a:

     img_name = str(i)+'.jpg'

     img_ori = load_img(img_name, target_size=(50, 50))

     img = img_to_array(img_ori)

     img = img.astype('float32')/255

     img = img.reshape(1,50,50,3)

     result = model.predict_classes(img)

     img_ori = load_img(img_name, target_size=(250, 250))

     plt.subplot(3,3,i)

     plt.imshow(img_ori)

     plt.title('预测为：狗狗' if result[0][0] == 1 else '预测为：猫咪')

 plt.show()




    AI助手

 '''


 单个图像预处理，使用VGG16结构提取图像特征

 '''

 # 1. load the data

 from keras.preprocessing.image import load_img,img_to_array



 img_path = '1.jpg'

 img = load_img(img_path,target_size=(224,224))

 img = img_to_array(img)

 type(img)

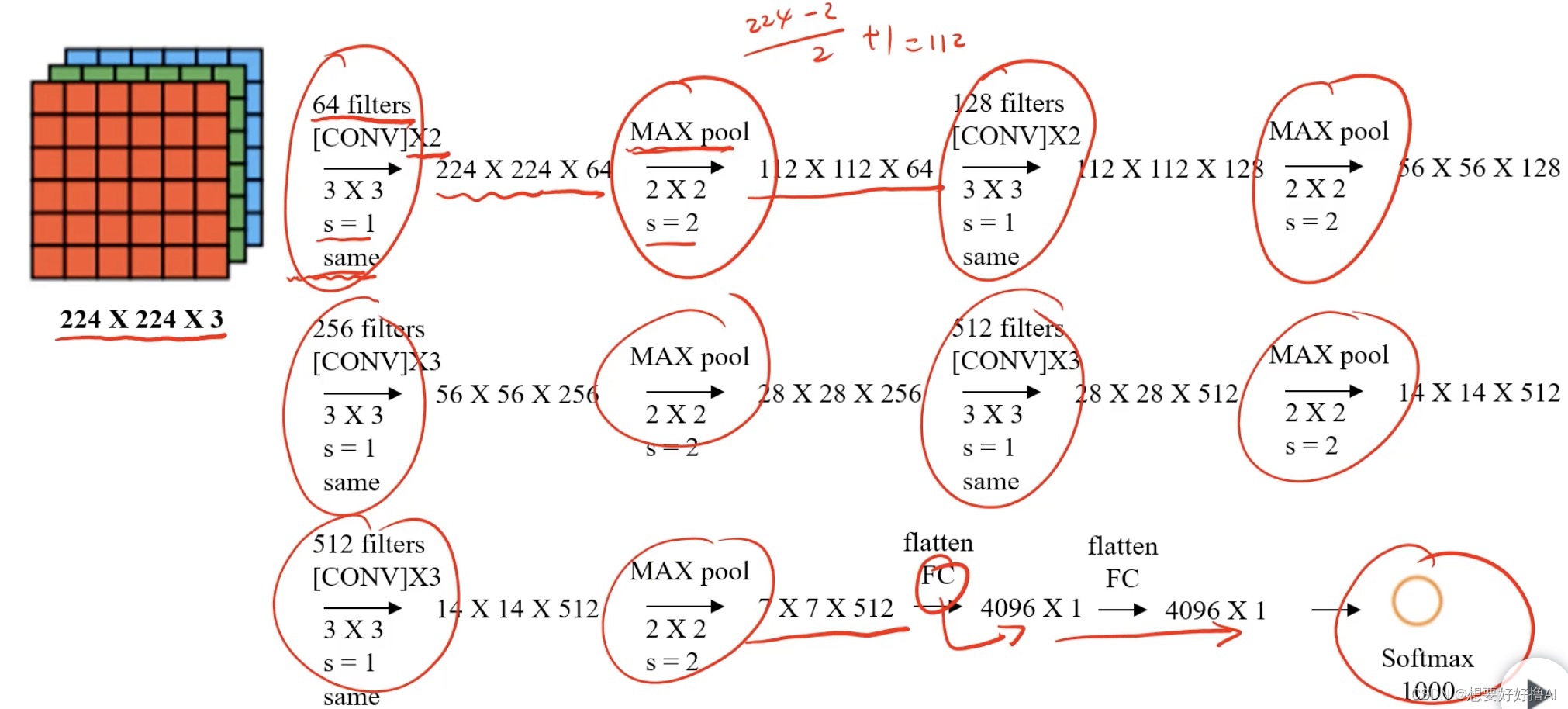

 # 2. 加载VGG-16模型结构

 from keras.applications.vgg16 import VGG16

 from keras.applications.vgg16 import preprocess_input

 import numpy as np

 model_vgg = VGG16(weights='imagenet',include_top=False)

 x = np.expand_dims(img,axis=0)

 x = preprocess_input(x)

 print(x.shape)



 # 3. 使用vgg模型提取图像特征

 features = model_vgg.predict(x)

 print(features.shape)



 #4. 建立全连接层flatten

 features = features.reshape(1,7*7*512)

 print(features.shape)

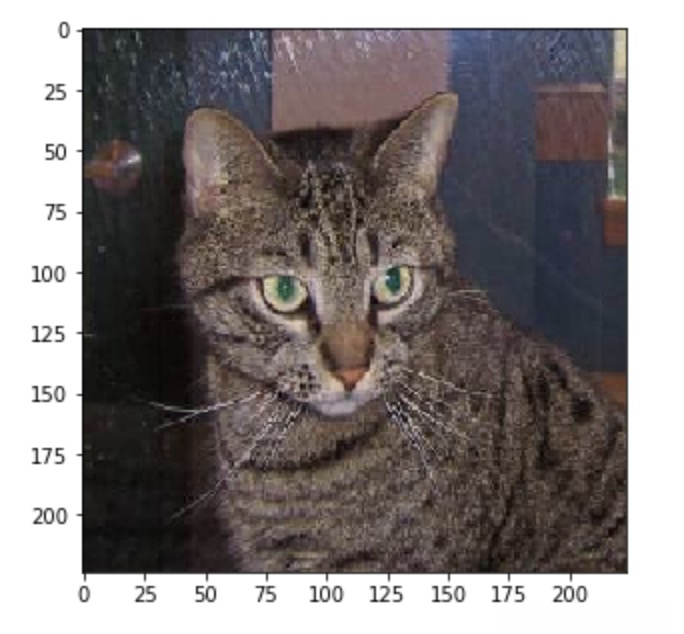

 # 5. 可视化数据 visualize the data

 %matplotlib inline

 from matplotlib import pyplot as plt

 fig = plt.figure(figsize=(5,5))

 img = load_img(img_path,target_size=(224,224))

 plt.imshow(img)




    AI助手

 '''


 任务1：批量图片预处理，用VGG16的结构提取批量图像特征

 '''

 # 1. 导入库

 from keras.preprocessing.image import img_to_array,load_img

 from keras.applications.vgg16 import VGG16

 from keras.applications.vgg16 import preprocess_input

 import numpy as np



 # 2. 创建vgg16模型实例

 model_vgg = VGG16(weights='imagenet', include_top=False)



 # 3. 定义一个图片加载方法 define a method to load and preprocess the image

 def modelProcess(img_path,model):

     img = load_img(img_path, target_size=(224, 224))

     img = img_to_array(img)

     x = np.expand_dims(img,axis=0)

     x = preprocess_input(x)

     x_vgg = model.predict(x)

     x_vgg = x_vgg.reshape(1,25088)

     return x_vgg



 # 4. 查看指定文件夹包含的文件名列表 list file names of the training datasets

 import os

 folder = "dataset/data_vgg/cats"

 dirs = os.listdir(folder)



 # 5. 生成各个图片路径 generate path for the images

 img_path = []

 for i in dirs:

     if os.path.splitext(i)[1] == ".jpg":

     img_path.append(i)

 img_path = [folder+"//"+i for i in img_path]



 # 6. 多图像预处理 preprocess multiple images

 features1 = np.zeros([len(img_path),25088])

 for i in range(len(img_path)):

     feature_i = modelProcess(img_path[i],model_vgg)

     print('preprocessed:',img_path[i])

     features1[i] = feature_i



 folder = "dataset/data_vgg/dogs"

 dirs = os.listdir(folder)

 img_path = []

 for i in dirs:

     if os.path.splitext(i)[1] == ".jpg":

     img_path.append(i)

 img_path = [folder+"//"+i for i in img_path]

 features2 = np.zeros([len(img_path),25088])

 for i in range(len(img_path)):

     feature_i = modelProcess(img_path[i],model_vgg)

     print('preprocessed:',img_path[i])

     features2[i] = feature_i



 # 7. 结果标签 label the results

 print(features1.shape,features2.shape)

 y1 = np.zeros(300)

 y2 = np.ones(300)



 # 8. 生成训练数据集 generate the training data

 X = np.concatenate((features1,features2),axis=0)

 y = np.concatenate((y1,y2),axis=0)

 y = y.reshape(-1,1)

 print(X.shape,y.shape)




    AI助手

 '''


 任务2：根据任务1提取的图像特征建立MLP模型，对数据进行分离、计算测试数据预测准确率（mlp模型一个隐藏层，10个神经元）

 '''

 # 1. split the training and test data

 from sklearn.model_selection import train_test_split

 X_train,X_test,y_train,y_test = train_test_split(X,y,test_size=0.3,random_state=50)

 print(X_train.shape,X_test.shape,X.shape)



 # 2. 建立MLP模型set up the mlp model

 from keras.models import Sequential

 from keras.layers import Dense

 model = Sequential()

 model.add(Dense(units=10,activation='relu',input_dim=25088))

 model.add(Dense(units=1,activation='sigmoid'))

 model.summary()



 # 3. configure the model

 model.compile(optimizer='adam',loss='binary_crossentropy',metrics=['accuracy'])



 # 4. train the model

 model.fit(X_train,y_train,epochs=50)



 # 5. 计算训练数据集的预测准确率

 from sklearn.metrics import accuracy_score

 y_train_predict = model.predict_classes(X_train)

 accuracy_train = accuracy_score(y_train,y_train_predict)

 print(accuracy_train) # 0.98



 # 6. 计算测试数据集的准确率

 y_test_predict = model.predict_classes(X_test)

 accuracy_test = accuracy_score(y_test,y_test_predict)

 print(accuracy_test) # 0.97




    AI助手

 '''

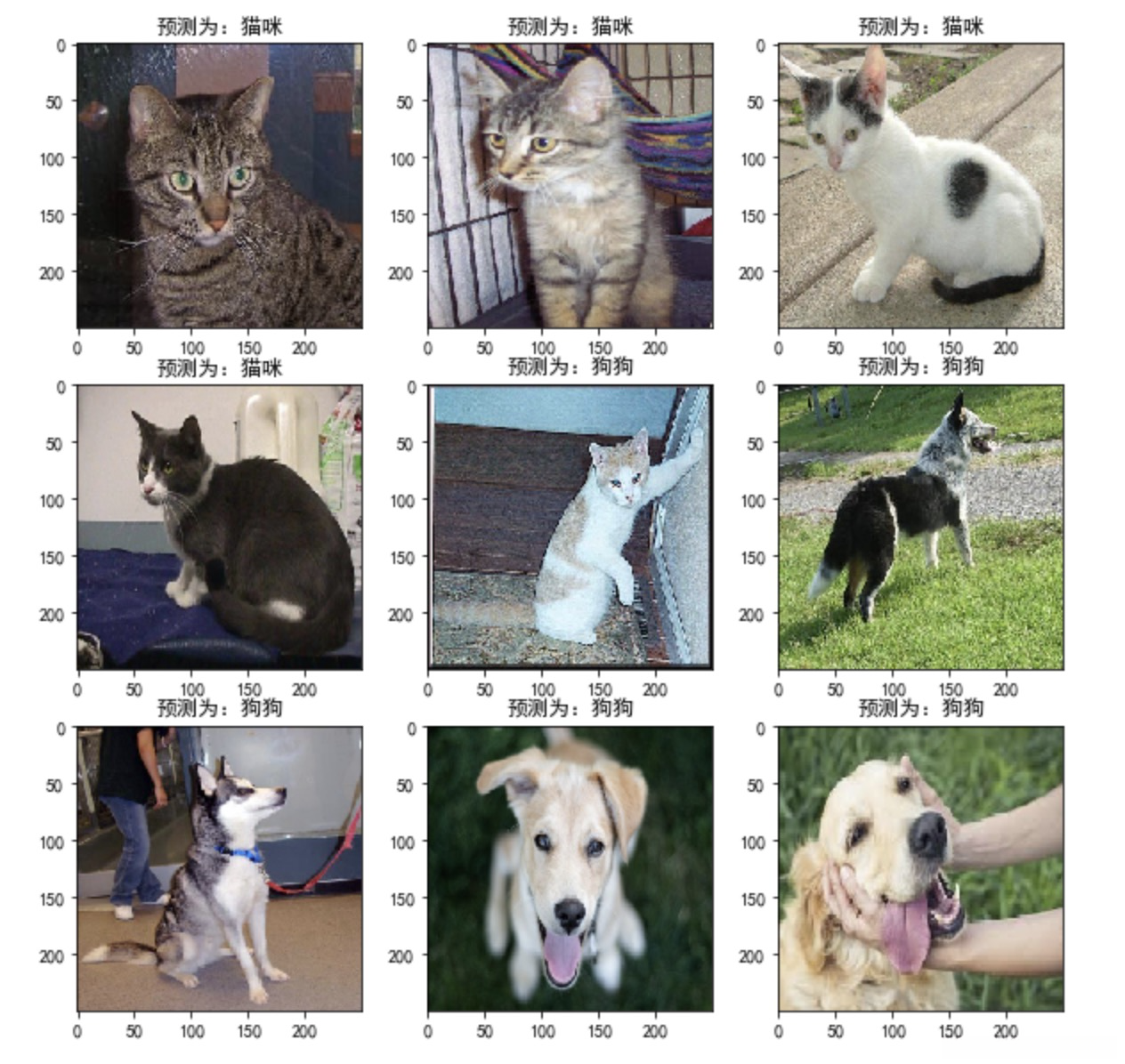

 任务3：从网站下载猫/狗图片，对其进行预测

 '''

 # 加载新图片

 img_path = 'cat1.jpg'

 img = load_img(img_path,target_size=(224,224))

 img = img_to_array(img)

 x = np.expand_dims(img,axis=0)

 x = preprocess_input(x)

 features = model_vgg.predict(x)

 features = features.reshape(1,7*7*512)

 result = model.predict_classes(features)

 print(result)



 # coding:utf-8

 import matplotlib as mlp

 font2 = {'family' : 'SimHei',

 'weight' : 'normal',

 'size'   : 20,

 }

 mlp.rcParams['font.family'] = 'SimHei'

 mlp.rcParams['axes.unicode_minus'] = False

 from matplotlib import pyplot as plt

 from matplotlib.image import imread

 from keras.preprocessing.image import load_img

 from keras.preprocessing.image import img_to_array

 from keras.models import load_model

 #from cv2 import load_img

 a = [i for i in range(1,10)]

 fig = plt.figure(figsize=(10,10))

 for i in a:

     img_name = str(i)+'.jpg'

     img_path = img_name

     img = load_img(img_path, target_size=(224, 224))

     img = img_to_array(img)

     x = np.expand_dims(img,axis=0)

     x = preprocess_input(x)

     x_vgg = model_vgg.predict(x)

     x_vgg = x_vgg.reshape(1,25088)

     result = model.predict_classes(x_vgg)

     img_ori = load_img(img_name, target_size=(250, 250))

     plt.subplot(3,3,i)

     plt.imshow(img_ori)

     plt.title('预测为：狗狗' if result[0][0] == 1 else '预测为：猫咪')

 plt.show()
