Python数据可视化——Matplotlib可视化（二）

 import pandas as pd


 from sqlalchemy import create_engine



 con = create_engine('mysql+pymysql://root:@127.0.0.1:3306/test?charset=utf8')  # 创建连接数据库的

 tmp1 = pd.read_sql('meal_order_detail1',con=con)

 tmp2 = pd.read_sql('meal_order_detail2',con=con)

 tmp3 = pd.read_sql('meal_order_detail3',con=con)

 data = pd.concat([tmp1,tmp2,tmp3],axis=0)  # 拼接数据，纵向拼接





 # 计算收入


 data['price'] = data['counts']*data['amounts']

 # 日期转换为星期

 ind = pd.DatetimeIndex(data['place_order_time'])  # pd.to_datetime()

 data['weekday_name'] = ind.weekday_name

 data['day'] = ind.day

 data_gb = data[['day','price']].groupby(by='day')

 number = data_gb.agg(np.sum)

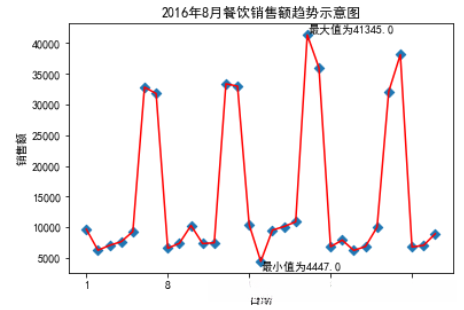

 # 绘制折线图观看趋势

 import matplotlib.pyplot as plt



 plt.scatter(range(1,32),number,marker='D')

 plt.plot(range(1,32),number,'r')

 plt.title('2016年8月餐饮销售额趋势示意图')

 plt.xlabel('日期')

 plt.ylabel('销售额')

 plt.xticks(range(1,32)[::7],range(1,32)[::7])



 plt.text(number['price'].argmin(),number.min(),'最小值为'+str(number['price'].min()),va='top')

 plt.text(number['price'].argmax(),number.max(),'最大值为'+str(number['price'].max()),va='bottom')



 plt.show()





 ind = ['Monday','Tuesday','Wednesday','Thursday','Friday','Saturday','Sunday']


 number2 = number_pie.loc[ind,'price']

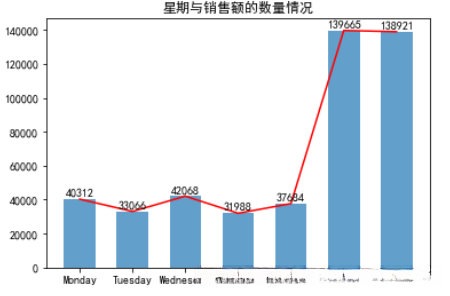

 # 绘制直方图

 plt.bar(number2.index,number2,width=0.6,alpha=0.7)

 plt.plot(number2.index,number2,'r')

 plt.title('星期与销售额的数量情况')

 for i,j in zip(number2.index,number2):

     plt.text(i,j+1000,'%i'%j,ha='center',va='bottom')

 plt.show()





 data_gb_weekday = data[['weekday_name','price']].groupby(by='weekday_name')


 number_pie = data_gb_weekday.agg(np.sum)



 plt.style.use('ggplot')

 plt.pie(number_pie,autopct='%.2f%%',labels=number_pie.index,wedgeprops=dict(width=0.6,edgecolor='w'))

 plt.title('星期销售额占比情况')

 plt.show()





 data_gb_or = data[['order_id','price','day']].groupby(by='day')


 def myfun(data):

     return len(np.unique(data))

 number3 = data_gb_or.agg({'price':np.sum,'order_id':myfun})

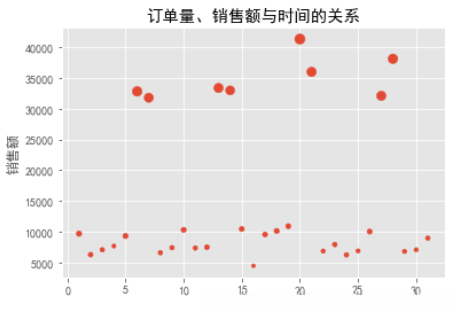

 plt.scatter(range(1,32),number3['price'],s=number3['order_id'])  # 气泡图

 plt.title('订单量、销售额与时间的关系')

 plt.xlabel('时间')

 plt.ylabel('销售额')

 plt.show()
