静态路由协议
静态路由是指由网络管理员手工配置的路由信息，而非动态决定。与动态路由不同，静态路由是固定的，不会改变，即使网络状况已经改变。静态路由除了具有简单、高效、可靠的优点外，它的另一个好处是网络安全保密性高。缺省路由可以看做是静态路由的一种特殊情况。当数据在查找路由表时，没有找到和目标相匹配的路由表项时，为数据指定路由。
配置命令
ip route 192.168.2.0 255.255.255.0 192.168.3.2 //目的网络号子网掩码 出口下一跳
ip route 192.168.2.0 255.255.255.0 se2/0 //目的网络号子网掩码 出接口
ip route 0.0.0.0 0.0.0.0 192.168.1.1 //缺省路由配置实例

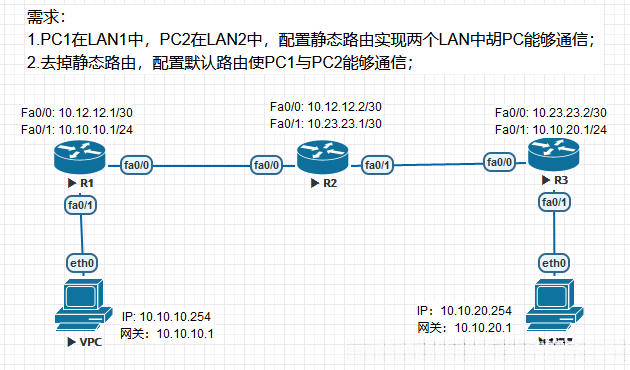

配置路由器各接口IP地址
Router>
Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ho R1
R1(config)#int fa0/1
R1(config-if)#ip add 10.10.10.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#int fa0/0
R1(config-if)#ip add 10.12.12.1 255.255.255.252
R1(config-if)#no sh
R1(config-if)#
R1(config-if)#end
R1# Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R2(config)#ho R2
R2(config)#int fa0/0
R2(config-if)#ip add 10.12.12.2 255.255.255.252
R2(config-if)#no sh
R2(config-if)#int fa0/1
R2(config-if)#ip add 10.23.23.1 255.255.255.252
R2(config-if)#no sh
R2(config-if)#
R2(config-if)#end
R2r# Router>en
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ho R3
R3(config)#int fa0/0
R3(config-if)#ip add 10.23.23.2 255.255.255.252
R3(config-if)#no sh
R3(config-if)#int fa0/1
R3(config-if)#ip add 10.10.20.1 255.255.255.0
R3(config-if)#no sh
R3(config-if)#
R3(config-if)#end
R3#配置各路由器静态路由
R1(config)#ip route 10.10.20.0 255.255.255.0 10.12.12.2
R2(config)#ip route 10.10.10.0 255.255.255.0 10.12.12.1
R2(config)#ip route 10.10.20.0 255.255.255.0 10.23.23.2
R3(config)#ip route 10.10.10.0 255.255.255.0 10.23.23.1验证PC互通性
Packet Tracer PC Command Line 1.0
PC>ipconfig
FastEthernet0 Connection:(default port)
Link-local IPv6 Address.........: FE80::290:21FF:FE1A:5ABC
IP Address......................: 10.10.10.254
Subnet Mask.....................: 255.255.255.0
Default Gateway.................: 10.10.10.1
PC>ping 10.10.20.1
Pinging 10.10.20.1 with 32 bytes of data:
Reply from 10.10.20.1: bytes=32 time=1ms TTL=253
Reply from 10.10.20.1: bytes=32 time=0ms TTL=253
Reply from 10.10.20.1: bytes=32 time=0ms TTL=253
Reply from 10.10.20.1: bytes=32 time=1ms TTL=253
Ping statistics for 10.10.20.1:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 1ms, Average = 0ms配置缺省路由，验证PC互通性
R2(config)#no ip route 10.10.20.0 255.255.255.0 10.12.12.2 //去掉配置的静态路由
R3(config)#no ip route 10.10.10.0 255.255.255.0 10.23.23.1
R2(config)#ip route 0.0.0.0 0.0.0.0 10.12.12.2 //配置缺省路由
R3(config)#ip route 0.0.0.0 0.0.0.0 10.23.23.1验证PC互通性
Packet Tracer PC Command Line 1.0
PC>ipconfig
FastEthernet0 Connection:(default port)
Link-local IPv6 Address.........: FE80::2E0:F7FF:FEDB:4C37
IP Address......................: 10.10.20.254
Subnet Mask.....................: 255.255.255.0
Default Gateway.................: 10.10.20.1
PC>ping 10.10.10.254
Pinging 10.10.10.254 with 32 bytes of data:
Reply from 10.10.10.254: bytes=32 time=4ms TTL=125
Reply from 10.10.10.254: bytes=32 time=0ms TTL=125
Reply from 10.10.10.254: bytes=32 time=0ms TTL=125
Reply from 10.10.10.254: bytes=32 time=0ms TTL=125
Ping statistics for 10.10.10.254:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 4ms, Average = 1ms全部评论 (0)
