Linux内核配置

阅读量：

0 前言

核心构建过程具体说明可见《Linux内核编译》这篇文章中。本文着重阐述了其中的内核配置部分。

1 下载源码

获取linux-2.6.34.7.tar.bz2并进行后续解压步骤：

复制代码

    tar -axvf linux-2.6.34.7.tar.bz2

2 默认配置

进入内核源码顶级目录执行：

复制代码

    make defconfig

输出如下：

复制代码

   HOSTCC  scripts/basic/fixdep


   HOSTCC  scripts/basic/docproc

   HOSTCC  scripts/basic/hash

   HOSTCC  scripts/kconfig/conf.o

 scripts/kconfig/conf.c: In function ‘conf_sym’:

 scripts/kconfig/conf.c:159:6: warning: variable ‘type’ set but not used [-Wunused-but-set-variable]

   int type;

       ^

 scripts/kconfig/conf.c: In function ‘conf_choice’:

 scripts/kconfig/conf.c:231:6: warning: variable ‘type’ set but not used [-Wunused-but-set-variable]

   int type;

       ^

 scripts/kconfig/conf.c:307:9: warning: ignoring return value of ‘fgets’, declared with attribute warn_unused_result [-Wunused-result]

     fgets(line, 128, stdin);

      ^

 scripts/kconfig/conf.c: In function ‘conf_askvalue’:

 scripts/kconfig/conf.c:105:8: warning: ignoring return value of ‘fgets’, declared with attribute warn_unused_result [-Wunused-result]

    fgets(line, 128, stdin);

     ^

   HOSTCC  scripts/kconfig/kxgettext.o

   SHIPPED scripts/kconfig/zconf.tab.c

   SHIPPED scripts/kconfig/lex.zconf.c

   SHIPPED scripts/kconfig/zconf.hash.c

   HOSTCC  scripts/kconfig/zconf.tab.o

   HOSTLD  scripts/kconfig/conf

 *** Default configuration is based on 'i386_defconfig'

 #

 # configuration written to .config

 #

默认情况下内核配置针对x86架构运行，并按照 arch/x86/configs/i386_defconfig 标准生成相应的配置文件（注：通过 diff 命令对比发现两者并非完全一致！）

2.1 默认架构

此默认配置主要适用于 x86 架构。那么如何启动针对 **ARM 架构 ** 的默认配置呢？答案在于指定顶级 Makefile 中 ARCH 变量的值，并且指定了交叉编译工具链前缀的位置。

复制代码

    ARCH        ?= arm
    CROSS_COMPILE   ?= arm-linux-

这时候再执行make defconfig 时，针对的就是ARM架构 了：

复制代码

   HOSTCC  scripts/basic/fixdep


   HOSTCC  scripts/basic/docproc

   HOSTCC  scripts/basic/hash

   HOSTCC  scripts/kconfig/conf.o

 scripts/kconfig/conf.c: In function ‘conf_sym’:

 scripts/kconfig/conf.c:159:6: warning: variable ‘type’ set but not used [-Wunused-but-set-variable]

   int type;

       ^

 scripts/kconfig/conf.c: In function ‘conf_choice’:

 scripts/kconfig/conf.c:231:6: warning: variable ‘type’ set but not used [-Wunused-but-set-variable]

   int type;

       ^

 scripts/kconfig/conf.c:307:9: warning: ignoring return value of ‘fgets’, declared with attribute warn_unused_result [-Wunused-result]

     fgets(line, 128, stdin);

      ^

 scripts/kconfig/conf.c: In function ‘conf_askvalue’:

 scripts/kconfig/conf.c:105:8: warning: ignoring return value of ‘fgets’, declared with attribute warn_unused_result [-Wunused-result]

    fgets(line, 128, stdin);

     ^

   HOSTCC  scripts/kconfig/kxgettext.o

   SHIPPED scripts/kconfig/zconf.tab.c

   SHIPPED scripts/kconfig/lex.zconf.c

   SHIPPED scripts/kconfig/zconf.hash.c

   HOSTCC  scripts/kconfig/zconf.tab.o

   HOSTLD  scripts/kconfig/conf

 *** Default configuration is based on 'versatile_defconfig'

 #

 # configuration written to .config

 #

通过以上详细信息可以看出，在当前情况下按照'arch/arm/configs/versatile_defconfig'执行默认配置以生成.config文件（注：两者虽然有所关联但并非完全相同）。

2.2 .config

从上文可知, 配置信息主要存储在内核源码顶层目录下的 $\textbf{.config}$ 文件中, 并且 $\textbf{.config}$ 中的 $\textbf{ARM架构}$ 最开始部分的内容如下所示。

复制代码

    #
    # Automatically generated make config: don't edit
    # Linux kernel version: 2.6.34.7
    # Tue May 10 11:30:25 2016
    #
    CONFIG_ARM=y
    CONFIG_SYS_SUPPORTS_APM_EMULATION=y
    CONFIG_GENERIC_TIME=y
    CONFIG_GENERIC_CLOCKEVENTS=y
    CONFIG_HAVE_PROC_CPU=y
    CONFIG_GENERIC_HARDIRQS=y
    CONFIG_STACKTRACE_SUPPORT=y
    CONFIG_HAVE_LATENCYTOP_SUPPORT=y
    CONFIG_LOCKDEP_SUPPORT=y
    CONFIG_TRACE_IRQFLAGS_SUPPORT=y
    CONFIG_HARDIRQS_SW_RESEND=y
    CONFIG_GENERIC_IRQ_PROBE=y
    CONFIG_RWSEM_GENERIC_SPINLOCK=y
    CONFIG_GENERIC_HWEIGHT=y
    CONFIG_GENERIC_CALIBRATE_DELAY=y
    CONFIG_NEED_DMA_MAP_STATE=y
    CONFIG_GENERIC_HARDIRQS_NO__DO_IRQ=y
    CONFIG_VECTORS_BASE=0xffff0000
    CONFIG_DEFCONFIG_LIST="/lib/modules/$UNAME_RELEASE/.config"
    CONFIG_CONSTRUCTORS=y

从上述信息中可以看出第2行的描述表明*.config文件的内容是由make config自动生成（同样地,i386_defconfig也是一样）。因此，请避免手动修改

第6行指定了使用ARM架构 ，此外，其余所有的配置项都以CONFIG_ 为前缀。

2.3 其它配置

参考文献[1]提供了一些关于内核源码的关键提示，在其相关文档中提到了位于arch目录中的几个重要子目录

图2.1

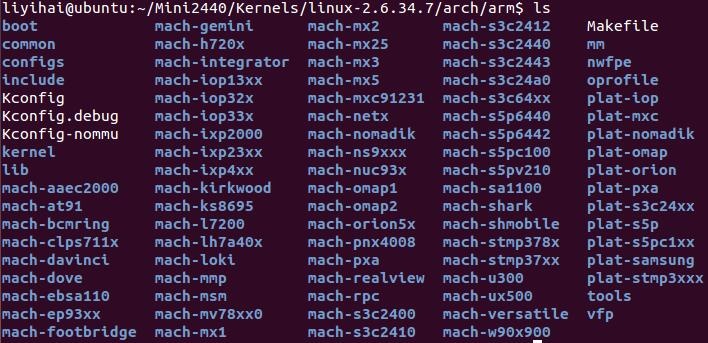

其中 arm 目录包括 boot common configs 和 include 等等子目录并且还包括内核已支持的所有 ARM 芯片对应的子目录

图2.2

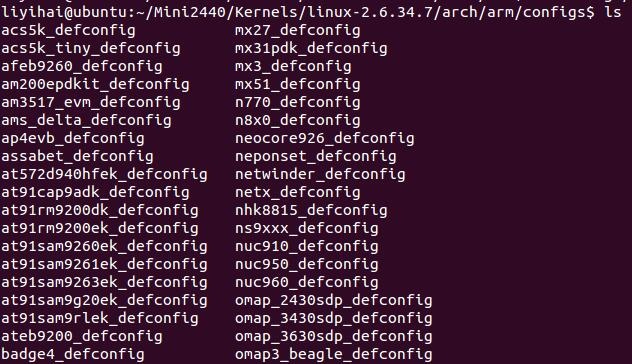

上图configs 目录包含了各个ARM芯片的默认配置文件 （包括3.1小节的versatile_defconfig ）：

图2.3

参考文献[1]中提到,如果需要将这些平台的配置文件复制到顶级目录,并且重命名为.config

复制代码

    cp arch/arm/configs/mini2440_defconfig .config

或者

复制代码

    make mini2440_defconfig

3 修改配置

3.1 交换式

进入内核源码顶级目录执行：

复制代码

    make config

输出如下：

复制代码

 liyihai@ubuntu:~/Mini2440/Kernels/linux-2.6.34.7$ make config


   HOSTCC  scripts/basic/fixdep

   HOSTCC  scripts/basic/docproc

   HOSTCC  scripts/basic/hash

   HOSTCC  scripts/kconfig/conf.o

 scripts/kconfig/conf.c: In function ‘conf_sym’:

 scripts/kconfig/conf.c:159:6: warning: variable ‘type’ set but not used [-Wunused-but-set-variable]

   int type;

       ^

 scripts/kconfig/conf.c: In function ‘conf_choice’:

 scripts/kconfig/conf.c:231:6: warning: variable ‘type’ set but not used [-Wunused-but-set-variable]

   int type;

       ^

 scripts/kconfig/conf.c:307:9: warning: ignoring return value of ‘fgets’, declared with attribute warn_unused_result [-Wunused-result]

     fgets(line, 128, stdin);

      ^

 scripts/kconfig/conf.c: In function ‘conf_askvalue’:

 scripts/kconfig/conf.c:105:8: warning: ignoring return value of ‘fgets’, declared with attribute warn_unused_result [-Wunused-result]

    fgets(line, 128, stdin);

     ^

   HOSTCC  scripts/kconfig/kxgettext.o

   SHIPPED scripts/kconfig/zconf.tab.c

   SHIPPED scripts/kconfig/lex.zconf.c

   SHIPPED scripts/kconfig/zconf.hash.c

   HOSTCC  scripts/kconfig/zconf.tab.o

   HOSTLD  scripts/kconfig/conf

 scripts/kconfig/conf arch/x86/Kconfig

 #

 # using defaults found in /boot/config-3.16.0-30-generic

 #

 /boot/config-3.16.0-30-generic:1264:warning: symbol value 'm' invalid for NET_DSA

 /boot/config-3.16.0-30-generic:1680:warning: symbol value 'm' invalid for MTD_CMDLINE_PARTS

 /boot/config-3.16.0-30-generic:2418:warning: symbol value 'm' invalid for NET_DSA_MV88E6XXX

 /boot/config-3.16.0-30-generic:2419:warning: symbol value 'm' invalid for NET_DSA_MV88E6060

 /boot/config-3.16.0-30-generic:2421:warning: symbol value 'm' invalid for NET_DSA_MV88E6131

 /boot/config-3.16.0-30-generic:2422:warning: symbol value 'm' invalid for NET_DSA_MV88E6123_61_65

 /boot/config-3.16.0-30-generic:2861:warning: symbol value 'm' invalid for IWL4965

 /boot/config-3.16.0-30-generic:3783:warning: symbol value 'm' invalid for GPIO_UCB1400

 /boot/config-3.16.0-30-generic:4259:warning: symbol value 'm' invalid for REGULATOR_88PM8607

 /boot/config-3.16.0-30-generic:4318:warning: symbol value 'm' invalid for REGULATOR_TWL4030

 /boot/config-3.16.0-30-generic:5396:warning: symbol value 'm' invalid for SND_HDA_CODEC_REALTEK

 /boot/config-3.16.0-30-generic:5397:warning: symbol value 'm' invalid for SND_HDA_CODEC_ANALOG

 /boot/config-3.16.0-30-generic:5398:warning: symbol value 'm' invalid for SND_HDA_CODEC_SIGMATEL

 /boot/config-3.16.0-30-generic:5399:warning: symbol value 'm' invalid for SND_HDA_CODEC_VIA

 /boot/config-3.16.0-30-generic:5402:warning: symbol value 'm' invalid for SND_HDA_CODEC_CIRRUS

 /boot/config-3.16.0-30-generic:5403:warning: symbol value 'm' invalid for SND_HDA_CODEC_CONEXANT

 /boot/config-3.16.0-30-generic:5404:warning: symbol value 'm' invalid for SND_HDA_CODEC_CA0110

 /boot/config-3.16.0-30-generic:5407:warning: symbol value 'm' invalid for SND_HDA_CODEC_CMEDIA

 /boot/config-3.16.0-30-generic:5408:warning: symbol value 'm' invalid for SND_HDA_CODEC_SI3054

 /boot/config-3.16.0-30-generic:5409:warning: symbol value 'm' invalid for SND_HDA_GENERIC

 /boot/config-3.16.0-30-generic:7288:warning: symbol value 'm' invalid for NFS_V3

 /boot/config-3.16.0-30-generic:7290:warning: symbol value 'm' invalid for NFS_V4

 * * Linux Kernel Configuration

 * * * General setup

 Prompt for development and/or incomplete code/drivers (EXPERIMENTAL) [N/y/?] (NEW)

从上文的最后一行可以看出, 是否需要用户提供 Prompt for development and/or incomplete code/drivers (EXPERIMENTAL)？由此可知这是一个 交互式的 配置方案, 并且对于内核的操作较为复杂.

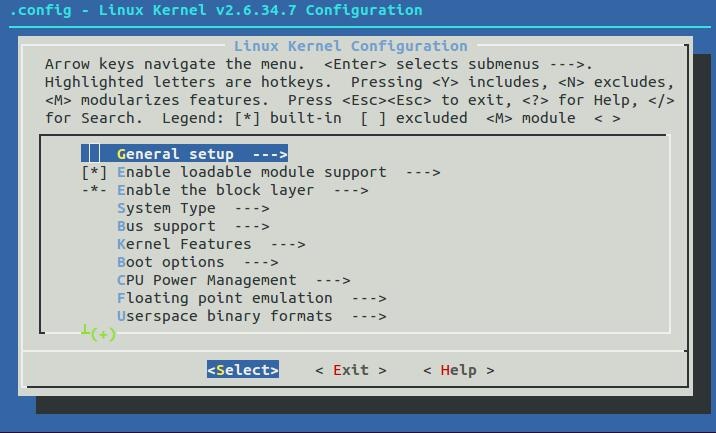

3.2 菜单式

复制代码

    make menuconfig

图3.1

3.3 手动式（推荐）

在 arch/<platform_name>/configs 文件夹内获取一份与当前需求最为契合的配置文件，并随后手动进行调整。

4 清空配置

若要删除上述的配置值，执行：

复制代码

    make mrproper

图4.1

注：make distcean 不能替代上述命令！

5 帮助

可通过“make help”查看相关编译/配置命令和参数：

复制代码

 Cleaning targets:


   clean		  - Remove most generated files but keep the config and

                 enough build support to build external modules

   mrproper	  - Remove all generated files + config + various backup files

   distclean	  - mrproper + remove editor backup and patch files



 Configuration targets:

   config	  - Update current config utilising a line-oriented program

   menuconfig	  - Update current config utilising a menu based program

   xconfig	  - Update current config utilising a QT based front-end

   gconfig	  - Update current config utilising a GTK based front-end

   oldconfig	  - Update current config utilising a provided .config as base

   localmodconfig  - Update current config disabling modules not loaded

   localyesconfig  - Update current config converting local mods to core

   silentoldconfig - Same as oldconfig, but quietly, additionally update deps

   randconfig	  - New config with random answer to all options

   defconfig	  - New config with default answer to all options

   allmodconfig	  - New config selecting modules when possible

   allyesconfig	  - New config where all options are accepted with yes

   allnoconfig	  - New config where all options are answered with no



 Other generic targets:

   all		  - Build all targets marked with [*]

 * vmlinux	  - Build the bare kernel

 * modules	  - Build all modules

   modules_install - Install all modules to INSTALL_MOD_PATH (default: /)

   firmware_install- Install all firmware to INSTALL_FW_PATH

                 (default: $(INSTALL_MOD_PATH)/lib/firmware)

   dir/            - Build all files in dir and below

   dir/file.[ois]  - Build specified target only

   dir/file.ko     - Build module including final link

   modules_prepare - Set up for building external modules

   tags/TAGS	  - Generate tags file for editors

   cscope	  - Generate cscope index

   kernelrelease	  - Output the release version string

   kernelversion	  - Output the version stored in Makefile

   headers_install - Install sanitised kernel headers to INSTALL_HDR_PATH

                 (default: /home/liyihai/usb_disk9/Work/MyCodes/Kernels/linux-2.6.34.7/usr)



 Static analysers

   checkstack      - Generate a list of stack hogs

   namespacecheck  - Name space analysis on compiled kernel

   versioncheck    - Sanity check on version.h usage

   includecheck    - Check for duplicate included header files

   export_report   - List the usages of all exported symbols

   headers_check   - Sanity check on exported headers

   headerdep       - Detect inclusion cycles in headers



 Kernel packaging:

   rpm-pkg         - Build both source and binary RPM kernel packages

   binrpm-pkg      - Build only the binary kernel package

   deb-pkg         - Build the kernel as an deb package

   tar-pkg         - Build the kernel as an uncompressed tarball

   targz-pkg       - Build the kernel as a gzip compressed tarball

   tarbz2-pkg      - Build the kernel as a bzip2 compressed tarball



 Documentation targets:

  Linux kernel internal documentation in different formats:

   htmldocs        - HTML

   pdfdocs         - PDF

   psdocs          - Postscript

   xmldocs         - XML DocBook

   mandocs         - man pages

   installmandocs  - install man pages generated by mandocs

   cleandocs       - clean all generated DocBook files



 Architecture specific targets (x86):

 * bzImage      - Compressed kernel image (arch/x86/boot/bzImage)

   install      - Install kernel using

               (your) ~/bin/installkernel or

               (distribution) /sbin/installkernel or

               install to $(INSTALL_PATH) and run lilo

   fdimage      - Create 1.4MB boot floppy image (arch/x86/boot/fdimage)

   fdimage144   - Create 1.4MB boot floppy image (arch/x86/boot/fdimage)

   fdimage288   - Create 2.8MB boot floppy image (arch/x86/boot/fdimage)

   isoimage     - Create a boot CD-ROM image (arch/x86/boot/image.iso)

               bzdisk/fdimage*/isoimage also accept:

               FDARGS="..."  arguments for the booted kernel

               FDINITRD=file initrd for the booted kernel



   i386_defconfig           - Build for i386

   x86_64_defconfig         - Build for x86_64



   make V=0|1 [targets] 0 => quiet build (default), 1 => verbose build

   make V=2   [targets] 2 => give reason for rebuild of target

   make O=dir [targets] Locate all output files in "dir", including .config

   make C=1   [targets] Check all c source with $CHECK (sparse by default)

   make C=2   [targets] Force check of all c source with $CHECK



 Execute "make" or "make all" to build all targets marked with [*]

 For further info see the ./README file

参考资料

cross-compiling Linux kernel on ARM架构

全部评论 (0)

还没有任何评论哟~

Linux内核-内核配置

Linux内核特性: 1.可移植性,支持的硬件平台广泛 arch目录就是体系结构的概念,针对我们现目前有的一些平台, 注意ARM里面的源码跟X86里面的源码,不能共同编译,需要不同的编译器,, 支持这...

Linux内核配置

0前言内核编译方法详见《Linux内核编译》，本文重点介绍其中内核配置部分。 1下载源码下载linux2.6.34.7.tar.bz2并解压： taraxvflinux2.6.34.7.tar.b...

Linux 内核配置

一Linux内核配置 1修改Makefile添加自己的交叉开发工具链 ARCH?=SUBARCH CROSSCOMPILE?= CROSSCOMPILE?=CONFIGCROSSCOMPILE:%=%...

Linux内核配置

1．配置系统的基本结构 Linux内核的配置系统由三个部分组成，分别是： 1Makefile：分布在Linux内核源代码中的Makefile，定义Linux内核的编译规则； 2配置文件（config....

Linux 内核配置（一）

最近有个项目需要做内核裁剪，我之前也没做过，为了更了解内核和硬件，把相应的知识记录一下内核的配置使用menuconfig，界面如下：我们将针对每个选项，解释选项的含义，以及说明是否推荐使用（在什么...

配置linux内核错误,配置Linux内核（menuconfig）：重定义错误

我有Linux内核3.8.0源代码，当尝试使用menuconfig选项使用makemenuconfigterminal命令配置它时，我得到以下错误列表： DALEKlinux3.8.0makemenu...

Linux内核串口配置

1、Linux下查看串口配置查看Linux系统有几个串口：显示从系统启动到现在串口插入拔出的信息。查看串口终端属性波特率，数据模式等，这里有两种方法：利用/proc查看串口（或串口终端）属性：...

Gentoo Linux内核配置(一)

基于LinuxKernelv2.6.36gentoor5 Generalsetup []Promptfordevelopmentand/orincompletecode/drivers //默认情况下...

Linux内核配置编译

一.内核简介： 1.系统架构（1）Linux是由用户空间和内核空间构成的（2）用户空间主要是用户应用程序以及一些C库文件，配置文件。一般是看得见的。（3）内核空间主要是系统调用接口，狭义上的内核...

Linux内核的CSCOPE配置

文章目录前言一、了解内核源码树二、生成Tag文件二、生成索引总结前言基于上一篇博客vim基础配置，在完成vim的基础及一些插件配置后，我们期望的是能够用vim像IDE一样便利地阅读代码，...

是否确定退出登录?

Linux内核配置

0 前言

1 下载源码

2 默认配置

2.1 默认架构

2.2 .config

2.3 其它配置

3 修改配置

3.1 交换式

3.2 菜单式

3.3 手动式（推荐）

4 清空配置

5 帮助

参考资料

全部评论 (0)

相关文章推荐

Linux内核-内核配置

Linux内核配置

Linux 内核配置

Linux内核配置

Linux 内核配置（一）

配置linux内核错误,配置Linux内核（menuconfig）：重定义错误

Linux内核串口配置

Gentoo Linux内核配置(一)

Linux内核配置编译

Linux内核的CSCOPE配置
