基于 python 机器学习的中风患者疾病分析预测 完整数据代码可直接运行

 import pandas as pd


 import numpy as np

 import matplotlib.pyplot as plt

 import seaborn as sns

 plt.rcParams['font.sans-serif']='simhei'

 plt.rcParams['axes.unicode_minus']=False

 import warnings

 warnings.filterwarnings("ignore")

 from sklearn.preprocessing import StandardScaler

 from xgboost import XGBClassifier

 from sklearn.ensemble import StackingClassifier

 from sklearn.neural_network import MLPClassifier





 from sklearn.model_selection import train_test_split

 from sklearn.linear_model import LogisticRegression

 from sklearn.metrics import accuracy_score, precision_score, recall_score, f1_score



 from sklearn.model_selection import train_test_split

 from sklearn.ensemble import RandomForestClassifier

 from sklearn.metrics import accuracy_score, precision_score, recall_score, f1_score



 # 加载数据集

 df = pd.read_csv('brain_stroke.csv',encoding='GB2312')

 print(df.head(5))



 print(df.info())

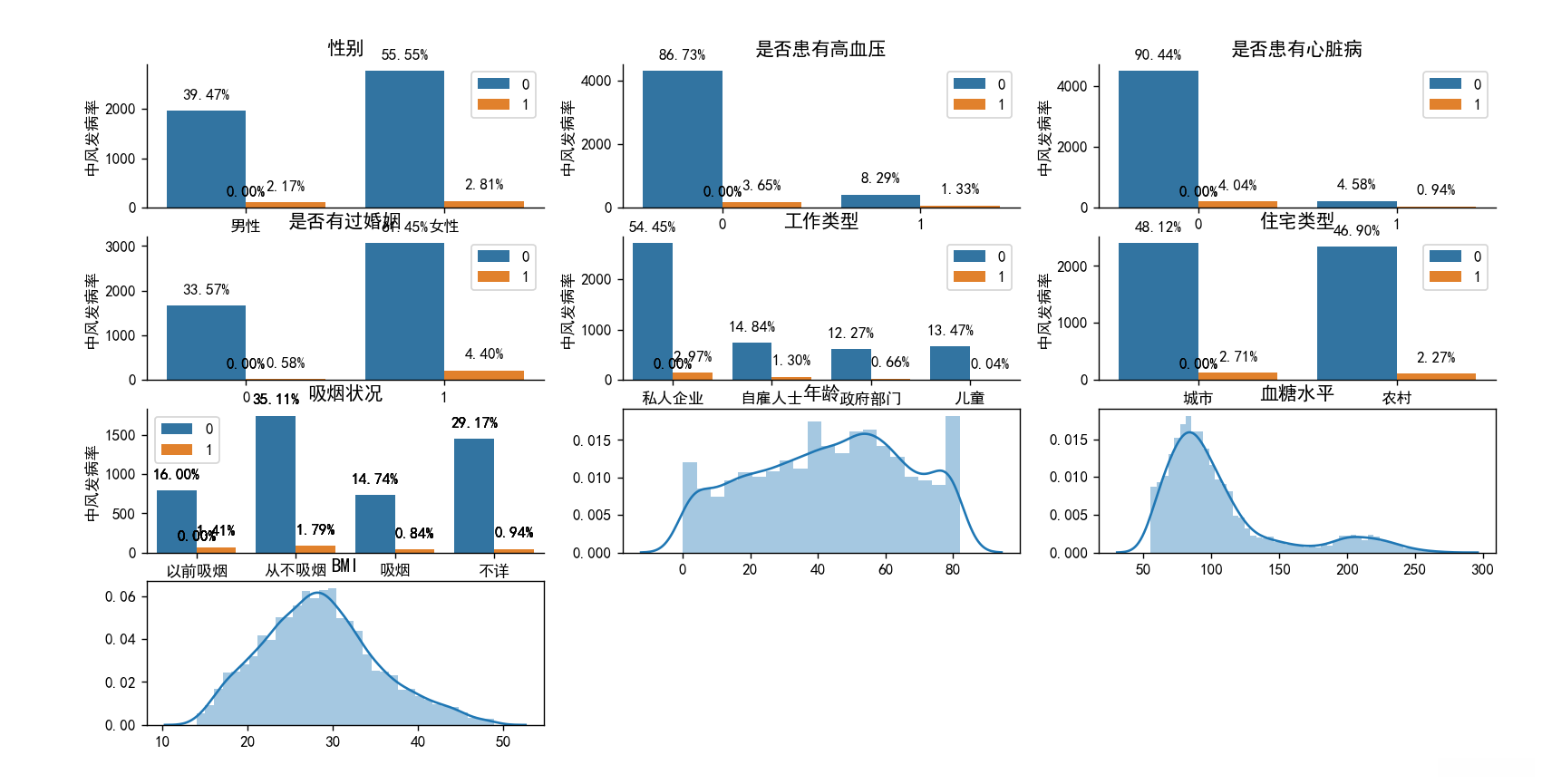

 # 设置可视化数据列的百分比

 def annot_plot(ax,data):

     ax.spines["top"].set_visible(False)#设置顶部边框为空

     ax.spines["right"].set_visible(False) #设置右侧边框为空

     # ax.patch.set_alpha(0) # 设置背景为透明

     for p in ax.patches:

     ax.annotate(f"{p.get_height()*100/data.shape[0]:.2f}%",(p.get_x()+p.get_width()/2,p.get_height()),

                ha="center",va="center",fontsize=10,color="black",rotation=0,xytext=(0,10),textcoords="offset points")

 object_cols = ['性别', '是否患有高血压', '是否患有心脏病', '是否有过婚姻', '工作类型', '住宅类型', '吸烟状况']

 num_cols = ['年龄', '血糖水平', 'BMI']

 fig, ax = plt.subplots(figsize=(15, 24))

 idx = 0

 for i in object_cols:

     plt.subplot(4, 3, idx + 1)

     ax = sns.countplot(x=i, data=df, hue=df['是否中风'])

     annot_plot(ax, df)

     plt.xlabel(None)

     plt.ylabel("中风发病率")

     # plt.xticks(None)

     plt.title(i)

     title_obj = ax.title  # 获取当前图形对象的子对象（标题对象）

     title_obj.set_fontsize(12)  # 设置标题字体大小

     plt.legend()

     idx += 1



 for i in num_cols:

     plt.subplot(4, 3, idx + 1)

     sns.distplot(df[i])

     annot_plot(ax, df)

     plt.ylabel(None)

     plt.title(i)

     plt.xlabel(None)

     idx += 1



 plt.plot()

 plt.show()

 #数据中文字转变为数据类型

 map_dict1={"男性":1,"女性":0,"城市":1,"农村":0}

 df['性别']=df['性别'].map(map_dict1)

 df['住宅类型']=df['住宅类型'].map(map_dict1)

 print(df.head(5))



 # 查看工作类型的类别，吸烟状况的类别

 b=df['吸烟状况'].unique()

 a=df['工作类型'].unique()

 #分别转变为数据类型

 map_dict2={"不详":0,"从不吸烟":1,"以前吸烟":2,"吸烟":3,"儿童":0,"自雇人士":1,"私人企业":2,"政府部门":3}

 df['工作类型']=df['工作类型'].map(map_dict2)

 df['吸烟状况']=df['吸烟状况'].map(map_dict2)

 print(df.head(5))



 # 将BMI列中数据按照分段规则进行分类

 bmi_category = np.where(df['BMI'] < 18.5, 0,

                     np.where((df['BMI'] >= 18.5) & (df['BMI'] < 24), 1,

                              np.where((df['BMI'] >= 24) & (df['BMI'] < 28), 2, 3)))



 # 将分类结果添加到数据集中

 df['BMI类别'] = bmi_category

 #将血糖按规则分类

 blood_sugar = np.where(df['血糖水平']<70,0,

                   np.where(df['血糖水平']>100,2,1))

 df['血糖类别'] = blood_sugar

 data =df[['性别','年龄','是否患有高血压','是否患有心脏病','是否有过婚姻',

       '工作类型','住宅类型','血糖类别','BMI类别','吸烟状况','是否中风']]

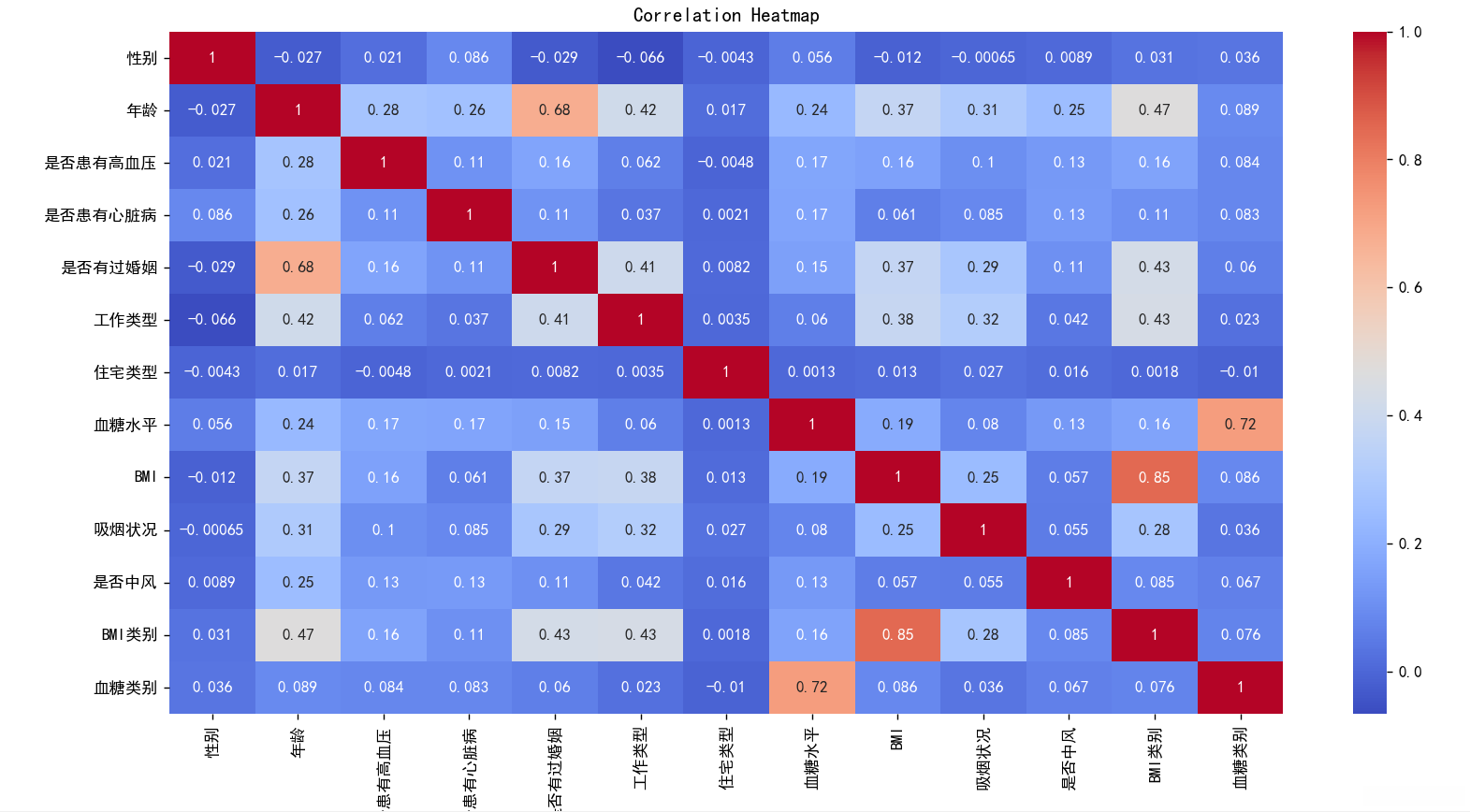

 #可视化特征之间的相关关系

 corr = df.corr()

 # 绘制关联图

 plt.figure(figsize=(10, 8))

 sns.heatmap(corr, annot=True, cmap='coolwarm')

 plt.title('Correlation Heatmap')

 plt.show()

 # 分割特征和目标变量

 X = df[['性别','年龄','是否患有高血压','是否患有心脏病',

       '工作类型','BMI类别','吸烟状况','血糖水平']]

 y = df['是否中风']  #,'BMI','是否有过婚姻','血糖类别'



 ##对特征进行特征组合







 # 创建PolynomialFeatures对象，并设置交互特征的阶数

 from sklearn.preprocessing import PolynomialFeatures

 poly = PolynomialFeatures(degree=2, interaction_only=True)



 # 对特征矩阵进行特征交互处理

 X_poly = poly.fit_transform(X)



 # 输出交互特征后的特征矩阵

 print(X_poly.shape)

 # 划分训练集和测试集

 X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.1, random_state=42)

 from sklearn.model_selection import train_test_split, GridSearchCV

 from sklearn.feature_selection import SelectKBest, f_classif

 from sklearn.pipeline import Pipeline

 # from lime import lime_tabular

 # import lime



 import matplotlib as mpl



 mpl.rcParams['font.family'] = 'sans-serif'

 mpl.rcParams['font.sans-serif'] = ['Microsoft YaHei']



 # 创建逻辑回归模型

 model = LogisticRegression()



 # 训练模型

 model.fit(X_train, y_train)



 # 在测试集上进行预测

 y_pred = model.predict(X_test)



 # 评估模型性能

 accuracy = accuracy_score(y_test, y_pred)

 precision = precision_score(y_test, y_pred)

 recall = recall_score(y_test, y_pred)

 f1 = f1_score(y_test, y_pred)



 # 对模型进行评估

 print('逻辑回归训练集精确率：%.3f' % model.score(X_train, y_train))

 print('逻辑回归测试集精确率：%.3f' % accuracy)





 # 定义空列表存储训练准确率和测试准确率

 train_acc_list = []

 test_acc_list = []



 # 定义不同的正则化参数C的取值范围

 C_values = [0.001, 0.01, 0.1, 1, 10, 100]



 # 训练模型并记录准确率

 for C in C_values:

     model = LogisticRegression(C=C)

     model.fit(X_train, y_train)



     train_acc = model.score(X_train, y_train)

     test_acc = model.score(X_test, y_test)



     train_acc_list.append(train_acc)

     test_acc_list.append(test_acc)

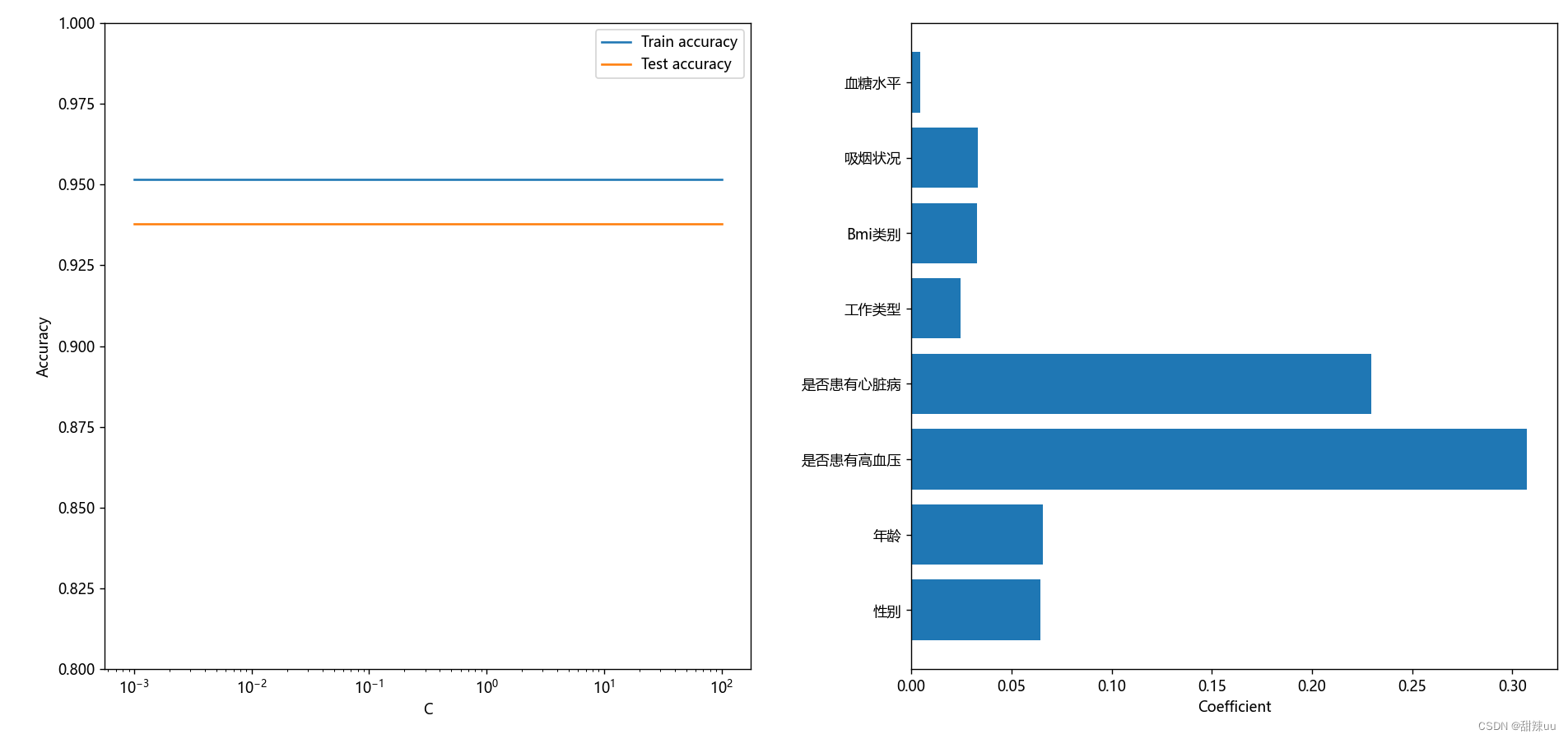

 # 可视化训练准确率和测试准确率随着C的变化情况

 fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

 ax1.plot(C_values, train_acc_list, label='Train accuracy')

 ax1.plot(C_values, test_acc_list, label='Test accuracy')

 ax1.set_xscale('log')

 ax1.set_ylim([0.8, 1])

 ax1.set_xlabel('C')

 ax1.set_ylabel('Accuracy')

 ax1.legend(loc='best')



 # 绘制每个特征的系数

 coef = model.coef_[0]

 feature_names = X.columns

 feature_names = [name.replace('_', ' ').title() for name in feature_names]

 y_pos = range(len(feature_names))

 ax2.barh(y_pos, coef)

 ax2.set_yticks(y_pos)

 ax2.set_yticklabels(feature_names)

 ax2.set_xlabel('Coefficient')



 plt.tight_layout()

 plt.show()
