RGB 与 (RGB转 YCbCr再转为 RGB)的图像

   clc,clear;


 Source=imread('1.jpg');%读入原始RGB图像



 figure(1);

 subplot(1,2,1);

 imshow(Source):title('original image');%显示图像

 [r c d]=size(Source);%计算图像大小

 %------计算红色分量并显示分解图------%

 R(:,:,1)=Source(:,:,1);

 R(:,:,2)=zeros(r,c);

 R(:,:,3)=zeros(r,c);

 R=uint8(R);

 whos;

 figure(2);

 subplot(1,3,1);

 imshow(R)

 title('Red Component');

 %-------计算绿色分量并显示分解图-------%

 G(:,:,2)=Source(:,:,2);

 G(:,:,1)=zeros(r,c);

 G(:,:,3)=zeros(r,c);

 G=uint8(G);

 figure(2);

 subplot(1,3,2);

 imshow(G)

 title('Green Component');

 %--------计算蓝色分量并显示分解图-------%

 B(:,:,3)=Source(:,:,3);

 B(:,:,1)=zeros(r,c);

 B(:,:,2)=zeros(r,c);

 B=uint8(B);

 figure(2);

 subplot(1,3,3)

 imshow(B)

 title('Blue Component');

 %------------合成-------------%

 Comp(:,:,1)=R(:,:,1);

 Comp(:,:,2)=G(:,:,2);

 Comp(:,:,3)=B(:,:,3);

 figure(5);

 subplot(1,2,2);

 imshow(Comp):title('composition image');

 Y=0.213*R+0.715*G+0.072*B;

 Cb=0.511*B-0.117*R-0.394*G+128;

 Cr=0.511*R-0.464*G-0.047*B+128;

 %red=Y+1.402*(Cr-128);

 %green=Y-0.34414*(Cb-128)-0.71414*(Cr-128);

 %blue=Y+1.772*(Cb-128);

 red = 1.164*(Y-16)+1.793*(Cr-128);

 green = 1.164*(Y-16)-0.534*(Cr-128)-0.213*(Cb-128);

 blue =1.164*(Y-16)+2.115*(Cb-128);

 Comp2(:,:,1)=red(:,:,1);

 Comp2(:,:,2)=green(:,:,2);

 Comp2(:,:,3)=blue(:,:,3);

 Comp5(:,:,1)=Y(:,:,1);

 Comp5(:,:,2)=Cb(:,:,2);

 Comp5(:,:,3)=Cr(:,:,3);

 figure(5);imshow(Comp5);title('显示11YCBcr');

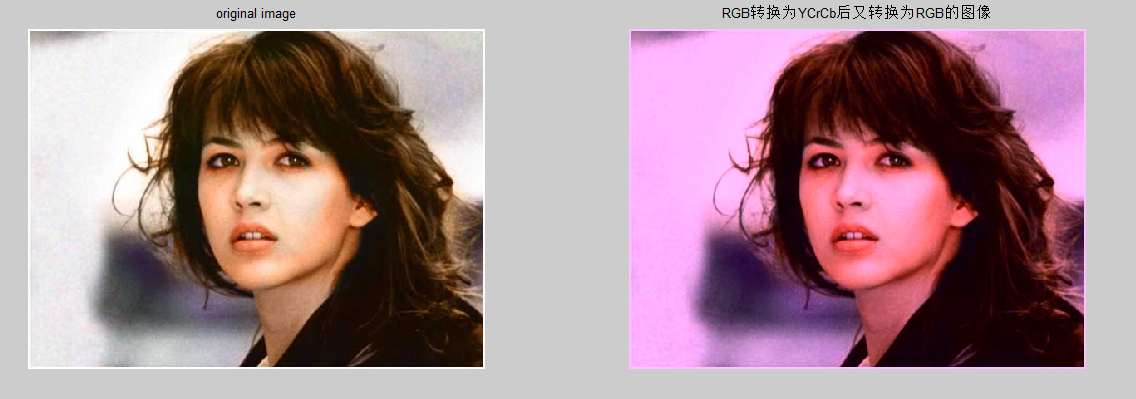

 figure(1);subplot(1,2,2);imshow(Comp2);title('RGB转换为YCrCb后又转换为RGB的图像');

 RD=R(:,:,1)-red(:,:,1);

 GD=G(:,:,2)-green(:,:,2);

 BD=B(:,:,3)-blue(:,:,3);

 figure(4);subplot(1,3,1);imshow(RD);title('红色分量差异');

 subplot(1,3,2);imshow(GD);title('绿色分量差异');

 subplot(1,3,3);imshow(BD);title('蓝色分量差异');
