Carla 开源自动驾驶仿真软件使用指南 [AD simulator]

    python spawn_npc.py -n 80

    python dynamic_weather.py

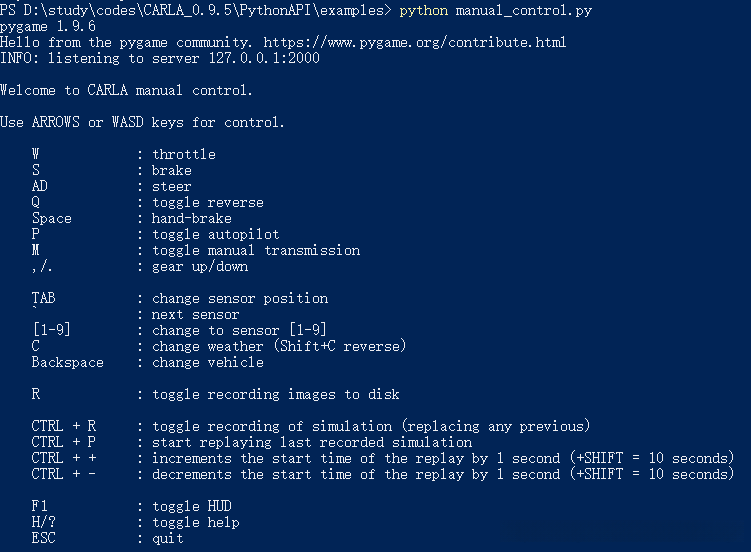

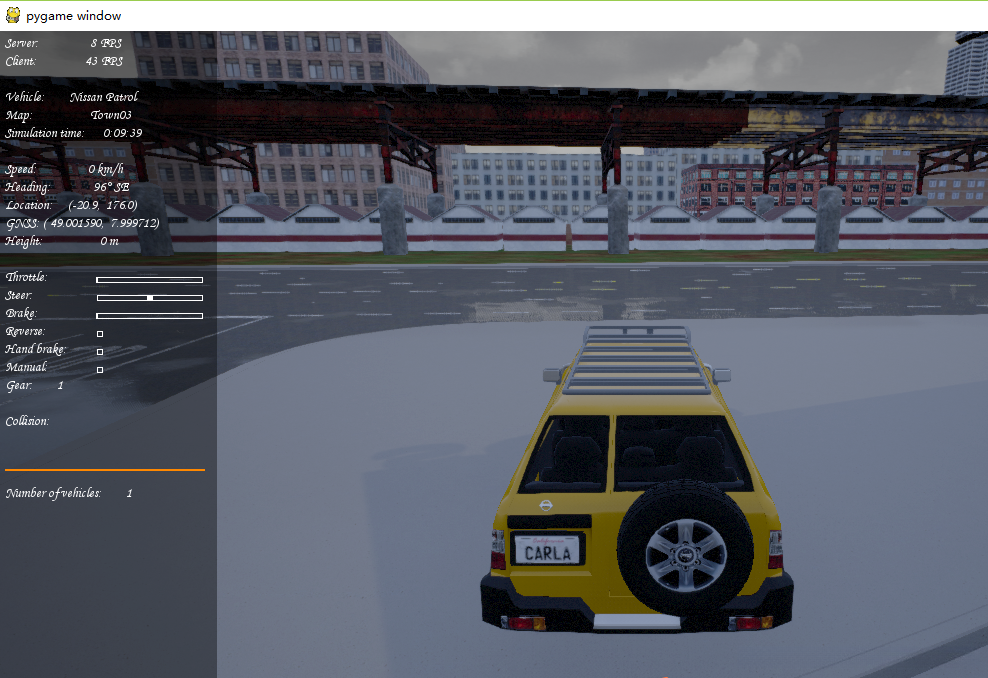

    python manual_control.py

    client = carla.Client('localhost', 2000)

    client.set_timeout(10.0) # seconds

    world = client.get_world()

    blueprint_library = world.get_blueprint_library()

 # Find specific blueprint.

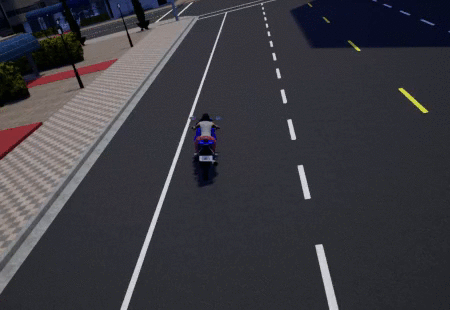

 collision_sensor_bp = blueprint_library.find('sensor.other.collision')

 # Chose a vehicle blueprint at random.

 vehicle_bp = random.choice(blueprint_library.filter('vehicle.bmw.*'))

 vehicles = blueprint_library.filter('vehicle.*')


 bikes = [x for x in vehicles if int(x.get_attribute('number_of_wheels')) == 2]

 for bike in bikes:

     bike.set_attribute('color', '255,0,0')

 for attr in blueprint:


     if attr.is_modifiable:

     blueprint.set_attribute(attr.id, random.choice(attr.recommended_values))

 transform = Transform(Location(x=230, y=195, z=40), Rotation(yaw=180))# 生成点坐标创建


 actor = world.spawn_actor(blueprint, transform) #这个时候会检查生成点坐标是否会发生碰撞。如果有碰撞，会报错

    spawn_points = world.get_map().get_spawn_points() #返回所有的可用collision-free points.

 camera = world.spawn_actor(camera_bp, relative_transform, attach_to=my_vehicle)




 # (附加参数，可以控制物体是否和其他的actor绑定）--适用于传感器

    import carla

 import glob


 import os

 import sys

 #import future

 #import pygame

 #添加系统变量

 try:

     sys.path.append(glob.glob('../carla/dist/carla-*%d.%d-%s.egg' % (

     sys.version_info.major,

     sys.version_info.minor,

     'win-amd64' if os.name == 'nt' else 'linux-x86_64'))[0])

 except IndexError:

     pass



 import carla

 import argparse

 import logging

 import random



 client=carla.Client('127.0.0.1',2000)

 print ('create client')

 client.set_timeout(2.0)

 world=client.get_world()

 print ('crated VR world')

 #!/usr/bin/env python




 # Copyright (c) 2019 Computer Vision Center (CVC) at the Universitat Autonoma de

 # Barcelona (UAB).

 #

 # This work is licensed under the terms of the MIT license.

 # For a copy, see <https://opensource.org/licenses/MIT>.



 """Spawn NPCs into the simulation"""



 import glob

 import os

 import sys

 #import future

 #import pygame

 #添加系统变量

 '''

 try

 finally 函数体格式

   21. def 函数名（）：

 定义函数

 '''

 try:

     sys.path.append(glob.glob('../carla/dist/carla-*%d.%d-%s.egg' % (

     sys.version_info.major,

     sys.version_info.minor,

     'win-amd64' if os.name == 'nt' else 'linux-x86_64'))[0])

 except IndexError:

     pass



 import carla

 import argparse

 import logging

 import random

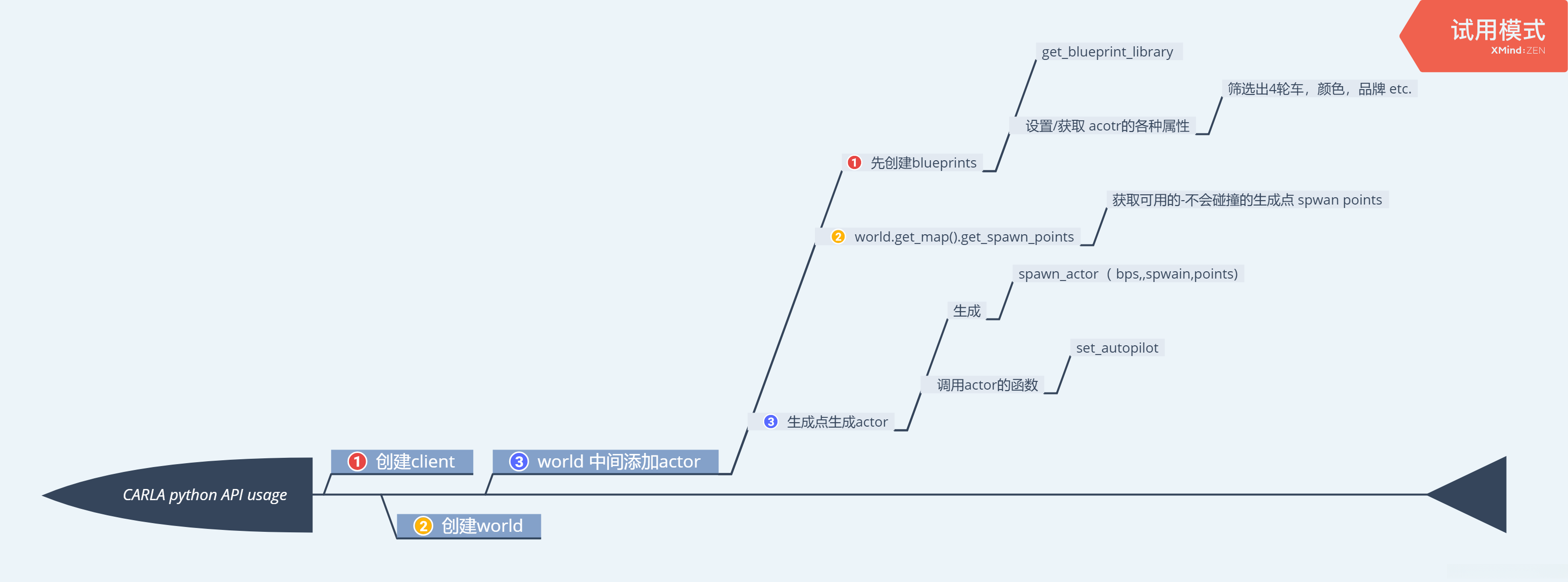

 def main():

     try:

     client=carla.Client('127.0.0.1',2000) #默认地址

     print ('create client')

     client.set_timeout(2.0)

     world=client.get_world()

     print ('crated VR world')



     bp_library = world.get_blueprint_library()

     '''

     #获得blueprints 库-API 如下

     #carla.BlueprintLibrary

     #find(id)

     #filter(wildcard_pattern)

     #__getitem__(pos)

     #__len__()

     #__iter__()

     '''



     bps=bp_library.filter('vehicle.*')



     '''

     #获得了所有车的属性集合--matrix

     #进一步筛选

     '''

     bps = [x for x in bps if int(x.get_attribute('number_of_wheels')) == 4]



     '''获得所有的2轮车'''

     bps = [x for x in bps if not x.id.endswith('isetta')]

     bps = [x for x in bps if not x.id.endswith('carlacola')]





     '''获得可用生成点'''

     spoints=world.get_map().get_spawn_points()

     number_of_spawn_points = len(spoints)



     print (number_of_spawn_points)



     batch=[]

     actor_list=[]



     i=0

     while i <10 :

         spoint=random.choice(spoints)

         bp=random.choice(bps)

         actorlist=world.spawn_actor(bp,spoint).set_autopilot(enabled=True)

         batch.append(actorlist)

     # set_autopilot-- 设置这些车辆自动行驶

         i =i +1



     '''

     记录生成的actor 对象，

     提供摧毁他们的途径,下面的代码有问题，报错。TypeError: No registered converter was able to produce a C++ r

     '''

 ####

     for response in client.apply_batch_sync(batch):

         if response.error:

             logging.error(response.error)

         else:

             actor_list.append(response.actor_id)

     print('spawned %d vehicles, press Ctrl+C to exit.' % len(actor_list))

 #

     while True:

         world.wait_for_tick()

 #

     finally:

 #

         print('\ndestroying %d actors' % len(batch))

         client.apply_batch([carla.command.DestroyActor(x) for x in actor_list])



  ####



 if __name__ == '__main__':



     try:

     main()

     except KeyboardInterrupt:

     pass

     finally:

     print('\ndone.')

 #显示位置，速度，加速度信息


 location = actor.get_location()

 location.z += 10.0

 actor.set_location(location)

 print(actor.get_acceleration())

 print(actor.get_velocity())

 #销毁目标--主页代码有问题




 carla.command.DestroyActor(actor)

 #操控车辆


 vehicle.apply_control(carla.VehicleControl(throttle=1.0, steer=-1.0))



 #全部的属性API：

 carla.VehicleControl(

     throttle = 0.0

     steer = 0.0

     brake = 0.0

     hand_brake = False

     reverse = False

     manual_gear_shift = False

     gear = 0)

 # 车辆的动力性特性--调整质量，力矩图，最大RPM


 vehicle.apply_physics_control(carla.VehiclePhysicsControl(max_rpm = 5000.0,

  center_of_mass = carla.Vector3D(0.0, 0.0, 0.0), torque_curve=[[0,400],[5000,400]]))

 #API 结构体定义


 carla.VehiclePhysicsControl(

     torque_curve,

     max_rpm,

     moi,

     damping_rate_full_throttle,

     damping_rate_zero_throttle_clutch_engaged,

     damping_rate_zero_throttle_clutch_disengaged,

     use_gear_autobox,

     gear_switch_time,

     clutch_strength,

     mass,

     drag_coefficient,

     center_of_mass,

     steering_curve, # 转向maximum steering for a specific forward speed

     wheels)

 #轮胎的特性API 定义




 carla.WheelPhysicsControl(

     tire_friction,

     damping_rate,

     steer_angle,

     disable_steering)

 #actor 自动驾驶


 vehicle.set_autopilot(True)

 #获得车辆的bounding box


 box = vehicle.bounding_box

 print(box.location)         # Location relative to the vehicle.

 print(box.extent)           # XYZ half-box extents in meters.

 camera_bp = blueprint_library.find('sensor.camera.rgb')


 #relative_transform 如何定义--应该是个R|t matrix.

 camera = world.spawn_actor(camera_bp, relative_transform, attach_to=my_vehicle)



 #把传感器的数据存到本地

 camera.listen(lambda image: image.save_to_disk('output/%06d.png' % image.frame_number))

    actor_list = world.get_actors()

 # Find an actor by id.


 actor = actor_list.find(id)

 # Print the location of all the speed limit signs in the world.

 for speed_sign in actor_list.filter('traffic.speed_limit.*'):

     print(speed_sign.get_location())

        1. carla.WeatherParameters


        2. cloudyness

        3. precipitation

        4. precipitation_deposits

        5. wind_intensity

        6. sun_azimuth_angle

        7. sun_altitude_angle

        8. __eq__(other)

        9. __ne__(other)

 import carla


 #import random

 client=carla.Client('127.0.0.1',2000) #默认地址

 print ('create client')

 client.set_timeout(2.0)

 world=client.get_world()

 print ('crated VR world')



 map=world.get_map()

 print ('map name--',map.name)

 sps=map.get_spawn_points()

 print (' map first avaliable spawn points--',sps[0])

    waypoint = map.get_waypoint(vehicle.get_location())

 # Retrieve the closest waypoint.


 waypoint = map.get_waypoint(vehicle.get_location())



 # Disable physics, in this example we're just teleporting the vehicle.

 vehicle.set_simulate_physics(False)



 while True:

     # Find next waypoint 2 meters ahead.

     waypoint = random.choice(waypoint.next(2.0))

     # Teleport the vehicle.

     vehicle.set_transform(waypoint.transform)

    waypoint_list = map.generate_waypoints(2.0)

    waypoint_tuple_list = map.get_topology()

 client.start_recorder("recording01.log")




 #to stop- 其它的API ，参数定义，使用时再深入

 client.stop_recorder()

 client.replay_file("recording01.log")

 client.replay_file("recording01.log", start, duration, camera)

 client.set_replayer_time_factor(2.0) #快进，快退

 client.show_recorder_file_info("recording01.log")

 Sample PY scripts to use with the recording / replaying system


 There are some scripts you could use:



 start_recording.py: this will start recording, and optionally you can spawn several actors and define how much time you want to record.

 -f: filename of write

 -n: vehicles to spawn (optional, 10 by default)

 -t: duration of the recording (optional)

 start_replaying.py: this will start a replay of a file. We can define the starting time, duration and also an actor to follow.

 -f: filename of write

 -s: starting time (optional, by default from start)

 -d: duration (optional, by default all)

 -c: actor to follow (id) (optional)

 show_recorder_collisions.py: this will show all the collisions hapenned while recording (currently only involved by hero actors).

 -f: filename of write

 -t: two letters definning the types of the actors involved, for example: -t aa

 h = Hero

 v = Vehicle

 w = Walker

 t = Traffic light

 o = Other

 a = Any

 show_recorder_actors_blocked.py: this will show all the actors that are blocked (stopped) in the recorder. We can define the time and distance to be considered as blocked.

 -f: filename of write

 -t: minimum seconds stopped to be considered as blocked (optional)

 -d: minimum distance to be considered stopped (optional)

 $ ./CarlaUE4.sh -benchmark -fps=10




 window:

 .\CarlaUE4.exe -benchmark -fps=10

  Linux


 ./CarlaUE4.sh /Game/Carla/Maps/Town01

 rem Windows


 .\CarlaUE4.exe /Game/Carla/Maps/Town05

 # Example: Synchronizing a camera with synchronous mode.




 settings = world.get_settings()

 settings.synchronous_mode = True

 world.apply_settings(settings)



 camera = world.spawn_actor(blueprint, transform)

 image_queue = queue.Queue()

 camera.listen(image_queue.put)



 while True:

     world.tick()

     timestamp = world.wait_for_tick()



     image = image_queue.get()

 # Find the blueprint of the sensor.


 blueprint = world.get_blueprint_library().find('sensor.camera.rgb')

 # Modify the attributes of the blueprint to set image resolution and field of view.

 blueprint.set_attribute('image_size_x', '1920')

 blueprint.set_attribute('image_size_y', '1080')

 blueprint.set_attribute('fov', '110')

 # Set the time in seconds between sensor captures

 blueprint.set_attribute('sensor_tick', '1.0')

 # Provide the position of the sensor relative to the vehicle.

 transform = carla.Transform(carla.Location(x=0.8, z=1.7))

 # Tell the world to spawn the sensor, don't forget to attach it to your vehicle actor.

 sensor = world.spawn_actor(blueprint, transform, attach_to=my_vehicle)

 # Subscribe to the sensor stream by providing a callback function, this function is

 # called each time a new image is generated by the sensor.

 sensor.listen(lambda data: do_something(data))
