《PCANet: A Simple Deep Learning Baseline for Image Classification》
发布时间
阅读量：
阅读量
该文本详细描述了基于主成分分析（PCA）的图像处理网络（PCANet）的实现过程，包括以下关键步骤：
PCA滤波过程：
- PCAmeanremoval函数对输入图像进行均值去中心化，提取局部均值化的特征。
- PCA_filterBank函数构建PCA滤波器，通过主成分分析对输入图像的协方差矩阵进行降维，提取特征向量。
- PCA_output函数对输入图像应用PCA滤波器，生成特征图，并恢复图像尺寸，输出多通道的PCA特征。
特征提取与直方图计算：- HashingHist函数将PCA输出的特征图转换为二值化特征，并计算局部直方图，生成最终的特征向量。
网络训练：- PCANet_train函数将整个网络分为两个阶段，第一阶段进行PCA滤波，第二阶段计算直方图特征，实现图像分类任务。
该代码实现了从图像预处理到特征提取的完整流程，适用于图像分类等任务。
对照论文中的示例图和文章给出的代码来梳理

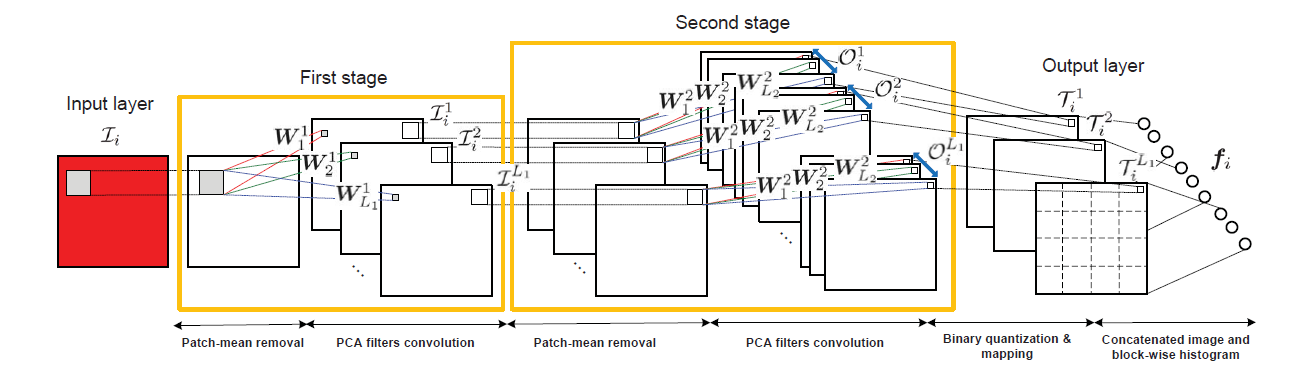

通过观察网络架构图，可以清晰地识别出网络中包含三个关键步骤：局部均值去噪预处理模块、主成分分析卷积层与二值化处理与映射关系模块。具体而言，局部均值去噪预处理模块旨在消除图像中的局部均值干扰，从而提升后续处理的准确性；主成分分析卷积层通过主成分分析提取图像特征，实现降维与增强关键特征；而二值化处理与映射关系模块则负责将量化后的数据转换为二值化表示，并建立数据映射关系，确保信息的完整传递。
输入说明
function im = im2col_mean_removal(varargin)
%
NumInput = length(varargin);
InImg = varargin{1};
patchsize12 = varargin{2};
z = size(InImg,3);
im = cell(z,1);
if NumInput == 2
for i = 1:z
iim = im2colstep(InImg(:,:,i),patchsize12); %窗口采样,然后按列展开为列向量
im{i} = bsxfun(@minus, iim, mean(iim))'; %去均值
% iim = bsxfun(@minus, iim, mean(iim));
% im{i} = bsxfun(@minus, iim, mean(iim,2))';
end
else
for i = 1:z
iim = im2colstep(InImg(:,:,i),patchsize12,varargin{3});
im{i} = bsxfun(@minus, iim, mean(iim))';
% iim = bsxfun(@minus, iim, mean(iim));
% im{i} = bsxfun(@minus, iim, mean(iim,2))';
end
end
im = [im{:}]';PCA_FilterBank.m
输入为一个元胞数组InImg
采样窗口尺寸PatchSize
提取主成分的数量NumFilter
对于每一张图片，调用前面开发的im2col_mean_removal.m函数，得到
X = [X_1, X_2, X_3, \dots, X_n] \in \mathbb{R}^{k_1k_2 \times N \times m \times n}
然后对X^\top X进行主成分分析，提取特征值最大的前NumFilter个主成分，每个主成分向量的维度为1 \times k_1k_2
function V = PCA_FilterBank(InImg, PatchSize, NumFilters)
% =======INPUT=============
% InImg Input images (cell structure)
% PatchSize the patch size, asumed to an odd number.
% NumFilters the number of PCA filters in the bank.
% =======OUTPUT============
% V PCA filter banks, arranged in column-by-column manner
% =========================
addpath('./Utils')
% to efficiently cope with the large training samples, if the number of training we randomly subsample 10000 the
% training set to learn PCA filter banks
ImgZ = length(InImg);
MaxSamples = 100000;
NumRSamples = min(ImgZ, MaxSamples);
RandIdx = randperm(ImgZ);
RandIdx = RandIdx(1:NumRSamples);
%% Learning PCA filters (V)
NumChls = size(InImg{1},3);
Rx = zeros(NumChls*PatchSize^2,NumChls*PatchSize^2); %保存均值采样后的矩阵
for i = RandIdx %1:ImgZ
im = im2col_mean_removal(InImg{i},[PatchSize PatchSize]); % collect all the patches of the ith image in a matrix, and perform patch mean removal
%%这里的Rx即对应文章中的 X 矩阵
Rx = Rx + im*im'; % sum of all the input images' covariance matrix
end
Rx = Rx/(NumRSamples*size(im,2));
[E D] = eig(Rx); %%特征值分解
[~, ind] = sort(diag(D),'descend');
%%取前NumFilters个特征向量，作为下一步的滤波器
V = E(:,ind(1:NumFilters)); % principal eigenvectors对输入的每张InImg图像矩阵，首先进行边界填充0处理，调整其大小为(m+k_1-1)*(n+k_2-1)，然后调用自定义函数im2col_mean_removal.m，生成im矩阵(k_1k_2*mn)。随后，将该im矩阵与前一步提取的NumFilters个特征向量依次进行卷积操作，得到m*n大小的输出矩阵。最终输出的卷积后图像数目为输入数目的NumFilters倍。
function [OutImg OutImgIdx] = PCA_output(InImg, InImgIdx, PatchSize, NumFilters, V)
% Computing PCA filter outputs
% ======== INPUT ============
% InImg Input images (cell structure); each cell can be either a matrix (Gray) or a 3D tensor (RGB)
% InImgIdx Image index for InImg (column vector)
% PatchSize Patch size (or filter size); the patch is set to be sqaure
% NumFilters Number of filters at the stage right before the output layer
% V PCA filter banks (cell structure); V{i} for filter bank in the ith stage
% ======== OUTPUT ===========
% OutImg filter output (cell structure)
% OutImgIdx Image index for OutImg (column vector)
% OutImgIND Indices of input patches that generate "OutImg"
% ===========================
addpath('./Utils')
ImgZ = length(InImg);
mag = (PatchSize-1)/2;
OutImg = cell(NumFilters*ImgZ,1);
cnt = 0;
for i = 1:ImgZ
[ImgX, ImgY, NumChls] = size(InImg{i});
img = zeros(ImgX+PatchSize-1,ImgY+PatchSize-1, NumChls);
%%矩阵周围填充0，保证卷积后的图像大小和原图像大小一致
img((mag+1):end-mag,(mag+1):end-mag,:) = InImg{i};
im = im2col_mean_removal(img,[PatchSize PatchSize]); % collect all the patches of the ith image in a matrix, and perform patch mean removal
for j = 1:NumFilters
%% 和每一个滤波器做卷积
OutImg{cnt} = reshape(V(:,j)'*im,ImgX,ImgY); % convolution output
end
InImg{i} = []; %%释放内存空间
end
OutImgIdx = kron(InImgIdx,ones(NumFilters,1)); %%记录每张图片的id对生成的NumFilters(1) \times NumFilters(2)个特征图进行后续处理，具体步骤如下：首先，通过调用Heaviside.m函数将特征图进行二值化处理（即大于0的值置为1，其余置为0）。随后，将每个特征图乘以对应的权重后累加，得到特征图矩阵T。接着，对矩阵T应用HistBlockSize窗口大小的采样操作，生成新的特征图矩阵，该过程与im2col_mean_removal.m相似，但未进行均值归一化处理。最后，通过调用histc函数计算各通道的直方图，并进行归一化处理，最终得到特征向量。
function [f BlkIdx] = HashingHist(PCANet,ImgIdx,OutImg)
% Output layer of PCANet (Hashing plus local histogram)
% ========= INPUT ============
% PCANet PCANet parameters (struct)
% .PCANet.NumStages
% the number of stages in PCANet; e.g., 2
% .PatchSize
% the patch size (filter size) for square patches; e.g., [5 3]
% means patch size equalt to 5 and 3 in the first stage and second stage, respectively
% .NumFilters
% the number of filters in each stage; e.g., [16 8] means 16 and
% 8 filters in the first stage and second stage, respectively
% .HistBlockSize
% the size of each block for local histogram; e.g., [10 10]
% .BlkOverLapRatio
% overlapped block region ratio; e.g., 0 means no overlapped
% between blocks, and 0.3 means 30% of blocksize is overlapped
% .Pyramid
% spatial pyramid matching; e.g., [1 2 4], and [] if no Pyramid
% is applied
% ImgIdx Image index for OutImg (column vector)
% OutImg PCA filter output before the last stage (cell structure)
% ========= OUTPUT ===========
% f PCANet features (each column corresponds to feature of each image)
% BlkIdx index of local block from which the histogram is compuated
% ============================
addpath('./Utils')
NumImg = max(ImgIdx);
f = cell(NumImg,1);
map_weights = 2.^((PCANet.NumFilters(end)-1):-1:0); % weights for binary to decimal conversion
for Idx = 1:NumImg
Idx_span = find(ImgIdx == Idx);
NumOs = length(Idx_span)/PCANet.NumFilters(end); % the number of "O"s
Bhist = cell(NumOs,1);
for i = 1:NumOs
T = 0;
ImgSize = size(OutImg{Idx_span(PCANet.NumFilters(end)*(i-1) + 1)});
for j = 1:PCANet.NumFilters(end)
T = T + map_weights(j)*Heaviside(OutImg{Idx_span(PCANet.NumFilters(end)*(i-1)+j)});
% weighted combination; hashing codes to decimal number conversion
OutImg{Idx_span(PCANet.NumFilters(end)*(i-1)+j)} = [];
end
if isempty(PCANet.HistBlockSize)
NumBlk = ceil((PCANet.ImgBlkRatio - 1)./PCANet.BlkOverLapRatio) + 1;
HistBlockSize = ceil(size(T)./PCANet.ImgBlkRatio);
OverLapinPixel = ceil((size(T) - HistBlockSize)./(NumBlk - 1));
NImgSize = (NumBlk-1).*OverLapinPixel + HistBlockSize;
Tmp = zeros(NImgSize);
Tmp(1:size(T,1), 1:size(T,2)) = T;
Bhist{i} = sparse(histc(im2col_general(Tmp,HistBlockSize,...
OverLapinPixel),(0:2^PCANet.NumFilters(end)-1)'));
else
stride = round((1-PCANet.BlkOverLapRatio)*PCANet.HistBlockSize);
%% 得到直方图
blkwise_fea = sparse(histc(im2col_general(T,PCANet.HistBlockSize,...
stride),(0:2^PCANet.NumFilters(end)-1)'));
% calculate histogram for each local block in "T"
if ~isempty(PCANet.Pyramid)
x_start = ceil(PCANet.HistBlockSize(2)/2);
y_start = ceil(PCANet.HistBlockSize(1)/2);
x_end = floor(ImgSize(2) - PCANet.HistBlockSize(2)/2);
y_end = floor(ImgSize(1) - PCANet.HistBlockSize(1)/2);
sam_coordinate = [...
kron(x_start:stride:x_end,ones(1,length(y_start:stride: y_end)));
kron(ones(1,length(x_start:stride:x_end)),y_start:stride: y_end)];
blkwise_fea = spp(blkwise_fea, sam_coordinate, ImgSize, PCANet.Pyramid)';
else
blkwise_fea = bsxfun(@times, blkwise_fea, ...
2^PCANet.NumFilters(end)./sum(blkwise_fea));
end
Bhist{i} = blkwise_fea;
end
end
f{Idx} = vec([Bhist{:}]');
if ~isempty(PCANet.Pyramid)
f{Idx} = sparse(f{Idx}/norm(f{Idx}));
end
end
f = [f{:}];
if ~isempty(PCANet.Pyramid)
BlkIdx = kron((1:size(Bhist{1},1))',ones(length(Bhist)*size(Bhist{1},2),1));
else
BlkIdx = kron(ones(NumOs,1),kron((1:size(Bhist{1},2))',ones(size(Bhist{1},1),1)));
end
%-------------------------------
function X = Heaviside(X) % binary quantization
X = sign(X);
X(X<=0) = 0;
function x = vec(X) % vectorization
x = X(:);
function beta = spp(blkwise_fea, sam_coordinate, ImgSize, pyramid)
[dSize, ~] = size(blkwise_fea);
img_width = ImgSize(2);
img_height = ImgSize(1);
% spatial levels
pyramid_Levels = length(pyramid);
pyramid_Bins = pyramid.^2;
tBins = sum(pyramid_Bins);
beta = zeros(dSize, tBins);
cnt = 0;
for i1 = 1:pyramid_Levels,
Num_Bins = pyramid_Bins(i1);
wUnit = img_width / pyramid(i1);
hUnit = img_height / pyramid(i1);
% find to which spatial bin each local descriptor belongs
xBin = ceil(sam_coordinate(1,:) / wUnit);
yBin = ceil(sam_coordinate(2,:) / hUnit);
idxBin = (yBin - 1)*pyramid(i1) + xBin;
for i2 = 1:Num_Bins,
cnt = cnt + 1;
sidxBin = find(idxBin == i2);
if isempty(sidxBin),
continue;
end
beta(:, cnt) = max(blkwise_fea(:, sidxBin), [], 2);
end
endPCANet的训练过程分为两个阶段。首先，调用PCA的滤波器 bank和输出，完成一次PCA滤波过程。接着，对滤波后的数据进行直方图统计，最终生成特征向量。
function [f V BlkIdx] = PCANet_train(InImg,PCANet,IdtExt)
% =======INPUT=============
% InImg Input images (cell); each cell can be either a matrix (Gray) or a 3D tensor (RGB)
% PCANet PCANet parameters (struct)
% .PCANet.NumStages
% the number of stages in PCANet; e.g., 2
% .PatchSize
% the patch size (filter size) for square patches; e.g., [5 3]
% means patch size equalt to 5 and 3 in the first stage and second stage, respectively
% .NumFilters
% the number of filters in each stage; e.g., [16 8] means 16 and
% 8 filters in the first stage and second stage, respectively
% .HistBlockSize
% the size of each block for local histogram; e.g., [10 10]
% .BlkOverLapRatio
% overlapped block region ratio; e.g., 0 means no overlapped
% between blocks, and 0.3 means 30% of blocksize is overlapped
% .Pyramid
% spatial pyramid matching; e.g., [1 2 4], and [] if no Pyramid
% is applied
% IdtExt a number in {0,1}; 1 do feature extraction, and 0 otherwise
% =======OUTPUT============
% f PCANet features (each column corresponds to feature of each image)
% V learned PCA filter banks (cell)
% BlkIdx index of local block from which the histogram is compuated
% =========================
addpath('./Utils')
if length(PCANet.NumFilters)~= PCANet.NumStages;
display('Length(PCANet.NumFilters)~=PCANet.NumStages')
return
end
NumImg = length(InImg); %总的训练图片的数目
V = cell(PCANet.NumStages,1);
OutImg = InImg;
ImgIdx = (1:NumImg)';
clear InImg;
for stage = 1:PCANet.NumStages
display(['Computing PCA filter bank and its outputs at stage ' num2str(stage) '...'])
V{stage} = PCA_FilterBank(OutImg, PCANet.PatchSize(stage), PCANet.NumFilters(stage)); % compute PCA filter banks
if stage ~= PCANet.NumStages % compute the PCA outputs only when it is NOT the last stage
[OutImg ImgIdx] = PCA_output(OutImg, ImgIdx, ...
PCANet.PatchSize(stage), PCANet.NumFilters(stage), V{stage});
end
end
if IdtExt == 1 % enable feature extraction
%display('PCANet training feature extraction...')
f = cell(NumImg,1); % compute the PCANet training feature one by one
for idx = 1:NumImg
if 0==mod(idx,100); display(['Extracting PCANet feasture of the ' num2str(idx) 'th training sample...']); end
OutImgIndex = ImgIdx==idx; % select feature maps corresponding to image "idx" (outputs of the-last-but-one PCA filter bank)
[OutImg_i ImgIdx_i] = PCA_output(OutImg(OutImgIndex), ones(sum(OutImgIndex),1),...
PCANet.PatchSize(end), PCANet.NumFilters(end), V{end}); % compute the last PCA outputs of image "idx"
[f{idx} BlkIdx] = HashingHist(PCANet,ImgIdx_i,OutImg_i); % compute the feature of image "idx"
fprintf('%d %d\n',size(f{idx}));%print(size(f{idx}));
% [f{idx} BlkIdx] = SphereSum(PCANet,ImgIdx_i,OutImg_i); % Testing!!
OutImg(OutImgIndex) = cell(sum(OutImgIndex),1);
end
f = sparse([f{:}]);
else % disable feature extraction
f = [];
BlkIdx = [];
endhttp://my.oschina.net/Ldpe2G/blog/275922p=4的相关讨论
