IPQ4019: A powerful boost in the field of wireless communications
The IPQ4019 is a high-performance, low-power system-on-chip (SOC) designed for high-performance, low-cost and low-power 2×2, 802.11ac dual-band concurrent access point applications. This highly integrated system combines a quad-core ARM Cortex A7 processor, two dual-band parallel 802.11ac WiFi subsystems, and a 5-port Gigabit Ethernet Layer 2/3/4 multilayer switch on a single chip. In addition, it supports USB3.0 and USB2.0 as well as other miscellaneous interfaces, which can be configured as general-purpose I/O pins.
Due to its low-power design and powerful processor performance, the IPQ4019 is ideally suited for a variety of long-running applications such as video surveillance systems and industrial automation networks. Its high-speed network connection capabilities, WiFi connection speeds up to 500 Mbps and Gigabit Ethernet interface ensure high-speed and stable data transmission. At the same time, its multiple interface options, including USB3.0 and USB2.0 interfaces, SPI, I2C, UART, etc., make connection and communication with other external devices and sensors simple and convenient.
The application fields of IPQ4019 are very wide. It can be used as the core component of wireless access points and routers, providing high-speed and stable WiFi connections for homes and businesses. In the field of Internet of Things (IoT), IPQ4019 can be used to build various IoT devices, such as smart home equipment, smart agricultural equipment, etc., to realize the intelligence and networking of equipment. In video surveillance systems, the high performance and low power consumption of IPQ4019 make building high-definition video surveillance systems simple and cost-effective. In addition, in industrial automation networks, IPQ4019 can be used as a core component for control and data transmission, improving production efficiency and equipment reliability. In the field of embedded systems, IPQ4019's high integration and low power consumption give it significant advantages in applications such as smart meters and smart medical equipment.
In short, with its high performance, low power consumption and low cost, IPQ4019 has become an ideal choice for various applications that require high-speed network connections and low power consumption. Whether in the fields of home, enterprise, Internet of Things, video surveillance or industrial automation, IPQ4019 can provide excellent solutions to meet the evolving wireless communication needs.

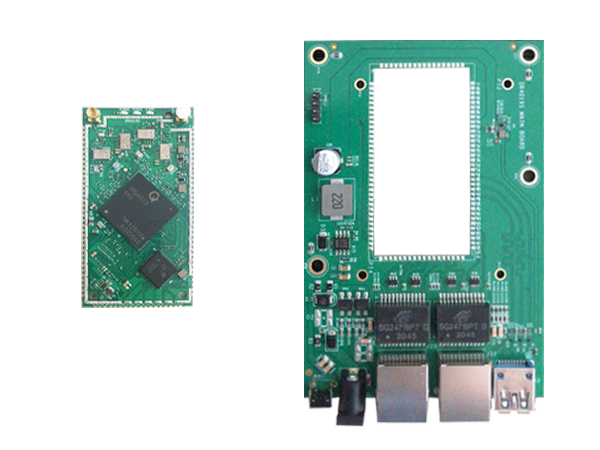

Product
Featuring withindustrial-grade IPQ4019 chipset
Integrated with 2x 2 5G high power
Radio module and 2x2 2.4G high power Radio module
Support 5.180GHz to5.825GHz Frequency Range;
Support 2.412GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/802.11AC
RoHS compliance ensure a high level
protection of human health and the environment from risks that can be posed by
Support Openwifi
Support QSDK
Support Openwrt
