优达学城无人驾驶工程师——P4车道线检测功能

 import numpy as np


 import cv2

 import glob

 import matplotlib.pyplot as plt

 import pickle

 import matplotlib.image as mpimg

 from moviepy.editor import VideoFileClip

 from IPython.display import HTML



 %matplotlib inline





 # prepare object points, like (0,0,0), (1,0,0), (2,0,0) ....,(6,5,0)


 objp = np.zeros((6*9,3), np.float32)#构建一个72行，3列的零矩阵

 objp[:,:2] = np.mgrid[0:9, 0:6].T.reshape(-1,2)#把数组变成网格的顺序



 # Arrays to store object points and image points from all the images.

 objpoints = [] # 3d points in real world space

 imgpoints = [] # 2d points in image plane.



 # Make a list of calibration images

 images = glob.glob('camera_cal/calibration*.jpg')





 # Step through the list and search for chessboard corners


 for idx, fname in enumerate(images):

     img = cv2.imread(fname)

     gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)



     # Find the chessboard corners

     ret, corners = cv2.findChessboardCorners(gray, (9,6), None)

     print('number:',fname,'ret = ',ret)



     # If found, add object points, image points

     if ret == True:

     objpoints.append(objp)

     imgpoints.append(corners)



     # Draw and display the corners

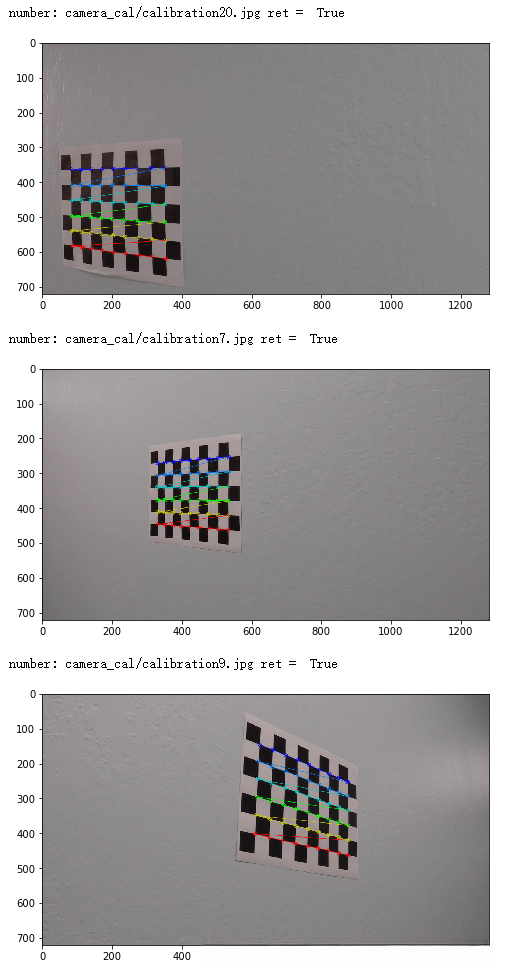

     cv2.drawChessboardCorners(img, (9,6), corners, ret)

     #write_name = 'corners_found'+str(idx)+'.jpg'

     plt.figure(figsize = (8,8))

     plt.imshow(img)

     plt.show()

     #cv2.imwrite(write_name, img)

     #cv2.imshow('img', img)

     #cv2.waitKey(500)



 #cv2.destroyAllWindows()





 img = cv2.imread('camera_cal/calibration1.jpg')


 print(img.shape)

 img_size = (img.shape[1],img.shape[0])

 print(img_size)

 # Do camera calibration given object points and image points

 ret, mtx, dist, rvecs, tvecs = cv2.calibrateCamera(objpoints, imgpoints, img_size,None,None)#标定

 #这个函数会返回标定结果、相机的内参数矩阵、畸变系数、旋转矩阵和平移向量。



 # Save the camera calibration result for later use (we won't worry about rvecs / tvecs)

 dist_pickle = {}

 dist_pickle["mtx"] = mtx

 dist_pickle["dist"] = dist

 pickle.dump( dist_pickle, open( "camera_cal/wide_dist_pickle.p", "wb" ) )





 def undistort(img):


     cal_pickle = pickle.load(open("camera_cal/wide_dist_pickle.p", "rb"))

     mtx = cal_pickle['mtx']

     dist = cal_pickle['dist']

     undist = cv2.undistort(img,mtx,dist,None,mtx)

     return undist





 image_test = 'camera_cal/calibration1.jpg'


 img_test = cv2.imread(image_test)

 img_undistort = undistort(img_test)

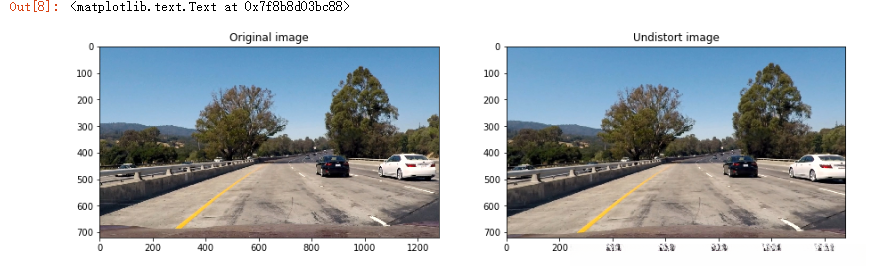

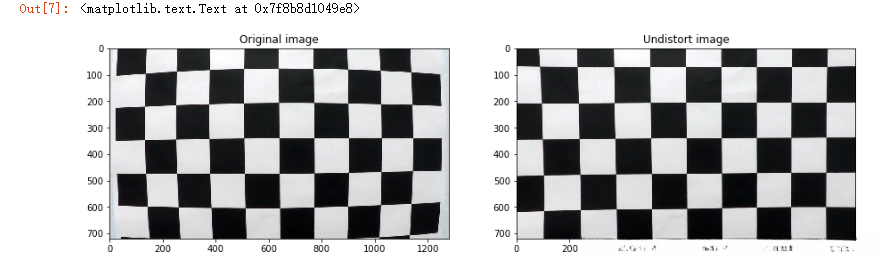

 plt.figure(figsize = (15,15))

 plt.subplot(121)

 plt.imshow(img_test)

 plt.title('Original image')



 plt.subplot(122)

 plt.imshow(img_undistort)

 plt.title('Undistort image')





 image_test = 'test_images/test1.jpg'


 img_test = plt.imread(image_test)

 img_undistort = undistort(img_test)



 plt.figure(figsize = (15,15))

 plt.subplot(121)

 plt.imshow(img_test)

 plt.title('Original image')



 plt.subplot(122)

 plt.imshow(img_undistort)

 plt.title('Undistort image')





 #define functions


 def grayscale(img):

     return cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)



 def gaussian_blur(img,kernel_size):

     return cv2.GaussianBlur(img,(kernel_size,kernel_size),0)



 def abs_sobel_thresh(img,orient = 'x',sobel_kernel = 3,thresh = (0,255)):

     gray = grayscale(img)



     if orient == 'x':

     abs_sobel = np.absolute(cv2.Sobel(gray,cv2.CV_64F,1,0,ksize = sobel_kernel))

     if orient == 'y':

     abs_sobel = np.absolute(cv2.Sobel(gray,cv2.CV_64F,0,1,ksize = sobel_kernel))



     scaled_sobel = np.uint8(255 * abs_sobel / np.max(abs_sobel))

     binary_output = np.zeros_like(scaled_sobel)

     binary_output[(scaled_sobel >= thresh[0]) & (scaled_sobel <= thresh[1])] = 1

     return binary_output



 def mag_thresh(img, sobel_kernel=3, thresh=(0, 255)):



     # Apply the following steps to img

     # 1) Convert to grayscale

     gray = cv2.cvtColor(img,cv2.COLOR_RGB2GRAY)

     # 2) Take the gradient in x and y separatel

     sobel_x = cv2.Sobel(gray,cv2.CV_64F,1,0,ksize = sobel_kernel)

     #print(sobel_x)

     sobel_y = cv2.Sobel(gray,cv2.CV_64F,0,1,ksize = sobel_kernel)

     # 3) Calculate the magnitude

     magnitude = np.sqrt(sobel_x ** 2 + sobel_y ** 2)

     # 4) Scale to 8-bit (0 - 255) and convert to type = np.uint8

     scale_factor = np.max(magnitude) / 255

     #print('scale_factor = ',scale_factor)

     magnitude = (magnitude / scale_factor).astype(np.uint8)

     # 5) Create a binary mask where mag thresholds are met

     binary_output = np.zeros_like(magnitude)

     # 6) Return this mask as your binary_output image

     binary_output[(magnitude >= thresh[0]) & (magnitude <= thresh[1])] = 1

     return binary_output



 def dir_threshold(img, sobel_kernel=3, thresh=(0, np.pi/2)):

     # Grayscale

     gray = cv2.cvtColor(img, cv2.COLOR_RGB2GRAY)

     # Calculate the x and y gradients

     sobelx = cv2.Sobel(gray, cv2.CV_64F, 1, 0, ksize=sobel_kernel)

     sobely = cv2.Sobel(gray, cv2.CV_64F, 0, 1, ksize=sobel_kernel)

     # Take the absolute value of the gradient direction,

     # apply a threshold, and create a binary image result

     absgraddir = np.arctan2(np.absolute(sobely), np.absolute(sobelx))

     #print(absgraddir)

     binary_output =  np.zeros_like(absgraddir)

     binary_output[(absgraddir >= thresh[0]) & (absgraddir <= thresh[1])] = 1



     # Return the binary image

     return binary_output



 def hls_select(img, thresh=(0, 255)):

     # 1) Convert to HLS color space

     hls = cv2.cvtColor(img,cv2.COLOR_RGB2HLS)

     # 2) Apply a threshold to the S channel

     s_channel = hls[:,:,2]

     # 3) Return a binary image of threshold result

     binary_output = np.zeros_like(s_channel)

     binary_output[(s_channel > thresh[0]) & (s_channel <thresh[1])] = 1

     return binary_output





 image_test = 'test_images/straight_lines1.jpg'


 #img_test = cv2.imread(image_test)

 img_test = plt.imread(image_test)

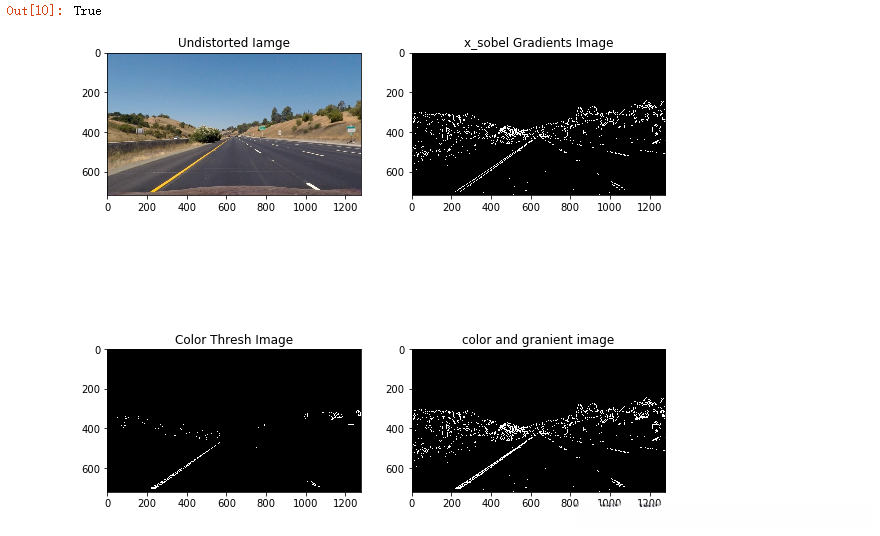

 plt.figure(figsize = (10,10))



 undist = undistort(img_test)

 plt.subplot(221)

 plt.imshow(undist)

 plt.title('Undistorted Iamge')



 cv2.imwrite('./output_images/undist.jpg',undist)



 x_sobel = abs_sobel_thresh(undist,thresh = (22,100))

 plt.subplot(222)

 plt.imshow(x_sobel,cmap = 'gray')

 plt.title('x_sobel Gradients Image')



 cv2.imwrite('./output_images/x_sobel.jpg',x_sobel)



 color_transforms = hls_select(undist,thresh=(150,255))

 plt.subplot(223)

 plt.imshow(color_transforms,cmap = 'gray')

 plt.title('Color Thresh Image')



 cv2.imwrite('./output_images/color_transforms.png',color_transforms)





 color_x_sobel = np.zeros_like(x_sobel)

 color_x_sobel[ (color_transforms == 1) | (x_sobel) == 1 ] = 1

 plt.subplot(224)

 plt.imshow(color_x_sobel,cmap = 'gray')

 plt.title('color and granient image')



 cv2.imwrite('./output_images/color_x_sobel.png',color_x_sobel)

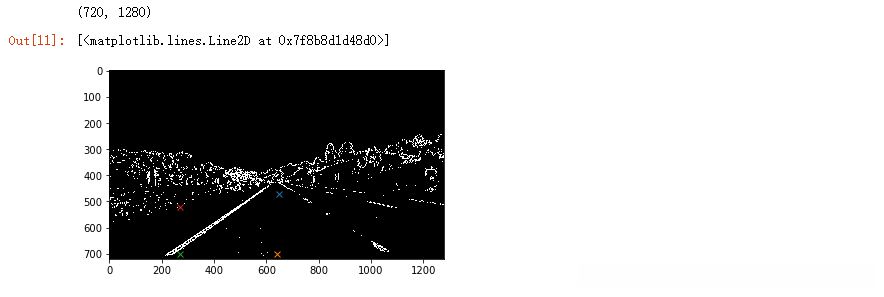

 #找点


 plt.imshow(color_x_sobel,cmap = 'gray')

 print(color_x_sobel.shape)

 # plt.plot(800,510,'x')

 # plt.plot(1150,700,'x')

 # plt.plot(270,700,'x')

 # plt.plot(510,510,'x')





 plt.plot(650,470,'x')

 plt.plot(640,700,'x')

 plt.plot(270,700,'x')

 plt.plot(270,520,'x')





 def warp(img):


     img_size = (img.shape[1],img.shape[0])



     src = np.float32( [ [800,510],[1150,700],[270,700],[510,510]] )

     dst = np.float32( [ [650,470],[640,700],[270,700],[270,540]] )

     M = cv2.getPerspectiveTransform(src,dst)

     #返回透视变换的映射矩阵，就是这里的M

     #对于投影变换，我们则需要知道四个点，

     #通过cv2.getPerspectiveTransform求得变换矩阵.之后使用cv2.warpPerspective获得矫正后的图片。



     Minv = cv2.getPerspectiveTransform(dst,src)



     warped = cv2.warpPerspective(img,M,img_size,flags = cv2.INTER_LINEAR)

     #主要作用：对图像进行透视变换，就是变形

     #

     unpersp = cv2.warpPerspective(warped, Minv, img_size, flags=cv2.INTER_LINEAR)





     return warped, unpersp, Minv





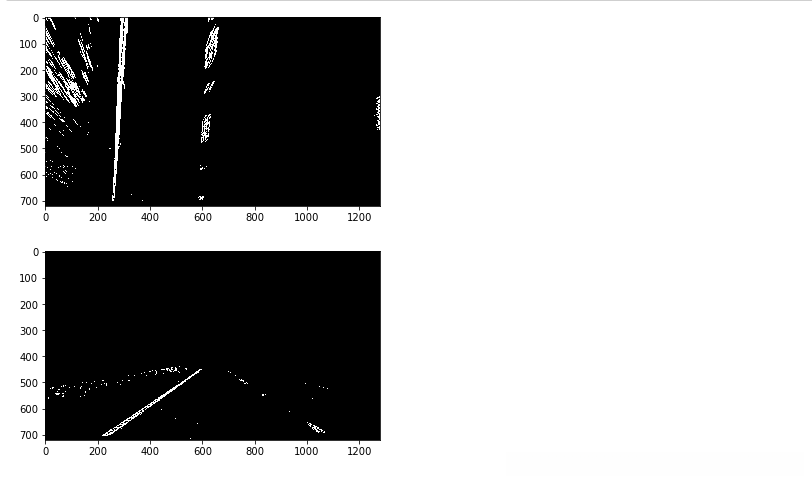

 warped_img,unpersp, Minv = warp(color_x_sobel)




 plt.imshow(warped_img,cmap = 'gray')

 plt.show()

 plt.imshow(unpersp,cmap = 'gray')

 plt.show()





 def find_lines(img,print = True):


     #假设您已经创建了一个被扭曲的二进制图像，称为“binary_warped”

     #取图像下半部分的直方图

     histogram= np.sum(img[img.shape[0] //2:,:],axis = 0)

     #创建一个输出图像来绘制和可视化结果

     out_img = np.dstack((img,img,img))*255

     # plt.imshow(out_img)

     # plt.show()

     #找出直方图的左半边和右半边的峰值

     #这些将是左行和右行的起点

     midpoint = np.int(histogram.shape[0] // 4)

     leftx_base = np.argmax(histogram[:midpoint])

     #np.argmax 是返回最大值所在的位置

     rightx_base = np.argmax(histogram[midpoint:]) + midpoint

     #这里是要返回右边HOG值最大所在的位置，所以要加上midpoint



     #选择滑动窗口的数量

     nwindows = 9

     #设置窗口的高度

     window_height = np.int(img.shape[0] // nwindows)

     #确定所有的x和y位置非零像素在图像,这里就是吧img图像中非0元素（就是不是黑的地方就找出来，一行是x，一行是y）

     nonzero = img.nonzero()

     #返回numpy数组中非零的元素

     #对于二维数组b2，nonzero(b2)所得到的是一个长度为2的元组。http://www.cnblogs.com/1zhk/articles/4782812.html

     nonzeroy = np.array(nonzero[0])

     nonzerox = np.array(nonzero[1])

     #为每个窗口当前位置更新

     leftx_current = leftx_base

     rightx_current = rightx_base

     #设置窗口的宽度+ / -

     margin = 100

     #设置最小数量的像素发现重定位窗口

     minpix = 50

     #创建空的列表接收左和右车道像素指数

     left_lane_inds = []

     right_lane_inds = []



     #遍历窗口

     for window in range(nwindows):

     #识别窗口边界在x和y(左、右)

     win_y_low = img.shape[0] - (window + 1) * window_height #就是把图像切成9分，一分一分的算HOG

     #print('win_y_low',win_y_low)

     win_y_high = img.shape[0] - window * window_height

     win_xleft_low = leftx_current - margin

     #print('win_xleft_low',win_xleft_low)

     win_xleft_high = leftx_current + margin

     #print('win_xleft_high = ',win_xleft_high)

     win_xright_low = rightx_current - margin

     #print('win_xright_low = ',win_xright_low)

     win_xright_high = rightx_current + margin

     #print('win_xright_high = ',win_xright_high)

     #把网格画在可视化图像上

     cv2.rectangle(out_img,(win_xleft_low,win_y_low),(win_xleft_high,win_y_high),(0,255,0),2)#通过确定对角线 画矩形

     cv2.rectangle(out_img,(win_xright_low,win_y_low),(win_xright_high,win_y_high),(0,255,0),2)



     #     plt.imshow(out_img)

     #     plt.show()

     #     print('left !!!! ',win_xleft_low,win_y_low,win_xleft_high,win_y_high)

     #     print('right !!!!! ',win_xright_low,win_y_low,win_xright_high,win_y_high)



     #识别非零像素窗口内的x和y

     good_left_inds = (  (nonzeroy >= win_y_low)  & (nonzeroy < win_y_high)

                           & (nonzerox >= win_xleft_low) & (nonzerox < win_xleft_high)).nonzero()[0]





     good_right_inds = ( (nonzeroy >= win_y_low) & (nonzeroy < win_y_high)

                           & (nonzerox >= win_xright_low) & (nonzerox < win_xright_high)).nonzero()[0]



     #添加这些指标列表

     left_lane_inds.append(good_left_inds)

     right_lane_inds.append(good_right_inds)

     #如果上面大于minpix，重新定位下一个窗口的平均位置

     if len(good_left_inds) > minpix:

         leftx_current = np.int(np.mean(nonzerox[good_left_inds]))

     if len(good_right_inds) > minpix:

         rightx_current = np.int(np.mean(nonzerox[good_right_inds]))



     #连接索引的数组

     left_lane_inds = np.concatenate(left_lane_inds)

     #把list改成numpy格式而已

     right_lane_inds = np.concatenate(right_lane_inds)



     #提取左和右线像素位置

     leftx = nonzerox[left_lane_inds]

     lefty = nonzeroy[left_lane_inds]

     rightx = nonzerox[right_lane_inds]

     righty = nonzeroy[right_lane_inds]



     #最小二乘多项式拟合。(不懂)

     left_fit = np.polyfit(lefty, leftx, 2)

     right_fit = np.polyfit(righty, rightx, 2)



     #画图

     ploty = np.linspace(0,img.shape[0] -1,img.shape[0]) #用此来创建等差数列

     left_fitx = left_fit[0] * ploty ** 2 + left_fit[1] * ploty +left_fit[2]

     right_fitx = right_fit[0] * ploty ** 2 +right_fit[1] * ploty + right_fit[2]

     #这步的意思是把曲线拟合出来，



     out_img[nonzeroy[left_lane_inds], nonzerox[left_lane_inds]] = [255, 0, 0]

     out_img[nonzeroy[right_lane_inds], nonzerox[right_lane_inds]] = [0, 0, 255]



     if print == True:

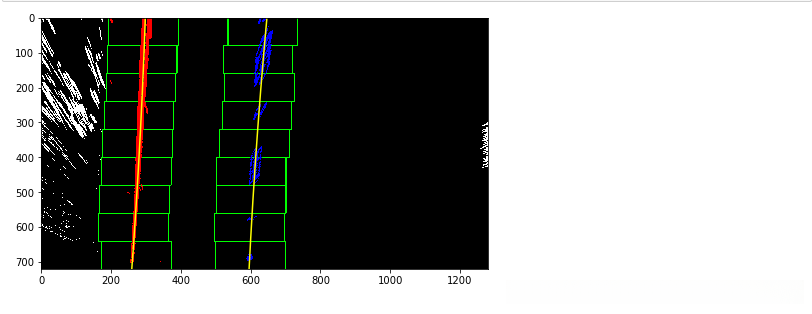

     plt.figure(figsize=(8,8))



     plt.imshow(out_img)

     plt.plot(left_fitx, ploty, color='yellow')

     plt.plot(right_fitx, ploty, color='yellow')

     plt.show()



     return out_img,left_fit,right_fit





    find_line_imgae,left_fit,right_fit = find_lines(warped_img)


 def curvature(left_fit,right_fit,binary_warped,print_data = True):


     ploty = np.linspace(0,binary_warped.shape[0] -1 , binary_warped.shape[0])

     y_eval = np.max(ploty)

     #y_eval就是曲率，这里是选择最大的曲率



     ym_per_pix = 30/720#在y维度上 米/像素

     xm_per_pix = 3.7/700#在x维度上 米/像素



     #确定左右车道

     leftx = left_fit[0]*ploty**2 + left_fit[1]*ploty + left_fit[2]

     rightx = right_fit[0]*ploty**2 + right_fit[1]*ploty + right_fit[2]



     #定义新的系数在米

     left_fit_cr = np.polyfit(ploty*ym_per_pix, leftx*xm_per_pix, 2)

     right_fit_cr = np.polyfit(ploty*ym_per_pix, rightx*xm_per_pix, 2)

     #最小二乘法拟合



     #计算新的曲率半径

     left_curverad = ((1 + (2*left_fit_cr[0]*y_eval*ym_per_pix + left_fit_cr[1])**2)**1.5) / np.absolute(2*left_fit_cr[0])

     right_curverad = ((1 + (2*right_fit_cr[0]*y_eval*ym_per_pix + right_fit_cr[1])**2)**1.5) / np.absolute(2*right_fit_cr[0])



     #计算中心点，线的中点是左右线底部的中间

     left_lane_bottom = (left_fit[0]*y_eval)**2 + left_fit[0]*y_eval + left_fit[2]

     right_lane_bottom = (right_fit[0]*y_eval)**2 + right_fit[0]*y_eval + right_fit[2]

     lane_center = (left_lane_bottom + right_lane_bottom)/2.

     center_image = 640

     center = (lane_center - center_image)*xm_per_pix#转换成米



     if print_data == True:

     #现在的曲率半径已经转化为米了

     print(left_curverad, 'm', right_curverad, 'm', center, 'm')



     return left_curverad, right_curverad, center

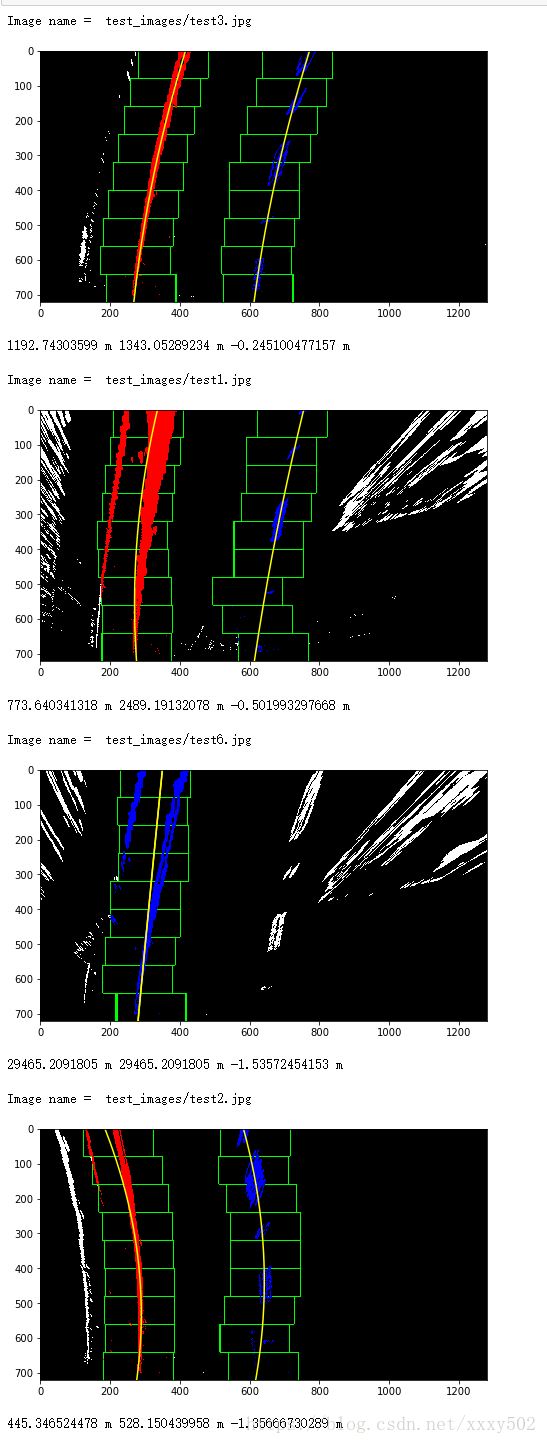

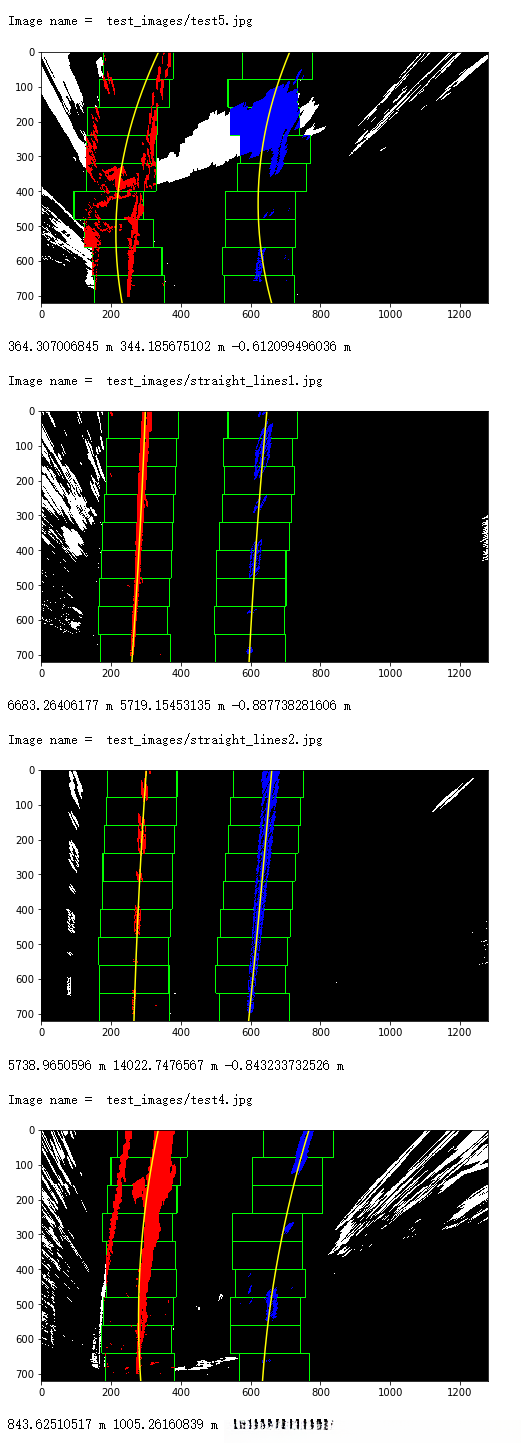

 import glob


 import os

 new_path = os.path.join("test_images/","*.jpg")

 for infile in glob.glob(new_path):

     #读图

     img = plt.imread(infile)

     #畸变

     undist = undistort(img)

     #sobel算子

     x_sobel = abs_sobel_thresh(undist,thresh = (22,100))

     #hls颜色阈值

     color_transforms = hls_select(undist,thresh=(90,255))

     #sobel加hls

     color_x_sobel = np.zeros_like(x_sobel)

     color_x_sobel[ (color_transforms == 1) | (x_sobel) == 1 ] = 1

     #弯曲图像（warped）

     print()

     print('Image name = ',infile)

     warped_img,unpersp, Minv = warp(color_x_sobel)

     #画线

     find_line_imgae,left_fit,right_fit = find_lines(warped_img)

     #算曲率

     curvature(left_fit,right_fit,find_line_imgae)





 def show_info(img,left_cur,right_cur,center):


     #在图片中显示出曲率

     cur = (left_cur + right_cur) / 2



     font = cv2.FONT_HERSHEY_SIMPLEX

     # 使用默认字体

     cv2.putText(img,'Curvature = %d(m)' % cur,(50,50),font,1,(255,255,255),2)

     #照片/添加的文字/左上角坐标/字体/字体大小/颜色/字体粗细

     #添加文字



     if center < 0:

     fangxiang = 'left'

     else:

     fangxiang = 'right'



     cv2.putText(img,'the angle is %.2fm of %s'%(np.abs(center),fangxiang),(50,100),font,1,(255,255,255),2)





 def draw_lines(undist,warped,left_fit,right_fit,left_cur,right_cur,center,show_img = True):


     #创建一个全黑的底层图去划线

     warp_zero = np.zeros_like(warped).astype(np.uint8)

     color_warp = np.dstack((warp_zero,warp_zero,warp_zero))



     ploty = np.linspace(0,warped.shape[0]-1,warped.shape[0])

     #添加新的多项式在X轴Y轴

     left_fitx = left_fit[0] * ploty**2 + left_fit[1]*ploty + left_fit[2]

     right_fitx = right_fit[0] * ploty**2 + right_fit[1]*ploty + right_fit[2]



     #把X和Y变成可用的形式

     pts_left = np.array([np.transpose(np.vstack([left_fitx, ploty]))])

     #np.transpose 转置

     pts_right = np.array([np.flipud(np.transpose(np.vstack([right_fitx, ploty])))])

     #向上/向下翻转阵列。

     pts = np.hstack((pts_left, pts_right))

     #填充图像

     cv2.fillPoly(color_warp, np.int_([pts]), (255,0, 0))

     #透视变换

     newwarp = cv2.warpPerspective(color_warp, Minv, (color_warp.shape[1], color_warp.shape[0]))

     #叠加图层

     result = cv2.addWeighted(undist, 1, newwarp, 0.5, 0)

     show_info(result, left_cur, right_cur, center)

     if show_img == True:

     plt.figure(figsize = (10,10))

     plt.imshow(result)

     plt.show()

     return result

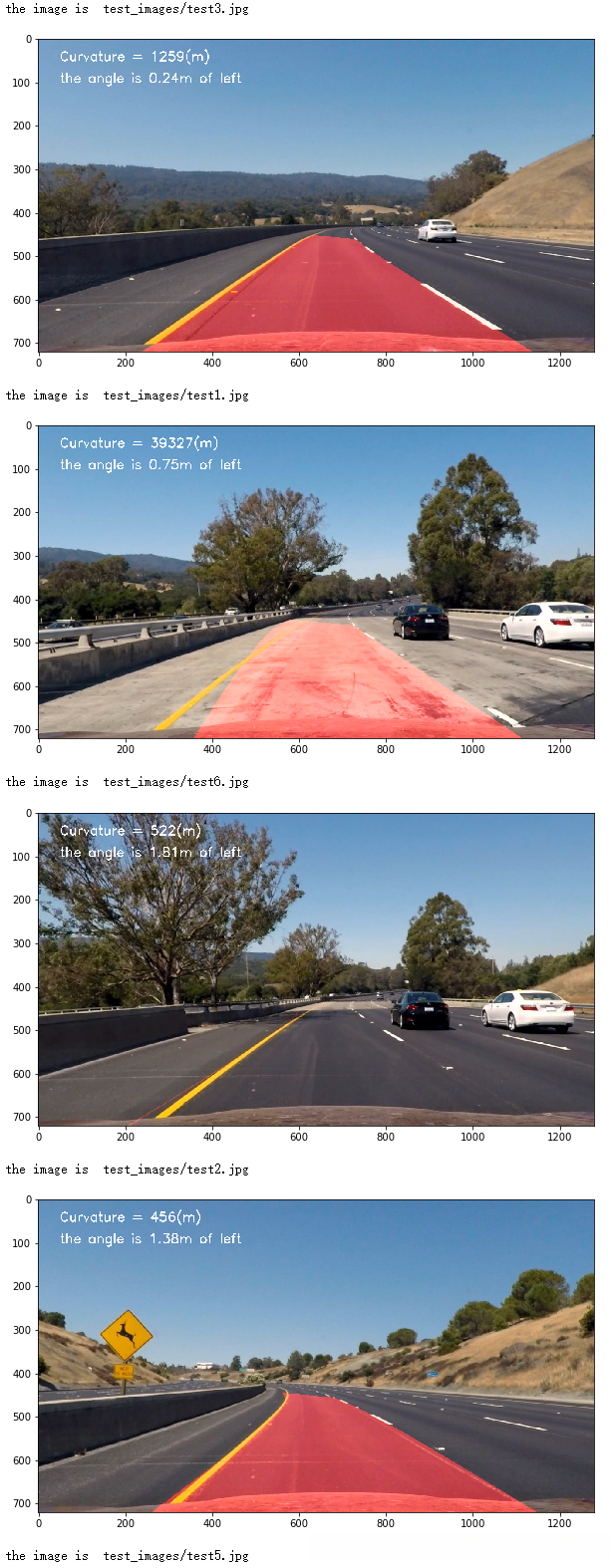

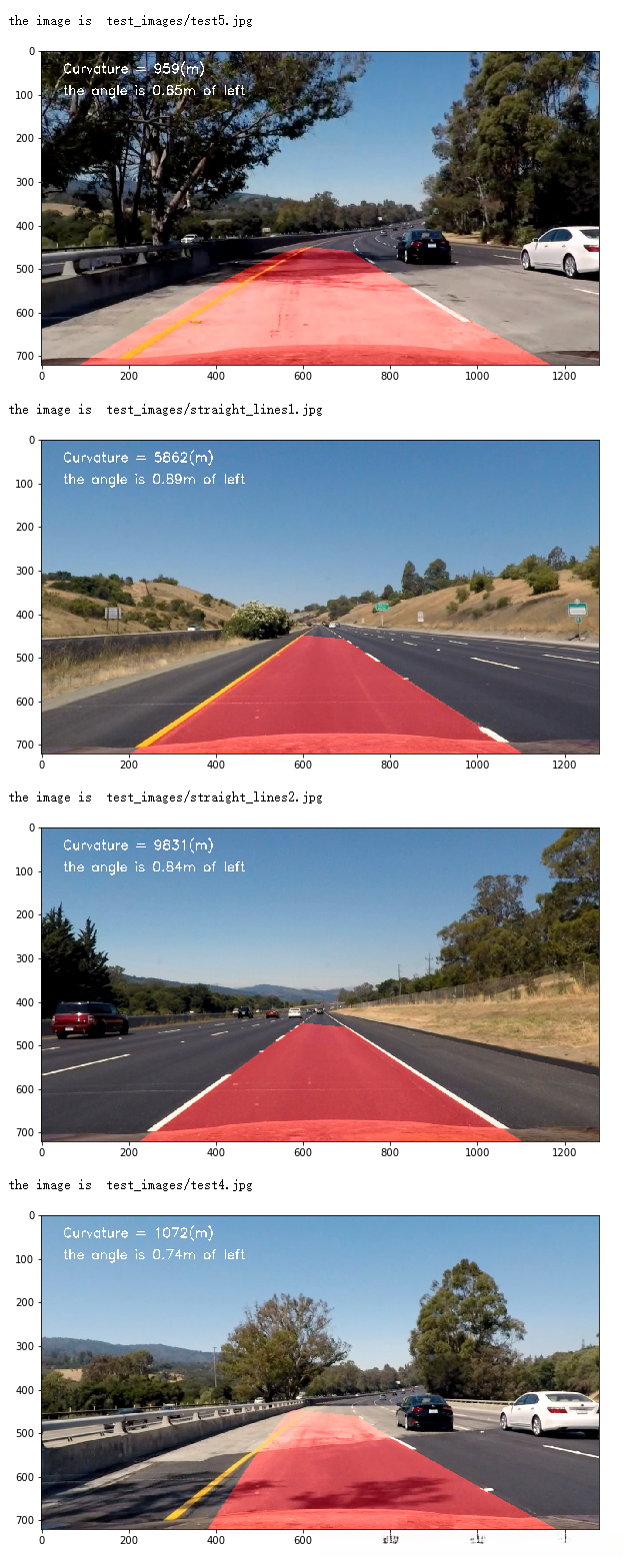

 import glob


 import os

 new_path = os.path.join("test_images/","*.jpg")

 for infile in glob.glob(new_path):

     print('the image is ',infile)

     #读图

     img = plt.imread(infile)

     #畸变

     undist = undistort(img)

     #sobel算子

     x_sobel = abs_sobel_thresh(undist,thresh = (22,100))

     #mag_thresh

     mag_binary = mag_thresh(undist,thresh =(30,90))

     #dir_threshold

     dir_binary = dir_threshold(undist, sobel_kernel=15, thresh=(0.7, 1.3))

     #hls颜色阈值

     color_transforms = hls_select(undist,thresh=(150,255))

     #sobel加hls

     color_x_sobel = np.zeros_like(x_sobel)

     color_x_sobel[ (x_sobel == 1) | (color_transforms == 1) ] = 1



     #弯曲图像

     warped_img, unpersp, Minv = warp(color_x_sobel)

     #画线

     find_line_imgae,left_fit,right_fit = find_lines(warped_img,print = False)

     #算曲率

     left_curverad, right_curverad, center = curvature(left_fit,right_fit,find_line_imgae,print_data = False)

     #画图

     result = draw_lines(undist,warped_img,left_fit,right_fit,left_curverad,right_curverad,center)





 def check(left_fit, right_fit):


     #Performs a sanity check on the lanes



     #1. Check if left and right fit returned a value

     if len(left_fit) ==0 or len(right_fit) == 0:

     status = False



     else:

     #Check distance b/w lines

     ploty = np.linspace(0, 20, num=10 )

     left_fitx = left_fit[0]*ploty**2 + left_fit[1]*ploty + left_fit[2]

     right_fitx = right_fit[0]*ploty**2 + right_fit[1]*ploty + right_fit[2]

     delta_lines = np.mean(right_fitx - left_fitx)

     if delta_lines >= 150 and delta_lines <=430: #apprrox delta in pixels

         status = True

     else:

         status = False



 #         # Calculate slope of left and right lanes at midpoint of y (i.e. 360)

 #         L_0 = 2*left_fit[0]*360+left_fit[1]

 #         R_0 = 2*right_fit[0]*360+right_fit[1]

 #         delta_slope_mid =  np.abs(L_0-R_0)



 #          # Calculate slope of left and right lanes at top of y (i.e. 720)

 #         L_1 = 2*left_fit[0]*720+left_fit[1]

 #         R_1 = 2*right_fit[0]*720+right_fit[1]

 #         delta_slope_top =  np.abs(L_1-R_1)



 #         #Check if lines are parallel at the middle



 #         if delta_slope_mid<=0.1:

 #             status = True

 #         else:

 #             status = False



     return status





 def process_video(img):


     global last_left

     global last_right

     global left_fit

     global right_fit



     #畸变

     undist = undistort(img)

     #sobel算子

     x_sobel = abs_sobel_thresh(undist,thresh = (22,100))

     #hls颜色阈值

     color_transforms = hls_select(undist,thresh=(150,255))

     #sobel加hls

     color_x_sobel = np.zeros_like(x_sobel)

     color_x_sobel[ (x_sobel == 1) | (color_transforms == 1) ] = 1



     #弯曲图像

     warped_img, unpersp, Minv = warp(color_x_sobel)



     #画线

     find_line_imgae,left_fit,right_fit = find_lines(warped_img,print = False)



     #check

     status = check(left_fit,right_fit)





     if status == True:

     last_left , last_right = left_fit,right_fit

     else:

     left_fit,right_fit = last_left,last_right



     #算曲率

     left_curverad, right_curverad, center = curvature(left_fit,right_fit,find_line_imgae,print_data = False)

     #画图

     result = draw_lines(undist,warped_img,left_fit,right_fit,left_curverad,right_curverad,center,show_img=False)



     return result





 #Create video file pipeline


 output = 'test_video.mp4'

 clip1 = VideoFileClip("project_video.mp4")

 #clip1 = VideoFileClip("project_video.mp4").subclip(20,28)



 out_clip = clip1.fl_image(process_video) #NOTE: this function expects color images!!

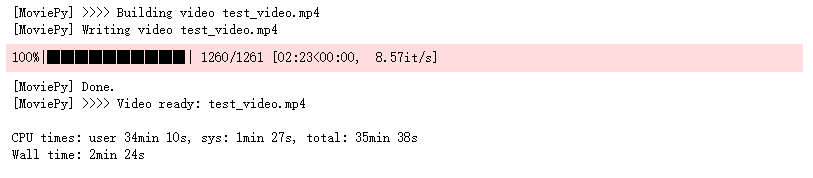

 %time out_clip.write_videofile(output, audio=False)

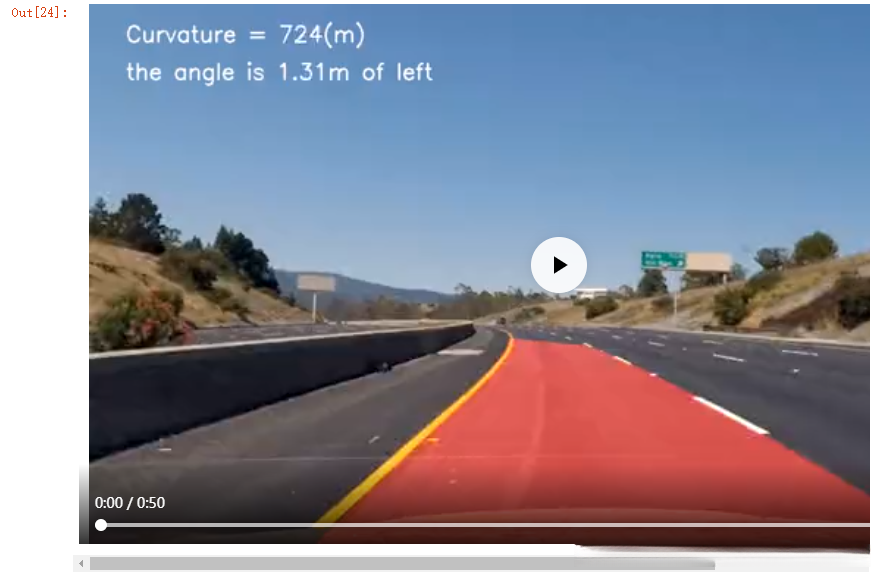

 HTML("""


 <video width="960" height="540" controls>

   <source src="{0}">

 </video>

 """.format(output))
