压缩感知的图像仿真（MATLAB源代码）

    % compressed sensing example
    %
    %___DESCRIPTION___
    % MATLAB implementation of compressive sensing example as described in R.
    % Baraniuk, Compressive Sensing, IEEE Signal Processing Magazine, [118],
    % July 2007. The code acquires 250 averaged random measurements of a 2500
    % pixel image. We assume that the image has a sparse representation in the
    % DCT domain (not very sparse in practice). Hence the image can be
    % recovered from its compressed form using basis pursuit.
    %
    %___DEPENDENCIES___
    % Requires the MATLAB toolbox l_1-MAGIC: Recovery of Sparse Signals via Convex
    % Programming v1.11 by J. Candes and J. Romberg, Caltech, 2005.
    %
    %___VARIABLES___
    % x = original signal (nx1) y = compressed signal (mx1) Phi = measurement
    % matrix (mxn) Psi = Basis functions (nxn) Theta = Phi * Psi (mxn) s =
    % sparse coefficient vector (to be determined) (nx1)
    %
    %___PROBLEM___
    % Invert the matrix equation y = Theta * s and therefore recover hat_x as
    % k-sparse linear combination of basis functions contained in Psi. Note
    % also that y = Phi * x.
    %
    %___SOLUTION___
    % Let Phi be a matrix of i.i.d. Gaussian variables. Solve matrix inversion
    % problem using basis pursuit (BP).

    %___CREATED___
    % o By S.Gibson, School of Physical Sciences, University of Kent.
    % o 1st May, 2013.
    % o version 1.0
    % o NOTES: If the max number of iterations exceeds 25, error sometimes
    %   occurs in l1eq_pd function call.
    %
    %___DISCLAIMER___
    % The code below is my interpretation of Baraniuk's compressed sensing
    % article. I don't claim to be an authority on the subject!


    %___INPUT IMAGE___
    clear, close all, clc
    A = imread('lenaGray.bmp');
    % A = A([50:99],[50:99]);
    A = A([250:299],[250:299]); % 提取图像的一个子区域
    x = double(A(:));
    n = length(x);

    %___MEASUREMENT MATRIX___
    m = 1000; % NOTE: small error still present after increasing m to 1500;
    Phi = randn(m,n);
    %__ALTERNATIVES TO THE ABOVE MEASUREMENT MATRIX___
    %Phi = (sign(randn(m,n))+ones(m,n))/2; % micro mirror array (mma) e.g. single
    %pixel camera Phi = orth(Phi')'; % NOTE: See Candes & Romberg, l1
    %magic, Caltech, 2005.

    %___COMPRESSION___
    y = Phi*x;

    %___THETA___
    % NOTE: Avoid calculating Psi (nxn) directly to avoid memory issues.
    Theta = zeros(m,n);
    for ii = 1:n
    ii
    ek = zeros(1,n);
    ek(ii) = 1;
    psi = idct(ek)';
    Theta(:,ii) = Phi*psi;
    end

    %___l2 NORM SOLUTION___ s2 = Theta\y; %s2 = pinv(Theta)*y
    s2 = pinv(Theta)*y;

    %___BP SOLUTION___
    s1 = l1eq_pd(s2,Theta,Theta',y,5e-3,20); % L1-magic toolbox
    %x = l1eq_pd(y,A,A',b,5e-3,32);

    %___DISPLAY SOLUTIONS___
    plot(s2,'b'), hold
    plot(s1,'r.-')
    legend('least squares','basis pursuit')
    title('solution to y = \Theta s')

    %___IMAGE RECONSTRUCTIONS___
    x2 = zeros(n,1);
    for ii = 1:n
    ii
    ek = zeros(1,n);
    ek(ii) = 1;
    psi = idct(ek)';
    x2 = x2+psi*s2(ii);
    end

    x1 = zeros(n,1);
    for ii = 1:n
    ii
    ek = zeros(1,n);
    ek(ii) = 1;
    psi = idct(ek)';
    x1 = x1+psi*s1(ii);
    end

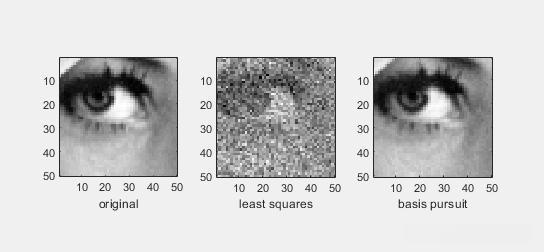

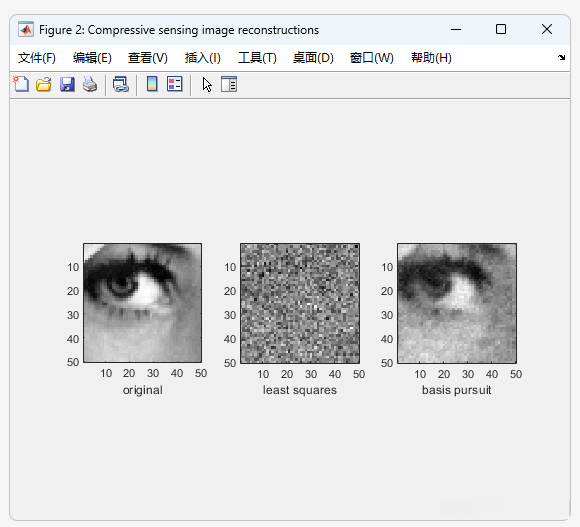

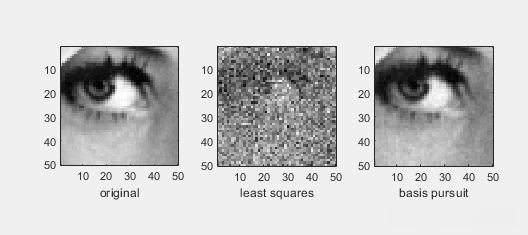

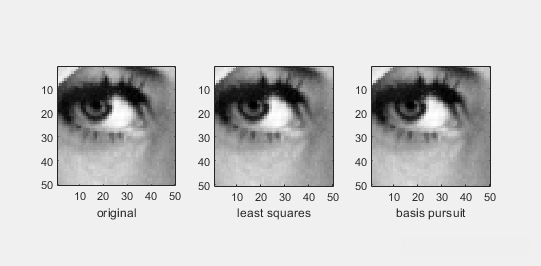

    figure('name','Compressive sensing image reconstructions')
    subplot(1,3,1), imagesc(reshape(x,50,50)), xlabel('original'), axis image
    subplot(1,3,2), imagesc(reshape(x2,50,50)), xlabel('least squares'), axis image
    subplot(1,3,3), imagesc(reshape(x1,50,50)), xlabel('basis pursuit'), axis image
    colormap gray

    minimize ||s||_1 subject to Theta * s = y
