【 MATLAB 】信号处理工具箱之 fft 案例分析

 clc


 clear

 close all

 % Convert a Gaussian pulse from the time domain to the frequency domain.

 %

 % Define signal parameters and a Gaussian pulse, X.



 Fs = 100;           % Sampling frequency

 t = -0.5:1/Fs:0.5;  % Time vector

 L = length(t);      % Signal length



 X = 1/(4*sqrt(2*pi*0.01))*(exp(-t.^2/(2*0.01)));

 % Plot the pulse in the time domain.

 figure();

 plot(t,X)

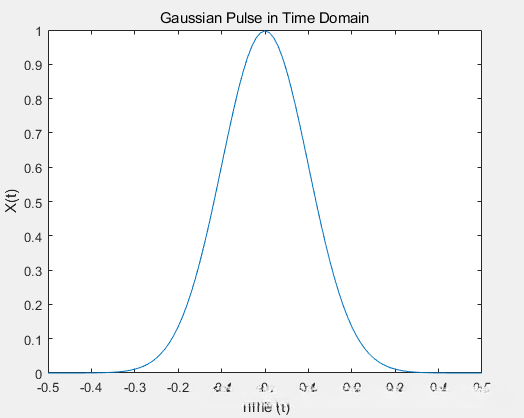

 title('Gaussian Pulse in Time Domain')

 xlabel('Time (t)')

 ylabel('X(t)')



 % To use the fft function to convert the signal to the frequency domain,

 % first identify a new input length that is the next power of 2 from the original signal length.

 % This will pad the signal X with trailing zeros in order to improve the performance of fft.



 n = 2^nextpow2(L);

 % Convert the Gaussian pulse to the frequency domain.

 %

 Y = fft(X,n);

 % Define the frequency domain and plot the unique frequencies.



 f = Fs*(0:(n/2))/n;

 P = abs(Y/n);



 figure();

 plot(f,P(1:n/2+1))

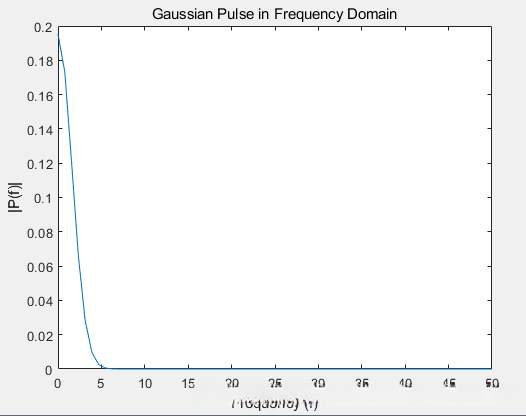

 title('Gaussian Pulse in Frequency Domain')

 xlabel('Frequency (f)')

 ylabel('|P(f)|')










    AI写代码

 clc


 clear

 close all

 % Compare cosine waves in the time domain and the frequency domain.

 %

 % Specify the parameters of a signal with a sampling frequency of 1kHz and a signal duration of 1 second.



 Fs = 1000;                    % Sampling frequency

 T = 1/Fs;                     % Sampling period

 L = 1000;                     % Length of signal

 t = (0:L-1)*T;                % Time vector

 % Create a matrix where each row represents a cosine wave with scaled frequency.

 % The result, X, is a 3-by-1000 matrix. The first row has a wave frequency of 50,

 % the second row has a wave frequency of 150, and the third row has a wave frequency of 300.



 x1 = cos(2*pi*50*t);          % First row wave

 x2 = cos(2*pi*150*t);         % Second row wave

 x3 = cos(2*pi*300*t);         % Third row wave



 X = [x1; x2; x3];

 % Plot the first 100 entries from each row of X in a single figure in order and compare their frequencies.



 figure();

 for i = 1:3

     subplot(3,1,i)

     plot(t(1:100),X(i,1:100))

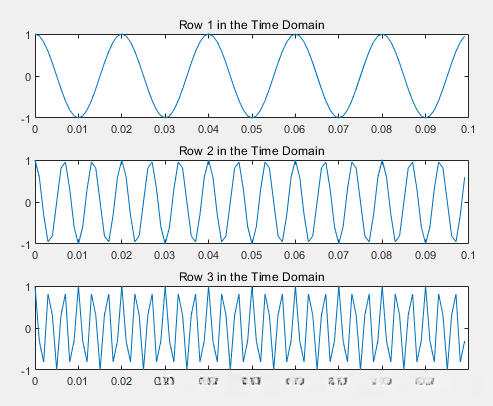

     title(['Row ',num2str(i),' in the Time Domain'])

 end



 % For algorithm performance purposes, fft allows you to pad the input with trailing zeros.

 % In this case, pad each row of X with zeros so that the length of each row is the next higher power of 2 from the current length.

 % Define the new length using the nextpow2 function.



 n = 2^nextpow2(L);

 % Specify the dim argument to use fft along the rows of X, that is, for each signal.



 dim = 2;

 % Compute the Fourier transform of the signals.



 Y = fft(X,n,dim);

 % Calculate the double-sided spectrum and single-sided spectrum of each signal.



 P2 = abs(Y/L);

 P1 = P2(:,1:n/2+1);

 P1(:,2:end-1) = 2*P1(:,2:end-1);

 % In the frequency domain, plot the single-sided amplitude spectrum for each row in a single figure.



 figure();

 for i=1:3

     subplot(3,1,i)

     plot(0:(Fs/n):(Fs/2-Fs/n),P1(i,1:n/2))

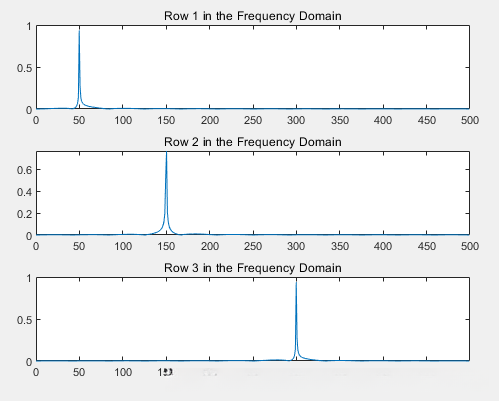

     title(['Row ',num2str(i),' in the Frequency Domain'])

 end
