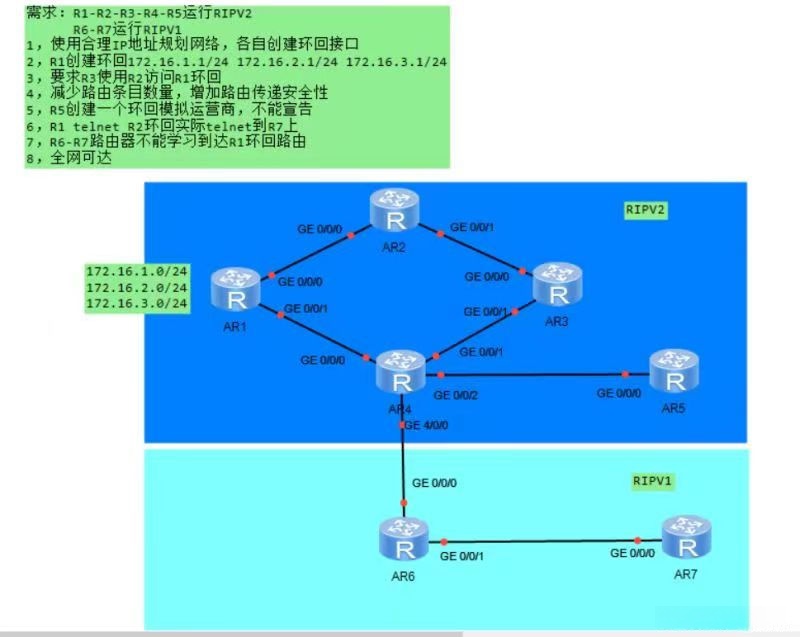

RIP综合实验

阅读量：

R1：

复制代码
 [r1]int g0/0/0


 [r1-GigabitEthernet0/0/0]ip address 12.0.0.1 24

 Jul 13 2022 16:17:17-08:00 r1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r1-GigabitEthernet0/0/0]int g0/0/1

 [r1-GigabitEthernet0/0/1]ip address 14.0.0.1 24

 Jul 13 2022 16:17:52-08:00 r1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

 on the interface GigabitEthernet0/0/1 has entered the UP state.

 [r1-GigabitEthernet0/0/1]int l0

 [r1-LoopBack0]ip address 1.1.1.1 24

 [r1-LoopBack0]q

 [r1]int l1

 [r1-LoopBack1]ip address 172.16.1.1 24

 [r1-LoopBack1]int l2

 [r1-LoopBack2]ip address 172.16.2.1 24

 [r1-LoopBack2]int l3

 [r1-LoopBack3]ip address 172.16.3.1 24

 [r1-LoopBack3]q
复制代码
 [r1]rip


 [r1-rip-1]v 2

 [r1-rip-1]network 12.0.0.0

 [r1-rip-1]network 14.0.0.0

 [r1-rip-1]network 1.0.0.0

 [r1-rip-1]network 172.16.0.0

 [r1-rip-1]q

 [r1]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 7        Routes : 8



 RIP routing table status : <Active>

      Destinations : 7        Routes : 8



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     2.2.2.0/24  RIP     100  1           D   12.0.0.2        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  2           D   12.0.0.2        GigabitEthernet

 0/0/0

                 RIP     100  2           D   14.0.0.2        GigabitEthernet

 0/0/1

     4.4.4.0/24  RIP     100  1           D   14.0.0.2        GigabitEthernet

 0/0/1

    23.0.0.0/24  RIP     100  1           D   12.0.0.2        GigabitEthernet

 0/0/0

    34.0.0.0/24  RIP     100  1           D   14.0.0.2        GigabitEthernet

 0/0/1

    45.0.0.0/24  RIP     100  1           D   14.0.0.2        GigabitEthernet

 0/0/1

    46.0.0.0/24  RIP     100  1           D   14.0.0.2        GigabitEthernet

 0/0/1



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r1]int g0/0/0


 [r1-GigabitEthernet0/0/0]rip summary-address 172.16.0.0 255.255.252.0

 [r1-GigabitEthernet0/0/0]int g0/0/1

 [r1-GigabitEthernet0/0/1]rip summary-address 172.16.0.0 255.255.252.0

 [r1-GigabitEthernet0/0/1]q

 [r1]ip route-static 172.16.0.0 22 n 0
复制代码
 [r1]int g0/0/0


 [r1-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r1-GigabitEthernet0/0/0]q

 [r1]int g0/0/1

 [r1-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 123456

 [r1-GigabitEthernet0/0/1]q
复制代码
 [r1]q


 <r1>telnet 2.2.2.2

   Press CTRL_] to quit telnet mode

   Trying 2.2.2.2 ...

   Connected to 2.2.2.2 ...



 Login authentication





 Username:admin

 Password:

   -----------------------------------------------------------------------------



   User last login information:

   -----------------------------------------------------------------------------

   Access Type: Telnet

   IP-Address : 67.0.0.1

   Time       : 2022-07-13 17:55:26-08:00

   -----------------------------------------------------------------------------

 <r7>

R2:

复制代码
 [r2]int g 0/0/0


 [r2-GigabitEthernet0/0/0]ip address 12.0.0.2 24

 Jul 13 2022 16:21:54-08:00 r2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r2-GigabitEthernet0/0/0]int g0/0/1

 [r2-GigabitEthernet0/0/1]ip address 23.0.0.1 24

 Jul 13 2022 16:22:28-08:00 r2 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

 on the interface GigabitEthernet0/0/1 has entered the UP state.

 [r2-GigabitEthernet0/0/1]int l0

 [r2-LoopBack0]ip address 2.2.2.2 24

 [r2-LoopBack0]q
复制代码
 [r2]rip


 [r2-rip-1]v 2

 [r2-rip-1]network 12.0.0.0

 [r2-rip-1]network 23.0.0.0

 [r2-rip-1]network 2.0.0.0

 [r2-rip-1]q

 [r2]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 10       Routes : 13



 RIP routing table status : <Active>

      Destinations : 10       Routes : 13



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     1.1.1.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  1           D   23.0.0.2        GigabitEthernet

 0/0/1

     4.4.4.0/24  RIP     100  2           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   23.0.0.2        GigabitEthernet

 0/0/1

    14.0.0.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0

    34.0.0.0/24  RIP     100  1           D   23.0.0.2        GigabitEthernet

 0/0/1

    45.0.0.0/24  RIP     100  2           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   23.0.0.2        GigabitEthernet

 0/0/1

    46.0.0.0/24  RIP     100  2           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   23.0.0.2        GigabitEthernet

 0/0/1

      172.16.1.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0

      172.16.2.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0

      172.16.3.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r2]int g0/0/0


 [r2-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r2-GigabitEthernet0/0/0]q

 [r2]int g0/0/1

 [r2-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 123456

 [r2-GigabitEthernet0/0/1]q
复制代码
 [r2] int g 0/0/0


 [r2-GigabitEthernet0/0/0]nat server protocol tcp global interface loopback 0 23

 inside 7.7.7.7 23

 Warning:The port 23 is well-known port. If you continue it may cause function fa

 ilure.

 Are you sure to continue?[Y/N]:y

 [r2-GigabitEthernet0/0/0]q
复制代码
 [r2]acl 2000


 [r2-acl-basic-2000]rule permit source 7.0.0.0 0

 [r2-acl-basic-2000]q

 [r2]int g0/0/0

 [r2-GigabitEthernet0/0/0]rip metricin 2000 10

 [r2-GigabitEthernet0/0/0]q

 [r2]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 12       Routes : 18



 RIP routing table status : <Active>

      Destinations : 12       Routes : 18



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     0.0.0.0/0   RIP     100  3           D   23.0.0.2        GigabitEthernet

 0/0/1

                 RIP     100  3           D   12.0.0.1        GigabitEthernet

 0/0/0

     1.1.1.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  1           D   23.0.0.2        GigabitEthernet

 0/0/1

     4.4.4.0/24  RIP     100  2           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   23.0.0.2        GigabitEthernet

 0/0/1

     6.6.6.0/24  RIP     100  3           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  3           D   23.0.0.2        GigabitEthernet

 0/0/1

     7.0.0.0/8   RIP     100  4           D   23.0.0.2        GigabitEthernet

 0/0/1

    14.0.0.0/24  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0

    34.0.0.0/24  RIP     100  1           D   23.0.0.2        GigabitEthernet

 0/0/1

    45.0.0.0/24  RIP     100  2           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   23.0.0.2        GigabitEthernet

 0/0/1

    46.0.0.0/24  RIP     100  2           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   23.0.0.2        GigabitEthernet

 0/0/1

    67.0.0.0/24  RIP     100  3           D   12.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  3           D   23.0.0.2        GigabitEthernet

 0/0/1

      172.16.0.0/22  RIP     100  1           D   12.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0

R3:

复制代码
 [r3]int g0/0/0


 [r3-GigabitEthernet0/0/0]ip address 23.0.0.2 24

 Jul 13 2022 16:25:12-08:00 r3 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r3-GigabitEthernet0/0/0]int g0/0/1

 [r3-GigabitEthernet0/0/1]ip address 34.0.0.1 24

 Jul 13 2022 16:25:29-08:00 r3 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

 on the interface GigabitEthernet0/0/1 has entered the UP state.

 [r3-GigabitEthernet0/0/1]int l0

 [r3-LoopBack0]ip address 3.3.3.3 24

 [r3-LoopBack0]q
复制代码
 [r3]rip


 [r3-rip-1]v 2

 [r3-rip-1]network 23.0.0.0

 [r3-rip-1]network 34.0.0.0

 [r3-rip-1]network 3.0.0.0

 [r3-rip-1]q

 [r3]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 10       Routes : 14



 RIP routing table status : <Active>

      Destinations : 10       Routes : 14



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     1.1.1.0/24  RIP     100  2           D   23.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   34.0.0.2        GigabitEthernet

 0/0/1

     2.2.2.0/24  RIP     100  1           D   23.0.0.1        GigabitEthernet

 0/0/0

     4.4.4.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

    12.0.0.0/24  RIP     100  1           D   23.0.0.1        GigabitEthernet

 0/0/0

    14.0.0.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

    45.0.0.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

    46.0.0.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

      172.16.1.0/24  RIP     100  2           D   23.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   34.0.0.2        GigabitEthernet

 0/0/1

      172.16.2.0/24  RIP     100  2           D   23.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   34.0.0.2        GigabitEthernet

 0/0/1

      172.16.3.0/24  RIP     100  2           D   23.0.0.1        GigabitEthernet

 0/0/0

                 RIP     100  2           D   34.0.0.2        GigabitEthernet

 0/0/1



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r3]acl 2000


 [r3-acl-basic-2000]rule permit source 172.16.0.0 0

 [r3-acl-basic-2000]rule permit source 1.1.1.0 0

 [r3-acl-basic-2000]q

 [r3]int g0/0/1

 [r3-GigabitEthernet0/0/1]rip metricin 2000 2

 [r3-GigabitEthernet0/0/1]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 8        Routes : 8



 RIP routing table status : <Active>

      Destinations : 8        Routes : 8



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     1.1.1.0/24  RIP     100  2           D   23.0.0.1        GigabitEthernet

 0/0/0

     2.2.2.0/24  RIP     100  1           D   23.0.0.1        GigabitEthernet

 0/0/0

     4.4.4.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

    12.0.0.0/24  RIP     100  1           D   23.0.0.1        GigabitEthernet

 0/0/0

    14.0.0.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

    45.0.0.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

    46.0.0.0/24  RIP     100  1           D   34.0.0.2        GigabitEthernet

 0/0/1

      172.16.0.0/22  RIP     100  2           D   23.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0



 [r3-GigabitEthernet0/0/1]q
复制代码
 [r3]int g0/0/0


 [r3-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r3-GigabitEthernet0/0/0]int g0/0/1

 [r3-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 123456

 [r3-GigabitEthernet0/0/1]q

R4:

复制代码
 [r4]int g0/0/0


 [r4-GigabitEthernet0/0/0]ip address 14.0.0.2 24

 [r4-GigabitEthernet0/0/0]

 Jul 13 2022 16:27:13-08:00 r4 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r4-GigabitEthernet0/0/0]int g0/0/1

 [r4-GigabitEthernet0/0/1]ip address 34.0.0.2 24

 Jul 13 2022 16:27:42-08:00 r4 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

 on the interface GigabitEthernet0/0/1 has entered the UP state.

 [r4-GigabitEthernet0/0/1]int g0/0/2

 [r4-GigabitEthernet0/0/2]ip address 45.0.0.1 24

 [r4-GigabitEthernet0/0/2]

 Jul 13 2022 16:28:12-08:00 r4 %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP

 on the interface GigabitEthernet0/0/2 has entered the UP state.

 [r4-GigabitEthernet0/0/2]int g4/0/0

 [r4-GigabitEthernet4/0/0]ip address 46.0.0.1 24

 [r4-GigabitEthernet4/0/0]

 Jul 13 2022 16:28:45-08:00 r4 %%01IFNET/4/LINK_STATE(l)[3]:The line protocol IP

 on the interface GigabitEthernet4/0/0 has entered the UP state.

 [r4-GigabitEthernet4/0/0]int l0

 [r4-LoopBack0]ip address 4.4.4.4 24

 [r4-LoopBack0]q
复制代码
 [r4]rip


 [r4-rip-1]v 2

 [r4-rip-1]network 34.0.0.0

 [r4-rip-1]network 14.0.0.0

 [r4-rip-1]network 45.0.0.0

 [r4-rip-1]network 46.0.0.0

 [r4-rip-1]network 4.0.0.0

 [r4-rip-1]q

 [r4]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 8        Routes : 9



 RIP routing table status : <Active>

      Destinations : 8        Routes : 9



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     1.1.1.0/24  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0

     2.2.2.0/24  RIP     100  2           D   34.0.0.1        GigabitEthernet

 0/0/1

                 RIP     100  2           D   14.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  1           D   34.0.0.1        GigabitEthernet

 0/0/1

    12.0.0.0/24  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0

    23.0.0.0/24  RIP     100  1           D   34.0.0.1        GigabitEthernet

 0/0/1

      172.16.1.0/24  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0

      172.16.2.0/24  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0

      172.16.3.0/24  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r4]int g0/0/0


 [r4-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r4-GigabitEthernet0/0/0]q

 [r4]int g0/0/1

 [r4-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 123456

 [r4-GigabitEthernet0/0/1]int g0/0/2

 [r4-GigabitEthernet0/0/2]rip authentication-mode md5 usual cipher 123456

 [r4-GigabitEthernet0/0/2]q

 [r4]int g4/0/0

 [r4-GigabitEthernet4/0/0]rip authentication-mode md5 usual cipher 123456

 [r4-GigabitEthernet4/0/0]q
复制代码
 [r4]acl 2000


 [r4-acl-basic-2000]rule permit source 12.0.0.0  0

 [r4-acl-basic-2000]q

 [r4]int g0/0/0

 [r4-GigabitEthernet0/0/0]rip metricin 2000 10

 [r4-GigabitEthernet0/0/0]q

 [r4]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 10       Routes : 11



 RIP routing table status : <Active>

      Destinations : 10       Routes : 11



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     0.0.0.0/0   RIP     100  1           D   45.0.0.2        GigabitEthernet

 0/0/2

     1.1.1.0/24  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0

     2.2.2.0/24  RIP     100  2           D   34.0.0.1        GigabitEthernet

 0/0/1

                 RIP     100  2           D   14.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  1           D   34.0.0.1        GigabitEthernet

 0/0/1

     6.6.6.0/24  RIP     100  1           D   46.0.0.2        GigabitEthernet

 4/0/0

     7.0.0.0/8   RIP     100  2           D   46.0.0.2        GigabitEthernet

 4/0/0

    12.0.0.0/24  RIP     100  2           D   34.0.0.1        GigabitEthernet

 0/0/1

    23.0.0.0/24  RIP     100  1           D   34.0.0.1        GigabitEthernet

 0/0/1

    67.0.0.0/24  RIP     100  1           D   46.0.0.2        GigabitEthernet

 4/0/0

      172.16.0.0/22  RIP     100  1           D   14.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0

R5:

复制代码
 [r5]int g0/0/0


 [r5-GigabitEthernet0/0/0]ip address 45.0.0.2 24

 Jul 13 2022 16:30:47-08:00 r5 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r5-GigabitEthernet0/0/0]int l0

 [r5-LoopBack0]ip address 5.5.5.5 24

 [r5-LoopBack0]q
复制代码
 [r5]rip


 [r5-rip-1]v 2

 [r5-rip-1]network 45.0.0.0

 [r5-rip-1]q

 [r5]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 12       Routes : 12



 RIP routing table status : <Active>

      Destinations : 12       Routes : 12



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     1.1.1.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0

     2.2.2.0/24  RIP     100  3           D   45.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0

     4.4.4.0/24  RIP     100  1           D   45.0.0.1        GigabitEthernet

 0/0/0

    12.0.0.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0

    14.0.0.0/24  RIP     100  1           D   45.0.0.1        GigabitEthernet

 0/0/0

    23.0.0.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0

    34.0.0.0/24  RIP     100  1           D   45.0.0.1        GigabitEthernet

 0/0/0

    46.0.0.0/24  RIP     100  1           D   45.0.0.1        GigabitEthernet

 0/0/0

      172.16.1.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0

      172.16.2.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0

      172.16.3.0/24  RIP     100  2           D   45.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r5]int g0/0/0


 [r5-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r5-GigabitEthernet0/0/0]q
复制代码
 [r5]rip


 [r5-rip-1]default-route originate

 [r5-rip-1]q

R6:

复制代码
 [r6]int g0/0/0


 [r6-GigabitEthernet0/0/0]ip address 46.0.0.2 24

 [r6-GigabitEthernet0/0/0]

 Jul 13 2022 16:32:23-08:00 r6 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r6-GigabitEthernet0/0/0]int g0/0/1

 [r6-GigabitEthernet0/0/1]ip address 67.0.0.1 24

 Jul 13 2022 16:32:51-08:00 r6 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP

 on the interface GigabitEthernet0/0/1 has entered the UP state.

 [r6-GigabitEthernet0/0/1]int l0

 [r6-LoopBack0]ip address 6.6.6.6 24

 [r6-LoopBack0]q
复制代码
 [r6]rip


 [r6-rip-1]v 1

 [r6-rip-1]network 46.0.0.0

 [r6-rip-1]network 67.0.0.0

 [r6-rip-1]network 6.0.0.0

 [r6-rip-1]q

 [r6]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 1        Routes : 1



 RIP routing table status : <Active>

      Destinations : 1        Routes : 1



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     7.0.0.0/8   RIP     100  1           D   67.0.0.2        GigabitEthernet

 0/0/1



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r6]int g0/0/1


 [r6-GigabitEthernet0/0/1]rip authentication-mode md5 usual cipher 123456

 [r6-GigabitEthernet0/0/1]q

 [r6]int g0/0/0

 [r6-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r6-GigabitEthernet0/0/0]q



 ​
复制代码
 [r6]int g0/0/0


 [r6-GigabitEthernet0/0/0]rip version 2

 [r6-GigabitEthernet0/0/0]q

 [r6]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 11       Routes : 11



 RIP routing table status : <Active>

      Destinations : 11       Routes : 11



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     1.1.1.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

     2.2.2.0/24  RIP     100  3           D   46.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

     4.4.4.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

     7.0.0.0/8   RIP     100  1           D   67.0.0.2        GigabitEthernet

 0/0/1

    12.0.0.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

    14.0.0.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

    23.0.0.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

    34.0.0.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

    45.0.0.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

      172.16.0.0/22  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r6]acl 2000


 [r6-acl-basic-2000]rule deny source 172.16.0.0 0

 [r6-acl-basic-2000]rule deny source 1.1.1.0 0

 [r6-acl-basic-2000]rule permit source any

 [r6-acl-basic-2000]q

 [r6]rip

 [r6-rip-1]filter-policy 2000 import

 [r6-rip-1]q

 [r6]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 10       Routes : 10



 RIP routing table status : <Active>

      Destinations : 10       Routes : 10



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     0.0.0.0/0   RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

     2.2.2.0/24  RIP     100  3           D   46.0.0.1        GigabitEthernet

 0/0/0

     3.3.3.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

     4.4.4.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

     7.0.0.0/8   RIP     100  1           D   67.0.0.2        GigabitEthernet

 0/0/1

    12.0.0.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

    14.0.0.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

    23.0.0.0/24  RIP     100  2           D   46.0.0.1        GigabitEthernet

 0/0/0

    34.0.0.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0

    45.0.0.0/24  RIP     100  1           D   46.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0

R7:

复制代码
 [r7]int g0/0/0


 [r7-GigabitEthernet0/0/0]ip address 67.0.0.2 24

 Jul 13 2022 16:34:21-08:00 r7 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP

 on the interface GigabitEthernet0/0/0 has entered the UP state.

 [r7-GigabitEthernet0/0/0]int l0

 [r7-LoopBack0]ip address 7.7.7.7 24

 [r7-LoopBack0]q
复制代码
 [r7]rip


 [r7-rip-1]v 1

 [r7-rip-1]network 67.0.0.0

 [r7-rip-1]network 7.0.0.0

 [r7-rip-1]q

 [r7]display ip routing-table protocol rip

 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 2        Routes : 2



 RIP routing table status : <Active>

      Destinations : 2        Routes : 2



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     6.0.0.0/8   RIP     100  1           D   67.0.0.1        GigabitEthernet

 0/0/0

    46.0.0.0/8   RIP     100  1           D   67.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r7]int g0/0/0


 [r7-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher 123456

 [r7-GigabitEthernet0/0/0]q
复制代码
 [r7]display ip routing-table protocol rip


 Route Flags: R - relay, D - download to fib

 ------------------------------------------------------------------------------

 Public routing table : RIP

      Destinations : 11       Routes : 11



 RIP routing table status : <Active>

      Destinations : 11       Routes : 11



 Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface



     0.0.0.0/0   RIP     100  3           D   67.0.0.1        GigabitEthernet

 0/0/0

     2.0.0.0/8   RIP     100  4           D   67.0.0.1        GigabitEthernet

 0/0/0

     3.0.0.0/8   RIP     100  3           D   67.0.0.1        GigabitEthernet

 0/0/0

     4.0.0.0/8   RIP     100  2           D   67.0.0.1        GigabitEthernet

 0/0/0

     6.0.0.0/8   RIP     100  1           D   67.0.0.1        GigabitEthernet

 0/0/0

    12.0.0.0/8   RIP     100  3           D   67.0.0.1        GigabitEthernet

 0/0/0

    14.0.0.0/8   RIP     100  2           D   67.0.0.1        GigabitEthernet

 0/0/0

    23.0.0.0/8   RIP     100  3           D   67.0.0.1        GigabitEthernet

 0/0/0

    34.0.0.0/8   RIP     100  2           D   67.0.0.1        GigabitEthernet

 0/0/0

    45.0.0.0/8   RIP     100  2           D   67.0.0.1        GigabitEthernet

 0/0/0

    46.0.0.0/8   RIP     100  1           D   67.0.0.1        GigabitEthernet

 0/0/0



 RIP routing table status : <Inactive>

      Destinations : 0        Routes : 0
复制代码
 [r7]aaa


 [r7-aaa]local-user admin privilege level 15 password cipher 123456

 [r7-aaa]local-user admin service-type telnet

 [r7-aaa]q

 [r7]user-interface vty 0 4

 [r7-ui-vty0-4]authentication-mode aaa

 [r7-ui-vty0-4]q

全部评论 (0)

还没有任何评论哟~

相关文章推荐

RIP综合实验

RIP综合实验 一、根据题目要求，我们可以用路由名称来规划网络（例如：AR1和AR2之间用12.0.0.0/24网段，环回都用1.1.1.1/24之类的） 接着AR1AR5进行RIPV2宣告，AR6A...

rip综合实验

实验题目 第一步配置各路由的ip 以r1为列子 [r1]inter [r1]interfaceLoopBack0 [r1[r1]inter [r1]interfaceLoopBack1 [r1Loop...

RIP综合实验

R1： [r1]intg0/0/0 [r1GigabitEthernet0/0/0]ipaddress12.0.0.124 Jul13202216:17:1708:00r1%%01IFNET/4/LI...

rip综合实验

分析 1.完成拓扑图。 2.地址规划并完成配置。 需求3：1、可使用过滤策略解决 2、增大metric值 需求4：子网汇总 需求6：1.做个端口映射 2\.在R2上做一个NATserver转换 需求7...

RIP综合实验

文章目录 完成如下的配置 配置IP 宣告 对AR1的环回进行汇总 在AR3的0/0/1接口上设置ACL和COST值 加密认证 在AR5上再创建一个环回，充当ISP，并且不能宣告 在AR6上的0/0/0...

RIP综合实验

按照如图分配网段，划分合理的IP地址： 1.配置IP：（例如r2） [r2]intg0/0/0 [r2GigabitEthernet0/0/0]ipadd [r2GigabitEthernet0/0/...

RIP综合实验

实验需求： 1R2R3R4R5运行RIPV2，R6R7运行RIPV11,使用合理IP地址规划网络，各自创建环回接口 2,R1创建环回172.16.1.1/24172.16.2.1/24172.16.3...

RIP实验综合

要求： R1R2R3R4R5RIP100运行版本2 R6R7RIP200运行版本1 1.使用合理IP地址规划网络，各自创建环回接口 2.R1创建环回172.16.1.1/24172.16.2.1/24...

RIP综合实验

第一步，搭建环境，配置接口IP地址和添加环路 R1 [Huawei]inlo0 [HuaweiLoopBack0]ipadd1.1.1.124 [HuaweiLoopBack0]ing0/0/1 [H...

RIP综合实验

实验要求： R1R2R3R4R5运行RIPV2，R6R7运行RIPV1 1、使用合理Ip地址规划网络，各自创建环回接口 2、R1创建环回172.16.1.1/24，172.16.2.1/24，172....
