python可视化DEM遥感影像（tif格式）||xarray使用

    import numpy as np
    import matplotlib.pyplot as plt
    import cartopy.crs as ccrs
    import cartopy.feature as cfeature
    from cartopy.io.shapereader import Reader
    from osgeo import gdal
    import cmaps
    import matplotlib as mpl
    from cartopy.mpl.ticker import LongitudeFormatter, LatitudeFormatter
    from matplotlib import rcParams

    BJ_tiff=r'D:\google\earth_engine\Gee_Gis_file\GuiZhou\毕节市\Bijie_Tif\Bijie.tif'
    BJ_DEM=r'D:\google\earth_engine\Gee_Gis_file\DEM\BJ_DEM_Elevation.tif'
    HeNan_tiff=r'D:\google\earth_engine\Gee_Gis_file\DEM\HeNan_Elevation.tif'

    if __name__=='__main__':

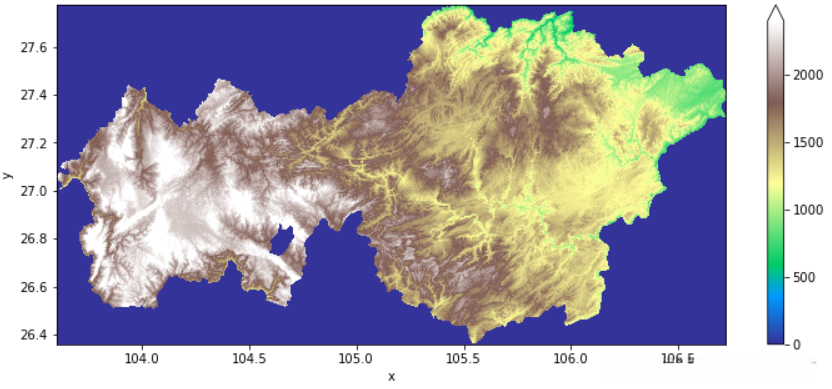

       BJ_dem=xr.open_rasterio(BJ_DEM)
       X, Y = np.meshgrid(BJ_dem.x,BJ_dem.y)
       Z=np.array(BJ_dem.sel(band=1))
       proj=ccrs.PlateCarree()
       extent = [min(BJ_dem.x),max(BJ_dem.x),min(BJ_dem.y),max(BJ_dem.y)]
       fig = plt.figure(figsize=(14, 10),dpi=600)
       ax = fig.add_subplot(1, 1, 1, projection=ccrs.PlateCarree())
       ax.set_xticks(np.arange(extent[0], extent[1] + 1,0.3), crs = proj)
       ax.set_yticks(np.arange(extent[-2], extent[-1] + 1,0.3), crs = proj)
       ax.xaxis.set_major_formatter(LongitudeFormatter(zero_direction_label=False))
       ax.yaxis.set_major_formatter(LatitudeFormatter())
       ax.set_extent(extent, crs=ccrs.PlateCarree())#增加经度和纬度
       shp_path = r'D:\google\earth_engine\Gee_Gis_file\GuiZhou\Bijie_IL\Bijie_IL.shp'
       proj = ccrs.PlateCarree()
       reader = Reader(shp_path)
       provinces = cfeature.ShapelyFeature(reader.geometries(), proj,edgecolor='k', facecolor='none',alpha=1)
       ax.add_feature(provinces, linewidth=0.65)
       lev=np.arange(0,2400,200)
       ticks=[0,200,400,600,800,1000,1200,1400,1600,1800,2000,2200,2400]

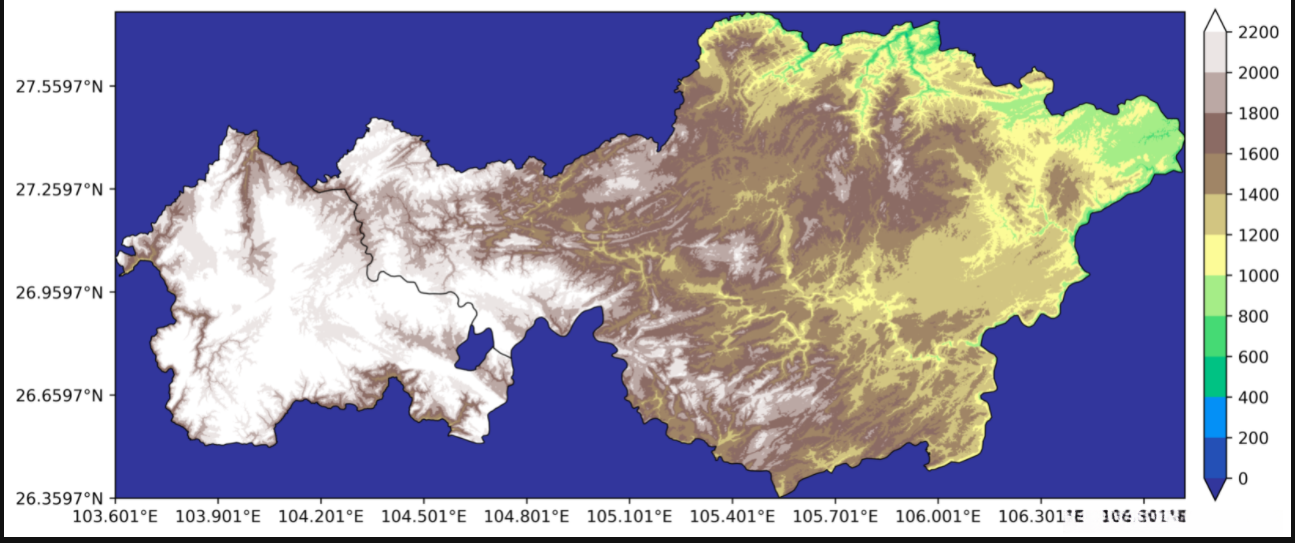

       cf=ax.contourf(X,Y,Z,levels=lev,extend='both',transform=ccrs.PlateCarree(),cmap=cmaps.MPL_terrain)
       b=plt.colorbar(cf,ticks=ticks,shrink=0.55,orientation='vertical',extend='both',pad=0.015,aspect=20)
    # plt.savefig('F:/Rpython/lp32/plot11.3.png',dpi=600)
       plt.show()
