CIFAR-10图像识别TensorFlow 2 实现

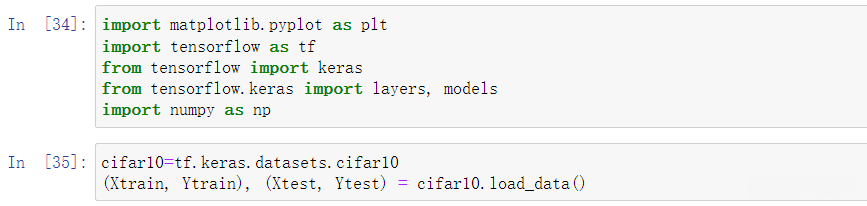

 import matplotlib.pyplot as plt


 import tensorflow as tf

 from tensorflow import keras

 from tensorflow.keras import layers, models

 import numpy as np



 cifar10=tf.keras.datasets.cifar10

 (Xtrain, Ytrain), (Xtest, Ytest) = cifar10.load_data()

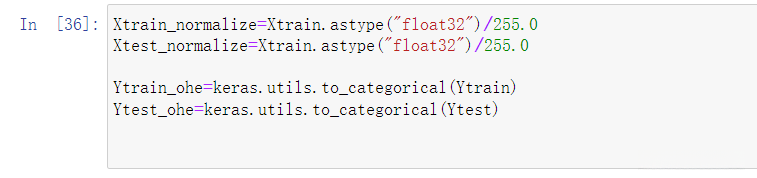

 Xtrain_normalize=Xtrain.astype("float32")/255.0


 Xtest_normalize=Xtrain.astype("float32")/255.0



 Ytrain_ohe=keras.utils.to_categorical(Ytrain)

 Ytest_ohe=keras.utils.to_categorical(Ytest)

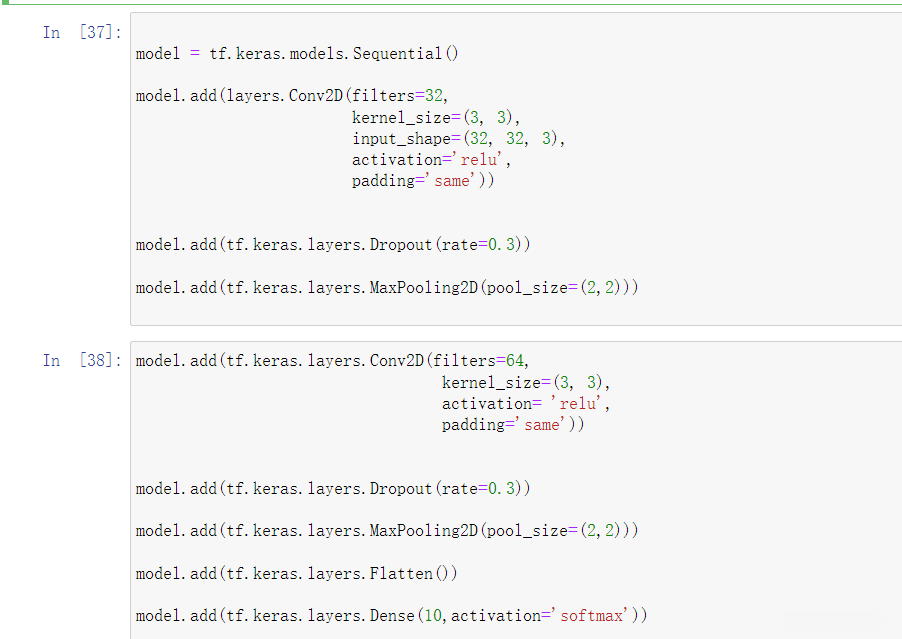

 model = tf.keras.models.Sequential()




 model.add(layers.Conv2D(filters=32,

                     kernel_size=(3, 3),

                     input_shape=(32, 32, 3),

                     activation='relu',

                     padding='same'))





 model.add(tf.keras.layers.Dropout(rate=0.3))



 model.add(tf.keras.layers.MaxPooling2D(pool_size=(2,2)))



 model.add(tf.keras.layers.Conv2D(filters=64,

                               kernel_size=(3, 3),

                               activation= 'relu',

                               padding='same'))





 model.add(tf.keras.layers.Dropout(rate=0.3))



 model.add(tf.keras.layers.MaxPooling2D(pool_size=(2,2)))



 model.add(tf.keras.layers.Flatten())



 model.add(tf.keras.layers.Dense(10,activation='softmax'))

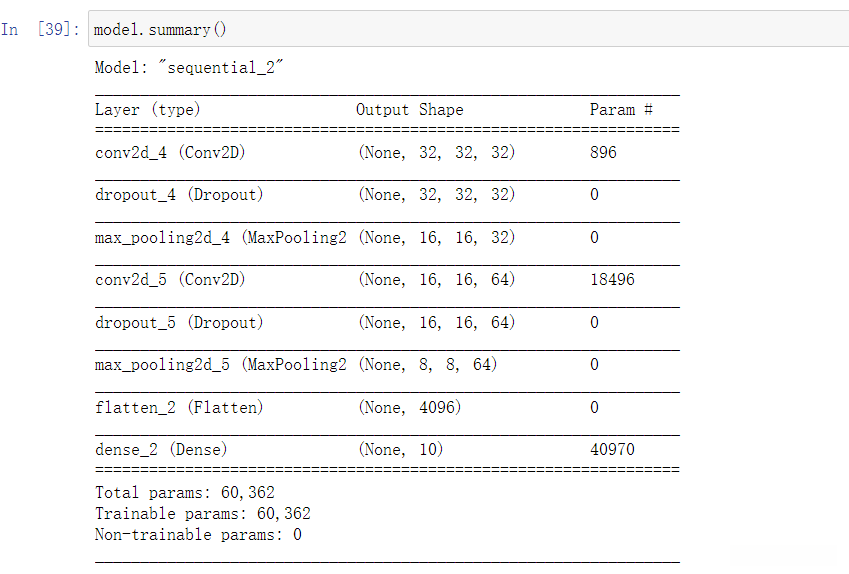

    model.summary()

 train_epochs=5


 batch_size=100

 model.compile(optimizer='adam',


           loss='categorical_crossentropy',

           metrics=['accuracy'])

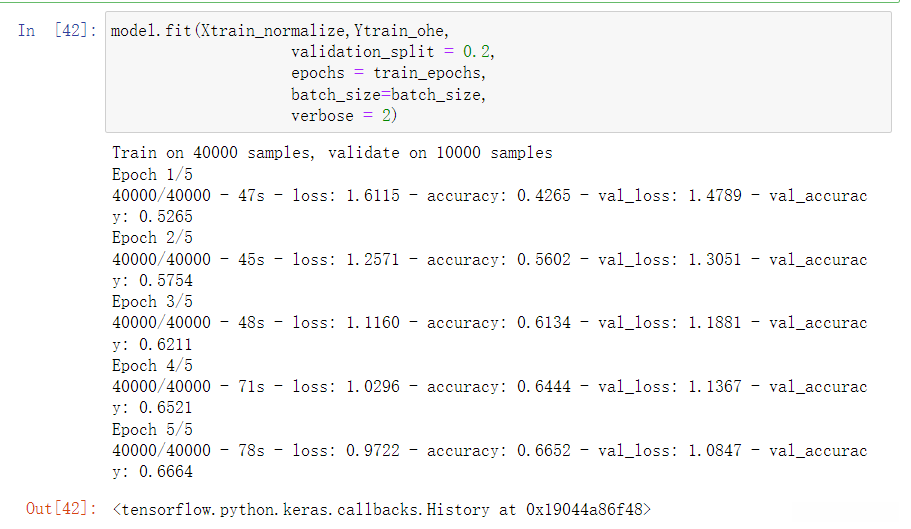

 model.fit(Xtrain_normalize,Ytrain_ohe,


                 validation_split = 0.2,

                 epochs = train_epochs,

                 batch_size=batch_size,

                 verbose = 2)

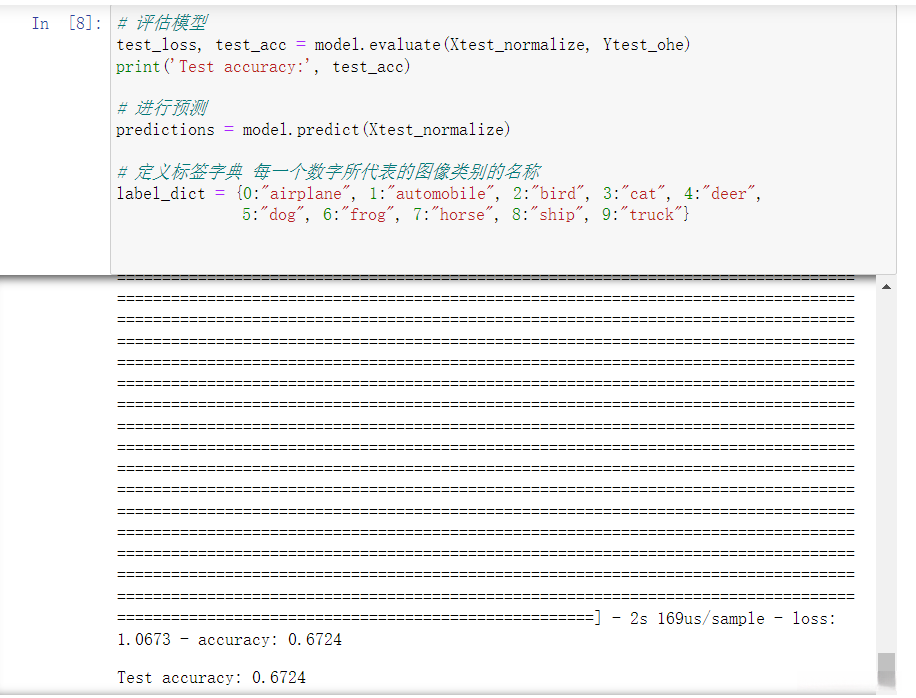

 # 评估模型


 test_loss, test_acc = model.evaluate(Xtest_normalize, Ytest_ohe)

 print('Test accuracy:', test_acc)



 # 进行预测

 predictions = model.predict(Xtest_normalize)



 # 定义标签字典 每一个数字所代表的图像类别的名称

 label_dict = {0:"airplane", 1:"automobile", 2:"bird", 3:"cat", 4:"deer",

           5:"dog", 6:"frog", 7:"horse", 8:"ship", 9:"truck"}

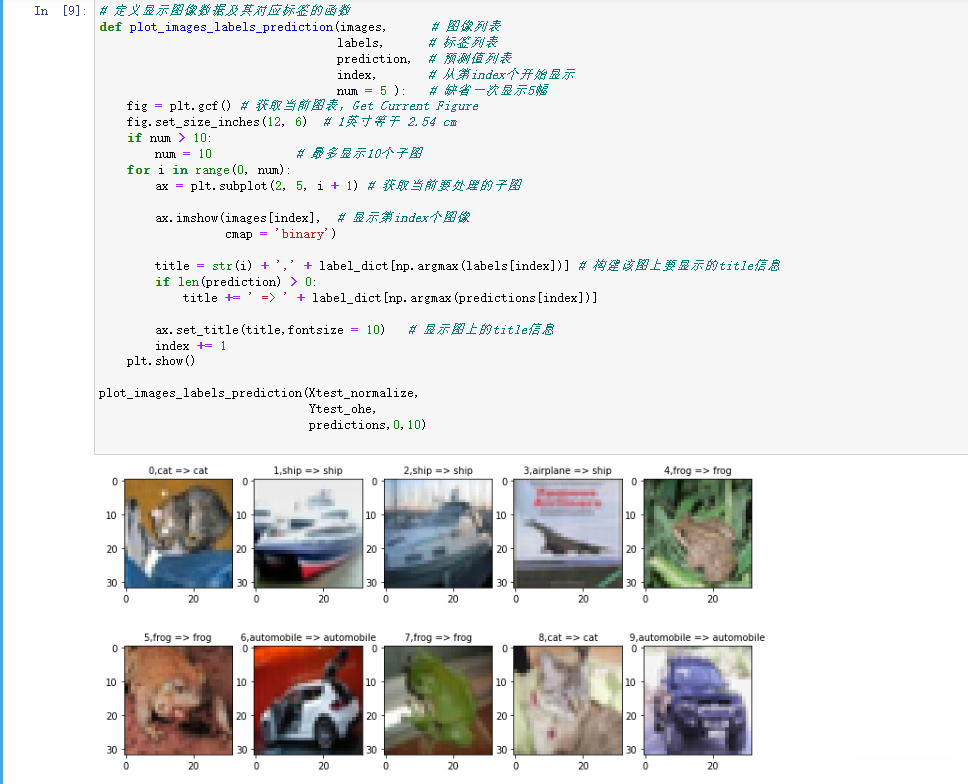

 # 定义显示图像数据及其对应标签的函数


 def plot_images_labels_prediction(images,      # 图像列表

                               labels,      # 标签列表

                               prediction,  # 预测值列表

                               index,       # 从第index个开始显示

                               num = 5 ):   # 缺省一次显示5幅

     fig = plt.gcf() # 获取当前图表，Get Current Figure

     fig.set_size_inches(12, 6)  # 1英寸等于 2.54 cm

     if num > 10:

     num = 10            # 最多显示10个子图

     for i in range(0, num):

     ax = plt.subplot(2, 5, i + 1) # 获取当前要处理的子图



     ax.imshow(images[index],  # 显示第index个图像

               cmap = 'binary')



     title = str(i) + ',' + label_dict[np.argmax(labels[index])] # 构建该图上要显示的title信息

     if len(prediction) > 0:

         title += ' => ' + label_dict[np.argmax(predictions[index])]



     ax.set_title(title,fontsize = 10)   # 显示图上的title信息

     index += 1

     plt.show()



 plot_images_labels_prediction(Xtest_normalize,

                           Ytest_ohe,

                           predictions,0,10)
