jsp mysql table_MySQL+Service+Servlet+Jsp实现Table表格分页展示数据

下面以一个示例讲解如何使用MySQL+Service+Servlet+Jsp实现Table表格分页展示数据：

eg：请假管理系统

要求如下：

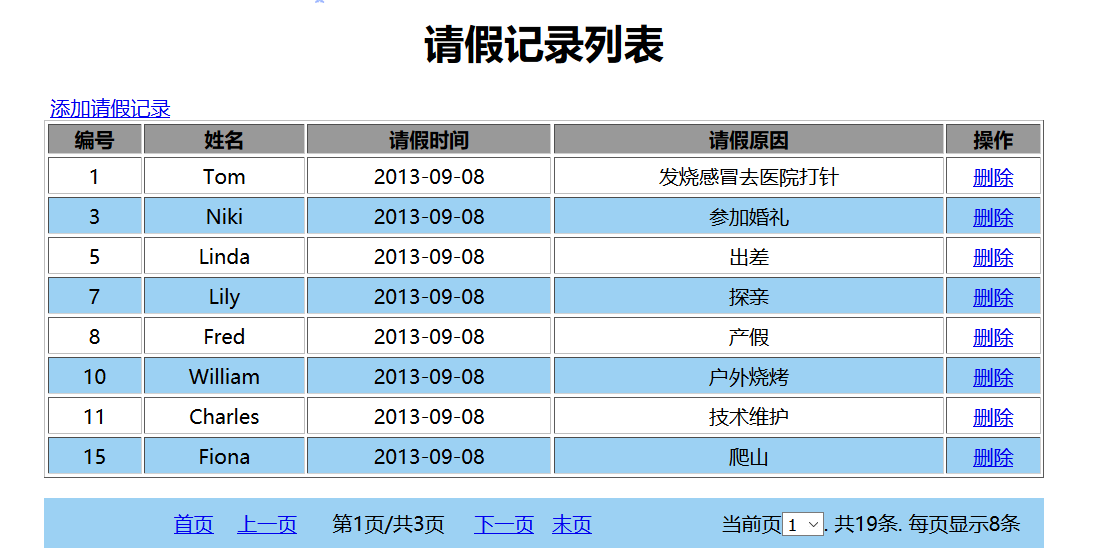

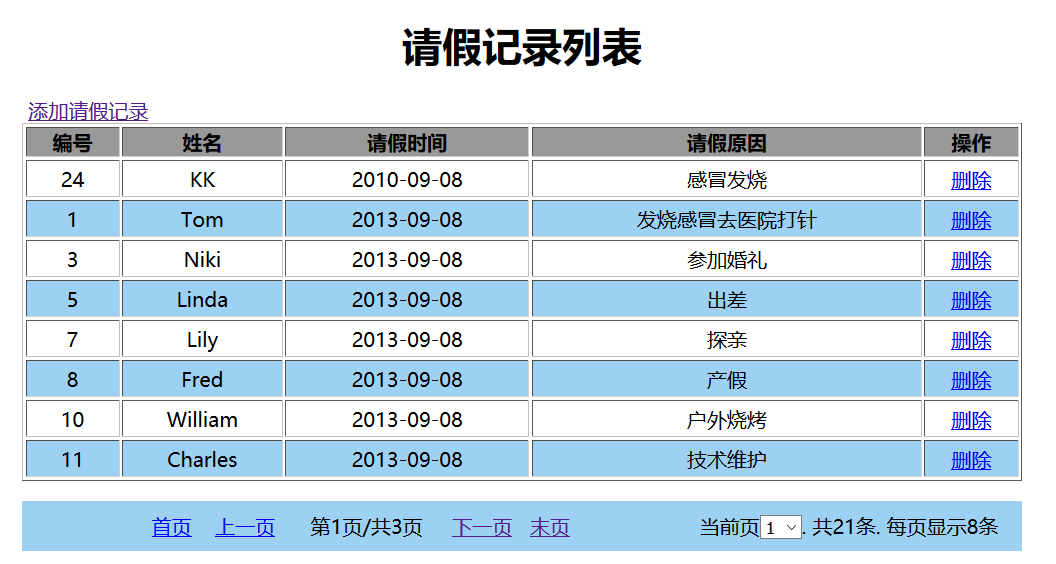

一、打开首页页面， 访问查询请假记录的 servlet , 将查询结果在列表页面进行分页展并按照请假时同升序排序。整个页面的标题需要加粗加大显示，请假记录列表要求使用式实现对表头文字加粗显示， 超链接 (包括 “ 删除” 和 “ 添加请假记录” 两个) 无下划线且 ’添加请假记录“字体为红色， 并实现信息列表隔行变色显示， 程序运行界面下：

点击 “添加请假记录“ 进入添加请假记录页面；如下图所示：

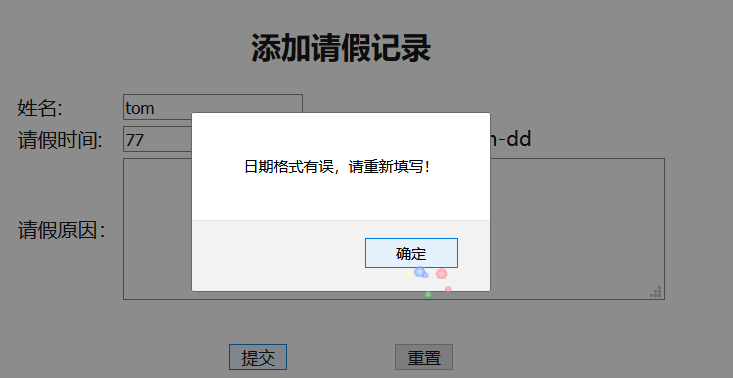

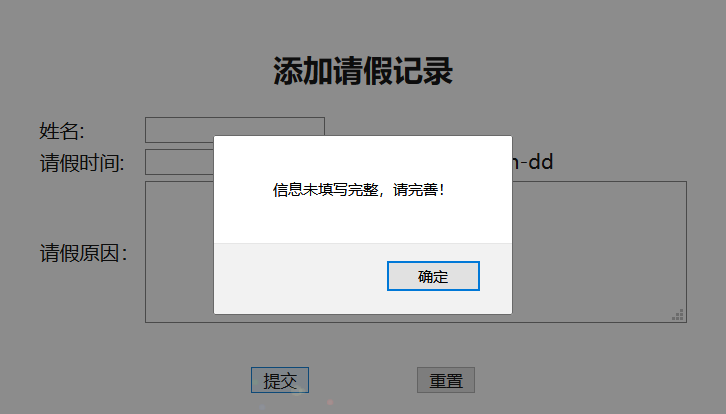

点击”提交“按钮提交表单时.要求使用‘jQuery对页面输入项进行验证.验证内包括姓名，请假shij、 请假原因的非空验证 ； 其中请假时间还必须进行格式验证 ，验证效果如下所示：

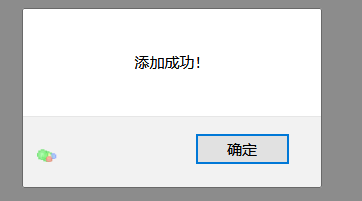

表单数据通过验证后. 则提交请求至添加请假记录的 Servlet:, 如添加成功，则给出成功提示，如下图：

点击 ”确定’ 后跳转至请假记录信息的列表页面， 并非显示最新的请假记录信息， 效果如下所示：

如果添加请假记录信息失败，同样给出添加失败提示，并跳转回添加请假记录页面，重新添加请假记录信息；

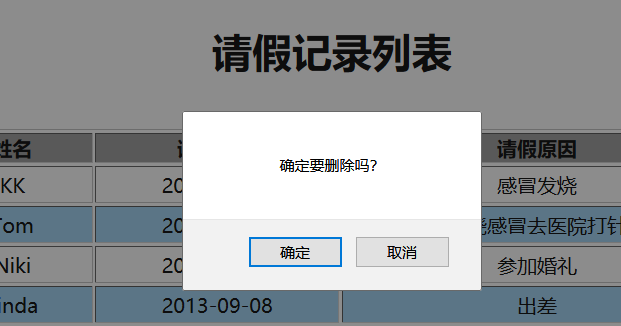

当用户点击某一条请假记录信息对应的 “删除” 超链接时， 首先弹出信息提示框确认是否删除 ， 效果如下图：

当用户点击 “确定" 后, 实现请假讵录的删除操作， 要求使用Ajax 异步请求后台Sevlet 方法进行删除，最后给出删除成功或者失败的信息提示；

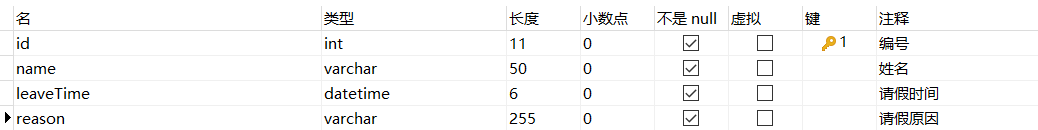

二、MySQL数据库设计如下：

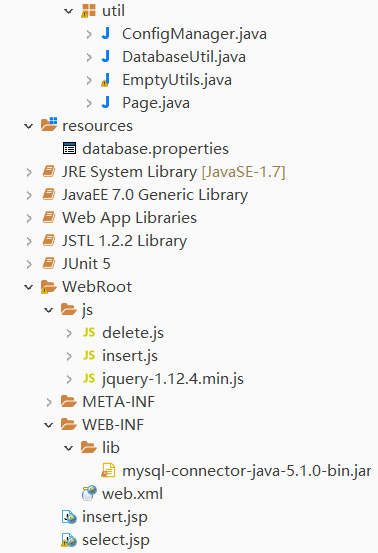

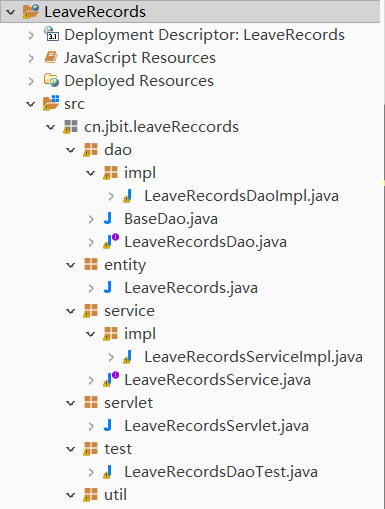

三、项目分层设计如下：

项目代码如下：

LeaveRecordsDao.java

packagecn.jbit.leaveReccords.dao;importjava.util.List;importjava.util.Map;importcn.jbit.leaveReccords.entity.LeaveRecords;public interfaceLeaveRecordsDao {/*** 删除请假信息

*@paramid

*@return

*/

public intdeleteLeaveRecords(Integer id);/*** 添加请假信息

*@paramleaveRecords 请假信息的对象

*@return

*/

public intaddLeaveRecords(LeaveRecords leaveRecords);/*** 分页查询所有消息

*@parampageIndex 页码

*@parampageSize 数据行数

@return查询到的集合/

public List selecteLeaveRecords(int pageIndex, intpageSize);/*** 查询总记录数

@return查询到记录总数/

public intcount();

}

LeaveRecordsDaoImpl.java

packagecn.jbit.leaveReccords.dao.impl;importjava.sql.Connection;importjava.sql.PreparedStatement;importjava.sql.ResultSet;importjava.sql.SQLException;importjava.util.ArrayList;importjava.util.List;importjava.util.Map;importcn.jbit.leaveReccords.dao.BaseDao;importcn.jbit.leaveReccords.dao.LeaveRecordsDao;importcn.jbit.leaveReccords.entity.LeaveRecords;importcn.jbit.leaveReccords.util.DatabaseUtil;public class LeaveRecordsDaoImpl extends BaseDao implementsLeaveRecordsDao {/*** 删除*/@Overridepublic intdeleteLeaveRecords(Integer id) {int result = 0;

String sql= "DELETE FROM leaverecords WHERE id=?";try{

result= this.executeUpdate(sql, id);

}catch(SQLException e) {

e.printStackTrace();

}returnresult;

}

@Overridepublic intaddLeaveRecords(LeaveRecords leaveRecords) {int result = 0;

String sql= "INSERT INTO leaverecords(name,leaveTime,reason) VALUES (?,?,?)";try{

result= this.executeUpdate(sql, leaveRecords.getName(), leaveRecords.getLeaveTime(),

leaveRecords.getReason());

}catch(SQLException e) {

e.printStackTrace();

}returnresult;

}/*** 分页显示数据*/@Overridepublic List selecteLeaveRecords(int pageIndex, intpageSize) {

String sql= "SELECT id,name,leaveTime,reason FROM leaverecords ORDER BY leaveTime ASC limit ?,?";

Connection conn= null;

PreparedStatement pstmt= null;

ResultSet rs= null;

LeaveRecords records= null;

List leaveRecordsList = new ArrayList();try{

conn=DatabaseUtil.getConnection();

pstmt=conn.prepareStatement(sql);

pstmt.setInt(1, (pageIndex - 1) *pageSize);

pstmt.setInt(2, pageSize);

rs=pstmt.executeQuery();while(rs.next()) {

records= newLeaveRecords();

records.setId(rs.getInt("id"));

records.setName(rs.getString("name"));

records.setLeaveTime(rs.getDate("leaveTime"));

records.setReason(rs.getString("reason"));

leaveRecordsList.add(records);

}

}catch(SQLException e) {

e.printStackTrace();

}finally{

DatabaseUtil.closeAll(conn, pstmt, rs);

}returnleaveRecordsList;

}/*** 查询总数*/@Overridepublic intcount() {int result = 0;

String sql= "SELECT count(1) FROM leaverecords";

ResultSet rs= null;try{

rs= this.executeQuery(sql);while(rs.next()) {

result= rs.getInt(1);

}

}catch(SQLException e) {

e.printStackTrace();

}finally{

DatabaseUtil.closeAll(null, null, rs);

}returnresult;

}}

BaseDao.java

packagecn.jbit.leaveReccords.dao;importjava.sql.Connection;importjava.sql.PreparedStatement;importjava.sql.ResultSet;importjava.sql.SQLException;importcn.jbit.leaveReccords.util.DatabaseUtil;/*** 执行数据库操作的工具类。*/

public classBaseDao {privateConnection conn;/*** 增、删、改操作的方法

*@paramsql sql语句

*@paramprams 参数数组

*@return执行结果

@throwsSQLException/

protected int executeUpdate(String sql, Object... params) throwsSQLException {int result = 0;

conn=DatabaseUtil.getConnection();

PreparedStatement pstmt= null;try{

pstmt=conn.prepareStatement(sql);for (int i = 0; i < params.length; i++) {

pstmt.setObject(i+ 1, params[i]);

}

result=pstmt.executeUpdate();

}catch(SQLException e) {

e.printStackTrace();throwe;

}finally{

DatabaseUtil.closeAll(null, pstmt, null);

}returnresult;

}/*** 查询操作的方法

*@paramsql sql语句

*@paramparams 参数数组

*@return查询结果集

@throwsSQLException/

protected ResultSet executeQuery(String sql, Object... params) throwsSQLException {

PreparedStatement pstmt= null;

conn=DatabaseUtil.getConnection();

ResultSet rs= null;try{

pstmt=conn.prepareStatement(sql);for (int i = 0; i < params.length; i++) {

pstmt.setObject(i+ 1, params[i]);

}

rs=pstmt.executeQuery();

}catch(SQLException e) {

e.printStackTrace();throwe;

}returnrs;

}

}

LeaveRecords.java

packagecn.jbit.leaveReccords.entity;importjava.util.Date;public classLeaveRecords {private Integer id;//编号

private String name;//请假人姓名

private Date leaveTime;//请假时间

private String reason;//请假原因

publicLeaveRecords() {super();

}publicLeaveRecords(String name, Date leaveTime, String reason) {super();this.name =name;this.leaveTime =leaveTime;this.reason =reason;

}publicLeaveRecords(Integer id, String name, Date leaveTime, String reason) {super();this.id =id;this.name =name;this.leaveTime =leaveTime;this.reason =reason;

}//省略了getter和setter方法

}

LeaveRecordsService.java

packagecn.jbit.leaveReccords.service;importjava.util.List;importjava.util.Map;importcn.jbit.leaveReccords.entity.LeaveRecords;importcn.jbit.leaveReccords.util.Page;public interfaceLeaveRecordsService {/*** 分页

@parampage/

public void RecordsList(Pagepage);/*** 添加请假信息

*@paramleaveRecords

*@return

*/

publicInteger insertLeaveRecords(LeaveRecords leaveRecords);/*** 删除请假信息

*@paramid

*@return

*/

public Integer deleteLeaveRecords(intid);

}

LeaveRecordsServiceImpl.java

packagecn.jbit.leaveReccords.service.impl;importjava.util.List;importjava.util.Map;importcn.jbit.leaveReccords.dao.LeaveRecordsDao;importcn.jbit.leaveReccords.dao.impl.LeaveRecordsDaoImpl;importcn.jbit.leaveReccords.entity.LeaveRecords;importcn.jbit.leaveReccords.service.LeaveRecordsService;importcn.jbit.leaveReccords.util.Page;public class LeaveRecordsServiceImpl implementsLeaveRecordsService {

LeaveRecordsDao leaveRecordsDao= newLeaveRecordsDaoImpl();

@OverridepublicInteger insertLeaveRecords(LeaveRecords leaveRecords) {returnleaveRecordsDao.addLeaveRecords(leaveRecords);

}

@Overridepublic Integer deleteLeaveRecords(intid) {returnleaveRecordsDao.deleteLeaveRecords(id);

}

@Overridepublic void RecordsList(Pagepage) {int count=leaveRecordsDao.count();//获取所有消息的数量

page.setTotalCount(count);//判断传入的页面是否合法

if(page.getPageIndex()>page.getTotalPageCount()) {//确保页面不会超过总页数

page.setPageIndex(page.getTotalPageCount());

}

List dataList=leaveRecordsDao.selecteLeaveRecords(page.getPageIndex(), page.getPageSize());

page.setDataList(dataList);

}

}

LeaveRecordsDaoTest.java

packagecn.jbit.leaveReccords.test;importjava.text.ParseException;importjava.text.SimpleDateFormat;importjava.util.Date;importjava.util.HashMap;importjava.util.List;importjava.util.Map;importorg.junit.Test;importcn.jbit.leaveReccords.dao.LeaveRecordsDao;importcn.jbit.leaveReccords.dao.impl.LeaveRecordsDaoImpl;importcn.jbit.leaveReccords.entity.LeaveRecords;importcn.jbit.leaveReccords.service.LeaveRecordsService;importcn.jbit.leaveReccords.service.impl.LeaveRecordsServiceImpl;public classLeaveRecordsDaoTest {

@Testpublic voidLeaveRecords() {

LeaveRecordsService recordsService=newLeaveRecordsServiceImpl();//添加

String date="2018-08-07";

SimpleDateFormat sdf=new SimpleDateFormat("yyyy-MM-dd");

Date leaveTime=null;try{

leaveTime=(Date)sdf.parse(date);

}catch(ParseException e) {

e.printStackTrace();

}

LeaveRecords leaveRecords=new LeaveRecords("www", leaveTime, "successful");int result=recordsService.insertLeaveRecords(leaveRecords);

System.out.println(result);//删除

int num=recordsService.deleteLeaveRecords(20);

System.out.println(num);//分页查询

LeaveRecordsDao recordsDao=newLeaveRecordsDaoImpl();

List list=recordsDao.selecteLeaveRecords(1, 5);for(LeaveRecords leaveRecords2 : list) {

System.out.println(leaveRecords2.getName());

}//查询

Map param=new HashMap();

param.put("records", new LeaveRecords(null, null, null, null));

List listinfo=recordsService.findLeaveRecords(param);for(LeaveRecords leaveRecords2 : listinfo) {

System.out.println(leaveRecords2.getLeaveTime());

}

}

}

LeaveRecordsServlet.java

packagecn.jbit.leaveReccords.servlet;importjava.io.IOException;importjava.io.PrintWriter;importjava.text.ParseException;importjava.text.SimpleDateFormat;importjava.util.Date;importjava.util.List;importjavax.servlet.ServletException;importjavax.servlet.annotation.WebServlet;importjavax.servlet.http.HttpServlet;importjavax.servlet.http.HttpServletRequest;importjavax.servlet.http.HttpServletResponse;importcn.jbit.leaveReccords.entity.LeaveRecords;importcn.jbit.leaveReccords.service.LeaveRecordsService;importcn.jbit.leaveReccords.service.impl.LeaveRecordsServiceImpl;importcn.jbit.leaveReccords.util.Page;

@WebServlet(urlPatterns= { "/LeaveRecordsServlet" }, name = "LeaveRecordsServlet")public class LeaveRecordsServlet extendsHttpServlet {private static final long serialVersionUID = -8076807217250462175L;

@Overrideprotected voiddoGet(HttpServletRequest request, HttpServletResponse response)throwsServletException, IOException {

doPost(request, response);

}

@Overrideprotected voiddoPost(HttpServletRequest request, HttpServletResponse response)throwsServletException, IOException {

request.setCharacterEncoding("UTF-8");

response.setContentType("text/html;charset=utf-8");

LeaveRecordsService leaveRecordsService= newLeaveRecordsServiceImpl();//根据action决定作什么操作

String action = request.getParameter("action");//分页查询

if ("list".equals(action)) {//获取当前页数参数

String pageIndex = request.getParameter("pageIndex");//获取页面大小参数(每页显示的数量)//String pageSize = request.getParameter("pageSize");

int index = 1;//设置首页为1

int size = 8;//设置页面大小为8条数据

try{if (pageIndex == null) {

index= 1;

}else{

index=Integer.parseInt(pageIndex);

}//size=Integer.parseInt(pageSize);

} catch(Exception e) {

e.printStackTrace();

}//将分页参数封装到分页对象中

Page page = new Page();

page.setPageIndex(index);

page.setPageSize(size);//调用Service层进行分页查询

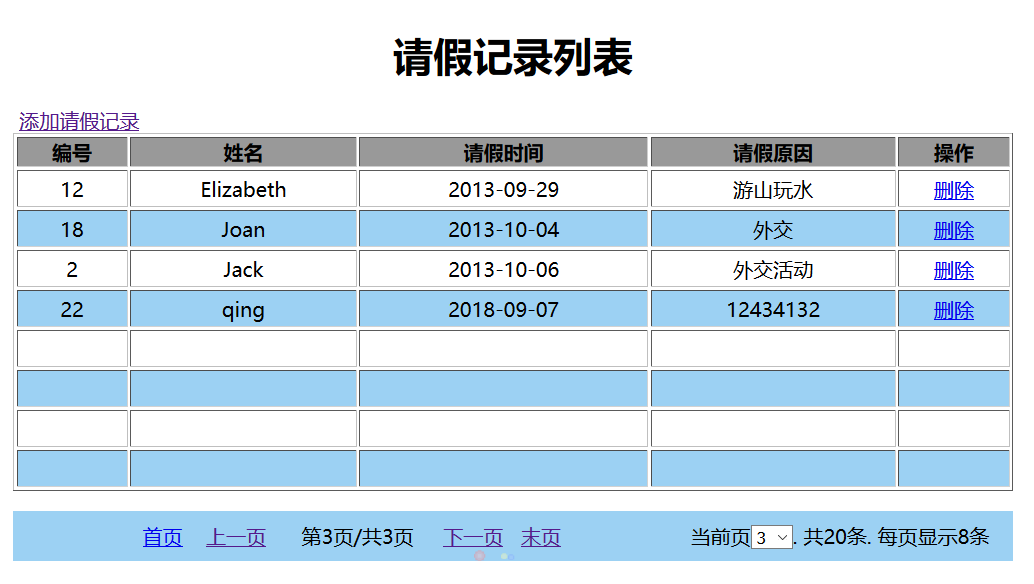

leaveRecordsService.RecordsList(page);//尾页填充空白行(为了视觉美观)(效果图如下图中的空白行)

List recordsList =page.getDataList();if (recordsList.size()

recordsList.add(null);

}

page.setDataList(recordsList);//将业务层处理后的分页对象存放至request作用域中

request.setAttribute("page", page);

request.getRequestDispatcher("select.jsp").forward(request, response);

}//删除记录

if ("delete".equals(action)) {

String sid= request.getParameter("opt");int id =Integer.parseInt(sid);int deleteInfo =leaveRecordsService.deleteLeaveRecords(id);

PrintWriter out=response.getWriter();booleanresult;if (deleteInfo > 0) {

result= true;

}else{

result= false;

}

out.print(result);

out.flush();

out.close();

}//增加记录

if("insert".equals(action)) {//请假人姓名

String name=request.getParameter("name");//请假时间

String time=request.getParameter("leaveTime");

SimpleDateFormat sdf=new SimpleDateFormat("yyyy-MM-dd");

Date leaveTime=null;try{

leaveTime=(Date)sdf.parse(time);

}catch(ParseException e) {

e.printStackTrace();

}//请假原因

String reason=request.getParameter("reason");

LeaveRecords leaveRecords=newLeaveRecords(name, leaveTime, reason);int result=leaveRecordsService.insertLeaveRecords(leaveRecords);

PrintWriter out=response.getWriter();if(result>0) {

out.println("

+ "alert('添加成功！');"

+ "location.href='LeaveRecordsServlet?action=list'"

+ "");

}else{

out.print("

+ "alert('添加失败！')"

+ "loction='LeaveRecordsServlet?action=insert'" + "");

}

}

}

}

ConfigManager.java

packagecn.jbit.leaveReccords.util;importjava.io.IOException;importjava.io.InputStream;importjava.util.Properties;/*** 数据库参数配置文件查找工具类

*@author逆風〠飛�?

**/

public classConfigManager {private static Properties props = null;static{

InputStream is= null;

is= ConfigManager.class.getClassLoader().getResourceAsStream("database.properties");if (is == null)throw new RuntimeException("找不到数据库参数配置文件�?");

props= newProperties();try{

props.load(is);

}catch(IOException e) {throw new RuntimeException("数据库配置参数加载错误！", e);

}finally{try{

is.close();

}catch(IOException e) {

e.printStackTrace();

}

}

}public staticString getProperty(String key) {returnprops.getProperty(key);

}

}

DatabaseUtil.java

packagecn.jbit.leaveReccords.util;importjava.sql.Connection;importjava.sql.DriverManager;importjava.sql.ResultSet;importjava.sql.SQLException;importjava.sql.Statement;/*** 数据库连接与关闭工具类�??

**/

public classDatabaseUtil {private static String driver = ConfigManager.getProperty("driver");//数据库驱动字符串

private static String url = ConfigManager.getProperty("url"); //连接URL字符�?

private static String user = ConfigManager.getProperty("user"); //数据库用户名

private static String password = ConfigManager.getProperty("password"); //用户密码

static{try{

Class.forName(driver);

}catch(ClassNotFoundException e) {

e.printStackTrace();

}

}/*** 获取数据库连接对象�??*/

public static Connection getConnection() throwsSQLException {//获取连接并捕获异�?

Connection conn = null;try{

conn=DriverManager.getConnection(url, user, password);

}catch(SQLException e) {

e.printStackTrace();throwe;

}return conn;//返回连接对象

}/***

• 关闭数据库连�?

*@paramconn 数据库连�?

*@paramstmt Statement对象

@paramrs 结果�?/

public static voidcloseAll(Connection conn, Statement stmt, ResultSet rs) {//若结果集对象不为空，则关�?

try{if (rs != null && !rs.isClosed())

rs.close();

}catch(Exception e) {

e.printStackTrace();

}//若Statement对象不为空，则关�?

try{if (stmt != null && !stmt.isClosed())

stmt.close();

}catch(Exception e) {

e.printStackTrace();

}//若数据库连接对象不为空，则关�?

try{if (conn != null && !conn.isClosed())

conn.close();

}catch(Exception e) {

e.printStackTrace();

}

}

}

EmptyUtils.java

packagecn.jbit.leaveReccords.util;importjava.util.Collection;importjava.util.Map;/*** 判断是否为空的工具类

*@author逆風〠飛翔

**/

public classEmptyUtils {//鍒ょ┖

public static booleanisEmpty(Object obj) {if (obj == null)return true;if (obj instanceofCharSequence)return ((CharSequence) obj).length() == 0;if (obj instanceofCollection)return((Collection) obj).isEmpty();if (obj instanceofMap)return((Map) obj).isEmpty();if (obj instanceofObject[]) {

Object[] object=(Object[]) obj;if (object.length == 0) {return true;

}boolean empty = true;for (int i = 0; i < object.length; i++) {if (!isEmpty(object[i])) {

empty= false;break;

}

}returnempty;

}return false;

}public static booleanisNotEmpty(Object obj) {return !isEmpty(obj);

}private booleanvalidPropertyEmpty(Object... args) {for (int i = 0; i < args.length; i++) {if(EmptyUtils.isEmpty(args[i])) {return true;

}

}return false;

}

}

Page.java

packagecn.jbit.leaveReccords.util;importjava.util.List;/*** 分页用的基类，抽取了通用的分页参数

**/

public class Page{private int pageIndex=1;//当前页数

private int pageSize=8 ;//每页显示的行数

private int totalCount;//总记录数

private int totalPageCount;//总页数

private List dataList ;//分页结果的泛型集合

public intgetPageIndex() {returnpageIndex;

}public void setPageIndex(intpageIndex) {//判断当前页码，如果页码大于零，则显示为当前的pageIndex页面，否则pageIndex为1，即第一页

if (pageIndex > 0) {this.pageIndex =pageIndex;

}else{this.pageIndex = 1;

}

}public intgetPageSize() {returnpageSize;

}public void setPageSize(intpageSize) {//设置每页显示数据的条数

if (pageSize > 0) {this.pageSize =pageSize;

}else{this.pageSize = 5;

}

}public intgetTotalCount() {returntotalCount;

}public void setTotalCount(inttotalCount) {if (totalCount > 0) {//总记录数

this.totalCount =totalCount;//计算总页数

this.totalPageCount = (this.totalCount % this.pageSize == 0) ? (this.totalCount / this.pageSize)

: (this.totalCount / this.pageSize + 1);

}

}public intgetTotalPageCount() {returntotalPageCount;

}public void setTotalPageCount(inttotalPageCount) {this.totalPageCount =totalPageCount;

}public ListgetDataList() {returndataList;

}public void setDataList(ListdataList) {this.dataList =dataList;

}

}

配置文件代码：

database.properties

#数据库连接驱动

driver=com.mysql.jdbc.Driver

#数据库用户名

user=WebTest

#数据库密码

password=1234#连接URL字符串

url=jdbc:mysql://localhost:3306/leaverecords?useSSL=false

JSP页面代码：

查询JSP:select.jsp

String basePath= request.getScheme() + "://" + request.getServerName() + ":" +request.getServerPort()+ path + "/";%>

查询请假记录

if (recordsPage == null) {

request.getRequestDispatcher("LeaveRecordsServlet?action=list").forward(request, response);return;

}

String[] leaveRecordsInfo= { "编号", "姓名", "请假时间", "请假原因", "操作"};

request.setAttribute("leaveRecordsInfo", leaveRecordsInfo);%>

请假记录列表

添加请假记录

${leaveRecordsInfo}

style="background-color:#9CD1F3;">

{leaveRecordsList.id}{leaveRecordsList.name}{leaveRecordsList.leaveTime}{leaveRecordsList.reason}

删除

首页

上一页

第{page.pageIndex }页/共{page.totalPageCount }页

下一页

末页

当前页

${pageNum}

.

共{page.totalCount}条. 每页显示{page.pageSize}条

删除的js：delete.js

functiondel(id) {var dele = confirm("确定要删除吗？");if (dele == true) {

$.ajax({"url" : "LeaveRecordsServlet?action=delete","type" : "post","data" : "opt=" +id,"dataType" : "text","success": success,"error": error,

});//删除成功回调函数

functionsuccess(data) {if (data == "true") {

alert("删除成功！");

location.href="LeaveRecordsServlet?action=list";

}else{

alert("删除失败！");

}

}//请求失败回调函数

functionerror(date) {

alert("请求失败!");

}

}

}

添加JSP:insert.jsp

String basePath= request.getScheme() + "://" + request.getServerName() + ":" +request.getServerPort()+ path + "/";%>

My JSP 'insert.jsp' starting page

添加请假记录

姓名:
请假时间:	格式要求：yyyy-mm-dd
请假原因：

添加的非空验证的js：insert.js

//非空验证

functioncheck() {var name = ("#name").val();var leaveTime = ("#leaveTime").val();var context=("context").val();var reg = /^([0-9]{3}[1-9]|[0-9]{2}[1-9][0-9]{1}|[0-9]{1}[1-9][0-9]{2}|[1-9][0-9]{3})-(((0[13578]|1[02])-(0[1-9]|[12][0-9]|3[01]))|((0[469]|11)-(0[1-9]|[12][0-9]|30))|(02-(0[1-9]|[1][0-9]|2[0-8])))/;if (name == "" || leaveTime=="" || context=="") {

alert("信息未填写完整，请完善！");return false;

}if(reg.test(leaveTime)==false){

alert("日期格式有误，请重新填写！");return false;

}

}
