【MATLAB】信号与系统 — 三角形脉冲信号的频谱

 clear all;


 clc;

 % f(t)

 tau = 4;

 t_vector = -4:0.01:4;

 N = length(t_vector);

 f_t = zeros(1,N);

 for n = 1:N

 t = t_vector(n);

 if (t>=-tau/2)&&(t<=tau/2)

 f_t(1,n) = 1 - (2/tau)*abs(t);

 end

 end

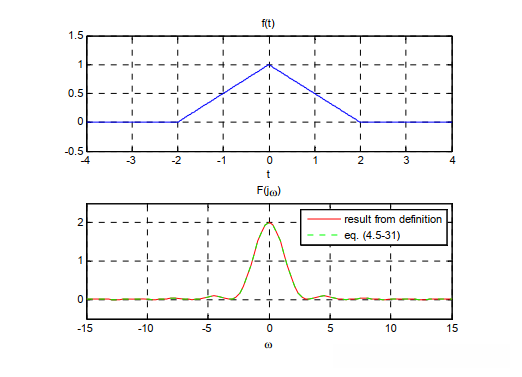

 figure; subplot(2,1,1);

 plot(t_vector,f_t,'b-');

 xlabel('t'); title('f(t)');

 axis([-4,4,-0.5,1.5]);

 grid on;

 % F(jw)=FT[f(t)]

 lower = - 15;

 upper = 15;

 step = (upper-lower)/100;

 w_vector = lower:step:upper;

 K = length(w_vector);

 X = zeros(1,K);

 for k = 1:K

 w = w_vector(k);

 % result from definition.

 f_t = @(t) (1-(2/tau)*abs(t)).*exp(-j*w*t);

 F_w(k) = quad(f_t,-tau/2,tau/2);

 % eq. (4.5-31)

 F_w_2(k) = (tau/2)*sinc(w*tau/(4*pi))^2;

 end

 subplot(2,1,2);

 plot(w_vector,abs(F_w),'r-');

 hold on;

 plot(w_vector,abs(F_w_2),'g:');

 legend('result from definition','eq. (4.5-31)');

 xlabel('\omega'); title('F(j\omega)');

 axis([lower,upper,-0.5,2.5]);

 grid on;
