路由协议-EIGRP-知识汇总
发布时间
阅读量：
阅读量
EIGRP路由协议是私有路由协议，由Cisco定制
EIGRP是Cisco的私有路由协议,它综合了距离矢量和链路状态2者的优点
The EIGRP protocol uses the DUAL algorithm to determine the optimal successor route towards the destination. When issues arise with the best route, EIGRP does not utilize a hold-down timer but instead immediately switches to a feasible successor route, thereby enabling rapid convergence.
EIGRP使用DUAL来决定到达目的地的最佳路由
AD：通告距离，下一条到达目的网络的距离
FD：可行距离，本身去往目的网络距离
S：后继路由器，FD最小路径上的下一条
FS：可行后继路由器，满足FC的下一条设备
FC：可性性条件，AD<FDmin,防环
metric=[K1*bandwidth+(K2*bandwidth)/(256–load)+K3*delay]*[K5/(reliability+K4)]
默认:K1=1,K2=0,K3=1,K4=0,K5=0
这样就得到默认的度的简化计算公式,如下:
metric=bandwidth+delay
注意,不推荐修改K值.K值通过EIGRP的hello包运载.如果两个路由器的K值不匹配的话它们是不会形成邻居关系的
EIGRPMetricsBackwardCompatibletoIGRP
EIGRP的度和IGRP的度能够很好的进行兼容.IGRP的度是以24位的格式,而EIGRP是32位的格式.它们之间的关系是
EIGRP的度是256倍于IGRP的度.也就是说假如IGRP的度为1000的话,换算成EIGRP的度为256000
EIGRP特征
高级距离矢量路由协议
快速收敛
支持VLSM和不连续子网
支持部分更新
支持多种网络层协议
灵活的网络设计
组播和单播代替广播地址
100%无环的无类路由
广域网和局域网配置简单
支持等价和不等价负载均衡EIGRP路由三张表
IP EIGRP Neighbor Table（邻居表）
IP EIGRP Topology Table（拓扑表）
The IP Routing Table（路由表）IP EIGRP Neighbor Table（邻居表）
R2#show ip eigrp neighbor
EIGRP-IPv4 Neighbors for AS(1)
H Address Interface Hold Uptime SRTT RTO Q Seq
(sec) (ms) Cnt Num
1 12.1.1.1 Et0/0 14 00:05:09 11 100 0 4
0 23.1.1.2 Et0/1 12 00:05:09 8 100 0 4IP EIGRP Topology Table（拓扑表）
R2#show ip eigr topology
EIGRP-IPv4 Topology Table for AS(1)/ID(2.2.2.2)
Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
r - reply Status, s - sia Status
P 2.2.2.2/32, 1 successors, FD is 128256
via Connected, Loopback0
P 23.1.1.0/24, 1 successors, FD is 281600
via Connected, Ethernet0/1
P 12.1.1.0/24, 1 successors, FD is 281600
via Connected, Ethernet0/0
P 3.3.3.3/32, 1 successors, FD is 409600
via 23.1.1.2 (409600/128256), Ethernet0/1
P 1.1.1.1/32, 1 successors, FD is 409600
via 12.1.1.1 (409600/128256), Ethernet0/0The IP Routing Table（路由表）
R2#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
a - application route
+ - replicated route, % - next hop override
Gateway of last resort is not set
1.0.0.0/32 is subnetted, 1 subnets
D 1.1.1.1 [90/409600] via 12.1.1.1, 00:10:30, Ethernet0/0
2.0.0.0/32 is subnetted, 1 subnets
C 2.2.2.2 is directly connected, Loopback0
3.0.0.0/32 is subnetted, 1 subnets
D 3.3.3.3 [90/409600] via 23.1.1.2, 00:10:27, Ethernet0/1
12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C 12.1.1.0/24 is directly connected, Ethernet0/0
L 12.1.1.2/32 is directly connected, Ethernet0/0
23.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C 23.1.1.0/24 is directly connected, Ethernet0/1

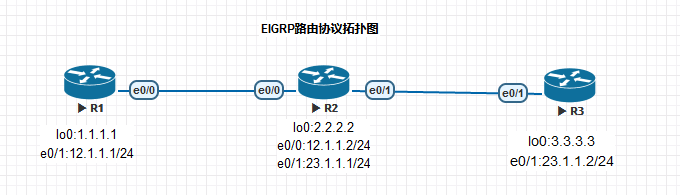

L 23.1.1.1/32 is directly connected, Ethernet0/1EIGRP配置
R2>en
R2#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R2(config)#int e0/0
R2(config-if)#ip add 12.1.1.2 255.255.255.0
R2(config-if)#no sh
R2(config-if)#int e0/1
R2(config-if)#ip add 23.1.1.1 255.255.255.0
R2(config-if)#int lo0
R2(config-if)#ip add 2.2.2.2 255.255.255.255
R2(config-if)#end
R2#wr
*Jun 17 04:46:19.514: %SYS-5-CONFIG_I: Configured from console by console
R2#wr
R2#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R2(config)#router eigrp 1
R2(config-router)#eigrp router-id 2.2.2.2
R2(config-router)#network 12.1.1.0 0.0.0.255
R2(config-router)#network 23.1.1.0 0.0.0.255
R2(config-router)#network 2.2.2.2 0.0.0.0
R2(config-router)#no auto-summary
R2(config-router)#end
R2#wr
*Jun 17 04:48:56.970: %SYS-5-CONFIG_I: Configured from console by console
R2#wr
Building configuration...
[OK]全部评论 (0)
