CSS 绘制太阳系行星运行轨迹

阅读量：
复制代码
    <!DOCTYPE html>
    <html lang="en">
    <head>
    <meta charset="UTF-8">
    <title>CSS3 动画</title>
    <style>
        div.ex1{
            width: 100px;
            height: 100px;
            background: red;
            animation: myfirst 5s;
            -webkit-transition: myfirst 5s;
        }

        @keyframes myfirst {
            from{background: red}
            to{background: yellow}

        }

        @-webkit-keyframes myfirst {
            from{background: red}
            to{background: yellow}
        }


        div.ex2{
            width: 100px;
            height: 100px;
            background: red;
            animation: myfirst2 5s;
            -webkit-transition: myfirst2 5s;
            -moz-animation: myfirst2 5s;
            -o-animation: myfirst2 5s;
        }

        @keyframes myfirst2 {
            0%{background: red;}
            25%{background: yellow;}
            50%{background: blue;}
            100%{background: green;}
        }

        @-webkit-keyframes myfirst2 {
            0%{background: red;}
            25%{background: yellow;}
            50%{background: blue;}
            100%{background: green;}
        }

        @-moz-keyframes myfirst2 {
            0%{background: red;}
            25%{background: yellow;}
            50%{background: blue;}
            100%{background: green;}
        }

        @-o-keyframes myfirst2 {
            0%{background: red;}
            25%{background: yellow;}
            50%{background: blue;}
            100%{background: green;}
        }

        div.ex3{
            width: 100px;
            height: 100px;
            background: red;
            position: relative;
            animation: myfirst3 5s;
            -webkit-animation: myfirst3 5s;
        }


        @keyframes myfirst3 {
            0%{background: red; left: 0px;
                top: 0px;}
            25%{background: yellow; left: 200px;
                top: 0px;}
            50%{background: blue; left: 200px;
                top: 200px;}
            75%{background: green; left: 0px;
                top: 200px;}
            100%{background: red; left: 0px;
                top: 0px;}
        }

        @-webkit-keyframes myfirst3 {
            0%{background: red; left: 0px;
                top: 0px;}
            25%{background: yellow; left: 200px;
                top: 0px;}
            50%{background: blue; left: 200px;
                top: 200px;}
            75%{background: green; left: 0px;
                top: 200px;}
            100%{background: red; left: 0px;
                top: 0px;}
        }


        div.ex4{
            width: 100px;
            height: 100px;
            background: red;
            position: relative;
            animation-name: myfirst4;
            animation-duration: 5s;
            animation-timing-function: linear;
            animation-delay: 2s;
            animation-iteration-count: infinite;
            animation-direction: alternate;
            animation-play-state: running;

            -webkit-animation-name: myfirst4;
            -webkit-animation-duration: 5s;
            -webkit-animation-timing-function: linear;
            -webkit-animation-delay: 2s;
            -webkit-animation-iteration-count: infinite;
            -webkit-animation-direction: alternate;
            -webkit-animation-play-state: running;
        }

        @keyframes myfirst4
        {
            0%   {background:red; left:0px; top:0px;}
            25%  {background:yellow; left:200px; top:0px;}
            50%  {background:blue; left:200px; top:200px;}
            75%  {background:green; left:0px; top:200px;}
            100% {background:red; left:0px; top:0px;}
        }

        @-webkit-keyframes myfirst4 /* Safari and Chrome */
        {
            0%   {background:red; left:0px; top:0px;}
            25%  {background:yellow; left:200px; top:0px;}
            50%  {background:blue; left:200px; top:200px;}
            75%  {background:green; left:0px; top:200px;}
            100% {background:red; left:0px; top:0px;}
        }

        div.ex5{
            width: 100px;
            height: 100px;
            background: red;
            position: relative;
            animation: myfirst5 5s linear 2s infinite alternate;
            -webkit-animation: myfirst5 5s linear 2s infinite alternate;
            -o-animation: myfirst5 5s linear 2s infinite alternate;
        }

        @keyframes myfirst5
        {
            0%   {background:red; left:0px; top:0px;}
            25%  {background:yellow; left:200px; top:0px;}
            50%  {background:blue; left:200px; top:200px;}
            75%  {background:green; left:0px; top:200px;}
            100% {background:red; left:0px; top:0px;}
        }

        @-moz-keyframes myfirst5 /* Firefox */
        {
            0%   {background:red; left:0px; top:0px;}
            25%  {background:yellow; left:200px; top:0px;}
            50%  {background:blue; left:200px; top:200px;}
            75%  {background:green; left:0px; top:200px;}
            100% {background:red; left:0px; top:0px;}
        }

        @-webkit-keyframes myfirst5 /* Safari and Chrome */
        {
            0%   {background:red; left:0px; top:0px;}
            25%  {background:yellow; left:200px; top:0px;}
            50%  {background:blue; left:200px; top:200px;}
            75%  {background:green; left:0px; top:200px;}
            100% {background:red; left:0px; top:0px;}
        }

        @-o-keyframes myfirst5 /* Opera */
        {
            0%   {background:red; left:0px; top:0px;}
            25%  {background:yellow; left:200px; top:0px;}
            50%  {background:blue; left:200px; top:200px;}
            75%  {background:green; left:0px; top:200px;}
            100% {background:red; left:0px; top:0px;}
        }




        /* CSS 绘制太阳系各个行星运行轨迹 */
        .solarsys{
            width: 800px;
            height: 800px;;
            position: relative;
            margin: 0 auto;
            /*background-color: #000000;*/
            padding: 0;
            transform: scale(1);
         background: url(img/xingkong-010.jpg);

        }

        /*太阳*/
        .sun {
            left:357px;
            top:357px;
            height: 90px;
            width: 90px;
            background-color: rgb(248,107,35);
            border-radius: 50%;
            box-shadow: 5px 5px 10px rgb(248,107,35), -5px -5px 10px rgb(248,107,35), 5px -5px 10px rgb(248,107,35), -5px 5px 10px rgb(248,107,35);
            position: absolute;
            margin: 0;
        }

        /*水星*/
        .mercury {
            left:337.5px;
            top:395px;
            height: 10px;
            width: 10px;
            background-color: rgb(166,138,56);
            border-radius: 50%;
            position: absolute;
            transform-origin: 62.5px 5px;
            animation: rotate 1.5s infinite linear;
        }

        /*水星轨道*/
        .mercuryOrbit {
            left:342.5px;
            top:342.5px;
            height: 115px;
            width: 115px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            margin: 0px;
            padding: 0px;
        }

        /*金星*/
        .venus {
            left:309px;
            top:389px;
            height: 22px;
            width: 22px;
            background-color: rgb(246,157,97);
            border-radius: 50%;
            position: absolute;
            transform-origin: 91px 11px;
            animation: rotate 3.84s infinite linear;
        }

        /*金星轨道*/
        .venusOrbit {
            left:320px;
            top:320px;
            height: 160px;
            width: 160px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        /*地球*/
        .earth {
            left:266.5px;
            top:391px;
            height: 18px;
            width: 18px;
            background-color: rgb(115,114,174);
            border-radius: 50%;
            position: absolute;
            transform-origin: 134px 9px;
            animation: rotate 6.25s infinite linear;
        }

        /*地球轨道*/
        .earthOrbit {
            left:275px;
            top:275px;
            height: 250px;
            width: 250px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        /*火星*/
        .mars {
            left:222.5px;
            top:392.5px;
            height: 15px;
            width: 15px;
            background-color: rgb(140,119,63);
            border-radius: 50%;
            position: absolute;
            transform-origin: 177.5px 7.5px;
            animation: rotate 11.75s infinite linear;
        }

        /*火星轨道*/
        .marsOrbit {
            left:230px;
            top:230px;
            height: 340px;
            width: 340px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        /*木星*/
        .jupiter {
            left:134px;
            top:379px;
            height: 42px;
            width: 42px;
            background-color: rgb(156,164,143);
            border-radius: 50%;
            position: absolute;
            transform-origin: 266px 21px;
            animation: rotate 74.04s infinite linear;
        }

        /*木星轨道*/
        .jupiterOrbit {
            left:155px;
            top:155px;
            height: 490px;
            width: 490px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        /*土星*/
        .saturn {
            left:92px;
            top:387px;
            height: 26px;
            width: 26px;
            background-color: rgb(215,171,68);
            border-radius: 50%;
            position: absolute;
            transform-origin: 308px 13px;
            animation: rotate 183.92s infinite linear;
        }

        /*土星轨道*/
        .saturnOrbit {
            left:105px;
            top:105px;
            height: 590px;
            width: 590px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        /*天王星*/
        .uranus {
            left:41.5px;
            top:386.5px;
            height: 27px;
            width: 27px;
            background-color: rgb(164,192,206);
            border-radius: 50%;
            position: absolute;
            transform-origin: 358.5px 13.5px;
            animation: rotate 524.46s infinite linear;
        }

        /*天王星轨道*/
        .uranusOrbit {
            left:55px;
            top:55px;
            height: 690px;
            width: 690px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        /*海王星*/
        .neptune {
            left:10px;
            top:390px;
            height: 20px;
            width: 20px;
            background-color: rgb(133,136,180);
            border-radius: 50%;
            position: absolute;
            transform-origin: 390px 10px;
            animation: rotate 1028.76s infinite linear;
        }

        /*海王星轨道*/
        .neptuneOrbit {
            left:20px;
            top:20px;
            height: 760px;
            width: 760px;
            background-color: transparent;
            border-radius: 50%;
            border-style: dashed;
            border-color: gray;
            position: absolute;
            border-width: 1px;
            /*margin: 100px;*/
            /*transform-origin: -75px -75px;*/
            /*animation: rotate 4s infinite linear;*/
            margin: 0px;
            padding: 0px;
        }

        @keyframes rotate {
            100% {
                transform: rotate(-360deg);
            }
        }


    </style>
    </head>
    <body>![在这里插入图片描述]()
    <h2>CSS 绘制太阳系各个行星运行轨迹</h2>
    <div class="solarsys">
    <!--太阳-->
    <div class='sun'></div>

    <!--水星轨道-->
    <div class='mercuryOrbit'></div>

    <!--水星-->
    <div class='mercury'></div>

    <!--金星轨道-->
    <div class='venusOrbit'></div>

    <!--金星-->
    <div class='venus'></div>

    <!--地球轨道-->
    <div class='earthOrbit'></div>

    <!--地球-->
    <div class='earth'></div>

    <!--火星轨道-->
    <div class='marsOrbit'></div>

    <!--火星-->
    <div class='mars'></div>

    <!--木星轨道-->
    <div class='jupiterOrbit'></div>

    <!--木星-->
    <div class='jupiter'></div>

    <!--土星轨道-->
    <div class='saturnOrbit'></div>

    <!--土星-->
    <div class='saturn'></div>

    <!--天王星轨道-->
    <div class='uranusOrbit'></div>

    <!--天王星-->
    <div class='uranus'></div>

    <!--海王星轨道-->
    <div class='neptuneOrbit'></div>

    <!--海王星-->
    <div class='neptune'></div>
    </div>

    </body>
    </html>


























































































































































































































































































































































































































































































































































    AI写代码

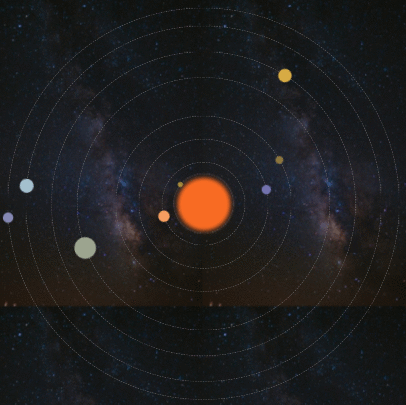

在这里插入图片描述

全部评论 (0)

还没有任何评论哟~

相关文章推荐

CSS 绘制太阳系行星运行轨迹

<!DOCTYPEhtml <htmllang=en <head <metacharset=UTF8 <titleCSS3动画</title <style div.ex1 width:100px; h...

HTML+CSS 绘制太阳系各个行星运行轨迹

模拟宇宙太阳系 <!DOCTYPEhtml <htmllang=en <head <metacharset=UTF8 <metaname=viewportcontent=width=devicewid...

java 太阳系模型练习3-- 行星运行轨迹练习

packagesolar; importutil.GameUtil; importjava.awt.; / 星球的共同属性 / publicclassStar//Star星 Imageimg; dou...

万有引力太阳系行星轨迹模拟

一、运行结果 二、MATLAB程序 %太阳及水金地火四行星的运行轨迹模拟 %Author:LeiZhen %Date:20190426 %万有引力公式F=GMm/r^2 %物体运动是速度与加速度产生的...

matlab行星运动轨迹仿真动画,Matlab动画模拟太阳系行星运动

《Matlab动画模拟太阳系行星运动》由会员分享，可在线阅读，更多相关《Matlab动画模拟太阳系行星运动11页珍藏版》请在人人文库网上搜索。 1、Matlab动画模拟太阳系行星运动figurenam...

webgl绘制太阳系行星动画

webgl模拟太阳系 demo:minicode——太阳系 文章同时发布于：我的个人网站。 这次做的MiniCode，是用webgl模拟太阳系的动画，绘制了太阳系和绕太阳旋转的八颗行星。各个部分的绘制...

opengl绘制太阳系：地球+卫星+行星

一、开发环境说明 操作系统：windows 开发软件：Visual Studio 2017 编程语言：基于控制台下的opengl ...实现纹理贴图： 实现动画效果：9大行星绕着太阳运动 实现按键交...

太阳光轨迹软件_轻松画太阳视运动轨迹

所谓的太阳视运动轨迹，简单的说就是每天太阳东升西落。 你可能马上会说，每天都这样啦，有什么好研究的！ 其实，我们普遍存在一个“共识”和一个错觉。 一个“共识”就是地球自西向东自转，所以太阳每天东升西落...

行星介绍html页面布局,行星运行轨迹 纯 css + html

行星运行轨迹body {margin: 0;padding: 0;position: relative;background-color: #000000;}.sunlight {width: 90p...

html5 运动轨迹绘画,html5 canvas行星运动轨迹动画特效

特效描述：html5canvas行星运动轨迹动画特效。html5运动轨迹，行星动画特效 代码结构 1\.引入JS 2\.HTML代码 Yourbrowserdoesn'tsupportcanvas /...
