使用自签名证书的SSL (linux_db19 win_客户端）

 配置服务器端

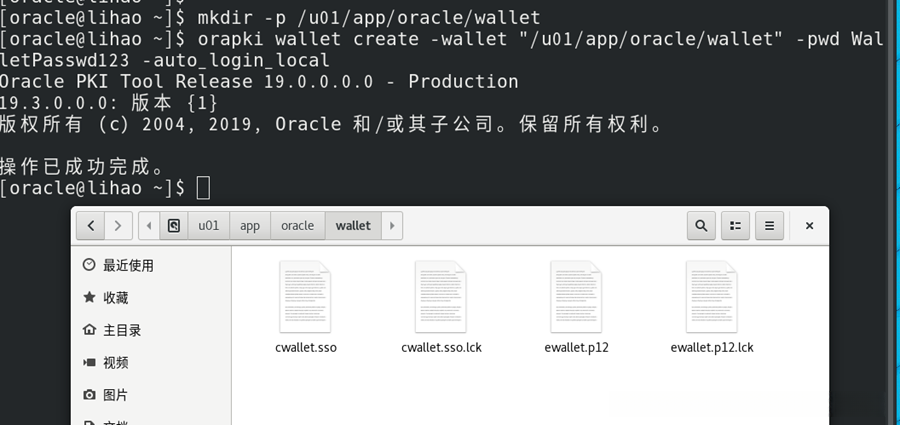

 mkdir -p /u01/app/oracle/wallet

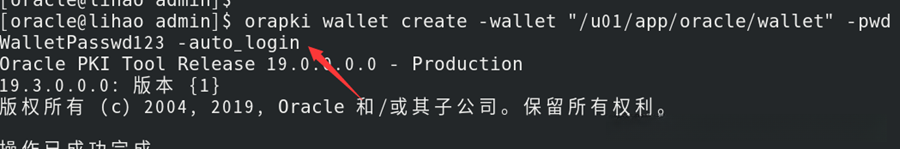

 orapki wallet create -wallet "/u01/app/oracle/wallet" -pwd WalletPasswd123 -auto_login

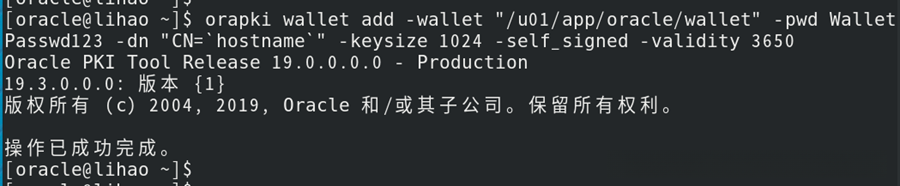

 orapki wallet add -wallet "/u01/app/oracle/wallet" -pwd WalletPasswd123 -dn "CN=`hostname`" -keysize 1024 -self_signed -validity 3650

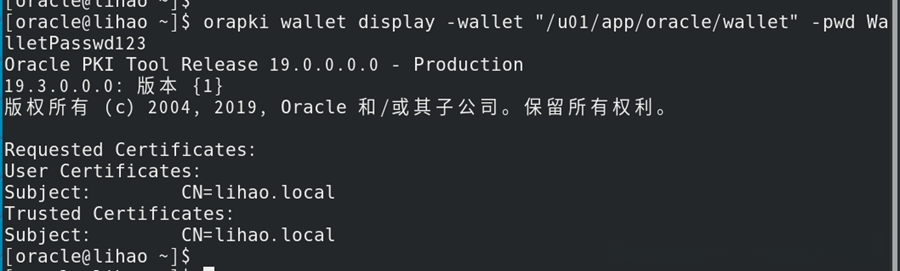

 orapki wallet display -wallet "/u01/app/oracle/wallet" -pwd WalletPasswd123

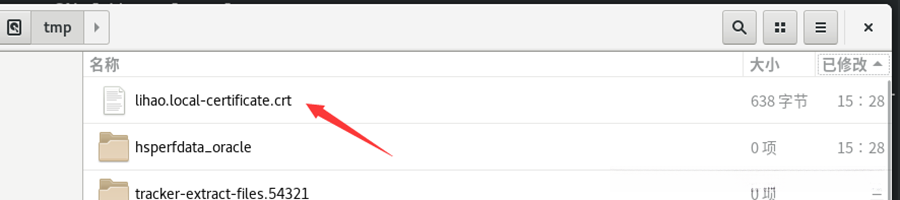

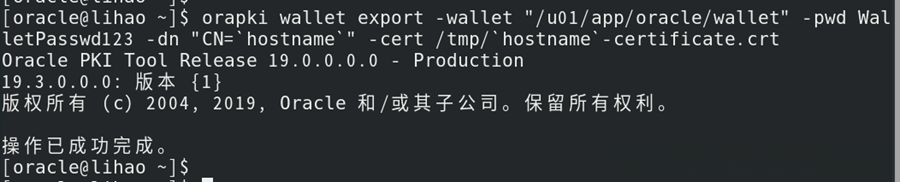

 orapki wallet export -wallet "/u01/app/oracle/wallet" -pwd WalletPasswd123 -dn "CN=`hostname`" -cert /tmp/`hostname`-certificate.crt

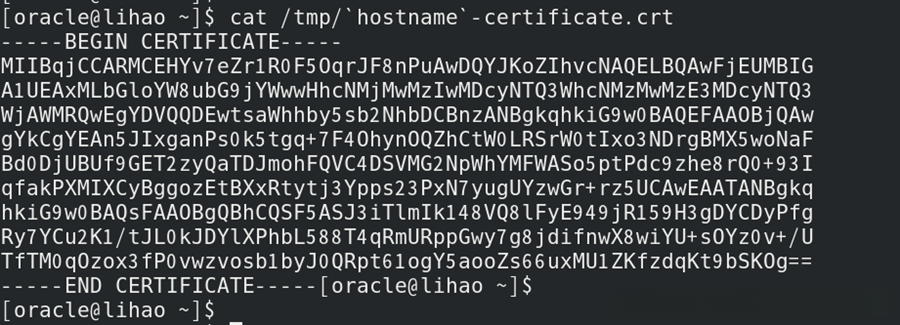

 cat /tmp/`hostname`-certificate.crt



 配置客户端

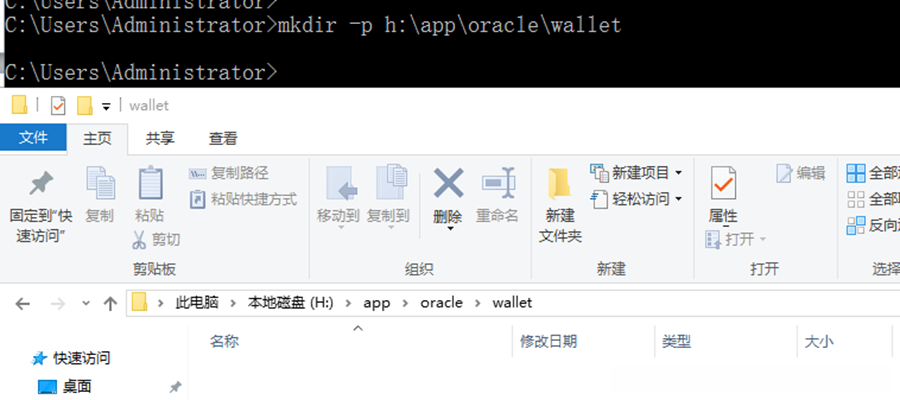

 mkdir -p h:\app\oracle\wallet

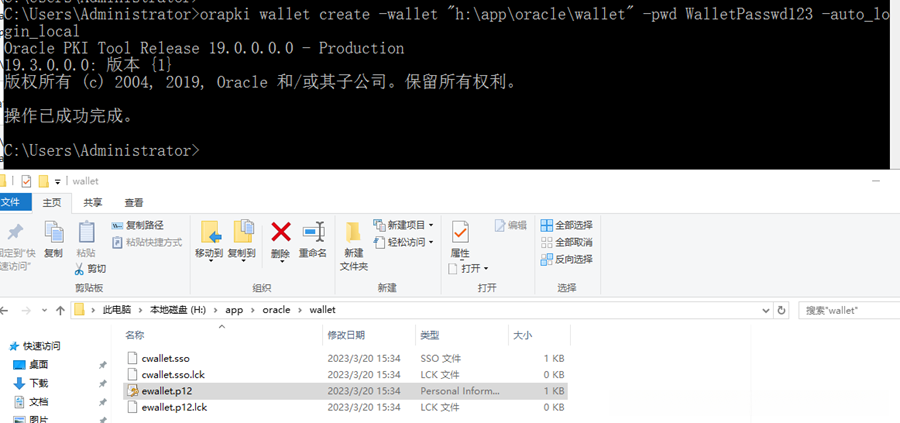

 orapki wallet create -wallet "h:\app\oracle\wallet" -pwd WalletPasswd123 -auto_login

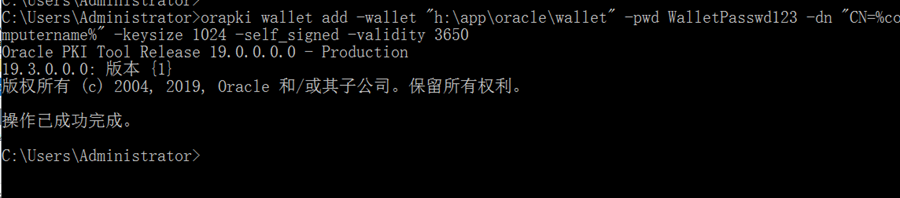

 orapki wallet add -wallet "h:\app\oracle\wallet" -pwd WalletPasswd123 -dn "CN=%computername%" -keysize 1024 -self_signed -validity 3650



 orapki wallet display -wallet "h:\app\oracle\wallet" -pwd WalletPasswd123

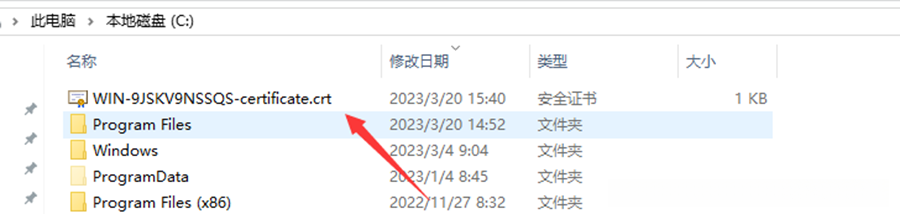

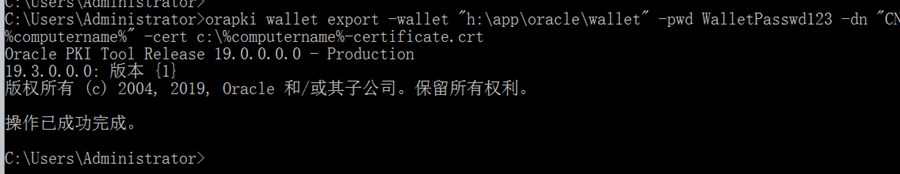

 orapki wallet export -wallet "h:\app\oracle\wallet" -pwd WalletPasswd123 -dn "CN=%computername%" -cert c:\%computername%-certificate.crt

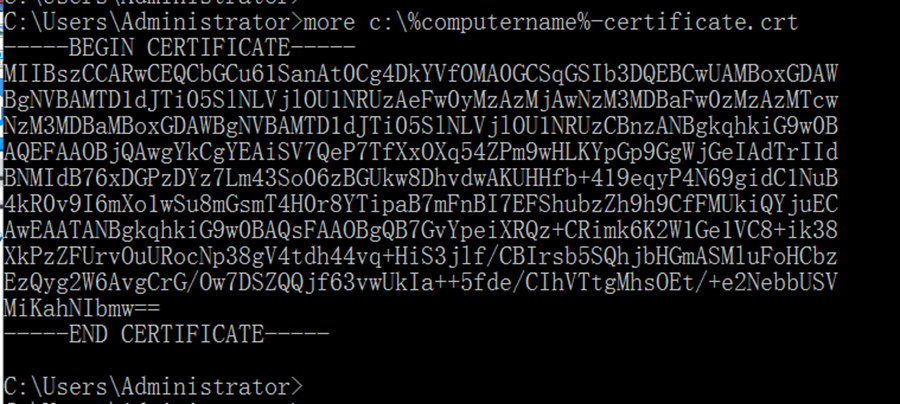

 more c:\%computername%-certificate.crt

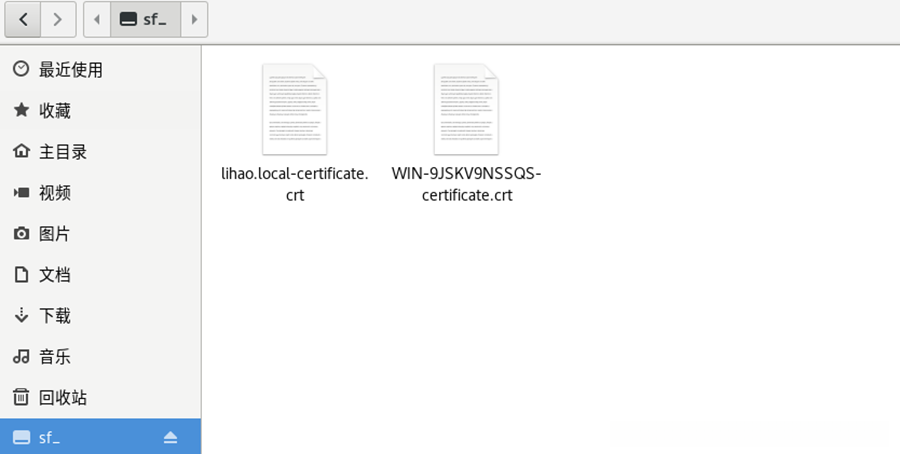

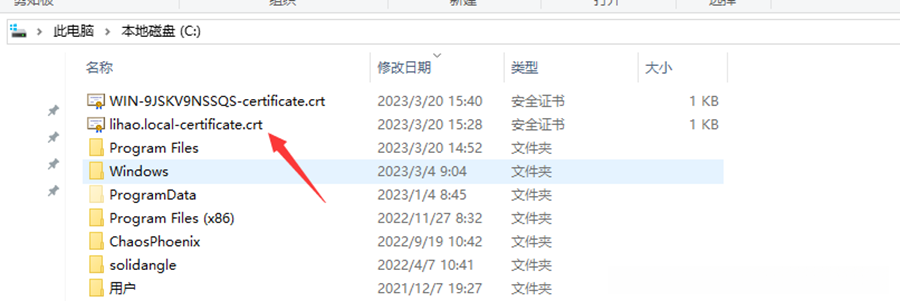

 orapki wallet add -wallet "h:\app\oracle\wallet" -pwd WalletPasswd123 -trusted_cert -cert c:\lihao.local-certificate.crt

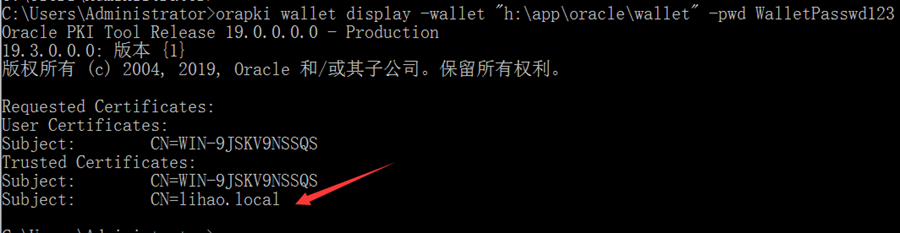

 orapki wallet display -wallet "h:\app\oracle\wallet" -pwd WalletPasswd123

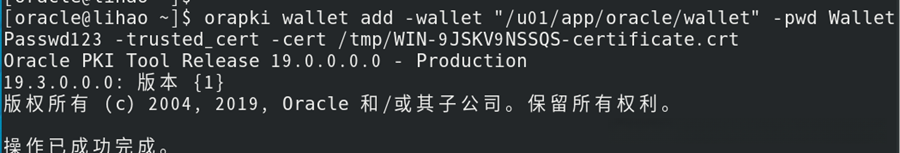

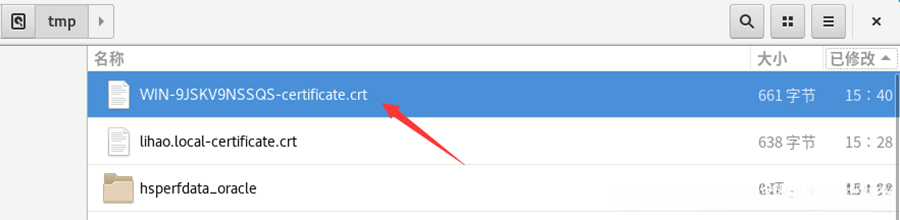

 orapki wallet add -wallet "/u01/app/oracle/wallet" -pwd WalletPasswd123 -trusted_cert -cert /tmp/WIN-9JSKV9NSSQS-certificate.crt

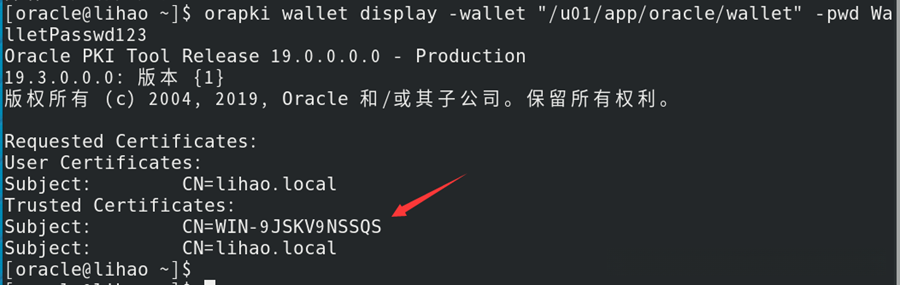

 orapki wallet display -wallet "/u01/app/oracle/wallet" -pwd WalletPasswd123

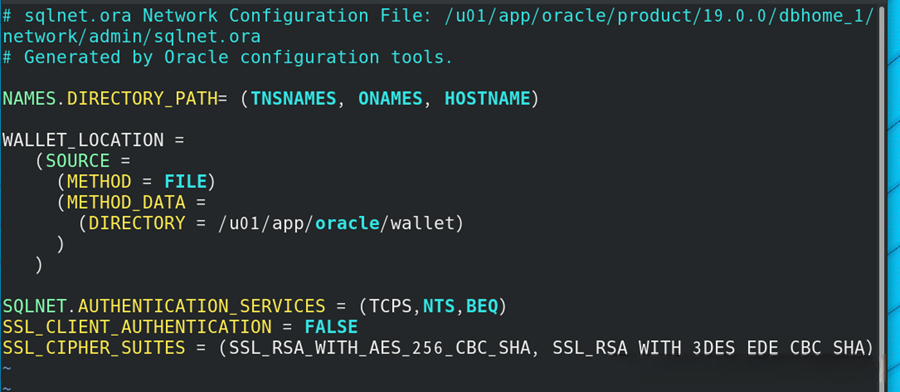

 修改 sqlnet.ora 增加内容

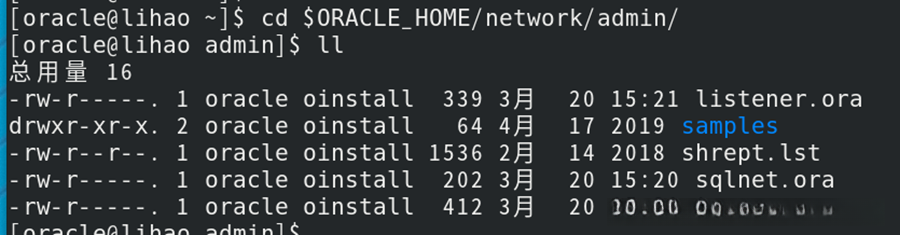

 $ORACLE_HOME/network/admin/sqlnet.ora

 WALLET_LOCATION =

    (SOURCE =

      (METHOD = FILE)

      (METHOD_DATA =

    (DIRECTORY = /u01/app/oracle/wallet)

      )

    )



 SQLNET.AUTHENTICATION_SERVICES = (TCPS,NTS,BEQ)

 SSL_CLIENT_AUTHENTICATION = FALSE

 SSL_CIPHER_SUITES = (SSL_RSA_WITH_AES_256_CBC_SHA, SSL_RSA_WITH_3DES_EDE_CBC_SHA)

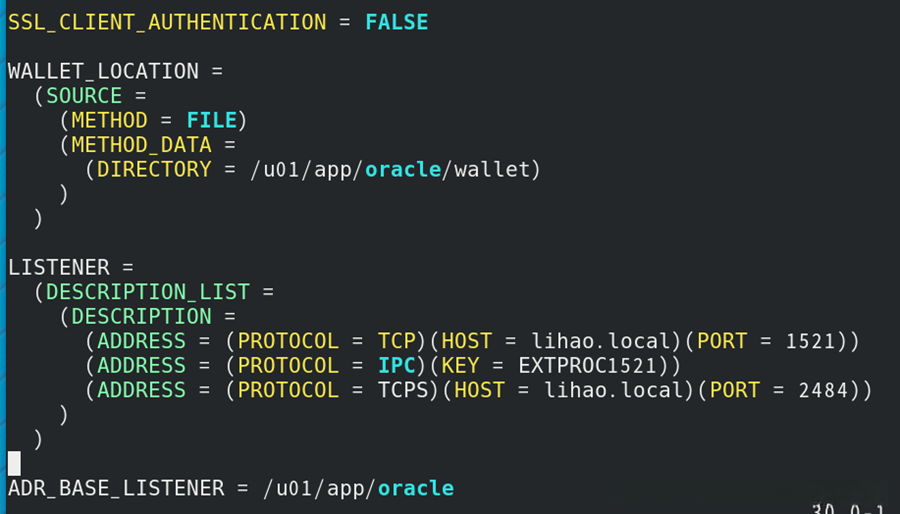

 listener.ora

 SSL_CLIENT_AUTHENTICATION = FALSE



 WALLET_LOCATION =

   (SOURCE =

     (METHOD = FILE)

     (METHOD_DATA =

       (DIRECTORY = /u01/app/oracle/wallet)

     )

   )



 LISTENER =

   (DESCRIPTION_LIST =

     (DESCRIPTION =

       (ADDRESS = (PROTOCOL = TCP)(HOST = lihao.local)(PORT = 1521))

       (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))

       (ADDRESS = (PROTOCOL = TCPS)(HOST = lihao.local)(PORT = 2484))

     )

   )



 ADR_BASE_LISTENER = /u01/app/oracle

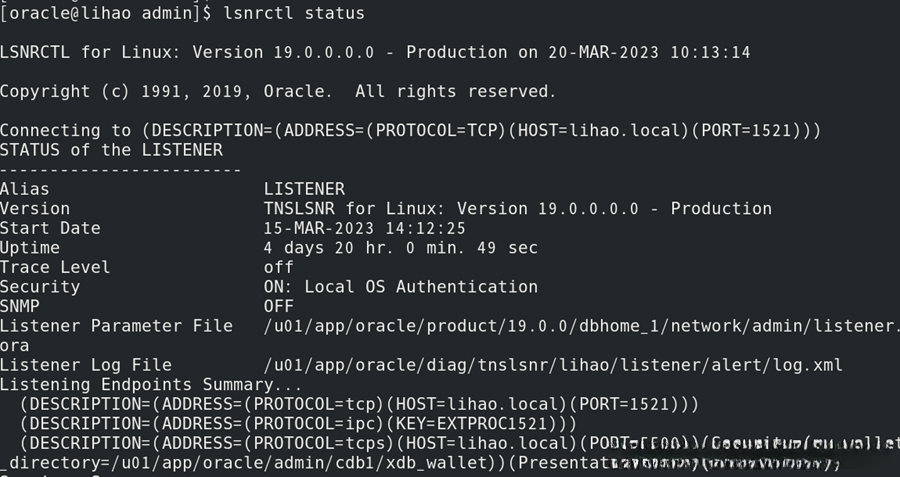

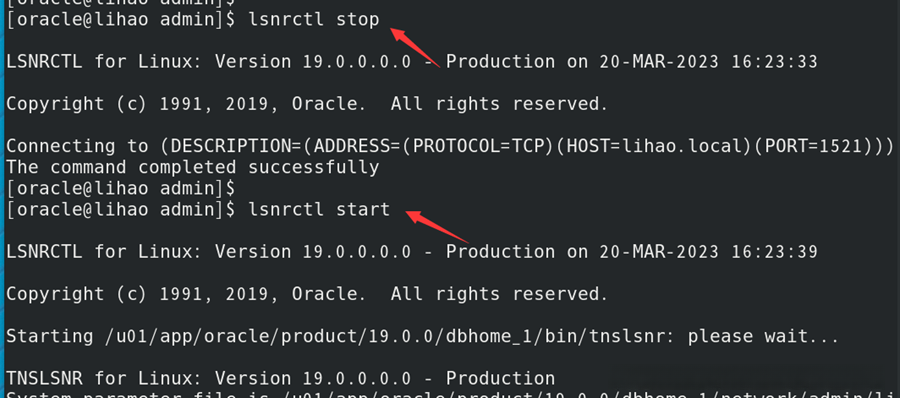

 lsnrctl stop

 lsnrctl start

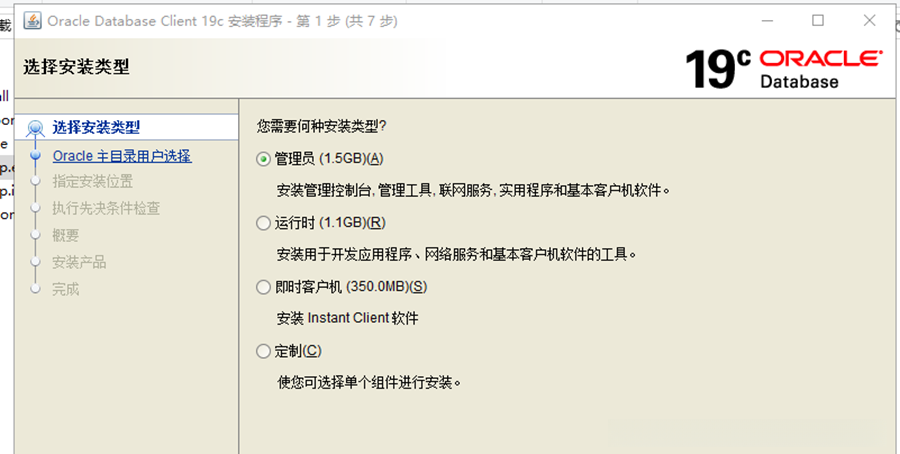

 客户端配置

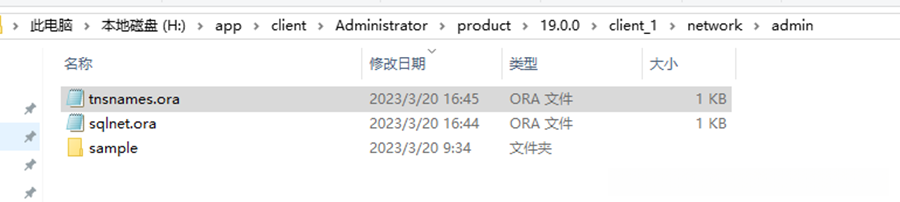

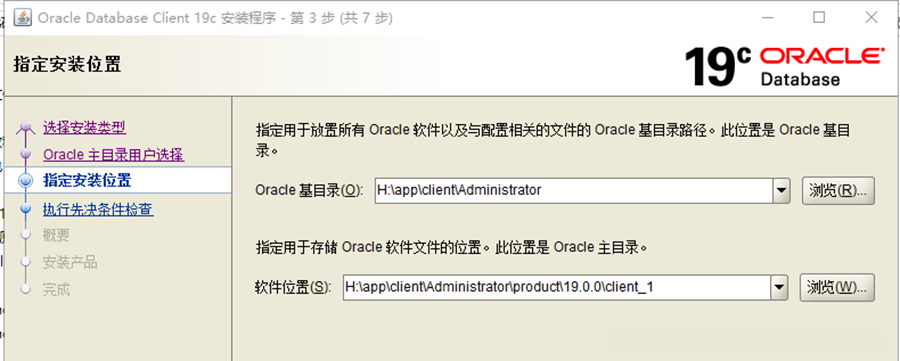

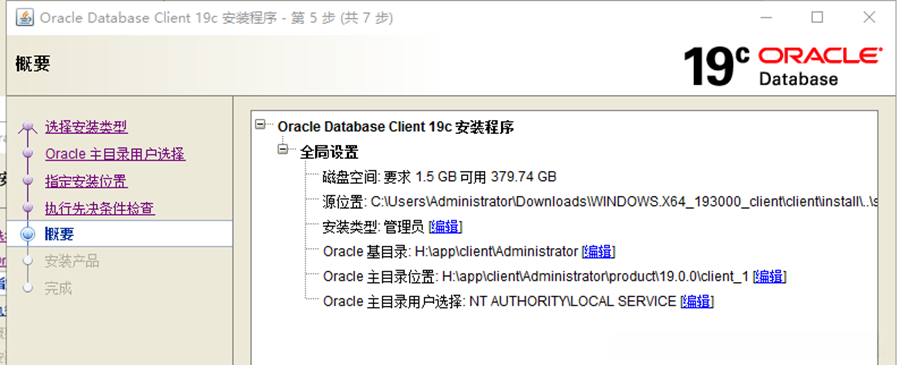

 H:\app\client\Administrator\product\19.0.0\client_1\network\admin

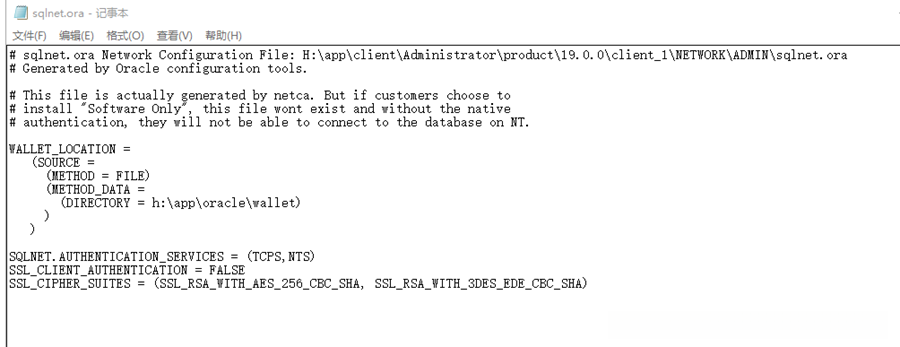

 sqlnet.ora



 WALLET_LOCATION =

    (SOURCE =

      (METHOD = FILE)

      (METHOD_DATA =

    (DIRECTORY = h:\app\oracle\wallet)

      )

    )



 SQLNET.AUTHENTICATION_SERVICES = (TCPS,NTS)

 SSL_CLIENT_AUTHENTICATION = FALSE

 SSL_CIPHER_SUITES = (SSL_RSA_WITH_AES_256_CBC_SHA, SSL_RSA_WITH_3DES_EDE_CBC_SHA)

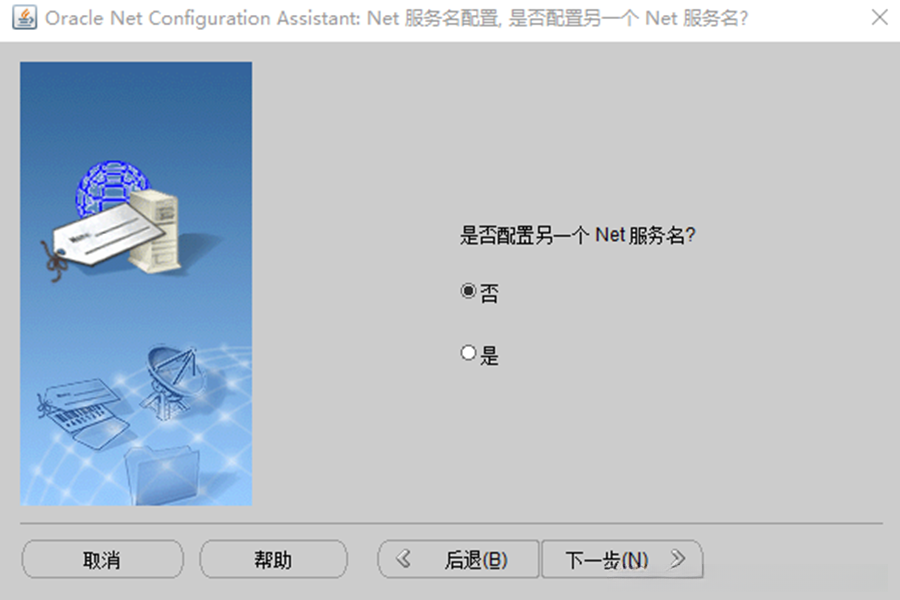

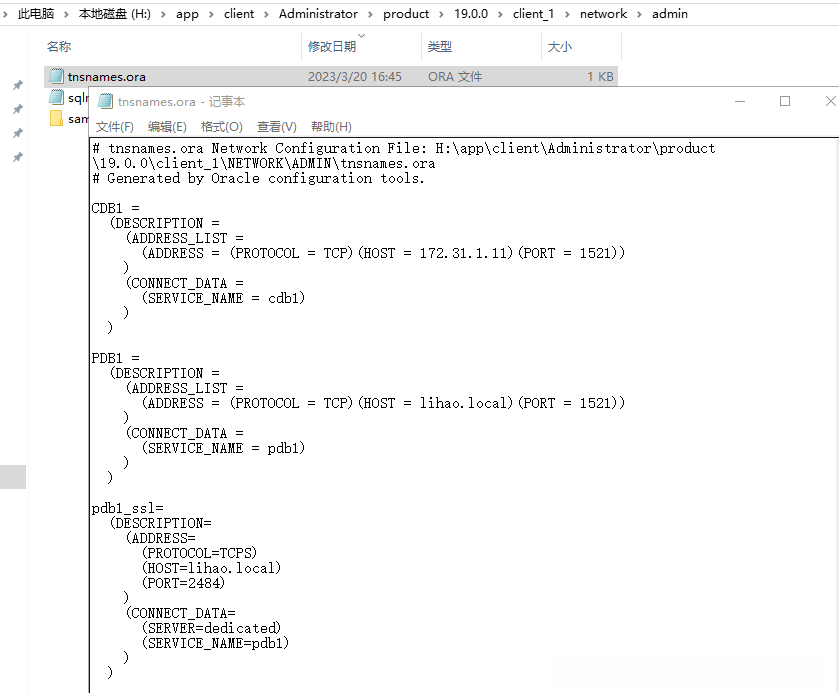

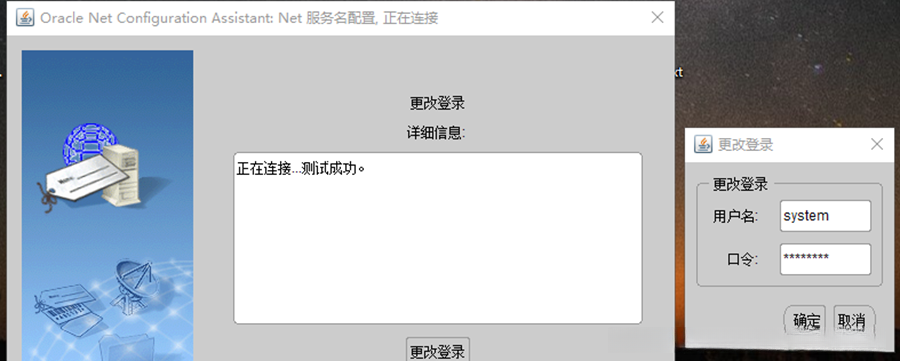

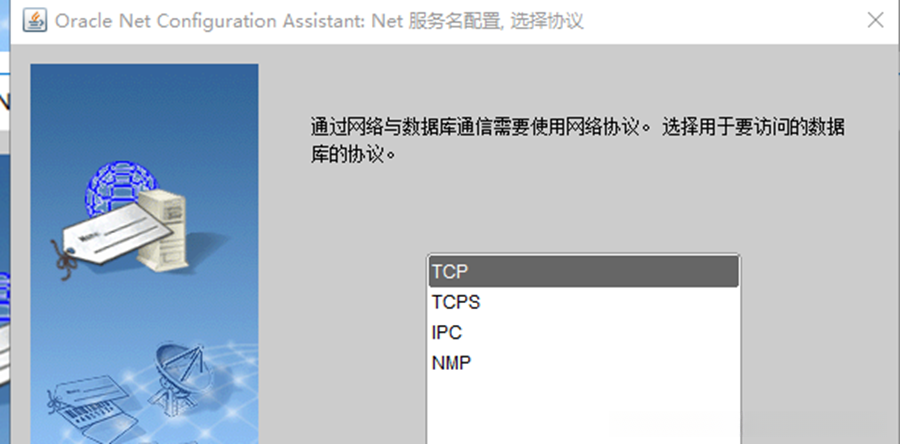

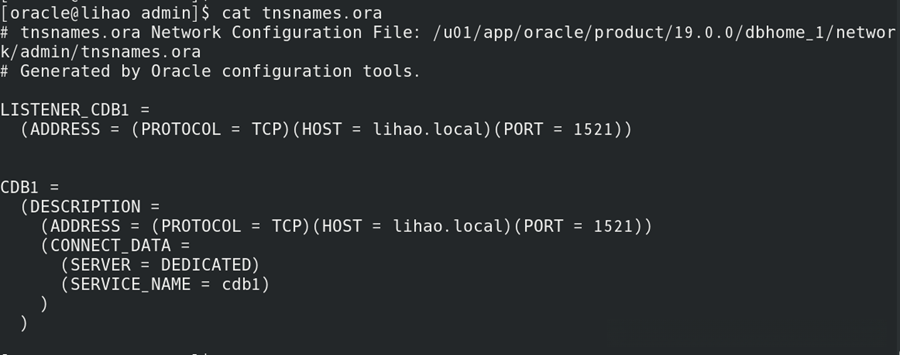

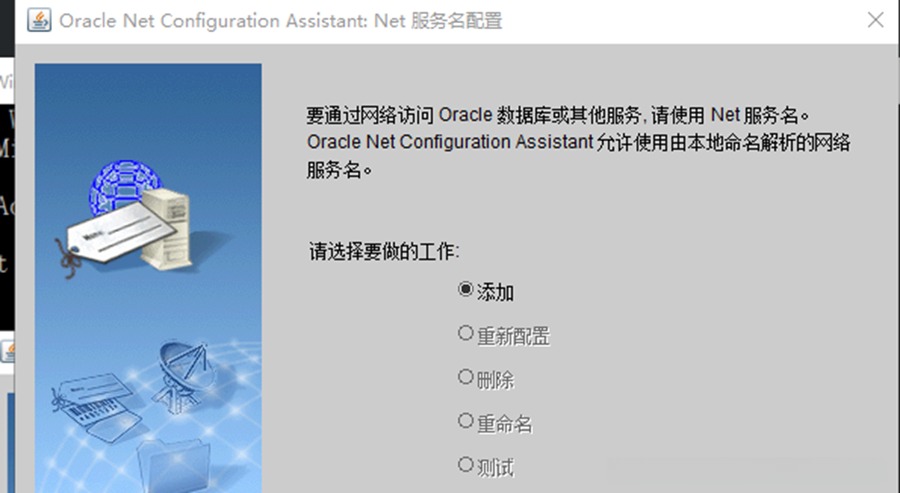

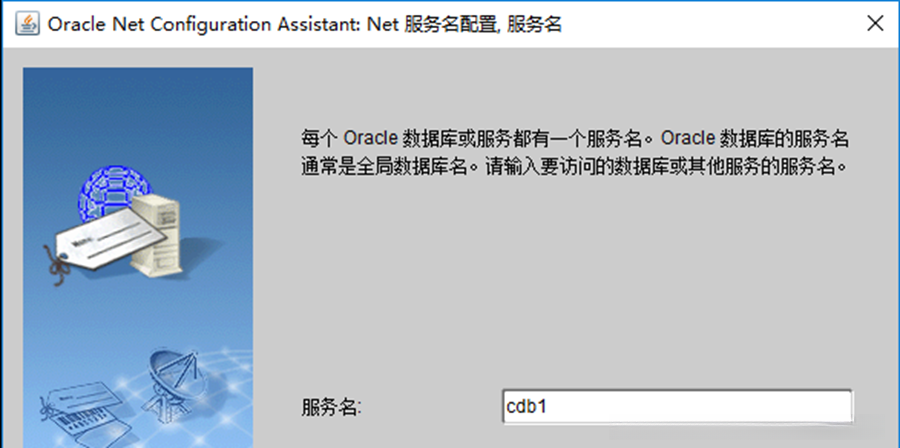

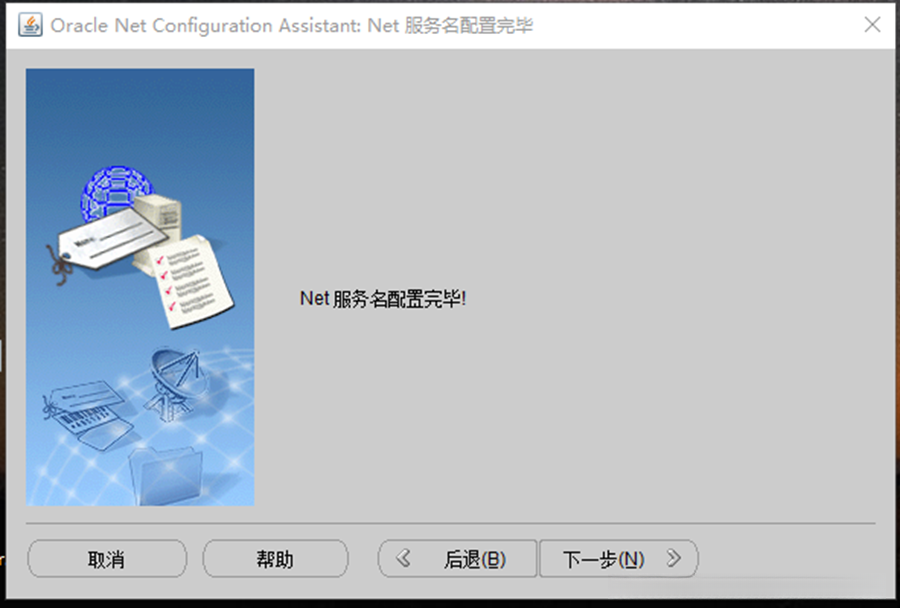

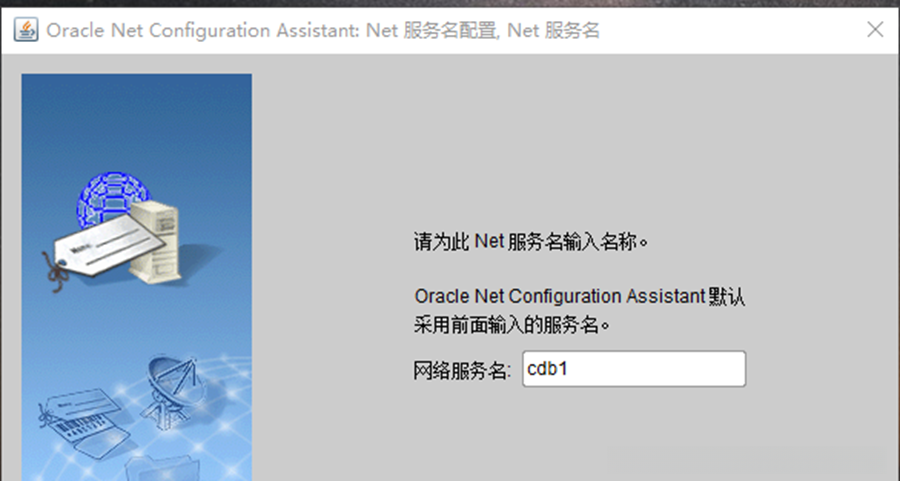

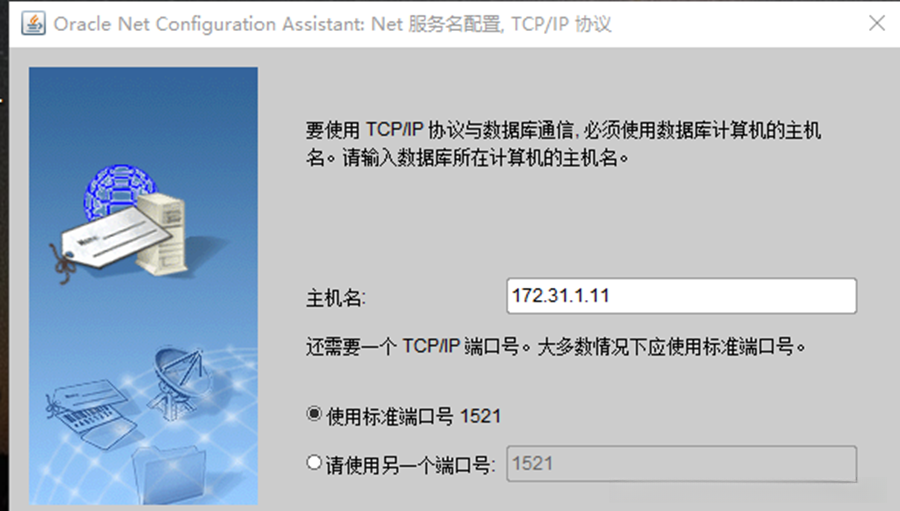

 tnsnames.ora配置



 pdb1_ssl=

   (DESCRIPTION=

     (ADDRESS=

       (PROTOCOL=TCPS)

       (HOST=lihao.local)

       (PORT=2484)

     )

     (CONNECT_DATA=

       (SERVER=dedicated)

       (SERVICE_NAME=pdb1)

     )

   )

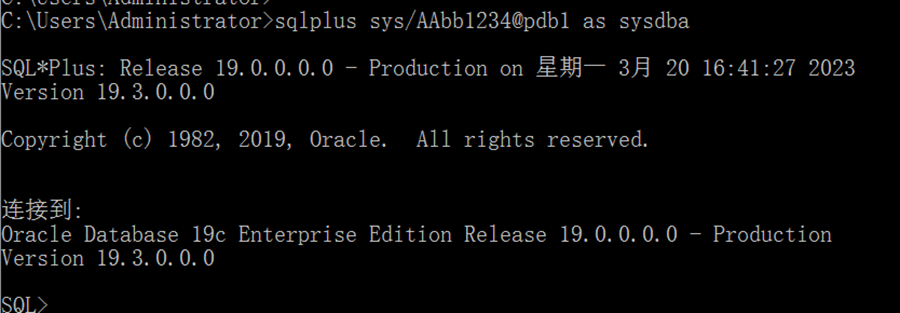

 创建用户

 CREATE USER test IDENTIFIED BY test CONTAINER=CURRENT;

 GRANT CREATE SESSION TO test CONTAINER=CURRENT;
