Precursors of CSMA/CD
ALOHA is categorized under Pure ALOHA and Slotted ALOHA schemes.
\textbf{F:} \textbf{transmission duration of a frame} is assumed to be constant.
\textbf{S:} \textbf{transmission efficiency} represents the average number of successfully transmitted frames per \textbf{F}.
\textbf{G:} \textbf{offer load} is defined as the average number of total transmission attempts per \textbf{F}, including retransmissions.

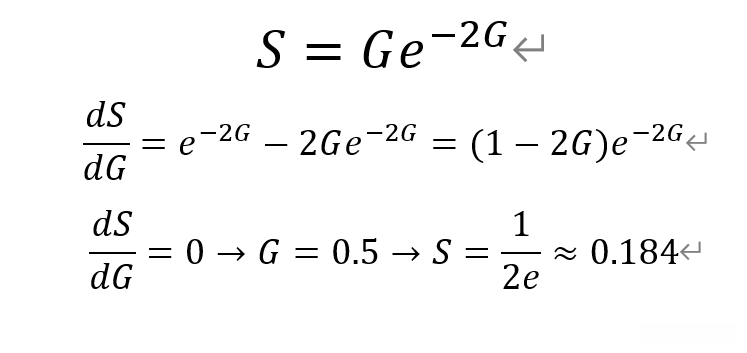

Pure ALOHA Throughput

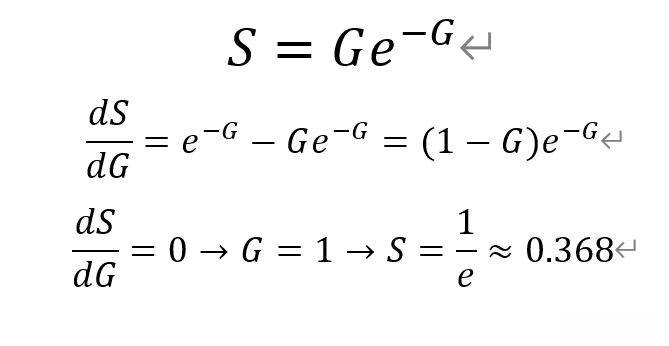

Slotted ALOHA Throughput

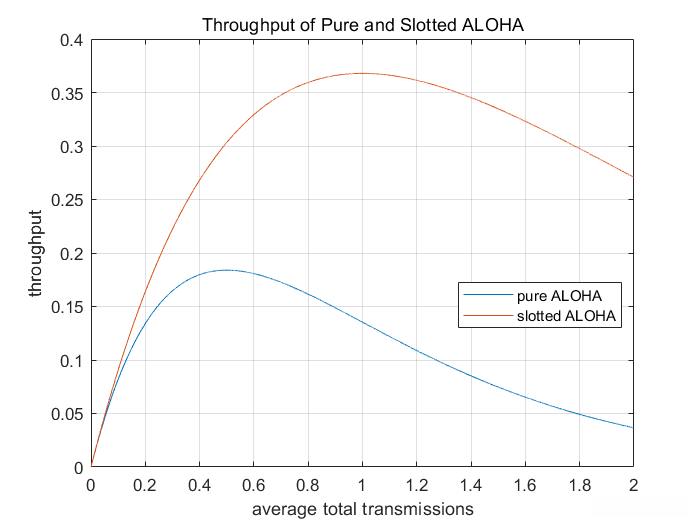

MATLAB Simulation of throughputs of Pure and Slotted ALOHA
g = 0 : 0.0001 : 2;
S1 = g .* exp(-2 * g); % Pure ALOHA
S2 = g .* exp(-g); % Slotted ALOHA
figure;
plot(g, S1);
hold on
plot(g, S2);
title("Throughput of Pure and Slotted ALOHA");
xlabel("average total transmissions");
ylabel("throughput");
grid onProgram output:
