使用分水岭算法对图像进行分割

 #if !defined WATERSHS


 #define WATERSHS



 #include <opencv2/core/core.hpp>

 #include <opencv2/imgproc/imgproc.hpp>

 #include <opencv2/highgui/highgui.hpp>



 class WatershedSegmenter {



   private:



 	  cv::Mat markers;



   public:



 	  void setMarkers(const cv::Mat& markerImage) {



 		// Convert to image of ints

 		markerImage.convertTo(markers,CV_32S);

 	  }



 	  cv::Mat process(const cv::Mat &image) {



 		// Apply watershed

 		cv::watershed(image,markers);



 		return markers;

 	  }



 	  // Return result in the form of an image

 	  cv::Mat getSegmentation() {



 		cv::Mat tmp;

 		// all segment with label higher than 255

 		// will be assigned value 255

 		markers.convertTo(tmp,CV_8U);



 		return tmp;

 	  }



 	  // Return watershed in the form of an image

 	  cv::Mat getWatersheds() {



 		cv::Mat tmp;

 		markers.convertTo(tmp,CV_8U,255,255);



 		return tmp;

 	  }

 };





 #endif



 #include <iostream>

 #include <opencv2/core/core.hpp>

 #include <opencv2/imgproc/imgproc.hpp>

 #include <opencv2/highgui/highgui.hpp>

 #include "watershedSegmentation.h"





 int main()

 {

 	// Read input image

 	cv::Mat image= cv::imread("d:/test/opencv/group.jpg");

 	if (!image.data)

 		return 0;



     // Display the image

 	cv::namedWindow("Original Image");

 	cv::imshow("Original Image",image);



 	// Get the binary map

 	cv::Mat binary;

 	binary= cv::imread("d:/test/opencv/binary.bmp",0);



     // Display the binary image

 	cv::namedWindow("Binary Image");

 	cv::imshow("Binary Image",binary);



 	// Eliminate noise and smaller objects

 	cv::Mat fg;

 	cv::erode(binary,fg,cv::Mat(),cv::Point(-1,-1),6);



     // Display the foreground image

 	cv::namedWindow("Foreground Image");

 	cv::imshow("Foreground Image",fg);



 	// Identify image pixels without objects

 	cv::Mat bg;

 	cv::dilate(binary,bg,cv::Mat(),cv::Point(-1,-1),6);

 	cv::threshold(bg,bg,1,128,cv::THRESH_BINARY_INV);



     // Display the background image

 	cv::namedWindow("Background Image");

 	cv::imshow("Background Image",bg);



 	// Show markers image

 	cv::Mat markers(binary.size(),CV_8U,cv::Scalar(0));

 	markers= fg+bg;

 	cv::namedWindow("Markers");

 	cv::imshow("Markers",markers);



 	// Create watershed segmentation object

 	WatershedSegmenter segmenter;



 	// Set markers and process

 	segmenter.setMarkers(markers);

 	segmenter.process(image);

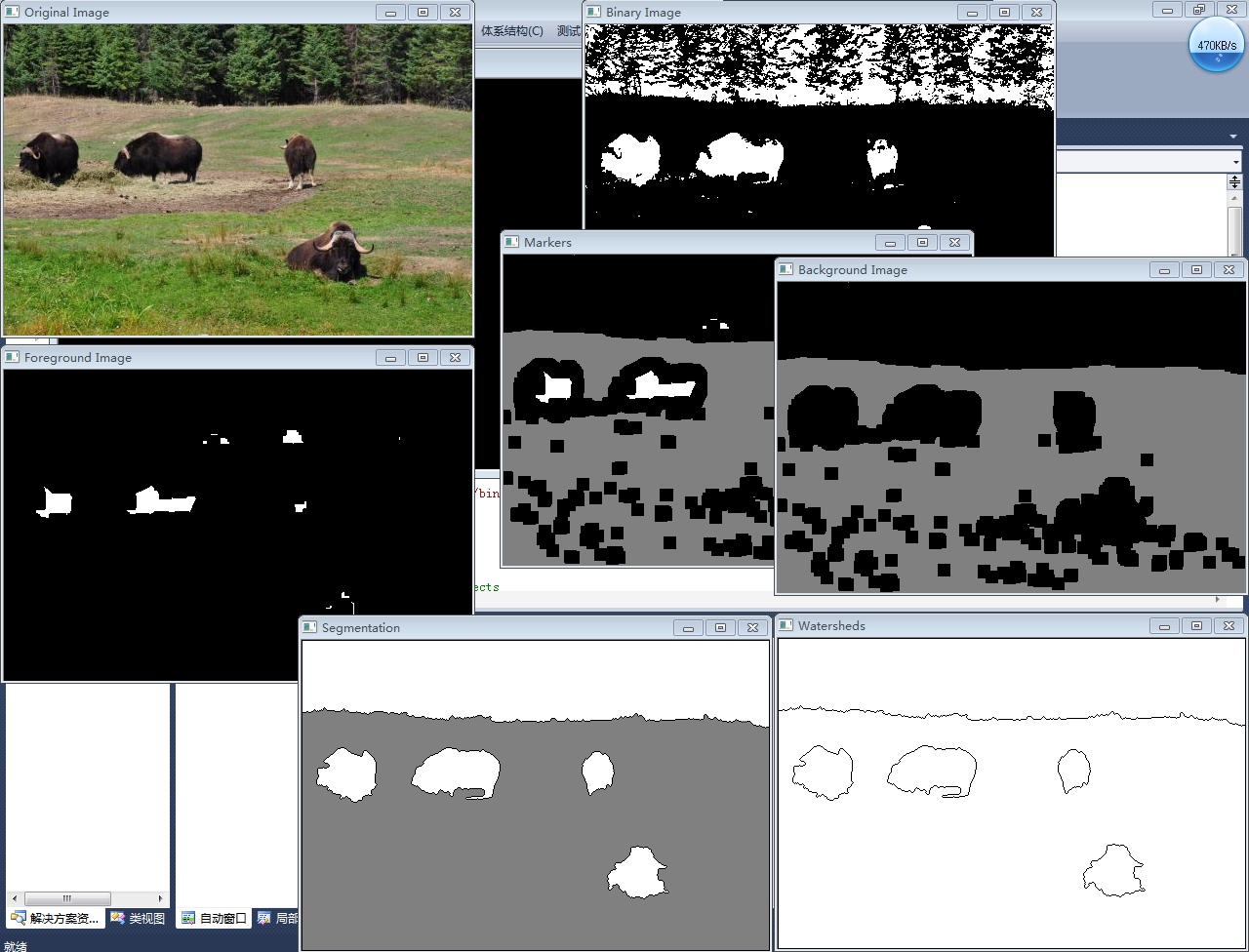

 	// Display segmentation result

 	cv::namedWindow("Segmentation");

 	cv::imshow("Segmentation",segmenter.getSegmentation());



 	// Display watersheds

 	cv::namedWindow("Watersheds");

 	cv::imshow("Watersheds",segmenter.getWatersheds());





 	cv::waitKey();

 	return 0;

 }
