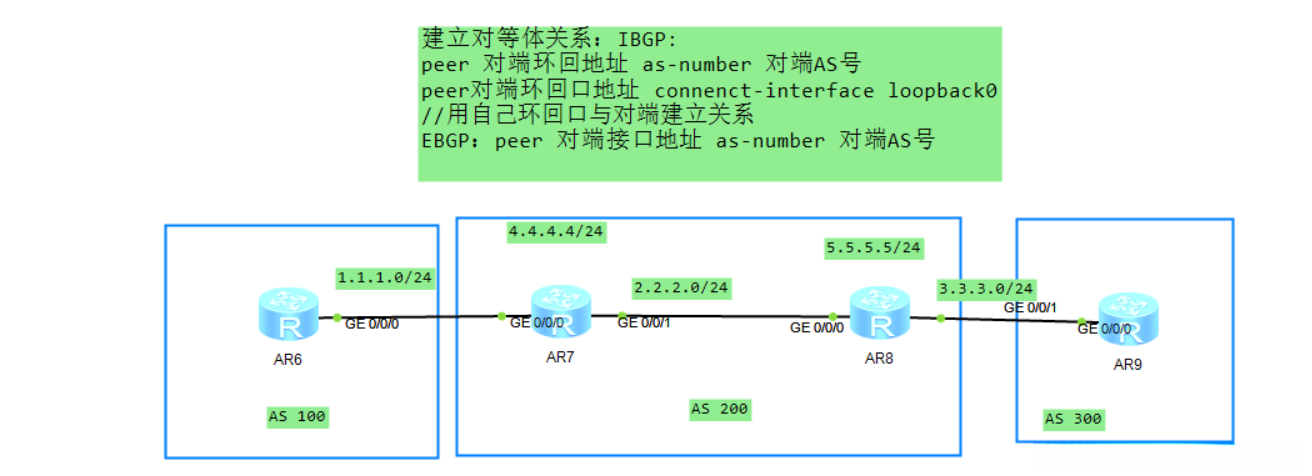

动态路由-BGP的基础配置





 AR6-1:

 #1、添加ip地址

 interface GigabitEthernet0/0/0

  ip address 1.1.1.1 255.255.255.0

 #

 #2、配置BGP对等体

 bgp 100    //  配置bgp的AS号为100

  peer 1.1.1.2 as-number 200     //配置对等体ip地址1.1.1.2进入到bgp 200

  #











 AR7-1:

 #1、添加ip地址

 interface GigabitEthernet0/0/0

  ip address 1.1.1.2 255.255.255.0

 #

 #

 interface GigabitEthernet0/0/1

  ip address 2.2.2.1 255.255.255.0

 #

 #添加环回地址

 interface LoopBack0

  ip address 4.4.4.4 255.255.255.0

 #

 #宣告ip地址和环回地址

 ospf 1 router-id 4.4.4.4

  area 0.0.0.0 //创建区域

   network 1.1.1.0 0.0.0.255     //宣告网段

   network 2.2.2.1 0.0.0.0 	//宣告明细ip地址

   network 4.4.4.4 0.0.0.0 	//宣告环回地址

 #

 #

 bgp 200    //进入bgp,进入指定的AS号

  router-id 4.4.4.4    //添加路由ID

  peer 1.1.1.1 as-number 100 //配置对等体

  peer 5.5.5.5 as-number 200 //配置对等体

  peer 5.5.5.5 connect-interface LoopBack0    //指定用loopback 0

   import-route ospf 1

 #







 AR8-1

 #

 interface GigabitEthernet0/0/0

  ip address 2.2.2.2 255.255.255.0

 #

 #

 interface GigabitEthernet0/0/1

  ip address 3.3.3.1 255.255.255.0

 #

 #添加环回地址

 interface LoopBack0

  ip address 5.5.5.5 255.255.255.0

 #

 #宣告

  area 0.0.0.0

   network 2.2.2.2 0.0.0.0

   network 3.3.3.0 0.0.0.255

   network 5.5.5.5 0.0.0.0

 #

 bgp 200

  router-id 5.5.5.5

  peer 3.3.3.2 as-number 300

  peer 4.4.4.4 as-number 200

  peer 4.4.4.4 connect-interface LoopBack0

   import-route ospf 1



 AR9-1

 #

 interface GigabitEthernet0/0/0

  ip address 3.3.3.2 255.255.255.0

 #
