C++实现特征点提取、相关系数影像匹配、最小二乘影像匹配
-
写在前面
-
- 特征点提取
- 相关系数影像匹配
- 最小二乘影像匹配
-
写在后面
写在前面
在本学期的数字摄影测量课程学习过程中, 老师要求同学们实现书本中提到的各种算法, 其中特征点提取部分确实有很多可供参考的经验. 不过影像配准相关的代码大多都需要付费获取, 我也曾尝试寻找过, 大致都是基于Matlab开发. 最终我们通过与同学间的交流, 并因此决定转向使用C++编程（因为选修课程采用的是C++）. 这一经验分享或许能对有需要的同学起到帮助作用.
特征点提取
在特征点提取过程中存在多种算法可供选择，并非仅限于常见的几种方法。其中常见的包括Moravec算子、Harris角点检测算法以及SIFT特征描述器等。鉴于开发自定义算法的成本较高，在此决定采用最基础的Morave
c算子来进行实现。以下将详细阐述相关代码的实现过程，在编写过程中本打算将部分内容整理到博客中进行分享，并且由于注释部分较为详尽故此省略过多冗述
- 求兴趣值
//寻找数组最大值、最小值
void find(float a[], int m, float &max, float &min)
{
min = a[0];
max = a[0];
for (int i = 0; i < m; i++)
{
if (a[i] > max)
{
max = a[i];
continue;
}
else if (a[i] < min)
{
min = a[i];
continue;
}
}
}
//求兴趣值，输入(图像矩阵、Moravec窗口大小、该像素的x,y)
float getInterestValue(cv::Mat m_srcimg, int Moravecsize, int i_x, int j_y)
{
int halfsize = (Moravecsize) / 2;//定义小半个窗口大小
float temp4[4];//创立四个方向的数组来进行"*"型的平方和
//数组初始化
for (int i = 0; i < 4; i++)
{
temp4[i] = 0;
}
//累加四个方向求平方和
for (int i = 0; i < Moravecsize; i++)
{
float l = m_srcimg.at<uchar>(i_x - halfsize + i, j_y);
temp4[0] += pow(m_srcimg.at<uchar>(i_x - halfsize + i, j_y) - m_srcimg.at<uchar>(i_x - halfsize + i + 1, j_y), 2);
temp4[1] += pow(m_srcimg.at<uchar>(i_x, j_y - halfsize + i) - m_srcimg.at<uchar>(i_x, j_y - halfsize + i + 1), 2);
temp4[2] += pow(m_srcimg.at<uchar>(i_x - halfsize + i, j_y - halfsize + i) - m_srcimg.at<uchar>(i_x - halfsize + i + 1, j_y - halfsize + i + 1), 2);
temp4[3] += pow(m_srcimg.at<uchar>(i_x - halfsize + i, j_y + halfsize - i) - m_srcimg.at<uchar>(i_x - halfsize + i + 1, j_y + halfsize - i - 1), 2);
}
float min, max;
find(temp4, 4, max, min);//给极小值赋值
return min;//返回极小值，即该像素点的兴趣值
}- 特征点提取
int Moravec(std::string path,std::vector<cv::Point3f> &featurePointLeft)
{
cv::Mat imageRGB = cv::imread(path, cv::IMREAD_COLOR);
if (imageRGB.empty())
{
std::cout << "Fail to read the image!" << path << std::endl;
return -1;
}

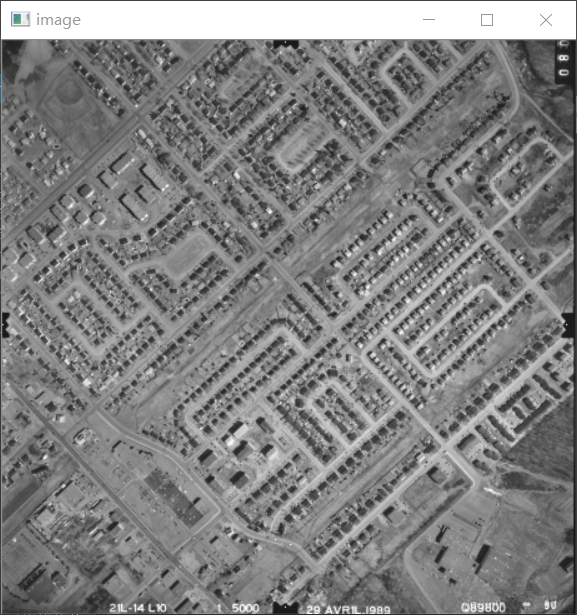

cv::imshow("image", imageRGB);//显示原图
cv::waitKey(0);
cv::Mat imageGray;
cv::cvtColor(imageRGB, imageGray, cv::COLOR_RGB2GRAY);
std::vector<cv::Point3f> f;
GaussianBlur(imageGray, imageGray, cv::Size(5, 5), 0, 0);//使用opencv自带高斯滤波预处理
cv::Mat result/*结果32bit*/, resultNorm, resultNormUInt8;
result = cv::Mat::zeros(imageGray.size(), CV_32FC1);
int Moravecsize = 5;//计算Moravec兴趣值的窗口大小
int Inhibitionsize = 9;//抑制局部最大的窗口大小
float sum = 0;
for (int i = 5; i < imageGray.rows - 5; i++)
{
for (int j = 5; j < imageGray.cols - 5; j++)
{
float min = getInterestValue(imageGray, Moravecsize, i, j);
result.at<float>(i, j) = min;
sum += min;
}
}
//对小于阈值的该像素兴趣值置为零
float mean = sum / (result.rows*result.cols);//经验阈值设置
if (mean < 60) { mean = 300; }
mean = 700;
for (int i = 0; i <result.rows; i++)
{
for (int j = 0; j < result.cols; j++)
{
if (result.at<float>(i, j) < mean)
{
result.at<float>(i, j) = 0;
}
}
}
int halfInhibitionsize = Inhibitionsize / 2;//定义小半个窗口大小
//抑制局部最大
for (int i = halfInhibitionsize; i < result.rows - 1 - halfInhibitionsize; i++)
{
for (int j = halfInhibitionsize; j < result.cols - 1 - halfInhibitionsize; j++)
{
float temp1 = result.at<float>(i, j);
for (int m = 0; m < Inhibitionsize; m++)
{
for (int n = 0; n < Inhibitionsize; n++)
{
float temp2 = result.at<float>(i - halfInhibitionsize + m, j - halfInhibitionsize + n);
if (temp1 < temp2)
{
result.at<float>(i, j) = 0;
n = Inhibitionsize;
m = Inhibitionsize;
}
}
}
}
}
//存储特征点
for (int i = halfInhibitionsize; i < result.rows - halfInhibitionsize - 1; i++)
{
for (int j = halfInhibitionsize; j < result.cols - halfInhibitionsize - 1; j++)
{
if (result.at<float>(i, j) > 0)
{
cv::Point3f temp;
temp.x = i;
temp.y = j;
temp.z = result.at<float>(i, j);
featurePointLeft.push_back(temp);
}
}
}
//开始删除同意一窗口值一样的重复点，尽管出现概率较小，但较大的图像往往某些窗口中会存在好几个数值相等的极大值
for (int i = 0; i < featurePointLeft.size() - 1; i++)
{
for (int j = i + 1; j < featurePointLeft.size(); j++)
{
if ((featurePointLeft.at(i).z == featurePointLeft.at(j).z))
{
if (abs(featurePointLeft.at(i).x - featurePointLeft.at(j).x) < Inhibitionsize || abs(featurePointLeft.at(i).y - featurePointLeft.at(j).y) < Inhibitionsize)
{
featurePointLeft.erase(featurePointLeft.begin() + j);
i = 0;
break;
}
}
}
}
//Normalizing image to 0-255
cv::normalize(result, resultNorm, 0, 255, cv::NORM_MINMAX, CV_32FC1, cv::Mat());
cv::convertScaleAbs(resultNorm, resultNormUInt8);
//画图展示出来
int radius = 5;
for (size_t n = 0; n < featurePointLeft.size(); n++)
{
int i = int(featurePointLeft.at(n).y);
int j = int(featurePointLeft.at(n).x);
cv::circle(resultNormUInt8, cv::Point(i, j), radius, cv::Scalar(255), 1, 8, 0);
cv::circle(imageRGB, cv::Point(i, j), radius, cv::Scalar(0, 255, 255), 1, 4, 0);
cv::line(imageRGB, cv::Point(i - radius - 2, j), cv::Point(i + radius + 2, j), cv::Scalar(0, 255, 255), 1, 8, 0);
cv::line(imageRGB, cv::Point(i, j - radius - 2), cv::Point(i, j + radius + 2), cv::Scalar(0, 255, 255), 1, 8, 0);
}
cv::imshow("MoravecResult", resultNormUInt8);
cv::imshow("imageRGB", imageRGB);
cv::waitKey(0);

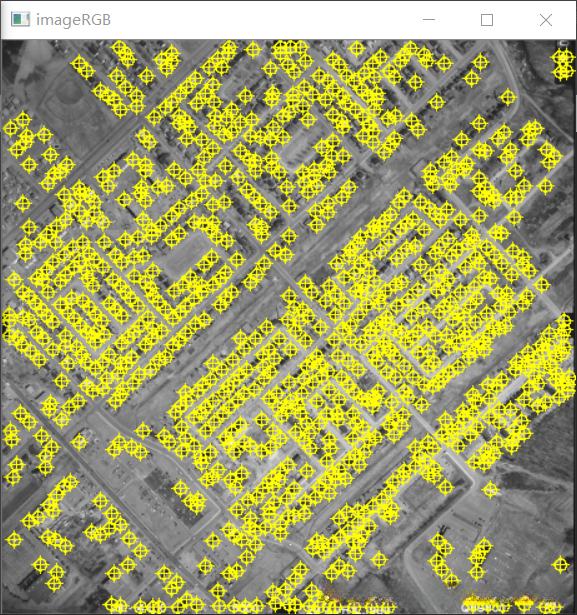

}- 效果展示
相关系数影像匹配
首先通过特征点提取获取左片的所有特征点；接着，在右片指定区域内筛选出与左片选出的特征点具有最高相关的对应点。整个流程相对简洁明了。
- 计算相关系数
//相关系数图像匹配
float Get_coefficient(cv::Mat matchLeftWindow, cv::Mat imageRight, int x, int y)
{
//根据左搜索窗口确定右搜索窗口的大小
cv::Mat Rmatchwindow;
Rmatchwindow.create(matchLeftWindow.rows, matchLeftWindow.cols, CV_32FC1);
float aveRImg = 0;
for (int m = 0; m < matchLeftWindow.rows; m++)
{
for (int n = 0; n < matchLeftWindow.cols; n++)
{
aveRImg += imageRight.at<uchar>(x + m, y + n);
Rmatchwindow.at<float>(m, n) = imageRight.at<uchar>(x + m, y + n);
}
}
aveRImg = aveRImg / (matchLeftWindow.rows*matchLeftWindow.cols);
for (int m = 0; m < matchLeftWindow.rows; m++)
{
for (int n = 0; n < matchLeftWindow.cols; n++)
{
Rmatchwindow.at<float>(m, n) -= aveRImg;
}
}
//开始计算相关系数
float cofficent1 = 0;
float cofficent2 = 0;
float cofficent3 = 0;
for (int m = 0; m < matchLeftWindow.rows; m++)
{
for (int n = 0; n < matchLeftWindow.cols; n++)
{
cofficent1 += matchLeftWindow.at<float>(m, n)*Rmatchwindow.at<float>(m, n);
cofficent2 += Rmatchwindow.at<float>(m, n)*Rmatchwindow.at<float>(m, n);
cofficent3 += matchLeftWindow.at<float>(m, n)*matchLeftWindow.at<float>(m, n);
}
}
double cofficent = cofficent1 / sqrt(cofficent2 * cofficent3);
return cofficent;
}- 将Vector内的最大数据移至首位
void vectorsort(std::vector < cv::Point3f> &Temp_sort)
{
for (int i = 0; i < Temp_sort.size() - 1; i++) {
float tem = 0;
float temx = 0;
float temy = 0;
// 内层for循环控制相邻的两个元素进行比较
for (int j = i + 1; j < Temp_sort.size(); j++) {
if (Temp_sort.at(i).z < Temp_sort.at(j).z) {
tem = Temp_sort.at(j).z;
Temp_sort.at(j).z = Temp_sort.at(i).z;
Temp_sort.at(i).z = tem;
temx = Temp_sort.at(j).x;
Temp_sort.at(j).x = Temp_sort.at(i).x;
Temp_sort.at(i).x = temx;
temy = Temp_sort.at(j).y;
Temp_sort.at(j).y = Temp_sort.at(i).y;
Temp_sort.at(i).y = temy;
}
}
}
}- 合并左右核线影像，同名点连接
void lastview(cv::Mat imageLeftRGB, cv::Mat imageRightRGB, std::vector<cv::Point3f> featurePointLeft, std::vector<cv::Point3f> featurePointRight)
{
cv::Mat bothview;//输出图像
bothview.create(imageLeftRGB.rows, imageLeftRGB.cols + imageRightRGB.cols, imageLeftRGB.type());
for (int i = 0; i <imageLeftRGB.rows; i++)
{
for (int j = 0; j < imageLeftRGB.cols; j++)
{
bothview.at<cv::Vec3b>(i, j) = imageLeftRGB.at<cv::Vec3b>(i, j);
}
}
for (int i = 0; i <imageRightRGB.rows; i++)
{
for (int j = imageLeftRGB.cols; j <imageLeftRGB.cols + imageRightRGB.cols; j++)
{
bothview.at<cv::Vec3b>(i, j) = imageRightRGB.at<cv::Vec3b>(i, j - imageLeftRGB.cols);
}
}//左右影像合二为一
for (int i = 0; i < featurePointRight.size(); i++)
{
int a = (rand() % 200);
int b = (rand() % 200 + 99);
int c = (rand() % 200) - 50;
if (a > 100 || a < 0)
{
a = 255;
}
if (b > 255 || b < 0)
{
b = 88;
}
if (c > 255 || c < 0)
{
c = 188;
}
int radius = 5;
//左片
int lm = int(featurePointLeft.at(i).y);
int ln = int(featurePointLeft.at(i).x);
cv::circle(bothview, cv::Point(lm, ln), radius, cv::Scalar(0, 255, 255), 1, 4, 0);
cv::line(bothview, cv::Point(lm - radius - 2, ln), cv::Point(lm + radius + 2, ln), cv::Scalar(0, 255, 255), 1, 8, 0);
cv::line(bothview, cv::Point(lm, ln - radius - 2), cv::Point(lm, ln + radius + 2), cv::Scalar(0, 255, 255), 1, 8, 0);
//右片
int rm = int(featurePointRight.at(i).y + imageLeftRGB.cols);
int rn = int(featurePointRight.at(i).x);
cv::circle(bothview, cv::Point(rm, rn), radius,cv::Scalar(0, 255, 255), 1, 4, 0);
cv::line(bothview, cv::Point(rm - radius - 2, rn), cv::Point(rm + radius + 2, rn), cv::Scalar(0, 255, 255), 1, 8, 0);
cv::line(bothview, cv::Point(rm, rn - radius - 2), cv::Point(rm, rn + radius + 2), cv::Scalar(0, 255, 255), 1, 8, 0);
//连接
cv::line(bothview, cv::Point(lm,ln), cv::Point(rm, rn),cv::Scalar(a, b, c), 1,8,0);
}
cv::imshow("左右片影像同名点展示", bothview);
cv::waitKey(0);
}- 相关系数影像匹配

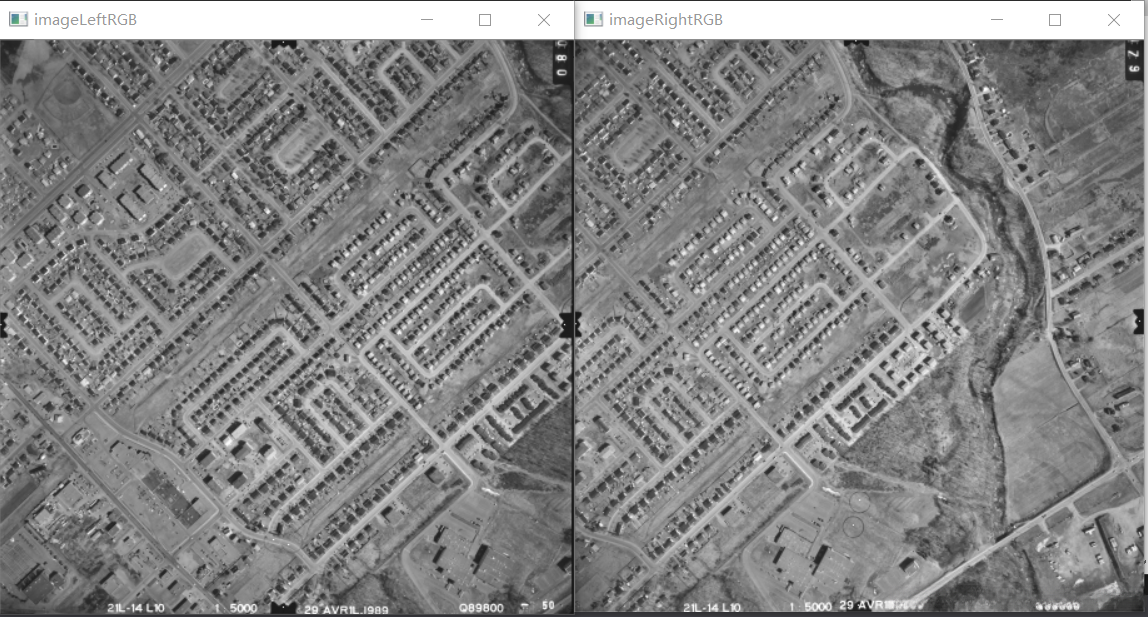

int kyhMatchingImg(std::string pathLeft, std::string pathRight, std::vector<cv::Point3f> featurePointLeft)
{
cv::Mat imageLeft, imageLeftRGB = cv::imread(pathLeft, cv::IMREAD_COLOR);
cv::Mat imageRight, imageRightRGB = cv::imread(pathRight, cv::IMREAD_COLOR);
if (imageLeftRGB.empty())
{
std::cout << "Fail to read the image:" << pathLeft << std::endl;
return -1;
}
if (imageRightRGB.empty())
{
std::cout << "Fail to read the image:" << pathRight << std::endl;
return -1;
}
cv::cvtColor(imageLeftRGB, imageLeft, cv::COLOR_BGR2GRAY);
cv::cvtColor(imageRightRGB, imageRight, cv::COLOR_BGR2GRAY);
int matchsize = 9;//相关系数的正方形窗口的边长
int half_matchsize = matchsize / 2;//边长的一半
std::vector<cv::Point3f> featurePointRight;//右片匹配到的数据
float lowst_door = 0.7; //相关系数法匹配的阈值
int dist_width = 270;//左相片与右相片的相对距离，在这里通过手动观察
//进行f数据的预处理 删除不符合规范的数据
for (size_t i = 0; i < featurePointLeft.size(); i++)
{
//这里的 5 = half_matchsize + 1
if ((featurePointLeft.at(i).y + dist_width < imageLeft.cols) || (imageLeft.cols - featurePointLeft.at(i).y <5))
{
featurePointLeft.erase(featurePointLeft.begin() + i);
i--;
continue;
}
if ((featurePointLeft.at(i).x < 5) || (imageLeft.rows - featurePointLeft.at(i).x < 5))
{
featurePointLeft.erase(featurePointLeft.begin() + i);
i--;
continue;
}
}
//创建左窗口的小窗口
cv::Mat matchLeftWindow;
matchLeftWindow.create(matchsize, matchsize, CV_32FC1);
for (size_t i = 0; i < featurePointLeft.size(); i++)
{
float aveLImg = 0;
for (int m = 0; m <matchsize; m++)
{
for (int n = 0; n < matchsize; n++)
{
aveLImg += imageLeft.at<uchar>(featurePointLeft.at(i).x - half_matchsize + m, featurePointLeft.at(i).y - half_matchsize + n);
matchLeftWindow.at<float>(m, n) = imageLeft.at<uchar>(featurePointLeft.at(i).x - half_matchsize + m, featurePointLeft.at(i).y - half_matchsize + n);
}
}
aveLImg = aveLImg / (matchsize* matchsize);//求取左窗口平均值
//均除某个值
for (int m = 0; m < matchsize; m++)
{
for (int n = 0; n < matchsize; n++)
{
matchLeftWindow.at<float>(m, n) = matchLeftWindow.at<float>(m, n) - aveLImg;
}
}
//***************************对右窗口进行计算
//首先预估右窗口的位置
int halflengthsize = 10; //搜索区的半径
std::vector < cv::Point3f> tempfeatureRightPoint;
//去除跑到窗口外的点
for (int ii = -halflengthsize; ii <= halflengthsize; ii++)
{
for (int jj = -halflengthsize; jj <= halflengthsize; jj++)
{
//为了省事…… 把边缘超限的都给整没了
if ((featurePointLeft.at(i).x<(halflengthsize + 5)) || (imageRight.rows - featurePointLeft.at(i).x)<(halflengthsize + 5)
|| (featurePointLeft.at(i).y + dist_width - imageLeft.cols)<(halflengthsize + 5))
{
cv::Point3f temphalflengthsize;
temphalflengthsize.x = 0;
temphalflengthsize.y = 0;
temphalflengthsize.z = 0;
tempfeatureRightPoint.push_back(temphalflengthsize);
}
else
{
cv::Point3f temphalflengthsize;
int x = featurePointLeft.at(i).x + ii - half_matchsize;
int y = featurePointLeft.at(i).y + dist_width - imageLeft.cols + jj - half_matchsize;
float coffee = Get_coefficient(matchLeftWindow, imageRight, x, y);
temphalflengthsize.x = featurePointLeft.at(i).x + ii;
temphalflengthsize.y = featurePointLeft.at(i).y + dist_width - imageLeft.cols + jj;
temphalflengthsize.z = coffee;
tempfeatureRightPoint.push_back(temphalflengthsize);
}
}
}
vectorsort(tempfeatureRightPoint);
//剔除相关系数小于阈值的点
if (tempfeatureRightPoint.at(0).z > lowst_door&&tempfeatureRightPoint.at(0).z < 1)
{
cv::Point3f tempr;
tempr.x = tempfeatureRightPoint.at(0).x;
tempr.y = tempfeatureRightPoint.at(0).y;
tempr.z = tempfeatureRightPoint.at(0).z;
featurePointRight.push_back(tempr);
}
else
{
featurePointLeft.erase(featurePointLeft.begin() + i);
i--;
continue;
}
}
//展示
lastview(imageLeftRGB, imageRightRGB, featurePointLeft, featurePointRight);
return 0;

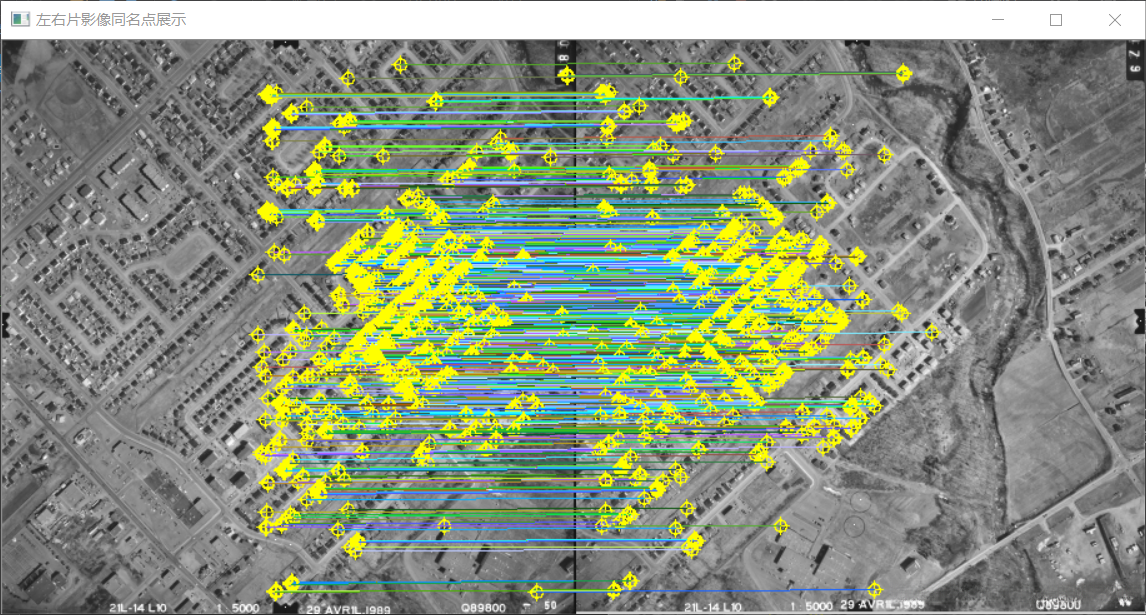

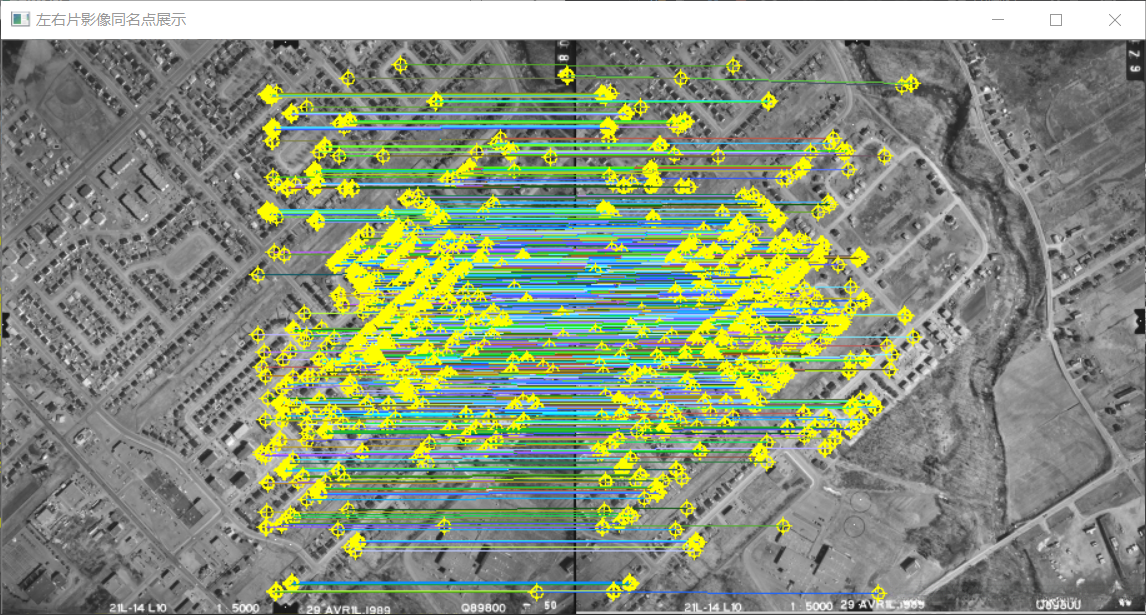

}- 效果演示

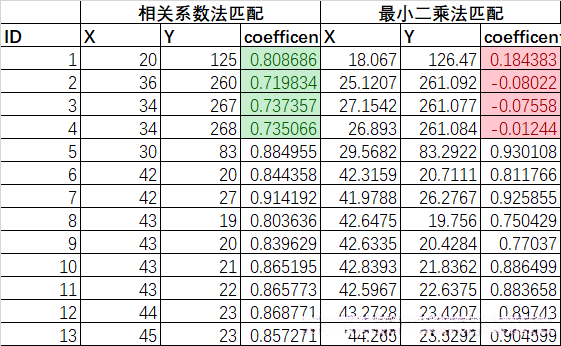

最小二乘影像匹配
这部分是我做得很久的一次，和磊哥讨论又进行了一些调整。大概是平时python和matlab惯坏了，总之就是调试花了很久，时隔两年再次体会到debug到凌晨三点的感觉（中途从九点半和高中同学喝酒到一点半之后回家再debug的 ）。原理是参照武汉大学出版社出版的《数字摄影测量学（第二版）》中第五章内容。据介绍，德国 Ackermann教授 提出了一种新的影像匹配方法—— 最小二乘影像匹配（ least aquares image matching）。由于 该方法充分利用了影像窗口内的信息进行平差计算，使影像匹配可以达到 1/10 甚至 1/ 100 像素的高精度，即影像匹配精度可达到子像素（subpixel）等级。为此，最小二乘影像 匹配被称为“高精度影像匹配”。
下面介绍代码部分。
最小二乘匹配是一种通过迭代过程寻求最优解的方法，在实现过程中需要设定初始值，在此基础之上我们采用相关系数匹配法来确定初始值之后继续执行迭代运算。
int kyhMatchImgbyLST(std::string pathLeft, std::string pathRight, std::vector<cv::Point3f> featurePointLeft)
{
cv::Mat imageLeft, imageLeftRGB = cv::imread(pathLeft, cv::IMREAD_COLOR);
cv::Mat imageRight, imageRightRGB = cv::imread(pathRight, cv::IMREAD_COLOR);
if (imageLeftRGB.empty())
{
std::cout << "Fail to read the image:" << pathLeft << std::endl;
return -1;
}
if (imageRightRGB.empty())
{
std::cout << "Fail to read the image:" << pathRight << std::endl;
return -1;
}
cv::cvtColor(imageLeftRGB, imageLeft, cv::COLOR_BGR2GRAY);
cv::cvtColor(imageRightRGB, imageRight, cv::COLOR_BGR2GRAY);
int matchsize = 9;//相关系数的正方形窗口的边长
int half_matchsize = matchsize / 2;//边长的一半
std::vector<cv::Point3f> featurePointRight;//右片匹配到的数据
float lowst_door = 0.7; //相关系数法匹配的阈值
int dist_width = 270;//左相片与右相片的相对距离，在这里通过手动观察
//进行f数据的预处理 删除不符合规范的数据
for (size_t i = 0; i < featurePointLeft.size(); i++)
{
//这里的 5 = half_matchsize + 1
if ((featurePointLeft.at(i).y + dist_width < imageLeft.cols) || (imageLeft.cols - featurePointLeft.at(i).y <5))
{
featurePointLeft.erase(featurePointLeft.begin() + i);
i--;
continue;
}
if ((featurePointLeft.at(i).x < 5) || (imageLeft.rows - featurePointLeft.at(i).x < 5))
{
featurePointLeft.erase(featurePointLeft.begin() + i);
i--;
continue;
}
}
//创建左窗口的小窗口
cv::Mat matchLeftWindow;
matchLeftWindow.create(matchsize, matchsize, CV_32FC1);
for (size_t i = 0; i < featurePointLeft.size(); i++)
{
float aveLImg = 0;
for (int m = 0; m <matchsize; m++)
{
for (int n = 0; n < matchsize; n++)
{
aveLImg += imageLeft.at<uchar>(featurePointLeft.at(i).x - half_matchsize + m, featurePointLeft.at(i).y - half_matchsize + n);
matchLeftWindow.at<float>(m, n) = imageLeft.at<uchar>(featurePointLeft.at(i).x - half_matchsize + m, featurePointLeft.at(i).y - half_matchsize + n);
}
}
aveLImg = aveLImg / (matchsize* matchsize);//求取左窗口平均值
//均除某个值
for (int m = 0; m < matchsize; m++)
{
for (int n = 0; n < matchsize; n++)
{
matchLeftWindow.at<float>(m, n) = matchLeftWindow.at<float>(m, n) - aveLImg;
}
}
//***************************对右窗口进行计算
//首先预估右窗口的位置
int halflengthsize = 10; //搜索区的半径
std::vector < cv::Point3f> tempfeatureRightPoint;
//去除跑到窗口外的点
for (int ii = -halflengthsize; ii <= halflengthsize; ii++)
{
for (int jj = -halflengthsize; jj <= halflengthsize; jj++)
{
//为了省事…… 把边缘超限的都给整没了
if ((featurePointLeft.at(i).x<(halflengthsize + 5)) || (imageRight.rows - featurePointLeft.at(i).x)<(halflengthsize + 5)
|| (featurePointLeft.at(i).y + dist_width - imageLeft.cols)<(halflengthsize + 5))
{
cv::Point3f temphalflengthsize;
temphalflengthsize.x = 0;
temphalflengthsize.y = 0;
temphalflengthsize.z = 0;
tempfeatureRightPoint.push_back(temphalflengthsize);
}
else
{
cv::Point3f temphalflengthsize;
int x = featurePointLeft.at(i).x + ii - half_matchsize;
int y = featurePointLeft.at(i).y + dist_width - imageLeft.cols + jj - half_matchsize;
float coffee = Get_coefficient(matchLeftWindow, imageRight, x, y);
temphalflengthsize.x = featurePointLeft.at(i).x + ii;
temphalflengthsize.y = featurePointLeft.at(i).y + dist_width - imageLeft.cols + jj;
temphalflengthsize.z = coffee;
tempfeatureRightPoint.push_back(temphalflengthsize);
}
}
}
vectorsort(tempfeatureRightPoint);
if (tempfeatureRightPoint.at(0).z > lowst_door&&tempfeatureRightPoint.at(0).z < 1)
{
cv::Point3f tempr;
tempr.x = tempfeatureRightPoint.at(0).x;
tempr.y = tempfeatureRightPoint.at(0).y;
tempr.z = tempfeatureRightPoint.at(0).z;
featurePointRight.push_back(tempr);
}
else
{
featurePointLeft.erase(featurePointLeft.begin() + i);
i--;
continue;
}
}
//得到左右两片的同名点初始值
/*正式开始最小二乘匹配*/
std::vector<cv::Point3f> featureRightPointLST;//存储最小二乘匹配到的点
//求几何畸变的初始值
cv::Mat formerP = cv::Mat::eye(2 * featurePointLeft.size(), 2 * featurePointLeft.size(), CV_32F)/*权矩阵*/,
formerL = cv::Mat::zeros(2 * featurePointLeft.size(), 1, CV_32F)/*常数项*/,
formerA = cv::Mat::zeros(2 * featurePointLeft.size(), 6, CV_32F)/*系数矩阵*/;
for (int i = 0; i < featurePointLeft.size(); i++)
{
float x1 = featurePointLeft.at(i).x;
float y1 = featurePointLeft.at(i).y;
float x2 = featurePointRight.at(i).x;
float y2 = featurePointRight.at(i).y;
float coef = featurePointRight.at(i).z;//初始同名点的相关系数作为权重
formerP.at<float>(2 * i, 2 * i) = coef;
formerP.at<float>(2 * i + 1, 2 * i + 1) = coef;
formerL.at<float>(2 * i, 0) = x2;
formerL.at<float>(2 * i + 1, 0) = y2;
formerA.at<float>(2 * i, 0) = 1; formerA.at<float>(2 * i, 1) = x1; formerA.at<float>(2 * i, 2) = y1;
formerA.at<float>(2 * i + 1, 3) = 1; formerA.at<float>(2 * i + 1, 4) = x1; formerA.at<float>(2 * i + 1, 5) = y1;
}
cv::Mat Nbb = formerA.t()*formerP*formerA, U = formerA.t()*formerP*formerL;
cv::Mat formerR = Nbb.inv()*U;
//开始进行最小二乘匹配
for (int i = 0; i < featurePointLeft.size(); i++)
{
//坐标的迭代初始值
float x1 = featurePointLeft.at(i).x;
float y1 = featurePointLeft.at(i).y;
float x2 = featurePointRight.at(i).x;
float y2 = featurePointRight.at(i).y;
//几何畸变参数迭代初始值
float a0 = formerR.at<float>(0, 0); float a1 = formerR.at<float>(1, 0); float a2 = formerR.at<float>(2, 0);
float b0 = formerR.at<float>(3, 0); float b1 = formerR.at<float>(4, 0); float b2 = formerR.at<float>(5, 0);
//辐射畸变迭代初始值
float h0 = 0, h1 = 1;
//当后一次相关系数小于前一次，迭代停止
float beforeCorrelationCoe = 0/*前一个相关系数*/, CorrelationCoe = 0;
float xs = 0,ys = 0;
while (beforeCorrelationCoe <= CorrelationCoe)
{
beforeCorrelationCoe = CorrelationCoe;
cv::Mat C = cv::Mat::zeros(matchsize*matchsize, 8, CV_32F);//系数矩阵，matchsize为左片目标窗口大小
cv::Mat L = cv::Mat::zeros(matchsize*matchsize, 1, CV_32F);//常数项
cv::Mat P = cv::Mat::eye(matchsize*matchsize, matchsize*matchsize, CV_32F);//权矩阵
float sumgxSquare = 0, sumgySquare = 0, sumXgxSquare = 0, sumYgySquare = 0;
int dimension = 0;//用于矩阵赋值
float sumLImg = 0, sumLImgSquare = 0, sumRImg = 0, sumRImgSquare = 0, sumLR = 0;
for (int m = x1 - half_matchsize; m <= x1 + half_matchsize; m++)
{
for (int n = y1 - half_matchsize; n <= y1 + half_matchsize; n++)
{
float x2 = a0 + a1*m + a2*n;
float y2 = b0 + b1*m + b2*n;
int I = std::floor(x2); int J = std::floor(y2);//不大于自变量的最大整数
if (I <= 1 || I >= imageRight.rows - 1 || J <= 1 || J >= imageRight.cols - 1)
{
I = 2; J = 2; P.at<float>((m - (y1 -5) - 1)*(2 * 4+ 1) + n - (x1 - 5), (m - (y1 - 5) - 1)*(2 * 4 + 1) + n - (x1 - 5)) = 0;
}
//双线性内插重采样
float linerGray = (J + 1 - y2)*((I + 1 - x2)*imageRight.at<uchar>(I, J) + (x2-I)*imageRight.at<uchar>(I+1,J))
+(y2 - J)*((I+1-x2)*imageRight.at<uchar>(I,J+1)+(x2-I)*imageRight.at<uchar>(I+1,J+1));
//辐射校正
float radioGray = h0 + h1*linerGray;//得到相应灰度
sumRImg += radioGray;
sumRImgSquare += radioGray*radioGray;
//确定系数矩阵
float gy = 0.5*(imageRight.at<uchar>(I, J + 1) - imageRight.at<uchar>(I, J - 1));
float gx = 0.5*(imageRight.at<uchar>(I + 1, J) - imageRight.at<uchar>(I - 1, J));
C.at<float>(dimension, 0) = 1; C.at<float>(dimension, 1) = linerGray;
C.at<float>(dimension, 2) = gx; C.at<float>(dimension, 3) = x2*gx;
C.at<float>(dimension, 4) = y2*gx; C.at<float>(dimension, 5) = gy;
C.at<float>(dimension, 6) = x2*gy; C.at<float>(dimension, 7) = y2*gy;
//常数项赋值
L.at<float>(dimension,0) = imageLeft.at<uchar>(m,n)-radioGray;
dimension =dimension + 1;
//左窗口加权平均
float gyLeft = 0.5*(imageLeft.at<uchar>(m, n + 1) - imageLeft.at<uchar>(m, n - 1));
float gxLeft = 0.5*(imageLeft.at<uchar>(m + 1, n) - imageLeft.at<uchar>(m - 1, n));
sumgxSquare += gxLeft*gxLeft;
sumgySquare += gyLeft*gyLeft;
sumXgxSquare += m*gxLeft*gxLeft;
sumYgySquare += n*gyLeft*gyLeft;
//左片灰度相加用于求相关系数
sumLImg += imageLeft.at<uchar>(m, n);
sumLImgSquare += imageLeft.at<uchar>(m, n)*imageLeft.at<uchar>(m, n);
sumLR += radioGray*imageLeft.at<uchar>(m, n);
}
}
//计算相关系数
float coefficent1 = sumLR - sumLImg*sumRImg / (matchsize*matchsize);
float coefficent2 = sumLImgSquare - sumLImg*sumLImg / (matchsize*matchsize);
float coefficent3 = sumRImgSquare - sumRImg*sumRImg / (matchsize*matchsize);
CorrelationCoe = coefficent1 / sqrt(coefficent2*coefficent3);
//计算辐射畸变和几何变形的参数
cv::Mat Nb = C.t()*P*C, Ub = C.t()*P*L;
cv::Mat parameter = Nb.inv()*Ub;
float dh0 = parameter.at<float>(0,0); float dh1 = parameter.at<float>(1,0);
float da0 = parameter.at<float>(2,0); float da1 = parameter.at<float>(3,0);float da2 = parameter.at<float>(4,0);
float db0 = parameter.at<float>(5,0); float db1 = parameter.at<float>(6,0);float db2 = parameter.at<float>(7,0);
a0 = a0 + da0 + a0*da1 + b0*da2;
a1 = a1 + a1*da1 + b1*da2;
a2 = a2 + a2*da1 + b2*da2;
b0 = b0 + db0 + a0*db1 + b0*db2;
b1 = b1 + a1*db1 + b1*db2;
b2 = b2 + a2*db1 + b2*db2;
h0 = h0 + dh0 + h0*dh1;
h1 = h1 + h1*dh1;
float xt = sumXgxSquare / sumgxSquare;
float yt = sumYgySquare / sumgySquare;
xs = a0 + a1*xt + a2*yt;
ys = b0 + b1*xt + b2*yt;
}
cv::Point3f tempPoint;
tempPoint.x = xs;
tempPoint.y = ys;
tempPoint.z = CorrelationCoe;
featureRightPointLST.push_back(tempPoint);
}
lastview(imageLeftRGB, imageRightRGB, featurePointLeft, featureRightPointLST);
//输出两种匹配策略的结果，观察坐标是否发生变化
std::ofstream outputfile;
outputfile.open("FeturePointOutput.txt");
if (outputfile.is_open()) {
for (size_t i = 0; i < featurePointRight.size(); i++)
{
outputfile << featurePointRight.at(i).x << ", " << featurePointRight.at(i).y << ", " << featurePointRight.at(i).z << "，" <<
featureRightPointLST.at(i).x << ", " << featureRightPointLST.at(i).y << ", " << featureRightPointLST.at(i).z << std::endl;
}
}
outputfile.close();
return 0;
}- 效果展示
- 结果对比
用肉眼看时，并未察觉与通过相关系数计算所得之点差异过大。或许这两幅影像质量极佳，“棱角分明”确实令人赞叹。于是乎我决定将坐标数据与计算出的相关性数值一并输出。与另外一种方法所获得之对应点进行比对分析后发现经肉眼观察后发现确实无误。两种方法匹配到的是拥有八百六十二个对应点其中仅有四对对应点之间的坐标数值差异显著有趣的是其计算出的相关性数值变为负值这表明存在负相关关系令人感到困惑的是老师也提出了同样的疑问
写在后面
写这些代码的时候，并没有考虑到时间复杂度等因素的影响，在实际运行时计算速度稍显缓慢；不过这确实是一个可行的解决方案。非常感谢磊哥耐心地为我讲解最小二乘法；我也对某些细节仍感到疑惑。希望这篇文章能对你有所帮助！如果有任何错误或遗漏，请随时评论或私信指出；在此表示衷心的感谢！
全部评论 (0)
还没有任何评论哟~
