手把手教你通过YOLOv5训练自己的目标检测模型

 # coding:utf-8




 import os

 import random

 import argparse



 parser = argparse.ArgumentParser()

 #xml文件的地址，根据自己的数据进行修改 xml一般存放在Annotations下

 parser.add_argument('--xml_path', default='Annotations', type=str, help='input xml label path')

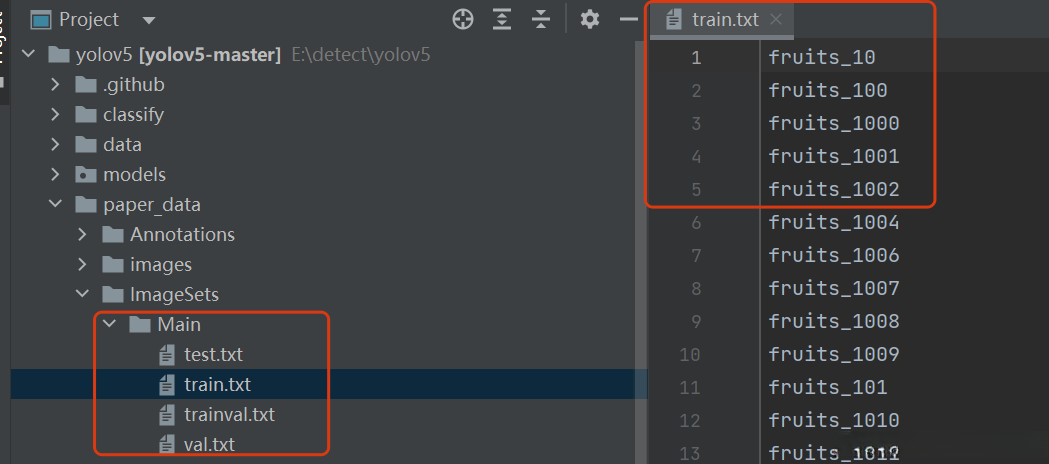

 #数据集的划分，地址选择自己数据下的ImageSets/Main

 parser.add_argument('--txt_path', default='ImageSets/Main', type=str, help='output txt label path')

 opt = parser.parse_args()



 trainval_percent = 1.0

 train_percent = 0.9

 xmlfilepath = opt.xml_path

 txtsavepath = opt.txt_path

 total_xml = os.listdir(xmlfilepath)

 if not os.path.exists(txtsavepath):

     os.makedirs(txtsavepath)



 num = len(total_xml)

 list_index = range(num)

 tv = int(num * trainval_percent)

 tr = int(tv * train_percent)

 trainval = random.sample(list_index, tv)

 train = random.sample(trainval, tr)



 file_trainval = open(txtsavepath + '/trainval.txt', 'w')

 file_test = open(txtsavepath + '/test.txt', 'w')

 file_train = open(txtsavepath + '/train.txt', 'w')

 file_val = open(txtsavepath + '/val.txt', 'w')



 for i in list_index:

     name = total_xml[i][:-4] + '\n'

     if i in trainval:

     file_trainval.write(name)

     if i in train:

         file_train.write(name)

     else:

         file_val.write(name)

     else:

     file_test.write(name)



 file_trainval.close()

 file_train.close()

 file_val.close()

 file_test.close()





 # -*- coding: utf-8 -*-


 import xml.etree.ElementTree as ET

 import os

 from os import getcwd



 sets = ['train', 'val', 'test']

 classes = ['黑葡萄', '绿葡萄', '樱桃', '西瓜', '龙眼', '香蕉', '芒果', '菠萝', '柚子', '草莓', '苹果', '柑橘', '火龙果', '梨子',

        '花生', '黄瓜', '土豆', '大蒜', '茄子', '白萝卜', '辣椒', '胡萝卜', '花菜', '白菜', '番茄', '西蓝花', '橙子']  # 改成自己的类别

 abs_path = os.getcwd()

 print(abs_path)



 def convert(size, box):

     dw = 1. / (size[0])

     dh = 1. / (size[1])

     x = (box[0] + box[1]) / 2.0 - 1

     y = (box[2] + box[3]) / 2.0 - 1

     w = box[1] - box[0]

     h = box[3] - box[2]

     x = x * dw

     w = w * dw

     y = y * dh

     h = h * dh

     return x, y, w, h



 def convert_annotation(image_id):

     in_file = open(r'E:\detect\yolov5\paper_data\Annotations\%s.xml' % (image_id), encoding='UTF-8')

     out_file = open(r'E:\detect\yolov5\paper_data\labels\%s.txt' % (image_id), 'w')

     tree = ET.parse(in_file)

     root = tree.getroot()

     size = root.find('size')

     w = int(size.find('width').text)

     h = int(size.find('height').text)

     for obj in root.iter('object'):

     difficult = obj.find('difficult').text

 #        difficult = obj.find('Difficult').text

     cls = obj.find('name').text

     if cls not in classes or int(difficult) == 1:

         continue

     cls_id = classes.index(cls)

     xmlbox = obj.find('bndbox')

     b = (float(xmlbox.find('xmin').text), float(xmlbox.find('xmax').text), float(xmlbox.find('ymin').text),

          float(xmlbox.find('ymax').text))

     b1, b2, b3, b4 = b

     # 标注越界修正

     if b2 > w:

         b2 = w

     if b4 > h:

         b4 = h

     b = (b1, b2, b3, b4)

     bb = convert((w, h), b)

     out_file.write(str(cls_id) + " " + " ".join([str(a) for a in bb]) + '\n')



 wd = getcwd()

 for image_set in sets:

     if not os.path.exists(r'E:\detect\yolov5\paper_data\labels'):

     os.makedirs(r'E:\detect\yolov5\paper_data\labels')

     image_ids = open(r'E:\detect\yolov5\paper_data\ImageSets\Main\%s.txt' % (image_set)).read().strip().split()

     list_file = open(r'E:\detect\yolov5\paper_data\%s.txt' % (image_set), 'w')

     for image_id in image_ids:

     list_file.write(abs_path + '\images\%s.jpg\n' % (image_id))

     convert_annotation(image_id)

     list_file.close()
