lio-sam运行过程及遇到的问题

阅读量:

使用lio-sam建图,以及遇到的问题

一、catkin_make出错/usr/bin/ld: 找不到 -lBoost::timer

复制代码
 /usr/bin/ld: 找不到 -lBoost::timer


 collect2: error: ld returned 1 exit status

 LIO-SAM_based_relocalization-master/CMakeFiles/lio_sam_imuPreintegration.dir/build.make:759: recipe for target '/home/robot/robot_ws/devel/lib/lio_sam/lio_sam_imuPreintegration' failed

 make[2]: *** [/home/robot/robot_ws/devel/lib/lio_sam/lio_sam_imuPreintegration] Error 1

 CMakeFiles/Makefile2:2991: recipe for target 'LIO-SAM_based_relocalization-master/CMakeFiles/lio_sam_imuPreintegration.dir/all' failed

 make[1]: *** [LIO-SAM_based_relocalization-master/CMakeFiles/lio_sam_imuPreintegration.dir/all] Error 2

 make[1]: *** 正在等待未完成的任务....

解决方法:

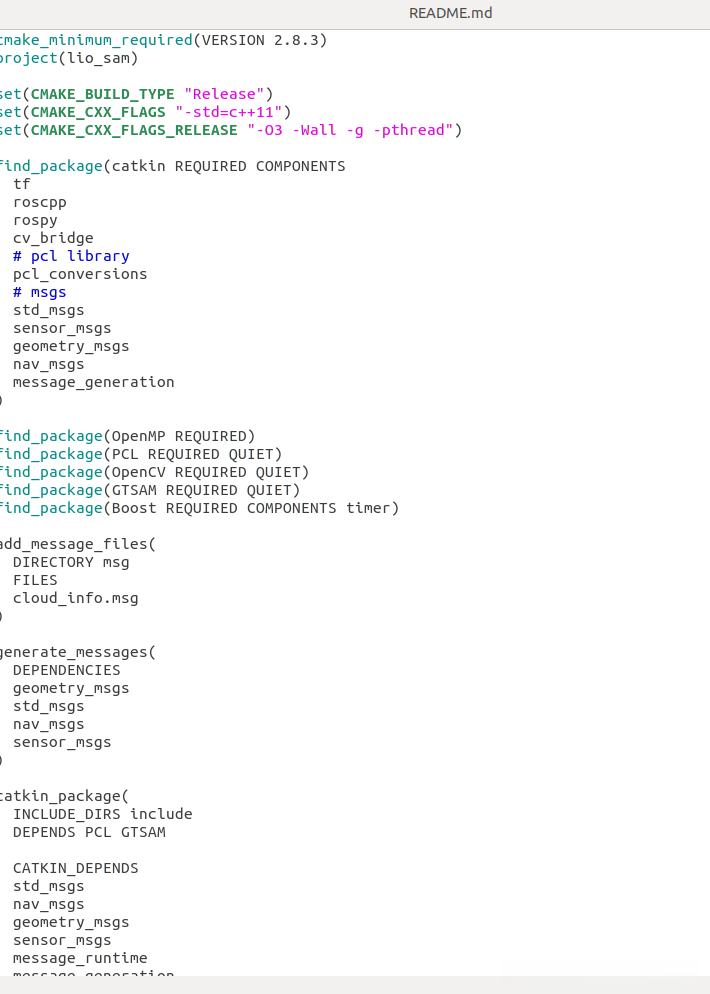

打开lio-sam文件里的CMake.Lists文件,在第27行后添加:

复制代码
    find_package(Boost REQUIRED COMPONENTS timer)

再次catkin_make,顺利编译

二、roslaunch运行

依赖是ros和gtsam,自行安装,运行之前记得source一下配置环境

复制代码
 source devel/setup.bash


 roslaunch lio_sam run.launch

遇到的问题:

解决方法:

复制代码
 sudo apt-get install -y ros-melodic-navigation


 sudo apt-get install -y ros-melodic-robot-localization

 sudo apt-get install -y ros-melodic-robot-state-publisher

无法定位软件包

遇到无法定位软件包的情况

三、运行rosbag

1.

复制代码
    rosbag play your-bag.bag -r 3

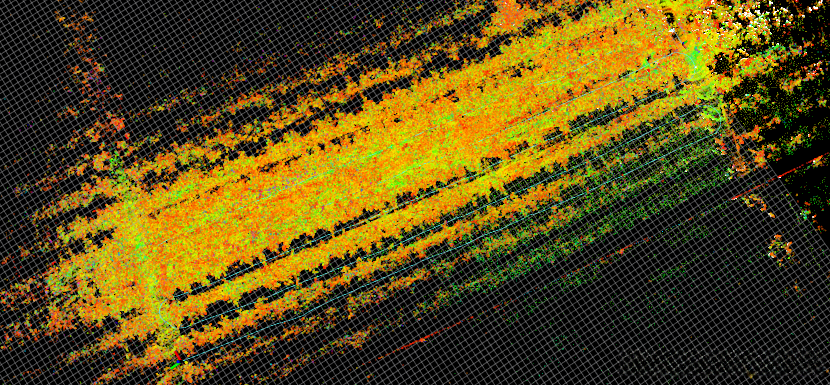

2.保存pcd文件

复制代码
   rosservice call [service] [resolution] [destination]


  rosservice call /lio_sam/save_map 0.2 "/Downloads/LOAM/"
