GPS软件接收机（1）——GPS信号捕获

 samplesPerCode = round(settings.samplingFreq / ...


                   (settings.codeFreqBasis / settings.codeLength));

 % 计算每个C/A码包含多少采样点，“...”表示续行



 signal1 = longSignal(1 : samplesPerCode);

 signal2 = longSignal(samplesPerCode+1 : 2*samplesPerCode);

 %取相邻的两个信号，信号长度为1ms，采样点数为samplesPerCode



 signal0DC = longSignal - mean(longSignal);

 %去直流



 ts = 1 / settings.samplingFreq;

 %计算采样时间间隔



 phasePoints = (0 : (samplesPerCode-1)) * 2 * pi * ts;

 %计算1ms信号内的载波相位点



 numberOfFrqBins = round(settings.acqSearchBand * 2) + 1;

 %计算频率捕获的个数，500Hz步进 总共2kHz，共41个



 caCodesTable = makeCaTable(settings);

 % makeCaTable函数根据采样频率产生32颗指定卫星的CA码 ，此时为32*samplesPerCode矩阵





 %--- 初始化捕获结果矩阵 -------------------------------



 results     = zeros(numberOfFrqBins, samplesPerCode);

 %一颗卫星的包含搜索频率个数与一个C/A码采样个数的零向量



 % Carrier frequencies of the frequency bins

 %

 frqBins     = zeros(1, numberOfFrqBins);

 %产生一颗卫星的载波偏移初始向量



 %--- Initialize acqResults ------------------------------------------------

 acqResults.carrFreq     = zeros(1, 32);

 %初始化32颗卫星的载波频率



 acqResults.codePhase    = zeros(1, 32);

 % C/A code phases of detected signals



 acqResults.peakMetric   = zeros(1, 32);

 % Correlation peak ratios of the detected signals



 fprintf('(');

 for PRN = settings.acqSatelliteList


 %settings.acqSatelliteList=1:32



     caCodeFreqDom = conj(fft(caCodesTable(PRN, :)));%某颗PRN卫星的CA码采样值的FFT区共轭



     for frqBinIndex = 1:numberOfFrqBins

     %带宽为500Hz的频率遍历



     frqBins(frqBinIndex) = settings.IF - ...

                            (settings.acqSearchBand/2) * 1000 + ...

                            0.5e3 * (frqBinIndex - 1);

     %载波偏移--10kHz—+10kHz 产生numberOfFrqBins个500Hz间隔的中频载波频率





     sinCarr = sin(frqBins(frqBinIndex) * phasePoints);

     cosCarr = cos(frqBins(frqBinIndex) * phasePoints);

  %----产生一个信号周期完整（1ms）的中频载波正弦和余弦信号-------------------------





     %---------- "Remove carrier" from the signal-----------------------

     %-----------------连续的两个1ms中频数据载波剥离----------------------

     I1      = sinCarr .* signal1;

     Q1      = cosCarr .* signal1;

     I2      = sinCarr .* signal2;

     Q2      = cosCarr .* signal2;



     %--- Convert the baseband signal to frequency domain ------

     %--------载波剥离后的1ms数据做FFT---------------------------

     IQfreqDom1 = fft(I1 + j*Q1);

     IQfreqDom2 = fft(I2 + j*Q2);



     convCodeIQ1 = IQfreqDom1 .* caCodeFreqDom;%改为转置

     convCodeIQ2 = IQfreqDom2 .* caCodeFreqDom;%改为转置

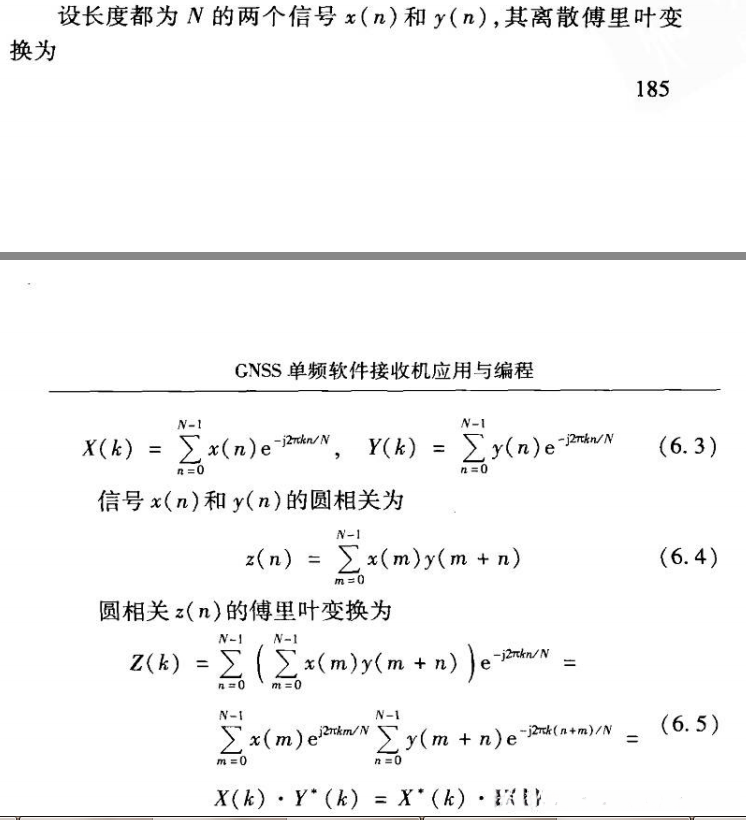

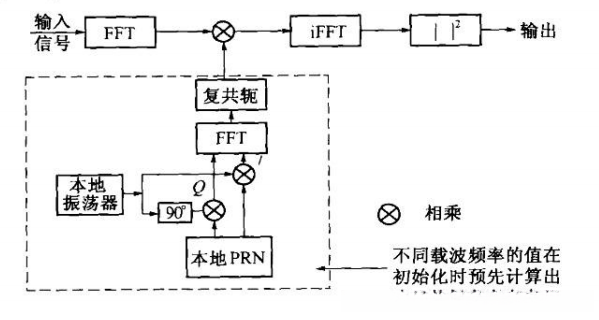

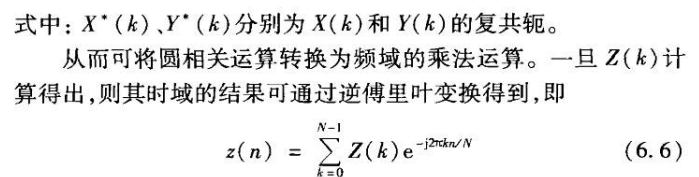

    %频域共轭相乘，时域卷积判断最大值



     acqRes1 = abs(ifft(convCodeIQ1)) .^ 2;

     acqRes2 = abs(ifft(convCodeIQ2)) .^ 2;

    %傅里叶反变化获得C/A码的相关值



     %--- Check which msec had the greater power and save that, will

     %"blend" 1st and 2nd msec but will correct data bit issues

     %寻找卷积相关最大值，复现码的相位值 完成每个频率域的最大值搜索

     %连续的两个1ms数据为了防止数据位的翻转对于相关值的影响

     %形成frqBinIndex*samplesPerCode的矩阵

     if (max(acqRes1) > max(acqRes2))

         results(frqBinIndex, :) = acqRes1; %将获得的相关值赋给results矩阵的第

     else

         results(frqBinIndex, :) = acqRes2;

     end



     end

 %% Look for correlation peaks in the results ==============================


     % Find the highest peak and compare it to the second highest peak

     % The second peak is chosen not closer than 1 chip to the highest peak

     %将第一主峰与第二主峰进行比较，当第二主峰远离最高主峰超过一个码片的话，则作为第二主峰



     %--- 选择最大相关值与载波频率 --------------

     [peakSize frequencyBinIndex] = max(max(results, [], 2));

     % 获取最大相关值与最大相关值所对应的频率搜索序号



     %--- Find code phase of the same correlation peak ---------------------

     [peakSize codePhase] = max(max(results));

     %获取最大相关值与最大相关值所对应的码相位序号



     %--- 获取与最大峰超过一个码片的次最大峰 ----

     samplesPerCodeChip   = round(settings.samplingFreq / settings.codeFreqBasis);

      %每个码片的采样值个数



     excludeRangeIndex1 = codePhase - samplesPerCodeChip;

     excludeRangeIndex2 = codePhase + samplesPerCodeChip;

     % 求与最大峰距离为一个码片的区域边界



     %--- Correct C/A code phase exclude range if the range includes array

     %boundaries   如果范围包括边沿的时候调整码相位

     if excludeRangeIndex1 < 2

     codePhaseRange = excludeRangeIndex2 : ...

                      (samplesPerCode + excludeRangeIndex1);



     elseif excludeRangeIndex2 >= samplesPerCode

     codePhaseRange = (excludeRangeIndex2 - samplesPerCode) : ...

                      excludeRangeIndex1;

     else

     codePhaseRange = [1:excludeRangeIndex1, ...

                       excludeRangeIndex2 : samplesPerCode];

     end

 %确定寻找次最大峰的搜索区域



     secondPeakSize = max(results(frequencyBinIndex, codePhaseRange));

    %在当前已经搜索到的多普勒频率下的codePhaseRange范围内寻找次大值



     %--- Store result -----------------------------------------------------

     acqResults.peakMetric(PRN) = peakSize/secondPeakSize;

     %存储相关值最大值与次大值的比值 每一颗卫星均做记录





     if (peakSize/secondPeakSize) > settings.acqThreshold

   % 如果该结果大于设定的阈值，则确认捕获到信号



     fprintf('%02d ', PRN);

     %输出捕获到的卫星编号



     caCode = generateCAcode(PRN);%确定已经捕获到的CA码



 %生成10ms长的捕获C/A码序列，并用10ms的C/A码对载波信号进行剥离

     codeValueIndex = floor((ts * (1:10*samplesPerCode)) / ...

                            (1/settings.codeFreqBasis));

     %10ms内可采样的码片数量



     longCaCode = caCode((rem(codeValueIndex, 1023) + 1));

     %模拟信号采样，使得本地C/A数据格式与捕获信号保持一致



     xCarrier = ...

         signal0DC(codePhase:(codePhase + 10*samplesPerCode-1)) ...

         .* longCaCode;

     %用10ms的码相位对捕获信号进行码剥离



     %--- Find the next highest power of two and increase by 8x --------

     fftNumPts = 8*(2^(nextpow2(length(xCarrier))));

      %将点数转化为2的幂次整数以便使用fft（否则为DFT，运算时间增加），且将FFT的频率分辨率提高8倍



     fftxc = abs(fft(xCarrier, fftNumPts));

 %fftNumPts超过xCarrier长度，补0会提高频率分辨率，见解释：



     uniqFftPts = ceil((fftNumPts + 1) / 2);

 %由于频率谱的对称性，选择一半频谱即可估计载波频率值



 [fftMax, fftMaxIndex] = max(fftxc(5 : uniqFftPts-5)); %返回最大频率值与相对应的序列值，5的含义不太明确



     fftFreqBins = (0 : uniqFftPts-1) * settings.samplingFreq/fftNumPts;

 %采样频率各个点所对应的频率



     %--- Save properties of the detected satellite signal -------------

     acqResults.carrFreq(PRN)  = fftFreqBins(fftMaxIndex);%捕获阶段估计到的载波频率

     acqResults.codePhase(PRN) = codePhase;%捕获阶段估计到码相位



     else

     %--- No signal with this PRN --------------------------------------

     fprintf('. ');

     end   % if (peakSize/secondPeakSize) > settings.acqThreshold



 end    % for PRN = satelliteList



 %=== Acquisition is over ==================================================

 fprintf(')\n');

 save( 'acqResults');

    caCode = generateCAcode(PRN);%确定已经捕获到的CA码




 %生成10ms长的捕获C/A码序列，并用10ms的C/A码对载波信号进行剥离

     codeValueIndex = floor((ts * (1:10*samplesPerCode)) / ...

                            (1/settings.codeFreqBasis));

     %10ms内可采样的码片数量



     longCaCode = caCode((rem(codeValueIndex, 1023) + 1));

     %模拟信号采样，使得本地C/A数据格式与捕获信号保持一致



     xCarrier = ...

         signal0DC(codePhase:(codePhase + 10*samplesPerCode-1)) ...

         .* longCaCode;

     %用10ms的码相位对捕获信号进行码剥离



     %--- Find the next highest power of two and increase by 8x --------

     fftNumPts = 8*(2^(nextpow2(length(xCarrier))));

      %将点数转化为2的幂次整数以便使用fft（否则为DFT，运算时间增加），且将FFT的频率分辨率提高8倍



     fftxc = abs(fft(xCarrier, fftNumPts));

 %fftNumPts超过xCarrier长度，补0会提高频率分辨率，见解释：



     uniqFftPts = ceil((fftNumPts + 1) / 2);

 %由于频率谱的对称性，选择一半频谱即可估计载波频率值



 [fftMax, fftMaxIndex] = max(fftxc(5 : uniqFftPts-5)); %返回最大频率值与相对应的序列值，5的含义不太明确



     fftFreqBins = (0 : uniqFftPts-1) * settings.samplingFreq/fftNumPts;

 %采样频率各个点所对应的频率



     %--- Save properties of the detected satellite signal -------------

     acqResults.carrFreq(PRN)  = fftFreqBins(fftMaxIndex);%捕获阶段估计到的载波频率

     acqResults.codePhase(PRN) = codePhase;%捕获阶段估计到码相位



     else

     %--- No signal with this PRN --------------------------------------

     fprintf('. ');

     end   % if (peakSize/secondPeakSize) > settings.acqThreshold



 end    % for PRN = satelliteList



 %=== Acquisition is over ==================================================

 fprintf(')\n');

 save( 'acqResults');
